2005 MERCEDES-BENZ SLR brake light

ContentsSafety and Security........................... 60
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 69
Children in the vehicle .................... 72
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 81
ESP ................................................. 81
SBC brake system .......................... 84
Performance enhancement system ..... 87
Airbrake.......................................... 87
Anti-theft systems................................ 90
Immobilizer..................................... 90
Anti-theft alarm system .................. 90
Tow-away alarm ............................. 91
Controls in detail............................... 94
Locking and unlocking ......................... 96
SmartKey ....................................... 96
Opening the doors ....................... 100
Opening the trunk ........................ 101

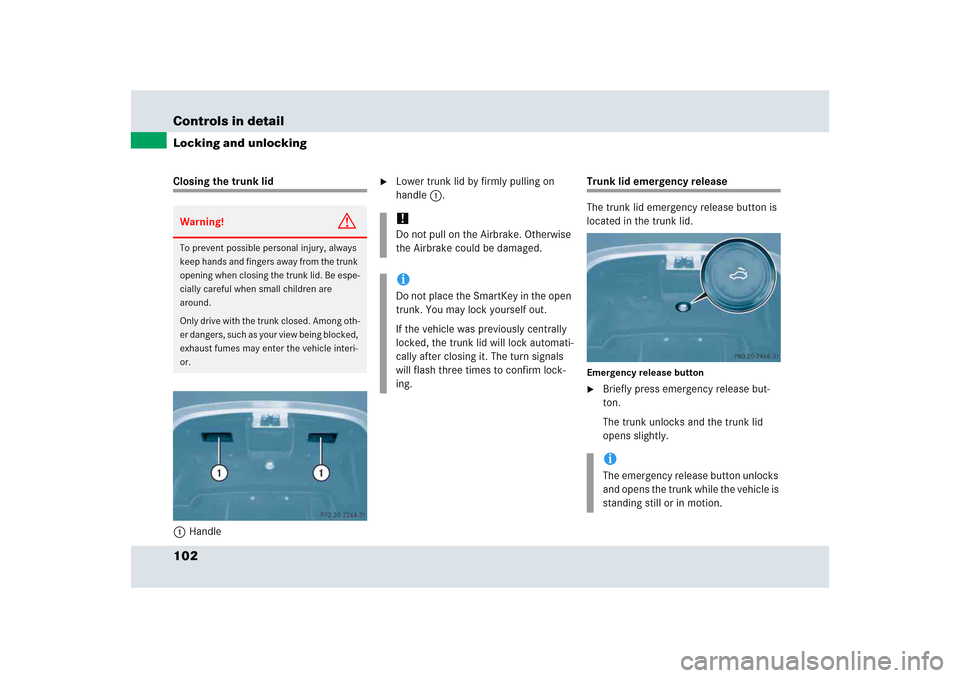

Closing the trunk lid ..................... 102
Trunk lid emergency release ........ 102
Automatic locking ........................ 103
Locking and unlocking from
the inside ..................................... 103
Lighting.............................................. 105
Exterior lamp switch..................... 105
Combination switch ..................... 109
Hazard warning flasher ................ 110
Interior lighting............................. 111
Trunk lamp ................................... 112
Courtesy lighting .......................... 112
Instrument cluster ............................. 113
Instrument cluster illumination .... 113
Coolant temperature gauge ......... 114
Resetting the trip odometer ......... 115
Tachometer .................................. 115
Outside temperature indicator ..... 115Control system .................................. 117
Multifunction display.................... 117
Multifunction steering wheel........ 118
Menus .......................................... 120
Standard display menu ................ 122
AUDIO menu ................................ 122
Vehicle status message memory . 124
Settings menu .............................. 125
Trip computer menu..................... 136
TEL menu ..................................... 138
Audio system ..................................... 143
Audio and telephone, operation ... 143
Operating safety .......................... 143
Location of the audio system ....... 143
Operating and display elements... 144
Button and soft key operation...... 146
Operation ..................................... 146
Radio operation ........................... 149
Cassette operation ...................... 152
CD changer operation .................. 156
Telephone operation .................... 160

Contents
Automatic transmission ..................... 167
One-touch gearshifting................. 168
Gear ranges ................................. 170
Gear selector lever positions ....... 171
Shift program mode selector
switch .......................................... 173
Driving tips ................................... 173
Steering wheel gearshift control .. 174
Manual gearshift program ............ 175
Emergency operation
(Limp Home Mode) ...................... 177
Good visibility .................................... 178
Headlamp cleaning system .......... 178
Rear view mirrors ......................... 179
Sun visors .................................... 180
Rear window defroster ................. 181
Automatic climate control ................. 182
Adjusting the temperature ........... 185
Adjusting air volume .................... 186
Adjusting air distribution .............. 187
Maximum cooling MAXCOOL ....... 187
Defrosting the windshield ............ 188
Air recirculation mode.................. 188
Residual heat and ventilation ....... 190Deactivating the automatic
climate control system ................. 191
Air conditioning............................. 192
Power windows .................................. 193
Opening and closing the windows. 193
Synchronizing power windows ...... 196
Driving systems .................................. 197
Cruise control ............................... 197
Useful features ................................... 200
Map pocket in passenger
footwell ......................................... 200
Storage compartments ................. 200
Parcel net in trunk ........................ 201
Ashtray and cigarette lighter......... 202
12-V socket .................................. 203
Telephone ..................................... 203
Tele Aid ......................................... 207
Garage door opener ...................... 215
Floormats...................................... 221
Dust cover .................................... 222
Roof and trunk lid racks ................ 225
Operation.......................................... 226
The first 1000 miles (1500 km) .......... 228
Driving instructions ............................ 229
Drive sensibly – save fuel ............. 229
Drinking and driving...................... 229
Pedals ........................................... 229
Power assistance .......................... 230
Brakes .......................................... 230
Driving off ..................................... 232
Parking ......................................... 232
Tires.............................................. 233
Hydroplaning ................................ 234
Tire traction .................................. 234
Tire speed rating ........................... 234
Winter driving instructions ............ 235
Standing water ............................. 236
Passenger compartment............... 236
Driving abroad .............................. 236
Control and operation of radio
transmitters .................................. 237
Catalytic converter ....................... 237
Emission control ........................... 238
Coolant temperature .................... 239

50 Getting startedDriving
Pull lever2 upwards slightly, press re-
lease knob1 and move the lever
down to the stop.
The warning lamp; (USA only)
or3 (Canada only) in the
instrument cluster goes out.
Driving

Depress the brake pedal.

Place the gear selector lever in
positionD orR.

Release the brake pedal.

Carefully depress the accelerator
pedal.
Once the vehicle is in motion, the automat-
ic central locking system engages.
After a cold start, the transmission engag-
es at a higher revolution. This allows the
catalytic converter to reach its operating
temperature earlier.
Warning!
G
It is dangerous to shift the gear selector le-
ver out ofP orN if the engine speed is high-
er than idle speed. If your foot is not firmly
on the brake pedal, the vehicle could accel-
erate quickly forward or in reverse. You
could lose control of the vehicle and hit
someone or something. Only shift into gear
when the engine is idling normally and when
your right foot is firmly on the brake pedal.
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.!In order to avoid damage to the trans-
mission:

Wait for the gear selection process
to complete before setting the vehi-
cle in motion.


Place the gear selector lever in
positionR or P only when the vehi-
cle is stopped.
!If you hear a warning signal when driv-
ing off, you have forgotten to release
the parking brake.
Release the parking brake.!Do not run cold engine at high engine
speed. Running a cold engine at high
engine speed may shorten the service
life of the engine.

51 Getting started
Driving
Switching on the headlamps
Low beam headlamps
The exterior lamp switch is located on the
dashboard to the left of the steering wheel.Exterior lamp switch1Lights off
2Low beam headlamps on
Turn switch toB.
For more information on headlamps, see
“Lighting” (
page 105).High beam
The combination switch is located on the
left of the steering column.
Combination switch1High beam
2High beam flasher
Push combination switch in direction of
arrow1.
The high beam indicatorA in the
instrument cluster comes on.
For more information on high beam, see
“Combination switch” (
page 109).
!Simultaneously depressing the acceler-
ator pedal and applying the brake re-
duces engine performance and causes
premature brake and drivetrain wear.iYou can open a locked door from the
inside. Open door only when conditions
are safe to do so.
You can deactivate the automatic lock-
ing using the control system
(page 135).

57 Getting started
Parking and locking
Switching off headlamps
Turn the exterior lamp switch
toM(
page 51).
For more information on headlamps, see
“Lighting” (
page 105).
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Children
could release the parking brake and/or
move the gear selector lever from
positionP, either of which could result in an
accident and/or serious injury.
Warning!
G
Getting out of your vehicle with the gear se-
lector lever not fully engaged in positionP is
dangerous. Also, when parked on an incline,
positionP alone may not prevent your vehi-
cle from moving, possibly hitting people or
objects.
Always set the parking brake in addition to
shifting to positionP (
page 48).
When parked on an incline, turn front wheels
towards the road curb.

79 Safety and Security
Driving safety systems
Driving safety systems
In this section you will find information on
the following driving safety systems:

ABS (A
ntilock B
rake S
ystem)


BAS (B
rake A
ssist S
ystem)


ESP (E
lectronic S
tability P
rogram)


SBC (S
ensotronic B
rake C
ontrol)
ABS
The Antilock Brake System (ABS) regulates
the brake pressure so that the wheels do
not lock during braking. This allows you to
maintain the ability to steer your vehicle.
The ABS is functional above a speed of ap-
proximately 5 mph (8 km/h) independent
of road surface conditions.
On slippery road surfaces, the ABS will re-
spond even to light brake pressure.
iIn winter operation, the maximum ef-
fectiveness of the ABS, the BAS, the
ESP, and the SBC is only achieved with
winter tires (M + S tires) or snow chains
as required.
Warning!
G
The following factors increase the risk of ac-
cidents:

Excessive speed, especially in turns


Wet and slippery road surfaces


Following another vehicle too closely
The ABS, BAS, ESP, and SBC cannot reduce
this risk.
Always adjust your driving style to the pre-
vailing road and weather conditions.
Warning!
G
Do not pump the brake pedal. Use firm,
steady brake pedal pressure instead. Pump-
ing the brake pedal defeats the purpose of
the ABS and significantly reduces braking
effectiveness.

102 Controls in detailLocking and unlockingClosing the trunk lid
1Handle

Lower trunk lid by firmly pulling on
handle1.
Trunk lid emergency release
The trunk lid emergency release button is
located in the trunk lid.Emergency release button
Briefly press emergency release but-
ton.
The trunk unlocks and the trunk lid
opens slightly.
Warning!
G
To prevent possible personal injury, always
keep hands and fingers away from the trunk
opening when closing the trunk lid. Be espe-
cially careful when small children are
around.
Only drive with the trunk closed. Among oth-
er dangers, such as your view being blocked,
exhaust fumes may enter the vehicle interi-
or.
!Do not pull on the Airbrake. Otherwise
the Airbrake could be damaged.iDo not place the SmartKey in the open
trunk. You may lock yourself out.
If the vehicle was previously centrally
locked, the trunk lid will lock automati-
cally after closing it. The turn signals
will flash three times to confirm lock-
ing.
iThe emergency release button unlocks
and opens the trunk while the vehicle is
standing still or in motion.

174 Controls in detailAutomatic transmissionStopping
When you stop briefly, e.g. at traffic lights:
Leave the transmission in gear.

Hold the vehicle with the brake.
When you stop longer with the engine
idling or on an uphill gradient:

Move the gear selector lever to
positionP.

Set the parking brake.Maneuvering
When you maneuver in tight areas,
e.g. when pulling into a parking space:

Control the vehicle speed by gradually
releasing the brakes.

Accelerate gently.

Never abruptly step on the accelerator.
Working on the vehicle
Steering wheel gearshift control
You can change the gears manually on the
steering wheel or by using the gear
selector lever (
page 168).
The steering wheel gearshift buttons are
located on the left and right side of the
steering wheel.
1Left button: downshift
2Right button: upshift
Warning!
G
When working on the vehicle, set the
parking brake and move gear selector lever
to positionP. Otherwise the vehicle could
roll away.
