2005 MERCEDES-BENZ SLR air conditioning

Contents
Automatic transmission ..................... 167
One-touch gearshifting................. 168
Gear ranges ................................. 170
Gear selector lever positions ....... 171
Shift program mode selector
switch .......................................... 173
Driving tips ................................... 173
Steering wheel gearshift control .. 174
Manual gearshift program ............ 175
Emergency operation
(Limp Home Mode) ...................... 177
Good visibility .................................... 178
Headlamp cleaning system .......... 178
Rear view mirrors ......................... 179
Sun visors .................................... 180
Rear window defroster ................. 181
Automatic climate control ................. 182
Adjusting the temperature ........... 185
Adjusting air volume .................... 186
Adjusting air distribution .............. 187
Maximum cooling MAXCOOL ....... 187
Defrosting the windshield ............ 188
Air recirculation mode.................. 188
Residual heat and ventilation ....... 190Deactivating the automatic
climate control system ................. 191
Air conditioning............................. 192
Power windows .................................. 193
Opening and closing the windows. 193
Synchronizing power windows ...... 196
Driving systems .................................. 197
Cruise control ............................... 197
Useful features ................................... 200
Map pocket in passenger
footwell ......................................... 200
Storage compartments ................. 200
Parcel net in trunk ........................ 201
Ashtray and cigarette lighter......... 202
12-V socket .................................. 203
Telephone ..................................... 203
Tele Aid ......................................... 207
Garage door opener ...................... 215
Floormats...................................... 221
Dust cover .................................... 222
Roof and trunk lid racks ................ 225
Operation.......................................... 226
The first 1000 miles (1500 km) .......... 228
Driving instructions ............................ 229
Drive sensibly – save fuel ............. 229
Drinking and driving...................... 229
Pedals ........................................... 229
Power assistance .......................... 230
Brakes .......................................... 230
Driving off ..................................... 232
Parking ......................................... 232
Tires.............................................. 233
Hydroplaning ................................ 234
Tire traction .................................. 234
Tire speed rating ........................... 234
Winter driving instructions ............ 235
Standing water ............................. 236
Passenger compartment............... 236
Driving abroad .............................. 236
Control and operation of radio
transmitters .................................. 237
Catalytic converter ....................... 237
Emission control ........................... 238
Coolant temperature .................... 239

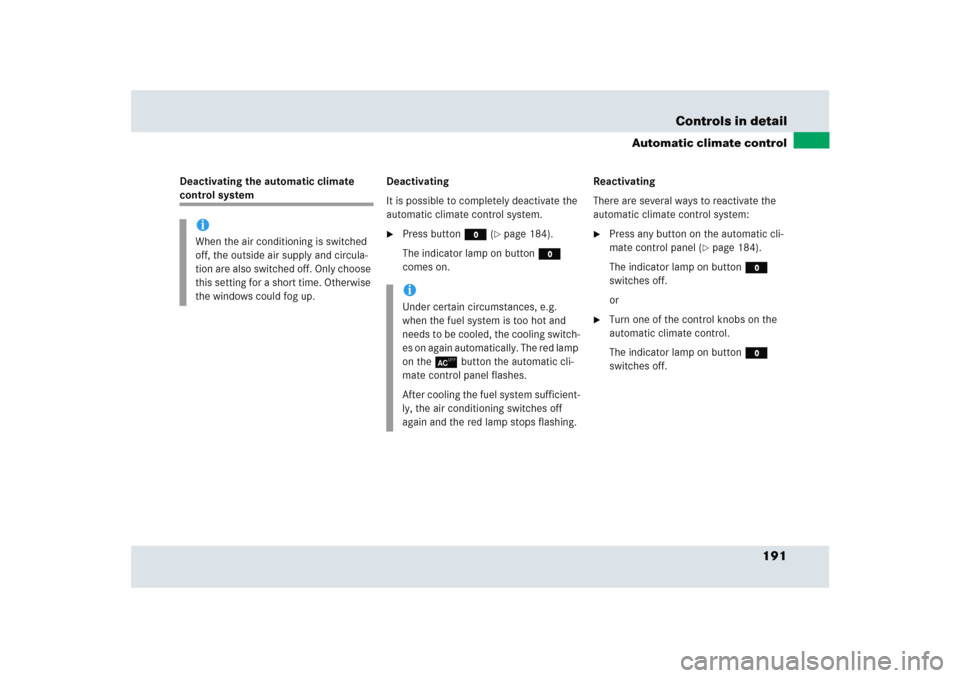

191 Controls in detail
Automatic climate control
Deactivating the automatic climate control systemDeactivating
It is possible to completely deactivate the
automatic climate control system.

Press button M (
page 184).
The indicator lamp on button M
comes on.Reactivating
There are several ways to reactivate the
automatic climate control system:

Press any button on the automatic cli-
mate control panel (
page 184).
The indicator lamp on button M
switches off.
or

Turn one of the control knobs on the
automatic climate control.
The indicator lamp on button M
switches off.
iWhen the air conditioning is switched
off, the outside air supply and circula-
tion are also switched off. Only choose
this setting for a short time. Otherwise
the windows could fog up.
iUnder certain circumstances, e.g.
when the fuel system is too hot and
needs to be cooled, the cooling switch-
es on again automatically. The red lamp
on the ± button the automatic cli-
mate control panel flashes.
After cooling the fuel system sufficient-
ly, the air conditioning switches off
again and the red lamp stops flashing.

192 Controls in detailAutomatic climate controlAir conditioning
The air conditioning is operational while
the engine is running and cools the interior
air to the temperature set by the operator.Deactivating
It is possible to deactivate the air condi-
tioning (cooling) function of the automatic
climate control system. The air in the vehi-
cle will then no longer be cooled or dehu-
midified.

Press ± button (
page 184).
The indicator lamp on the ±
button comes on.Activating
Moist air can fog up the windows. You can
dehumidify the air with the air condition-
ing.

Press ± button again (
page 184).
The indicator lamp on the ± button
goes out.
The air conditioning uses the refrigerant
R134A. This refrigerant is free of CFCs
which are harmful to the ozone layer.
iCondensation may drip out from under-
neath the vehicle. This is normal and
not an indication of a malfunction.
iUnder certain circumstances, e.g.
when the fuel system is too hot and
needs to be cooled, the cooling switch-
es on again automatically. The red lamp
on the ± button the automatic cli-
mate control panel flashes.
After cooling the fuel system sufficient-
ly, the air conditioning switches off
again and the red lamp stops flashing.
!If you press the ± button on the au-
tomatic climate control panel and it
starts to flash, this indicates that the
air conditioning is losing refrigerant.
The compressor has turned off. The air
conditioning cannot be turned on
again.
Have the air conditioning checked at
the nearest authorized Mercedes-Benz
Center.

278 OperationTires and wheelsTire ply material
1Plies in sidewall
2Plies under tread
This marking tells you about the type of
cord and number of plies in the sidewall
and under the tread.
Tire and loading terminology
Accessory weight
The combined weight (in excess of those
standard items which may be replaced) of
automatic transmission, power steering,
power brakes, power windows, power
seats, radio, and heater, to the extent that
these items are available as
factory-installed equipment (whether
installed or not).
Air pressure
The amount of air inside the tire pressing
outward on each square inch of the tire.
Air pressure is expressed in pounds per
square inch (psi), or kilopascal (kPa) or
bars.
Aspect ratio
Dimensional relationship between tire
section height and section width
expressed in percentage.Bar
Another metric unit for air pressure. There
are 14.5038 pounds per square inch (psi)
to 1 bar; there are 100 kilopascals (kPa)
to 1 bar.
Bead
The tire bead contains steel wires wrapped
by steel cords that hold the tire onto the
rim.
Cold tire inflation pressure
Tire inflation pressure when your vehicle
has been sitting for at least three hours or
driven no more than one mile (1.6 km).
Curb weight
The weight of a motor vehicle with stan-
dard equipment including the maximum
capacity of fuel, oil, and coolant, and, if so
equipped, air conditioning and additional
optional equipment, but without passen-
gers and cargo.
iFor illustration purposes only. Actual
data on tires is specific to each vehicle
and may vary from data shown in above
illustration.

367 Technical data

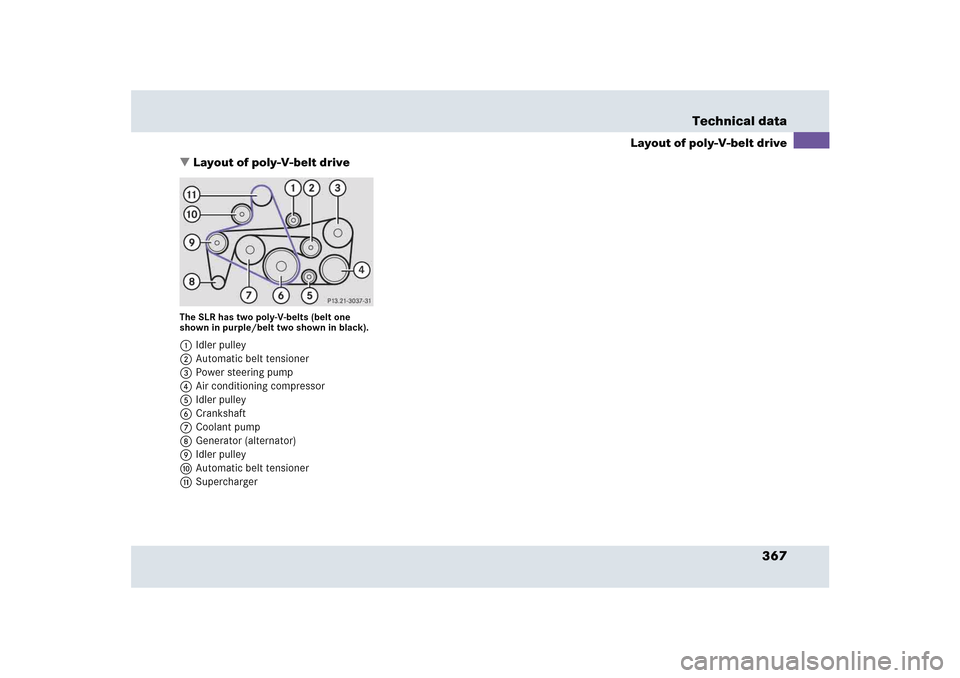

Layout of poly-V-belt drive
Layout of poly-V-belt drive
The SLR has two poly-V-belts (belt one
shown in purple/belt two shown in black).1Idler pulley
2Automatic belt tensioner
3Power steering pump
4Air conditioning compressor
5Idler pulley
6Crankshaft
7Coolant pump
8Generator (alternator)
9Idler pulley
aAutomatic belt tensioner
bSupercharger

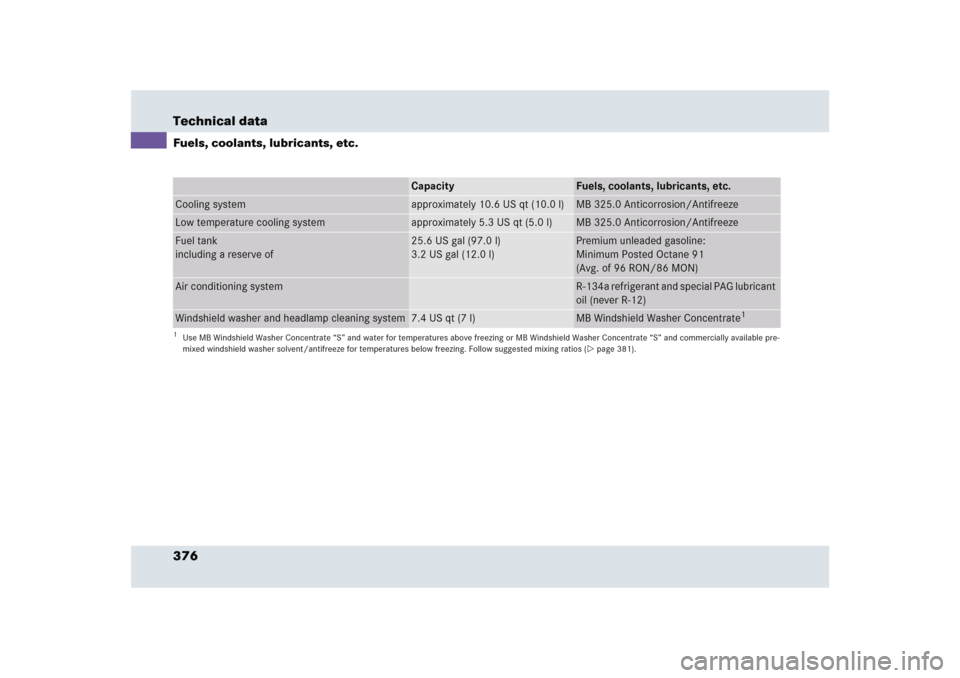

376 Technical dataFuels, coolants, lubricants, etc.
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
approximately 10.6 US qt (10.0 l)
MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
approximately 5.3 US qt (5.0 l)
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
including a reserve of
25.6 US gal (97.0 l)
3.2 US gal (12.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Air conditioning system
R-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer and headlamp cleaning system
7.4 US qt (7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios (page 381).

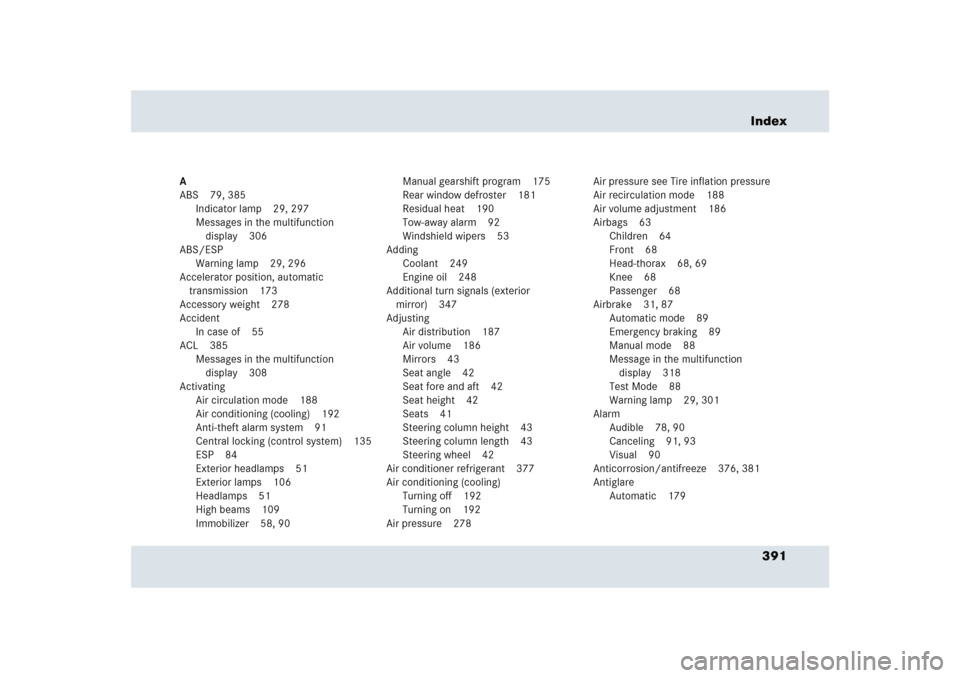

391 Index
A
ABS 79, 385
Indicator lamp 29, 297
Messages in the multifunction
display 306
ABS/ESP
Warning lamp 29, 296
Accelerator position, automatic
transmission 173
Accessory weight 278
Accident
In case of 55
ACL 385
Messages in the multifunction
display 308
Activating
Air circulation mode 188
Air conditioning (cooling) 192
Anti-theft alarm system 91
Central locking (control system) 135
ESP 84
Exterior headlamps 51
Exterior lamps 106
Headlamps 51
High beams 109
Immobilizer 58, 90Manual gearshift program 175
Rear window defroster 181
Residual heat 190
Tow-away alarm 92
Windshield wipers 53
Adding
Coolant 249
Engine oil 248
Additional turn signals (exterior
mirror) 347
Adjusting
Air distribution 187
Air volume 186
Mirrors 43
Seat angle 42
Seat fore and aft 42
Seat height 42
Seats 41
Steering column height 43
Steering column length 43
Steering wheel 42
Air conditioner refrigerant 377
Air conditioning (cooling)
Turning off 192
Turning on 192
Air pressure 278Air pressure see Tire inflation pressure
Air recirculation mode 188
Air volume adjustment 186
Airbags 63
Children 64
Front 68
Head-thorax 68, 69
Knee 68
Passenger 68
Airbrake 31, 87
Automatic mode 89
Emergency braking 89
Manual mode 88
Message in the multifunction
display 318
Test Mode 88
Warning lamp 29, 301
Alarm
Audible 78, 90
Canceling 91, 93
Visual 90
Anticorrosion/antifreeze 376, 381
Antiglare
Automatic 179

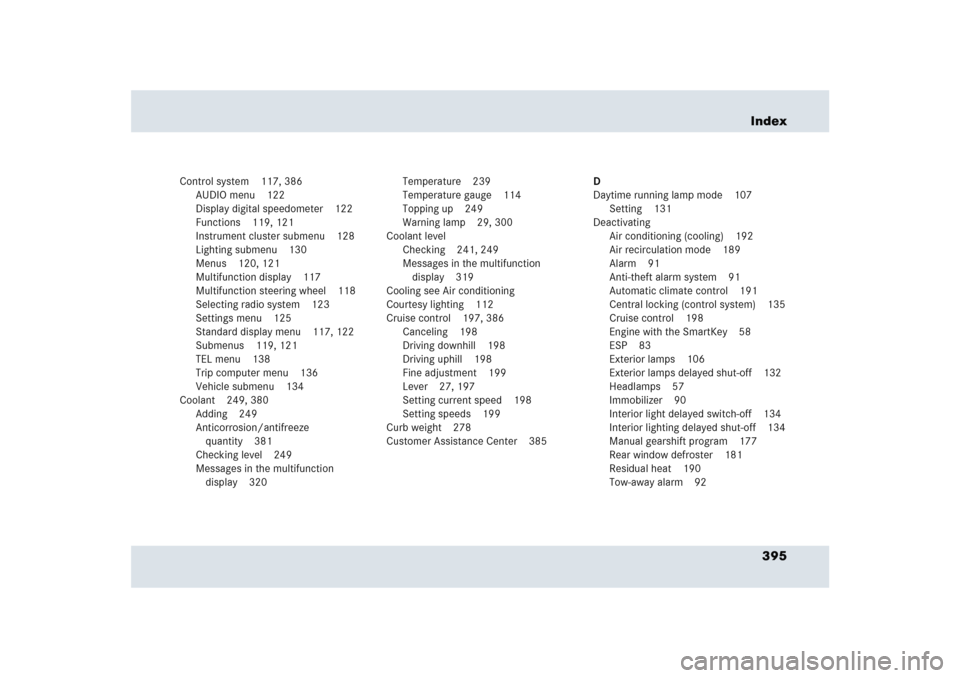

395 Index
Control system 117, 386
AUDIO menu 122
Display digital speedometer 122
Functions 119, 121
Instrument cluster submenu 128
Lighting submenu 130
Menus 120, 121
Multifunction display 117
Multifunction steering wheel 118
Selecting radio system 123
Settings menu 125
Standard display menu 117, 122
Submenus 119, 121
TEL menu 138
Trip computer menu 136
Vehicle submenu 134
Coolant 249, 380
Adding 249
Anticorrosion/antifreeze
quantity 381
Checking level 249
Messages in the multifunction
display 320Temperature 239
Temperature gauge 114
Topping up 249
Warning lamp 29, 300
Coolant level
Checking 241, 249
Messages in the multifunction
display 319
Cooling see Air conditioning
Courtesy lighting 112
Cruise control 197, 386
Canceling 198
Driving downhill 198
Driving uphill 198
Fine adjustment 199
Lever 27, 197
Setting current speed 198
Setting speeds 199
Curb weight 278
Customer Assistance Center 385D
Daytime running lamp mode 107
Setting 131
Deactivating
Air conditioning (cooling) 192
Air recirculation mode 189
Alarm 91
Anti-theft alarm system 91
Automatic climate control 191
Central locking (control system) 135
Cruise control 198
Engine with the SmartKey 58
ESP 83
Exterior lamps 106
Exterior lamps delayed shut-off 132
Headlamps 57
Immobilizer 90
Interior light delayed switch-off 134
Interior lighting delayed shut-off 134
Manual gearshift program 177
Rear window defroster 181
Residual heat 190
Tow-away alarm 92
