2005 MERCEDES-BENZ SLR CD changer

ContentsSafety and Security........................... 60
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 69
Children in the vehicle .................... 72
Panic alarm .......................................... 78
Activating ....................................... 78
Deactivating ................................... 78
Driving safety systems ......................... 79
ABS ................................................ 79
BAS ................................................ 81
ESP ................................................. 81
SBC brake system .......................... 84
Performance enhancement system ..... 87
Airbrake.......................................... 87
Anti-theft systems................................ 90
Immobilizer..................................... 90
Anti-theft alarm system .................. 90
Tow-away alarm ............................. 91
Controls in detail............................... 94
Locking and unlocking ......................... 96
SmartKey ....................................... 96
Opening the doors ....................... 100
Opening the trunk ........................ 101
Closing the trunk lid ..................... 102
Trunk lid emergency release ........ 102
Automatic locking ........................ 103
Locking and unlocking from
the inside ..................................... 103
Lighting.............................................. 105
Exterior lamp switch..................... 105
Combination switch ..................... 109
Hazard warning flasher ................ 110
Interior lighting............................. 111
Trunk lamp ................................... 112
Courtesy lighting .......................... 112
Instrument cluster ............................. 113
Instrument cluster illumination .... 113
Coolant temperature gauge ......... 114
Resetting the trip odometer ......... 115
Tachometer .................................. 115
Outside temperature indicator ..... 115Control system .................................. 117
Multifunction display.................... 117
Multifunction steering wheel........ 118
Menus .......................................... 120
Standard display menu ................ 122
AUDIO menu ................................ 122
Vehicle status message memory . 124
Settings menu .............................. 125
Trip computer menu..................... 136
TEL menu ..................................... 138
Audio system ..................................... 143
Audio and telephone, operation ... 143
Operating safety .......................... 143
Location of the audio system ....... 143
Operating and display elements... 144
Button and soft key operation...... 146
Operation ..................................... 146
Radio operation ........................... 149
Cassette operation ...................... 152
CD changer operation .................. 156
Telephone operation .................... 160

123 Controls in detail
Control system
Selecting radio station
Turn on the radio (
page 146).

Press button è or ÿ repeatedly
until you see the currently tuned sta-
tion in the right display.
1Station frequency
2Wave band setting
3Setting for station selection using
memory

Press buttonk orj repeatedly
until the desired station is found.
The type of search depends on the set-
ting for the station tuning
(page 135):


Memory: the next stored station is
selected (SP)


Station searchOperating the CD player

Turn on the radio and select the CD
player (
page 156).

Press button è or ÿ repeatedly
until the settings for the CD currently
being played are shown in the right dis-
play.
1Current track
2Current CD (for CD changer)

Press button k or j repeatedly
until the desired track is selected.
iYou can only store new stations using
the corresponding feature on the radio
(page 151).
You can also operate the radio in the
usual manner.

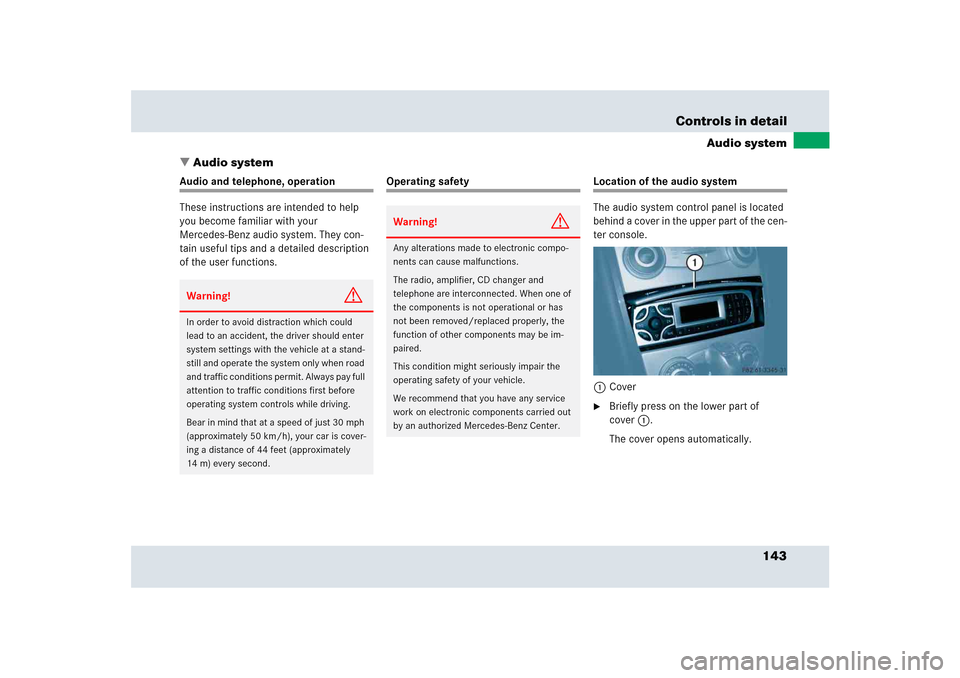

143 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety
Location of the audio system
The audio system control panel is located
behind a cover in the upper part of the cen-
ter console.
1Cover
Briefly press on the lower part of
cover1.
The cover opens automatically.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a stand-
still and operate the system only when road
and traffic conditions permit. Always pay full
attention to traffic conditions first before
operating system controls while driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is cover-
ing a distance of 44 feet (approximately
14 m) every second.
Warning!
G
Any alterations made to electronic compo-
nents can cause malfunctions.
The radio, amplifier, CD changer and
telephone are interconnected. When one of
the components is not operational or has
not been removed/replaced properly, the
function of other components may be im-
paired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.

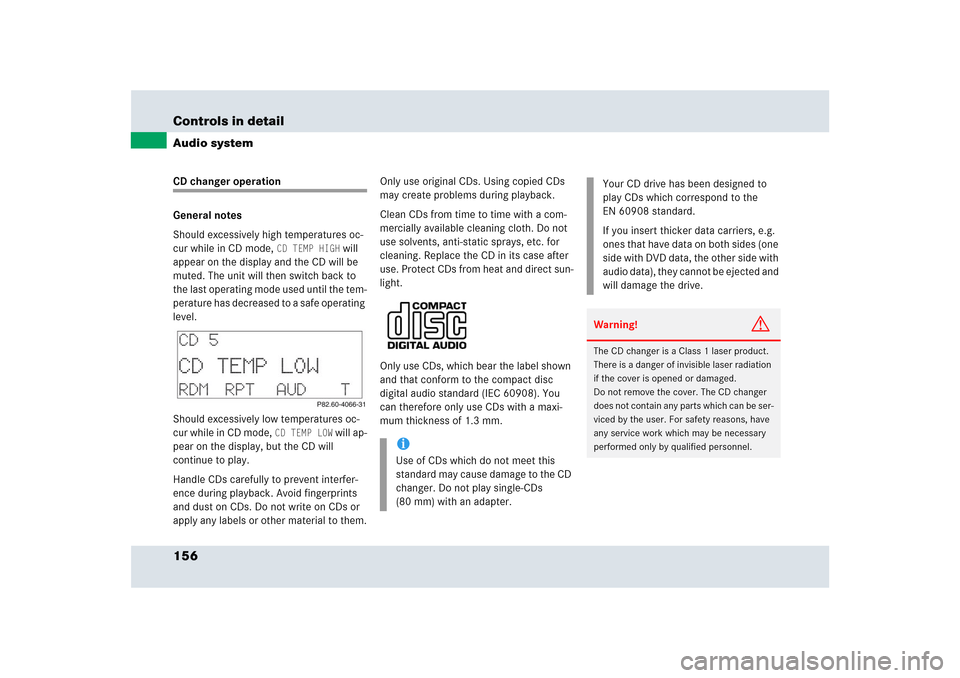

156 Controls in detailAudio systemCD changer operation
General notes
Should excessively high temperatures oc-
cur while in CD mode,
CD TEMP HIGH
will
appear on the display and the CD will be
muted. The unit will then switch back to
the last operating mode used until the tem-
perature has decreased to a safe operating
level.
Should excessively low temperatures oc-
cur while in CD mode,
CD TEMP LOW
will ap-
pear on the display, but the CD will
continue to play.
Handle CDs carefully to prevent interfer-
ence during playback. Avoid fingerprints
and dust on CDs. Do not write on CDs or
apply any labels or other material to them.Only use original CDs. Using copied CDs
may create problems during playback.
Clean CDs from time to time with a com-
mercially available cleaning cloth. Do not
use solvents, anti-static sprays, etc. for
cleaning. Replace the CD in its case after
use. Protect CDs from heat and direct sun-
light.
Only use CDs, which bear the label shown
and that conform to the compact disc
digital audio standard (IEC 60908). You
can therefore only use CDs with a maxi-
mum thickness of 1.3 mm.
iUse of CDs which do not meet this
standard may cause damage to the CD
changer. Do not play single-CDs
(80 mm) with an adapter.
Your CD drive has been designed to
play CDs which correspond to the
EN 60908 standard.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.Warning!
G
The CD changer is a Class 1 laser product.
There is a danger of invisible laser radiation
if the cover is opened or damaged.
Do not remove the cover. The CD changer
does not contain any parts which can be ser-
viced by the user. For safety reasons, have
any service work which may be necessary
performed only by qualified personnel.

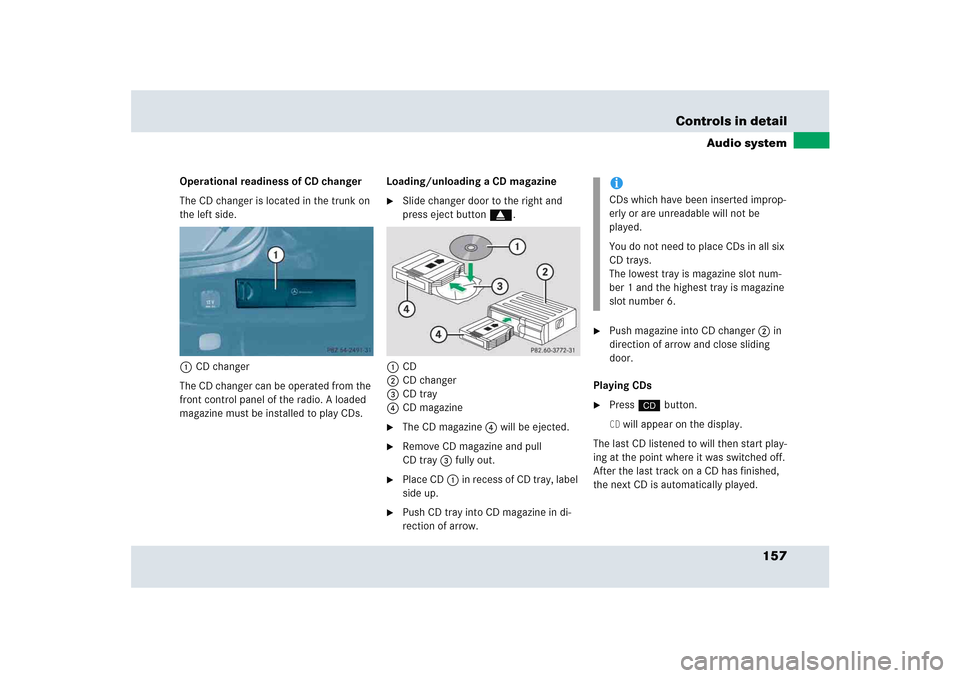

157 Controls in detail
Audio system
Operational readiness of CD changer
The CD changer is located in the trunk on
the left side.
1CD changer
The CD changer can be operated from the
front control panel of the radio. A loaded
magazine must be installed to play CDs.Loading/unloading a CD magazine

Slide changer door to the right and
press eject buttong.
1CD
2CD changer
3CD tray
4CD magazine

The CD magazine4 will be ejected.

Remove CD magazine and pull
CD tray3 fully out.

Place CD1 in recess of CD tray, label
side up.

Push CD tray into CD magazine in di-
rection of arrow.

Push magazine into CD changer2 in
direction of arrow and close sliding
door.
Playing CDs

Pressi button.CD will appear on the display.
The last CD listened to will then start play-
ing at the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.iCDs which have been inserted improp-
erly or are unreadable will not be
played.
You do not need to place CDs in all six
CD trays.
The lowest tray is magazine slot num-
ber 1 and the highest tray is magazine
slot number 6.

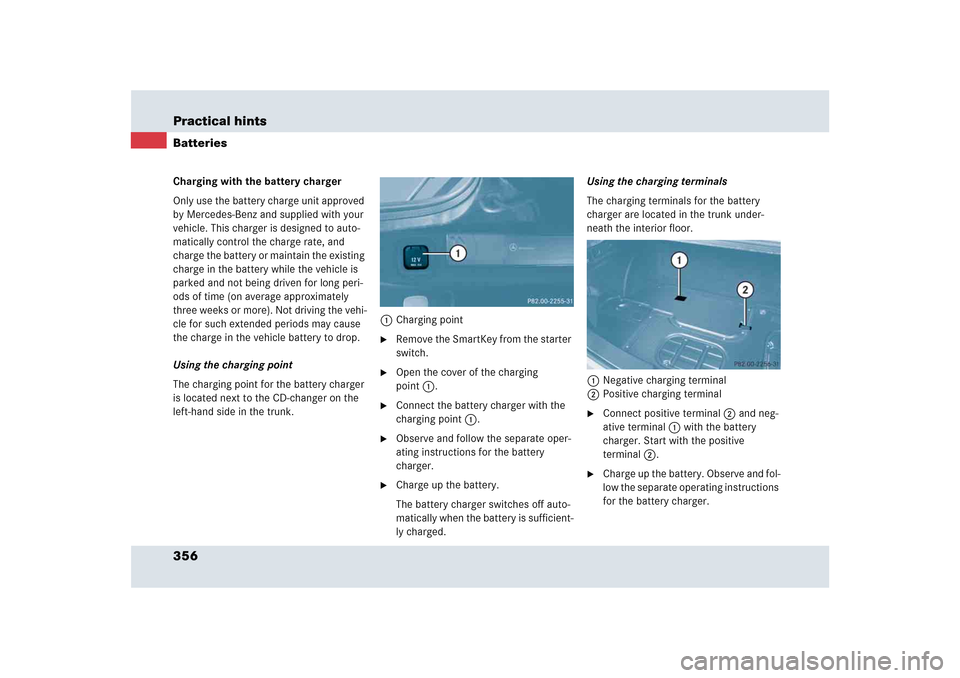

356 Practical hintsBatteriesCharging with the battery charger
Only use the battery charge unit approved
by Mercedes-Benz and supplied with your
vehicle. This charger is designed to auto-
matically control the charge rate, and
charge the battery or maintain the existing
charge in the battery while the vehicle is
parked and not being driven for long peri-
ods of time (on average approximately
three weeks or more). Not driving the vehi-
cle for such extended periods may cause
the charge in the vehicle battery to drop.
Using the charging point
The charging point for the battery charger
is located next to the CD-changer on the
left-hand side in the trunk.1Charging point

Remove the SmartKey from the starter
switch.

Open the cover of the charging
point1.

Connect the battery charger with the
charging point 1.

Observe and follow the separate oper-
ating instructions for the battery
charger.

Charge up the battery.
The battery charger switches off auto-
matically when the battery is sufficient-
ly charged.Using the charging terminals
The charging terminals for the battery
charger are located in the trunk under-
neath the interior floor.
1Negative charging terminal
2Positive charging terminal

Connect positive terminal2 and neg-
ative terminal1 with the battery
charger. Start with the positive
terminal2.

Charge up the battery. Observe and fol-
low the separate operating instructions
for the battery charger.

393 Index
B
BabySmart
TM
Self-test 75
BabySmart
TM airbag deactivation
system 75, 385
BabySmartTM compatible child
seats 385
Back up lamp 347
Bar 278
BAS 79, 81, 385
BAS/ESP
Indicator lamp 296
Batteries, SmartKey
Check lamp 99
Replacing 344
Batteries, vehicle 250
Charging 355
Consumer battery 250, 354
Maintenance 354
Messages in the multifunction
display 310
Starter battery 250
Battery charger 356
Bead 278Bi-Xenon headlamps 385
Body surface 289
Brake fluid 375, 378
Checking 241
Brake lamp
High mounted 347
Brake pads
Messages in the multifunction
display 317
Brake warning lamp 29, 298
Brake/parking lamp 347
Brakes 230
Break-in period 228
Bulbs
Changing 346
Front 347
Messages in the multifunction
display 323
Rear 347
Button
Audio system 146C
CAC 385
CAN system 386
Capacities
Fuels, coolants, lubricants etc. 375
Cargo area see Trunk
Cassette operation
Playing cassettes 152
Catalytic converter 237
CD changer 156
Loading/unloading a CD
magazine 157
Location 157
CD operation 156
CD player
Operating 123
Cellular phone
Delayed switch-off time 205
Inserting the cradle 205
Making calls in hands-free mode 207
Making calls in private mode 206
Re-inserting 206
Removing the cradle 204
