2005 MERCEDES-BENZ E320CDI Owner's Manual

399 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
H
Tire pres.
Please rectify
The pressure is too low in one or more
tires.

Check and correct tire inflation pressure as
required (
page 322).
Caution
Tire pressure
One or more tires is deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.

Change the wheel (
page 425).

Have the damaged wheel repaired or re-
placed at an authorized Mercedes-Benz Cen-
ter.
Tire pres.
Check tire
The tire inflation pressure in one or
more tires is already below the mini-
mum value.
The tire inflation pressure in one or
more tires is low.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers.

Check the tire.

Check and correct the tire pressure as re-
quired.

If necessary change the wheel (
page 425).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause
excessive heat build-up and possibly a fire.

400 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., RL
The left rear tire is deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.

Change the wheel (
page 425).

Have the damaged wheel repaired or replaced
at an authorized Mercedes-Benz Center.
Tire pressure, RL
Check tire
The left rear tire inflation pressure is
low.

Carefully bring the vehicle to a halt.

Check the tire.

Check and adjust the tire inflation pressure.

If necessary, change the wheel (
page 425).
Caution
Tire pres., RR
The right rear tire is deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.

Change the wheel (
page 425).

Have the damaged wheel repaired or replaced
at an authorized Mercedes-Benz Center.
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause
excessive heat build-up and possibly a fire.

401 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
H
Tire pressure, RR
Check tire
The right rear tire inflation pres-
sure is low.

Carefully bring the vehicle to a halt.

Check the tire.

Check and adjust the tire inflation pressure.

If necessary, change the wheel (
page 425).
Caution
Tire pres., FL
The left front tire is deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.

Change the wheel (
page 425).

Have the damaged wheel repaired or replaced
at an authorized Mercedes-Benz Center.
Tire pressure, FL
Check tire
The left front tire inflation pres-
sure is low.

Carefully bring the vehicle to a halt.

Check and adjust the tire inflation pressure.

If necessary, change the wheel (
page 425).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause
excessive heat build-up and possibly a fire.

402 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
H
Caution
Tire pres., FR
The right front tire is deflating.

Carefully bring the vehicle to a halt, avoiding
abrupt steering and braking maneuvers. Ob-
serve the traffic situation around you.

Change the wheel (
page 425).

Have the damaged wheel repaired or replaced
at an authorized Mercedes-Benz Center.
Tire pressure, FR
Check tire
The right front tire inflation pres-
sure is low.

Carefully bring the vehicle to a halt.

Check the tire.

Check and adjust the tire inflation pressure.

If necessary change the wheel (
page 425).
Warning!
G
Do not drive with a flat tire. A flat tire affects
the ability to steer or brake the vehicle.
You may lose control of the vehicle. Contin-
ued driving with a flat tire will cause exces-
sive heat build-up and possibly a fire.

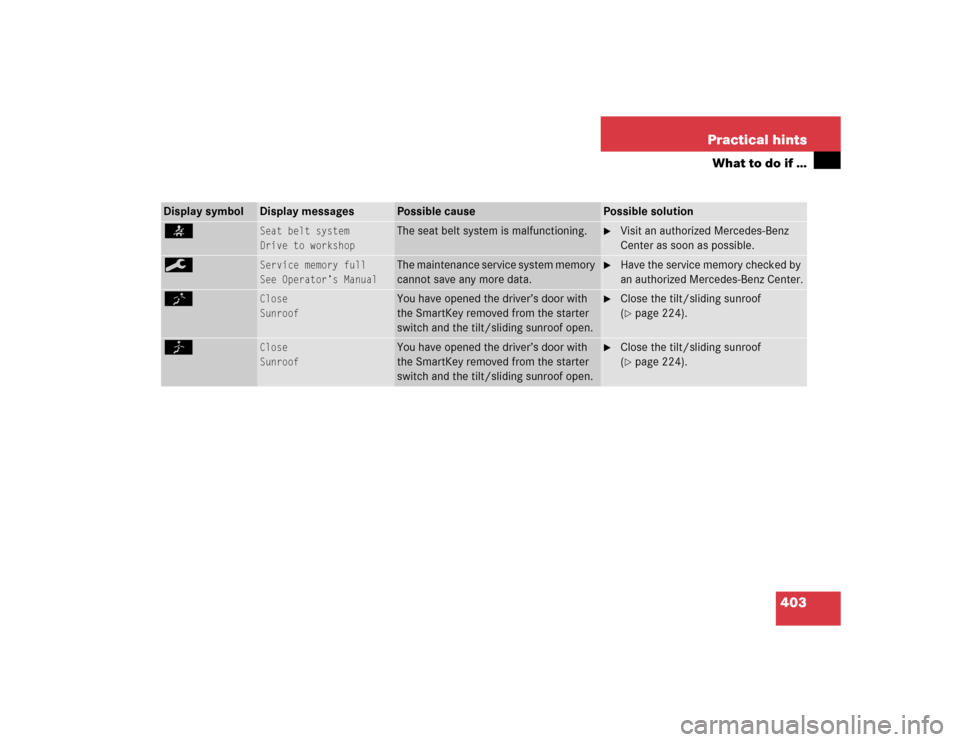

403 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
<
Seat belt system
Drive to workshop
The seat belt system is malfunctioning.

Visit an authorized Mercedes-Benz
Center as soon as possible.
9
Service memory full
See Operator’s Manual
The maintenance service system memory
cannot save any more data.

Have the service memory checked by
an authorized Mercedes-Benz Center.
K
Close
Sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 224).
J
Close
Sunroof
You have opened the driver’s door with
the SmartKey removed from the starter
switch and the tilt/sliding sunroof open.

Close the tilt/sliding sunroof
(page 224).

404 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
L
Tele Aid malfunction
Drive to workshop
One or more main functions of the
Tele Aid system are malfunctioning.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
Tele Aid battery
Drive to workshop
The emergency power battery for the
Tele Aid system is malfunctioning. If the
vehicle battery is also dead, Tele Aid will
not be operational.

Have the Tele Aid system checked by
an authorized Mercedes-Benz Center.
1
Restraint system
malfunction
Drive to workshop
The system is malfunctioning.

Drive with added caution to the near-
est authorized Mercedes-Benz Cen-
ter.
Warning!
G
In the event a malfunction of the SRS is indi-
cated as outlined above, the SRS may not be
operational.
For your safety, we strongly recommend
that you visit an authorized Mercedes-Benz
Center immediately to have the system
checked; otherwise the SRS may not be
activated when needed in an accident,
which could result in serious or fatal injury,
or it might deploy unexpectedly and unnec-
essarily which could also result in injury.

405 Practical hints
What to do if …
Display symbol
Display messages
Possible cause
Possible solution
t
Function
unavailable
This display appears if button t or
s on the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
Trunk open
This message will appear whenever the
trunk lid is open.

Close the trunk lid.
W
Washer fluid,
please refill
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 310).

406 Practical hintsWhat to do if …Display symbol
Display messages
Possible cause
Possible solution
@
Vehicle rising
Your vehicle is adjusting to your level se-
lection.
Leveling cancelled
The “Raised” level setting is canceled at
vehicle speeds of over 75 mph
(120 km / h).

Reactivate the “Raised” level setting.
Stop, car too low
The vehicle level control is malfunction-
ing.
Avoid excessive steering input. The fend-
er or tires could otherwise be damaged.
Listen for scraping noises. Do not drive
faster than 50 mph (80 km / h).
Drive to the side of the road and se-
lect a higher vehicle level. Depending
on the type of malfunction, this may
raise the vehicle’s level.
There is otherwise danger of an accident.
Visit workshop
The system is functional only to a limited
extent.
The system display or the system is mal-
functioning.

Do not drive faster than 50 mph
(80 km / h).

Have the vehicle checked at an autho-
rized Mercedes-Benz Center.
