Contents
Entering a city. . . . . . . . . . . . . . . . 118
Narrowing of the destination
after selecting city . . . . . . . . . . . . 119
Entering a city center . . . . . . . . . . 120
Entering a street in the
destination city . . . . . . . . . . . . . . . 121
Narrowing of the destination
after selecting street . . . . . . . . . . 122
Entering an intersection . . . . . . . . 123
Entering a house number . . . . . . . 124
Entering a destination using the
map . . . . . . . . . . . . . . . . . . . . . . . 125
Entering a destination via
geo coordinates . . . . . . . . . . . . . . 127
Storing map location . . . . . . . . . . 128
Route guidance . . . . . . . . . . . . . . . . . 130
Start route guidance menu . . . . . . 130
Route calculation . . . . . . . . . . . . . 130
Route re-calculation . . . . . . . . . . . 130
Navigation announcements . . . . . 131
Navigation displays. . . . . . . . . . . . 131
Destination reached . . . . . . . . . . . 134
Cancelling route guidance . . . . . . 134
During route guidance . . . . . . . . . . . . 135
Showing soft key displays . . . . . . 135
Info menu . . . . . . . . . . . . . . . . . . . 135Displaying the route on the map . 136
Displaying the route list . . . . . . . . 137
Detour function . . . . . . . . . . . . . . 137
Stop-over . . . . . . . . . . . . . . . . . . . 139
Defining route guidance displays . 142
Setting symbols displays . . . . . . . 142
Setting map orientation . . . . . . . . 143
Switching GPS position display
ON/OFF . . . . . . . . . . . . . . . . . . . . 144
Automatic map toggling . . . . . . . . 145
Scales for full-screen and
split-screen map display . . . . . . . . 145
Last destinations and
destination memory . . . . . . . . . . . . . . 147
Last destinations memory . . . . . . 147
Destination memory . . . . . . . . . . . 148
POIs (Points of Interest) . . . . . . . . . . . 151
Entering POIs . . . . . . . . . . . . . . . . 151
Selecting POI in the local area of
the current position . . . . . . . . . . . 152
Selecting POI for a selected city. . 153
Selecting POI for a long-distance
destination . . . . . . . . . . . . . . . . . . 153
Selecting a POI using the map . . . 155
Service . . . . . . . . . . . . . . . . . . . . . . . 157
Tele Aid*. . . . . . . . . . . . . . . . . . . . . . . 158
Emergency call system . . . . . . . . . 158
Roadside Assistance . . . . . . . . . . . 158
Information . . . . . . . . . . . . . . . . . . 159System . . . . . . . . . . . . . . . . . . . . . . . 161
System settings . . . . . . . . . . . . . . . . . 162
Calling up the System menu . . . . . 162
Setting the date/time . . . . . . . . . . 162
Setting the language . . . . . . . . . . . 164
Switching confirmation beeps
and acoustic signals ON/OFF. . . . 165
Display settings . . . . . . . . . . . . . . 165
Voice control settings* . . . . . . . . . 166
Reset function. . . . . . . . . . . . . . . . 169Glossary . . . . . . . . . . . . . . . . . . . . . . 171Index . . . . . . . . . . . . . . . . . . . . . . . . . 175

40 AudioRadio operation
Use , ,  or  to choose a
preset and press.
or

Press one of the number keys

- .
The system tunes to the station stored
under this number.
Tuning via scan search
Scan search is characterized as follows:

Scan search performs two runs.
During the first run, stations with ex-
tremely good reception are played.
During the second run, stations with
weaker reception are played.

Scan search plays each receivable sta-
tion for approx. 8 seconds.

Scan search can be ended manually.

Scan search automatically stops at the
station listened to before the scan
search was started.
Starting scan search

Switch to the desired waveband
(page 37).

Press the
Scan
soft key.
Scanning begins.
Ending Scan search manually

Press the
Scan
soft key again.Manual tuning

Switch to the desired waveband
(page 37).

Press and hold or  for at
least 2 seconds to tune up or down.
Manual tuning is activated.

Keep the button pressed or release it
and keep tapping or  in
quick succession.
The frequency will change by the tuning
increments for the respective wave-
band each time one of the buttons is
pressed or for as long as a button is
pressed and held.
Manual tuning is deactivated if no but-
ton is pressed for approx. 3 seconds.

48 AudioSingle CD operationSelecting via track list
The track list contains all tracks of the cur-
rent CD. Only one list entry is visible at a
time, it is the track currently playing.
Use or  to select another track
from the list.

Press, or wait approx. 3 seconds
without changing the selection.
The selected track is played.Selecting via manual entry of the track
number

Open the Single CD main menu
(page 46).

Press.
The Manual track input display ap-
pears. The number of tracks on the CD
is displayed.
Entry example: Track 1

Press
.Entry example: Track 12

Press
and ! in quick succession.

Wait approx. 3 seconds after entering
the number.
The selected track is played. The CD
main menu appears.
Selecting via scan search
Scan serach is charcterised as follows:

Scan search plays each track on the
current CD for approx. 8 seconds.

Scan search can be ended manually.

Scan search automatically stops at the
track listened to before the scan
search was started.iEntries beyond the number of available
tracks on the CD are not possible.

49 Audio
Single CD operation
Starting scan search
Press the
Scan
soft key.
Ending scan search manually

Press the
Scan
soft key.
The track playing at the time the scan
is ended remains playing.

Open the Single CD main menu
(page 46).

Press and hold or .

To stop release or .The following options are available:

Normal sequenceThe tracks are played in the normal se-
quence (e.g. track 1, 2, 3 etc.).The last track is followed by the first
track of the CD.

Repeat track

The current track will be repeated until
this function is deactivated.

Random track

The tracks are played in random order
(e.g. track 3, 8, 5 etc.).
Changing the playback option

In the Single CD main menu
(page 46) press the
Setting
soft key. The settings menu is displayed.
The solid circle indicates which op-
tion is currently selected.

Use or  to select a different op-
tion.

Press.
The option is activated. A correspond-
ing display will appear in the status bar
for all options except
Normal
sequence
.
An option will remain activated even if
the COMAND is switched OFF and then
ON again.
iWhen you start the scan search, play-
back option
Normal Sequence
is activated
automatically.
Fast forward/reverse
Playback options

57 Audio
MP3 operation
Selecting via manual entry of the track
number
Open the MP3 main menu (
page 53).

Press.

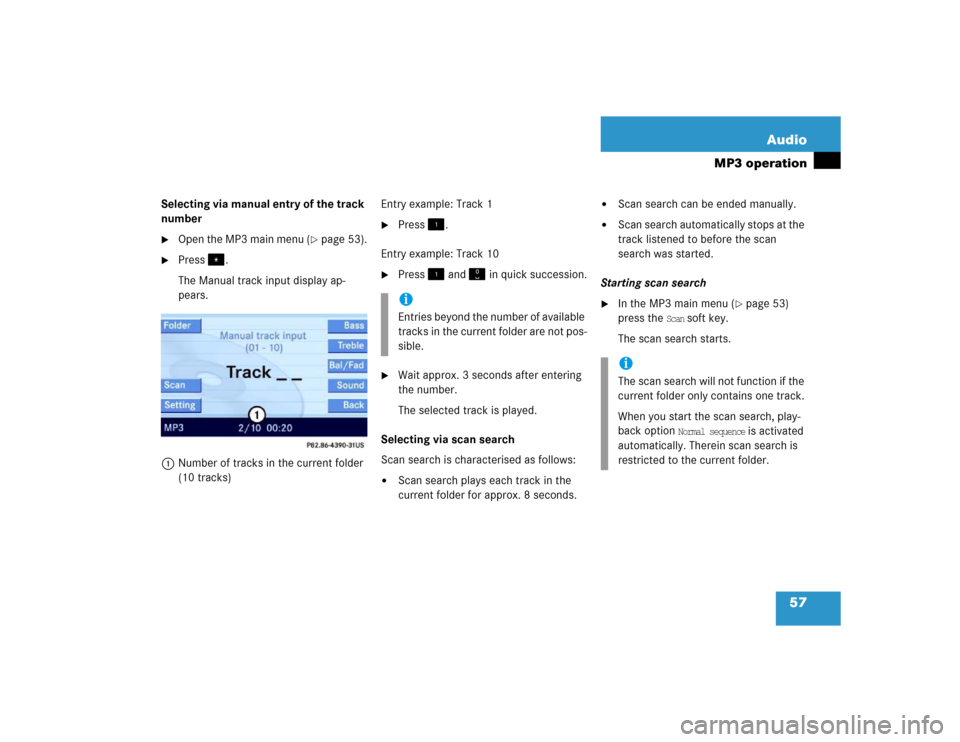

The Manual track input display ap-
pears.
1Number of tracks in the current folder
(10 tracks)Entry example: Track 1

Press
.
Entry example: Track 10

Press
and  in quick succession.

Wait approx. 3 seconds after entering
the number.
The selected track is played.
Selecting via scan search
Scan search is characterised as follows:

Scan search plays each track in the
current folder for approx. 8 seconds.

Scan search can be ended manually.

Scan search automatically stops at the
track listened to before the scan
search was started.
Starting scan search

In the MP3 main menu (
page 53)
press the
Scan
soft key.
The scan search starts.
iEntries beyond the number of available
tracks in the current folder are not pos-
sible.
iThe scan search will not function if the
current folder only contains one track.
When you start the scan search, play-
back option
Normal sequence
is activated
automatically. Therein scan search is
restricted to the current folder.

63 Audio
CD changer* operation

Button LED off:
Magazine compartment empty

Button LED continuously red:
Magazine compartment loaded with a
CD
The status of a magazine compartment can
also be seen when selecting a CD in the CD
Selection menu (
page 68).
The CD slot 1 for loading CDs into the CD
changer is located above the buttons 2.
Loading options:

Loading a single magazine compart-
ment

Loading all six magazine compart-
ments (
page 64)Loading a single magazine compart-
ment

Access the CD changer (
page 61).

Briefly press the button 2 of the emp-
ty magazine compartment to be load-
ed.

Wait until the LED in the button 2
flashes green.
This indicates that the CD changer re-
quests a CD.

Insert an audio CD into the CD slot 1
within approx. 15 seconds. Insert the
CD face up.The CD is pulled in. The red LED in the
corresponding magazine compartment
button 2 lights up continuously. The
system starts playing the CD.
The loading procedure is completed.

Retract the CD changer (
page 61).
iLoading a magazine slot will stop the
playback of a CD in the changer.

70 AudioCD changer* operationEntry example: Track 12
Press
and ! in quick succession.

Wait approx. 3 seconds after entering
the number.
The selected track is played. The CD
main menu appears.
Selecting via scan search
Scan search is characterised as follows:

Scan search plays each track on the
current CD for approx. 8 seconds.

Scan search can be ended manually.

Scan search automatically stops at the
track listened to before the scan
search was started.Starting scan search

Press the
Scan
soft key.
Ending scan search manually

Press the
Scan
soft key.
The track playing at the time the scan
is ended remains playing.

Open the CD changer main menu
(page 66).

Press and hold or .

To stop release or ..The following options are available:

Normal sequenceThe tracks are played in the normal se-
quence (e.g. track 1, 2, 3 etc.).
If only one CD is loaded, the last track is
followed by again playing the first track.
If several CDs are loaded in the CD chang-
er, the last track on a CD in the changer
will be followed by the first track of the
next CD in the changer.
The CDs are changed in their normal se-
quence (e.g. CD 1, 2, 3 etc.).

Repeat track

The current track will be repeated until
this function is deactivated.
iEntries beyond the number of available
tracks on the CD are not possible.
iWhen you start the scan search, play-
back option
Normal sequence
is activated
automatically. Therein scan search is
restricted to the current CD.
Fast forward/reverse
Playback options

76 Satellite radio*Satellite radio operationMain area, in this example:
ROCK
= selected category (
page 77)

Vault
= name of the selected station
Status bar, in this example:

SAT
(on the left) = the selected mode

SAT5
= location in the program
memory, if the current channel is pre-
stored

Ch16
= number of the current channel
Selectable soft keys

Presets

shows channels pre-stored in the pro-
gram memory (up to 10 channels). You
can store stations (
page 79) and re-
quest stored stations (page 76).

Info

shows additional text information relat-
ed to the current channel.

Scan

is used to start and stop the scan
search (
page 79).

Service

displays a screen showing the tele-
phone number of the Sirius Service
Center and electronic serial number
(ESN) of the particular receiver.
You can also adjust the following:

Bass and treble (
page 32)

Balance and fader (
page 31)

Sound functions (
page 33)

Volume (not on soft keys)
(page 30)
The following options are available:

Tuning via station presets (
page 76)

Tuning via manual channel input
(page 77)

Tuning via the program category list
(page 77)

Tuning a station within the selected
category (
page 78)

Tuning via scan search (
page 79)
Tuning via station presets
Ten Satellite radio station presets are
available.
You can access the presets via number
keys or via the Presets menu.
Selecting a station
iThe Presets memory is empty at first-
time activation of the system.
