2005 MERCEDES-BENZ C WAGON fuel cap

ContentsTechnical data.................................. 361
Parts service ...................................... 362
Warranty coverage ............................. 363
Loss of Service and Warranty
Information Booklet...................... 363
Identification labels............................ 364
Layout of poly-V-belt drive ................. 365
C 240 (all models) ........................ 365
Engine ................................................ 366
Rims and Tires ................................... 367
Same size tires ............................. 368
Minispare wheel ........................... 369
Electrical system................................ 370
Main Dimensions ............................... 371
Weights .............................................. 372Fuels, coolants, lubricants, etc. ......... 373
Capacities .................................... 373
Engine oils.................................... 375
Engine oil additives ...................... 375
Air conditioning refrigerant .......... 375
Brake fluid .................................... 375
Premium unleaded gasoline ......... 376
Fuel requirements ........................ 376
Gasoline additives ........................ 377
Flexible Fuel Vehicles ................... 377
Coolants....................................... 379
Windshield washer and
headlamp cleaning system* ......... 381
Consumer information ....................... 382
Uniform tire quality grading ......... 382
Technical terms............................... 385Index................................................. 391

25 At a glance
Instrument cluster
Item
Page
1
Speedometer with:vElectronic Stability
Program (ESP)
warning lamp
81,
298
;Brake warning
lamp, USA only
47,
55,
295
3Brake warning
lamp, Canada only
47,
55,
295
BLow beam head-
lamp indicator lamp
49,
108
2
LLeft turn signal
indicator lamp
50
3
Multifunction display
with:
119
Trip odometer
117
Main odometer
119
Gear selector lever
position
46,
156
Item
Page
Program mode
158
Status indicator (outside
temperature/digital
speedometer
118,
134
Digital clock
119,
135
4
KRight turn signal
indicator lamp
50
5
Tachometer with:
118
-Antilock Brake
System (ABS)
indicator lamp
79,
294
úEngine malfunction
indicator lamp,
USA only
296,
297
±Engine malfunction
indicator lamp,
Canada only
296,
297
1Supplemental
restraint system
indicator lamp
60,
299
Item
Page
66,
299
AHigh beam head-
lamp indicator lamp
49,
112
6
Fuel gauge with:Fuel reserve warning lamp
299
4Fuel filler cap
location indicator:
The fuel filler cap is
on the rear
right-hand side.
7
Coolant temperature
gauge
117
8
Reset button for:

Resetting trip
odometer
117


Resetting individual
settings
130


Instrument cluster
illumination
116

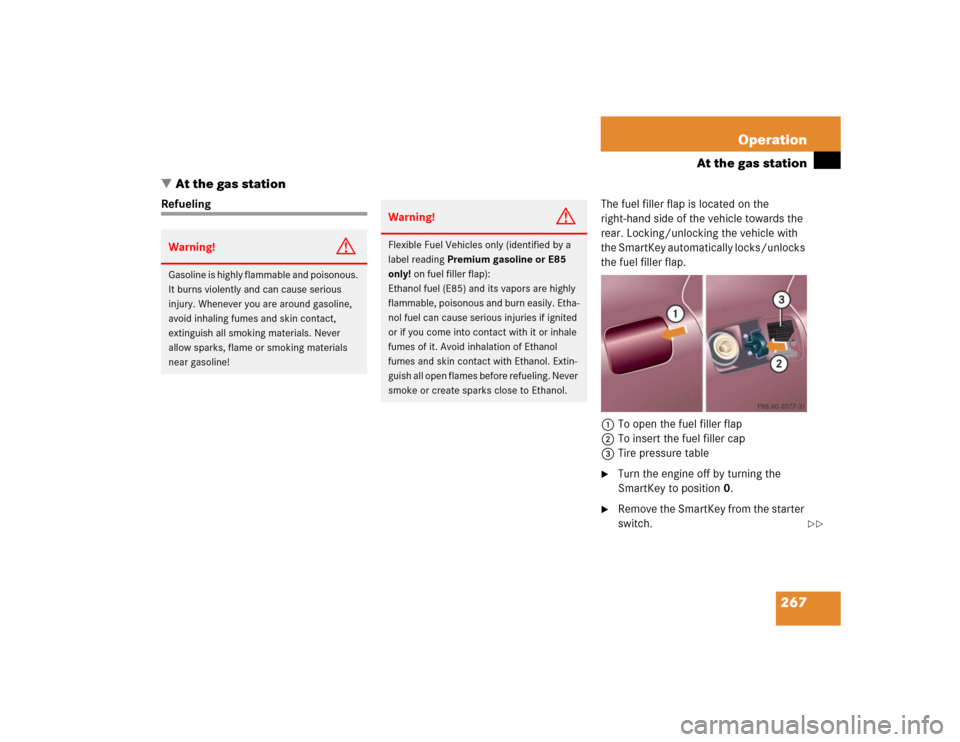

267 Operation
At the gas station
At the gas station
RefuelingThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the SmartKey automatically locks/unlocks
the fuel filler flap.
1To open the fuel filler flap
2To insert the fuel filler cap
3Tire pressure table

Turn the engine off by turning the
SmartKey to position0.

Remove the SmartKey from the starter
switch.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact,
extinguish all smoking materials. Never
allow sparks, flame or smoking materials
near gasoline!
Warning!
G
Flexible Fuel Vehicles only (identified by a
label reading Premium gasoline or E85
only! on fuel filler flap):
Ethanol fuel (E85) and its vapors are highly
flammable, poisonous and burn easily. Etha-
nol fuel can cause serious injuries if ignited
or if you come into contact with it or inhale
fumes of it. Avoid inhalation of Ethanol
fumes and skin contact with Ethanol. Extin-
guish all open flames before refueling. Never
smoke or create sparks close to Ethanol.


268 OperationAt the gas station
Open the fuel filler flap by pushing at
the point indicated by arrow1.
The fuel filler flap springs open.

Turn fuel cap counterclockwise and
hold on to it until possible pressure is
released.

Take off cap and set it in direction of
arrow2 in the recess on fuel filler
flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or
overfill.

Replace fuel cap by turning it
clockwise.
You will hear when fuel cap is
tightened.

Close fuel filler flap.Warning!
G
Overfilling of the fuel tank may create
pressure in the system which could cause a
gas discharge. This could cause the gas to
spray back out when removing the fuel
pump nozzle, which could cause personal
injury.
iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON/86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.
Flexible Fuel Vehicles are identified by
a label reading Premium gasoline or
E85 only! on fuel filler flap.
For more information, see “Flexible
Fuel Vehicles” (
page 377).
iLeaving the engine running and the fuel
cap open can cause theú malfunc-
tion indicator lamp (USA only) or
the± malfunction indicator lamp
(Canada only) to illuminate.
For more information, see “Practical
hints” (
page 296) and (
page 297).


280 OperationTires and wheels
Tire pressure changes by approx. 1.5 psi
(0.1 bar) per 18°F (10°C) of air tempera-
ture change. Keep this in mind when
checking tire pressure where the tempera-
ture is different from the outside tempera-
ture.
Tire temperature and tire pressure are also
increased while driving, depending on the
driving speed and the tire load.
Check the spare tire periodically for condi-
tion and inflation. Spare tires will age and
b e c o m e w o r n o v e r t i m e e v e n i f n e v e r u s e d ,
and thus should be inspected and replaced
when necessary.
iThe pressures listed for light loads are
minimum values offering high driving
comfort.
Increased inflation pressures listed for
heavier loads may also be used for light
loads. These higher pressures produce
favorable handling characteristics. The
ride of the vehicle, however, will be
somewhat harder. Never exceed the
max. values or inflate tires below the
min. values listed in the fuel filler flap.
Warning!
G
Follow recommended inflation pressures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout)
because they are more likely to become
punctured or damaged by road debris,
potholes, etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indi-
cated by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.

297 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
ú
(USA only)
±
(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
A loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly or the fuel system
may be leaky.

Check the fuel cap (
page 267).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an
authorized Mercedes-Benz Center.
Your fuel tank is empty.

After refuelling start, turn off and
restart the engine three or four times
in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.

314 Practical hintsWhat to do if …Display symbol
Display message
Possible cause
Possible solution
4
Check gas cap.
See Operator’s Manual
A loss of pressure has been detected in
the fuel system. The fuel cap may not be
closed properly or the fuel system may be
leaky.

Check the fuel cap (
page 267).
If it is not closed properly:

Close the fuel cap.
If it is closed properly:

Have the fuel system checked by an
authorized Mercedes-Benz Center.
Y
Hood open
You are driving with the hood open.

Close the hood (
page 270).
I
Remove key.
You have forgotten to remove the
SmartKey.

Remove the SmartKey from the starter
switch.
Replace key
Drive to workshop
No additional code available for
SmartKey.

Change the SmartKey.

367 Technical data
Rims and Tires
Rims and Tires
Only use tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and
different tire deformation characteris-
tics that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the
vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel
filler cap of the vehicle. The tire pres-
sure should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.
