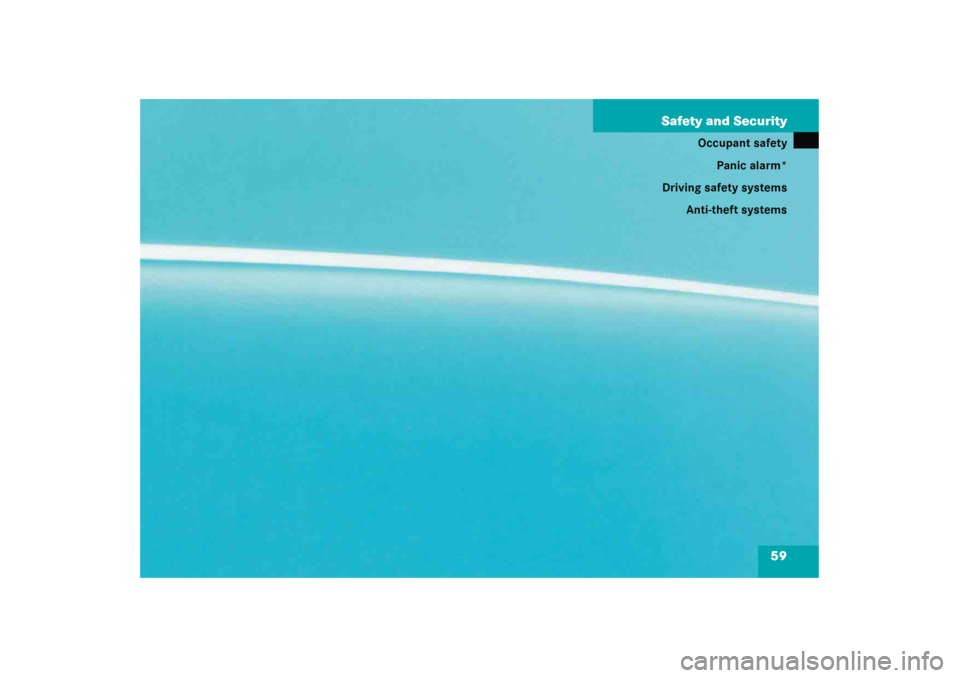

ContentsSafety and Security........................... 59
Occupant safety................................... 60
Air bags .......................................... 61
Seat belts ....................................... 66
Children in the vehicle .................... 70
Panic alarm* ........................................ 80
Activating ....................................... 80
Deactivating ................................... 80
Driving safety systems ......................... 81
ABS ................................................ 81
BAS ................................................ 82
ESP ................................................. 83
Anti-theft systems................................ 86
Immobilizer..................................... 86
Anti-theft alarm system* ................ 86
Tow-away alarm* ........................... 87
Controls in detail............................... 89
Locking and unlocking ......................... 90
SmartKey ....................................... 90
Opening the doors from the inside . 94
Opening the trunk lid ..................... 95
Closing the trunk lid ....................... 95
Trunk lid emergency release .......... 96
Automatic central locking .............. 97
Locking and unlocking from the
inside ............................................. 98
Seats ................................................. 100
Easy-entry/exit feature* .............. 100
Removing and installing front seat
head restraints ............................. 102
Rear seat head restraints ............. 103
Seat heating* ............................... 106
Memory function* ............................. 107
Storing positions into memory ..... 108
Recalling positions from memory . 108
Storing exterior rear view mirror
parking position ........................... 109Lighting ............................................. 110
Exterior lamp switch .................... 110
Combination switch ..................... 114
Cornering fog lamps*................... 114
Hazard warning flasher ................ 116
Interior lighting ............................ 117
Instrument cluster ............................. 119
Instrument cluster illumination .... 119
Coolant temperature gauge ......... 120
Trip odometer .............................. 121
Tachometer .................................. 121
Outside temperature indicator ..... 121
Control system .................................. 123
Multifunction display.................... 123
Multifunction steering wheel........ 124
Menus .......................................... 126
Standard display menu ................ 128
AUDIO menu ................................ 129
NAV* menu .................................. 131
Vehicle status message memory
menu............................................ 132
Settings menu .............................. 133
Trip computer menu..................... 151
TEL menu* ................................... 153

14 IntroductionWhere to find itThis Operator’s Manual is designed to pro-
vide comprehensive support information
for you, the vehicle operator. Each section
has its own reference color so you can find
information quickly.At a glance
Here you will find an overview of all the
controls that can be operated from the
driver’s seat.Getting started
Here you will find all the information you
need for your first drive. You should read
this section first if this is your first
Mercedes-Benz vehicle or if you are rent-
ing or borrowing this vehicle.Safety and Security
Here you will find descriptions of the safety
features of your vehicle.
Controls in detail
Here you will find detailed information
about the equipment installed in your vehi-
cle. This section expands on the “Getting
started” section and also describes techni-
cal innovations. If you are already familiar
with the basic functions of your vehicle,
this section will be of particular interest to
you.Operation
Here you will find all the information you
need for the proper operation of your vehi-
cle.Practical hints
This section provides fast assistance for
dealing with problems you may encounter.
Technical data
All important technical data for your vehi-
cle can be found in this section.Indexes
The glossary provides explanations of the
most important technical terms.
The table of contents and the index are de-
signed to help you find information quickly
and easily.
The following publications are part of your
vehicle documentation:

this Operator’s Manual


the Maintenance Booklet
Separate operating instructions will be
provided as required depending on the
equipment options installed in your vehi-
cle.

35 Getting started
Adjusting
Adjusting
Seats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 44).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be op-
erated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(page 70).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

41 Getting started
Adjusting
Steering wheel adjustment, manual
1Handle
To unlock the steering column, pull
handle1 out until its stop limit.

Move steering wheel to the desired
position.

To lock the steering column, push
handle1 all the way in until it
engages.
The steering wheel is once again
locked into position.

Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.
Make sure your legs can move freely and
that all the displays (inclusive malfunction
and indicator lamps) on the instrument
cluster are clearly visible.Steering wheel adjustment, electrical*
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on the ignition (
page 33).
or

Open the driver’s door.
Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.

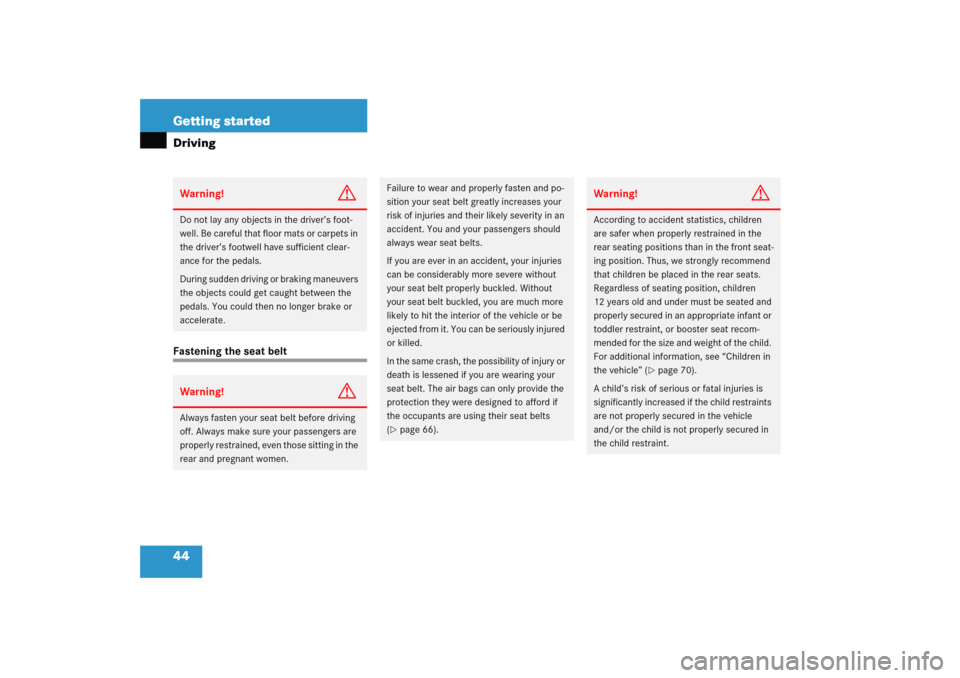

44 Getting startedDrivingFastening the seat beltWarning!
G
Do not lay any objects in the driver’s foot-
well. Be careful that floor mats or carpets in
the driver’s footwell have sufficient clear-
ance for the pedals.
During sudden driving or braking maneuvers
the objects could get caught between the
pedals. You could then no longer brake or
accelerate.Warning!
G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear and pregnant women.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they were designed to afford if
the occupants are using their seat belts
(page 66).
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 70).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

45 Getting started
Driving
The seat belt presenter for driver and pas-
senger makes it easier to put on the seat
belt.
1Seat belt presenter
Manually adjust the seat belt presenter
to the desired position.1Latch plate
2Release button
3Buckle
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly
restrained with a separate seat belt. Never
use a seat belt for more than one person at
a time.Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Read and observe the additional warning
notices printed in the “Safety and Security”
section (
page 64) and (
page 66).
iThe seat belt presenter must be put
back to its original position before lean-
ing the seat backrest toward the rear or
letting someone enter the rear passen-
ger compartment.

47 Getting started
Driving
Proper use of seat belts

Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm. For this purpose, you can adjust
the height of the belt outlet.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly
upright position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.


Check your seat belt periodically dur-
ing travel to ensure that it is properly
positioned.


Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.
Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.

59 Safety and Security
Occupant safety
Panic alarm*
Driving safety systems
Anti-theft systems
