2005 MERCEDES-BENZ C CLASS COUPE window

244 Controls in detailPanorama roof with power tilt/sliding panel*
Switch on the ignition (
page 33).Opening and closing the panorama roof
with power tilt/sliding panel

To open, close, raise, or lower the
tilt/sliding panel, move the roof panel
switch to resistance point in the re-
quired direction of arrows
1to4 .
Release the roof panel switch when the
tilt/sliding panel has reached the de-
sired position.
Fully opening (Express-open) the
panorama roof with power tilt/sliding
panel

Move the roof panel switch past the
resistance point in the direction of
arrow 4 and release.
The tilt/sliding panel opens
completely.
Stopping the panorama roof with power
tilt/sliding panel during Express-open

Move the roof panel switch in any
direction. Opening the panorama roof with power
tilt/sliding panel with the SmartKey
The power windows (
page 237) will also
be opened or closed when you operate the
tilt/sliding panel with the SmartKey.
iYou can also open or close the tilt/slid-
ing panel using the SmartKey (summer
opening/convenience closing feature)
(page 244).
You can close and reopen the tilt/slid-
ing panel using the air recirculation
button , in the climate control pan-
el (page 173) or automatic climate
control panel (
page 183).
You can close and reopen the tilt/slid-
ing panel using the charcoal filter but-
ton e in the automatic climate
control panel*(page 183).
Warning!
G
Never operate the windows or tilt/sliding
panel if there is the possibility of anyone be-
ing harmed by the opening or closing proce-
dure.
In the event that the procedure causes po-
tential danger, the procedure can be imme-
diately halted by releasing the button on the
SmartKey. To reverse direction of move-
ment, press Œ for opening or ‹ for
closing.

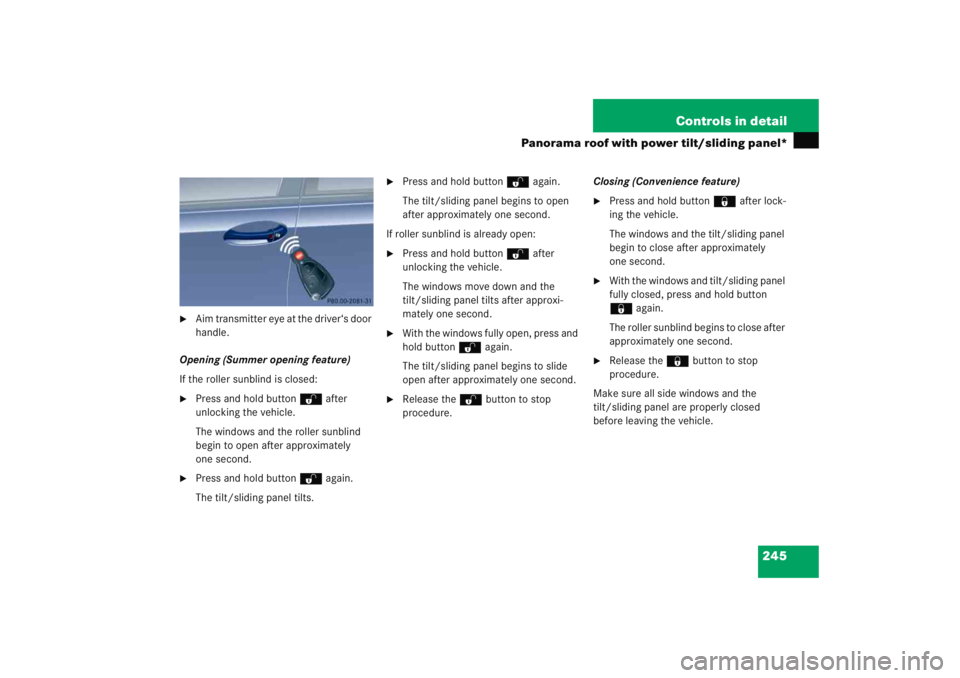

245
Controls in detail
Panorama roof with power tilt/sliding panel*

Aim transmitter eye at the driver‘s door
handle.
Opening (Summer opening feature)
If the roller sunblind is closed:

Press and hold button Πafter
unlocking the vehicle.
The windows and the roller sunblind
begin to open after approximately
one second.

Press and hold button Πagain.
The tilt/sliding panel tilts.

Press and hold button Πagain.
The tilt/sliding panel begins to open
after approximately one second.
If roller sunblind is already open:

Press and hold button Πafter
unlocking the vehicle.
The windows move down and the
tilt/sliding panel tilts after approxi-
mately one second.

With the windows fully open, press and
hold button Πagain.
The tilt/sliding panel begins to slide
open after approximately one second.

Release the Πbutton to stop
procedure. Closing (Convenience feature)

Press and hold button
‹ after lock-
ing the vehicle.
The windows and the tilt/sliding panel
begin to close after approximately
one second.

With the windows and tilt/sliding panel
fully closed, press and hold button
‹ again.
The roller sunblind begins to close after
approximately one second.

Release the ‹ button to stop
procedure.
Make sure all side windows and the
tilt/sliding panel are properly closed
before leaving the vehicle.

252 Controls in detailLoading
Luggage cover1 Securing straps
Removal
Take off securing straps 1.

Pull cover in direction of arrow 2.
Installation

Place cover into holder.

Attach securing straps to trunk lid.
Loading instructions
The total load weight including vehicle
occupants and luggage/cargo should not
exceed the load limit or vehicle capacity
weight indicated on the corresponding
placard located on the driver’s door
B-pillar.
The handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the
extended cargo compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.
!Do not place anything on the luggage
cover below the rear window.

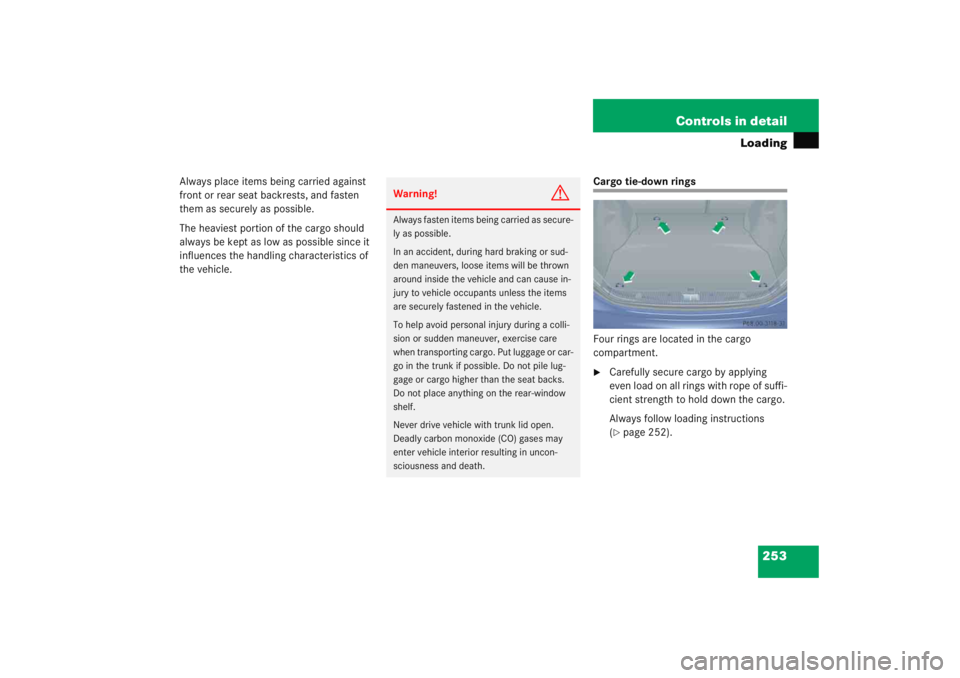

253
Controls in detail
Loading
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should
always be kept as low as possible since it
influences the handling characteristics of
the vehicle.
Cargo tie-down rings
Four rings are located in the cargo
compartment.
Carefully secure cargo by applying
even load on all rings with rope of suffi-
cient strength to hold down the cargo.
Always follow loading instructions
(page 252).
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the rear-window
shelf.
Never drive vehicle with trunk lid open.
Deadly carbon monoxi
de (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

254 Controls in detailUseful featuresStorage compartmentsGlove box
1 Glove box lid release
2 Glove box
Opening the glove box

Pull lid release 1.
The glove box lid opens downward.
Closing the glove box

Push lid up to close. 1
Unlocked
2 Locked
Locking the glove box

Insert mechanical key (
page 377)
into the glove box lock and turn it to
position 2.
Unlocking the glove box

Turn mechanical key in the glove box
lock to position 1.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when stowing objects in the vehicle. Put lug-
g a g e o r c a r g o i n t h e t r u n k i f p o s s i b l e . D o n o t
pile luggage or cargo higher than the seat
backs. Do not place anything on the luggage
cover below the rear window.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.

268 Controls in detailUseful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. SmartKey inside vehicle),
and the reserve key is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk lid recessed handle for minimum
of 20 seconds until the SOS button is
flashing.
The message
Connecting call
appears in the multifunction display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your acquaintance call.
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.
iWhen a Tele Aid call has been initiated,
the audio system or the COMAND*
system audio is muted and the select-
ed mode (radio, tape or CD) pauses.
The optional cellular phone (if installed)
switches off. If you must use this
phone, the vehicle must be parked.
Disconnect the coiled cord and place
the call. The COMAND* navigation
system (if engaged) will continue to
run. The display in the instrument clus-
ter is available for use and spoken com-
mands are only available by pressing
the RPT button on the COMAND* unit.
A pop-up window will appear in the
COMAND* display to indicate that a
Tele Aid call is in progress.
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
Connecting call
will appear in
the multifunction display to indicate
receipt of the door unlock command.
Once the vehicle is unlocked, a
Response Center specialist will
attempt to establish voice contact with
the vehicle occupants.
If the trunk lid recessed handle was
pulled for more than 20 seconds be-
fore door unlock authorization was re-
ceived by the Response Center, you
must wait 15 minutes before pulling
the trunk lid recessed handle again.

283
Operation
Driving instructions
Winter driving instructions
The most important rule for slippery or icy
roads is to drive sensibly and to avoid
abrupt acceleration, braking and steering
maneuvers. Do not use the cruise control
system under such conditions.
When the vehicle is in danger of skidding,
move gear selector lever to position
N or,
in case of manual transmission declutch.
Try to keep the vehicle under control by
corrective steering action. Road salts and chemicals can adversely
affect braking efficiency. Increased pedal
force may become necessary to produce
the normal braking effect.
Depressing the brake pedal periodically
when traveling at length on salt-strewn
roads can bring road-salt-impaired braking
efficiency back to normal.
If the vehicle is parked after being driven
on salt-treated roads, the braking efficien-
cy should be tested as soon as possible
after driving is resumed.
For more information on winter driving, see
“Winter driving” (
page 328).
iFor information on driving with snow
chains, see “Snow chains”
(page 329).
Warning!
G
On slippery road surfaces, never downshift
in order to obtain braking action. This could
result in drive wheel slip and reduced vehi-
cle control. Your vehicle’s ABS will not pre-
vent this type of loss of control.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.
Warning!
G
If the vehicle becomes stuck in snow, make
sure snow is kept clear of the exhaust pipe
and from around the vehicle with the engine
running. Otherwise, deadly carbon monox-
ide (CO) gases may enter vehicle interior
resulting in unconsciousness and death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the
vehicle not facing the wind.Warning!
G
The outside temperature indicator is not
designed to serve as an ice-warning device
and is therefore unsuitable for that purpose.
Indicated temperatures just above the freez-
ing point do not guarantee that the road sur-
face is free of ice.

286 OperationDriving instructionsEmission control
Certain systems of the engine serve to
keep the toxic components of the exhaust
gases within permissible limits required by
law.
These systems, of course, will function
properly only when maintained strictly
according to factory specifications. Any
adjustments on the engine should,
therefore, be carried out only by qualified
Mercedes-Benz Center authorized
technicians.
Engine adjustments should not be altered
in any way. Moreover, the specified service
jobs must be carried out regularly
according to Mercedes-Benz servicing
requirements. For details refer to the
Maintenance Booklet.
Coolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to approximately
248°F (120°C).
The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide (CO), and inhaling it can cause un-
consciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open at all times.
