2005 MERCEDES-BENZ C CLASS COUPE stop start

207
Controls in detail
Audio system


Calling up stations
Press desired station button
1
to R .


Leaving the Autostore memory level
Press
FM or
AM
soft key briefly.
Interrupting radio mode
The radio mode is interrupted by an incom-
ing call on the telephone* (
page 225).


Mute on
Press U button.
The radio mode is interrupted and MUTED
appears in the display.


Mute off
Press U button.
The radio mode is again active.
Weather band

Press
WB soft key.
The weather band station last received
is tuned in. Selecting a weather band station
directly

Select desired weather band station
with buttons
1 to 7 .
If a station cannot be tuned in, a search
is automatically started.
Search

Press S or T button to tune in
the next receivable weather band sta-
tion.iIf no weather band station is received
after three consecutive scans of the
complete frequency range, then the
scan stops at the channel with which it
began and
NO WB FOUND
appears in the
display.
If this happens, switch back to stan-
dard radio mode.

212 Controls in detailAudio systemTuning via scan search
Scan search is characterized as follows:

Scan search plays a channel for ap-
proximately eight seconds and then
skips to the next channel within the
current category.


Scan search can be terminated manu-
ally.

Press
SC soft key.
The search starts.
SC appears in the
display.

Press
SC soft key again.
The search stops. Obtaining additional text information
Additional text information (artist, title) re-
lated to the current channel can be dis-
played.

Press
INF
soft key.
The title being played is displayed.

Press
INF
soft key again.
The name of the artist performing the
title being played is displayed. Storing stations

Tune in desired station.

Press and hold desired station button
1
to R until a brief signal tone is
heard.
The frequency is stored on the selected
station button.
The radio saves the current station at
the memory preset selected. The mem-
ory preset selected appears in the sta-
tus line, e.g. S3.
iIf a button is not pressed within
four seconds, the radio will return to
the standard display.
iThere are ten presets available.
An existing entry is overwritten in the
memory list when a new entry is given.

237
Controls in detail
Power windows
 Power windows
Opening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switch for the passenger door is on the
passenger door.
1 Left front window
2 Right front window
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, or by pressing and hold-
ing button ‹ on the SmartKey, the auto-
matic reversal function will not operate
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock your vehicle. Do not leave chil-
dren unattended in the vehicle, or with ac-
cess to an unlocked vehicle. Unsupervised
use of vehicle equipment can cause an acci-
dent and/or serious personal injury.

291
Operation
Engine compartment
 Engine compartment
Hood
Opening the hood
The hood lock release lever is located to
the left of the steering wheel under the
dashboard.
1 Hood lock release lever

Pull lever 1 downwards.
The hood is unlocked and handle 2
will extend out of the radiator grille.
2 Handle for opening the hood

Pull handle 2 to its stop out of
radiator grille.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.


357
Practical hints
What to do if …
Symbol messagesDisplay symbol
Display message
Possible cause
Possible solution
#
Battery Alternator
Visit workshop.
The battery is no longer charging:

broken poly-V-belt


alternator malfunctioning

Stop immediately and check the
poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an
inoperative water pump which may
result in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest
authorized Mercedes-Benz Center.
Low voltage
Charge battery
The battery has insufficient voltage.

Start the engine (
page 48).
Low voltage
Switch off consumers
The battery has insufficient voltage.

Turn off unnecessary electrical
consumers

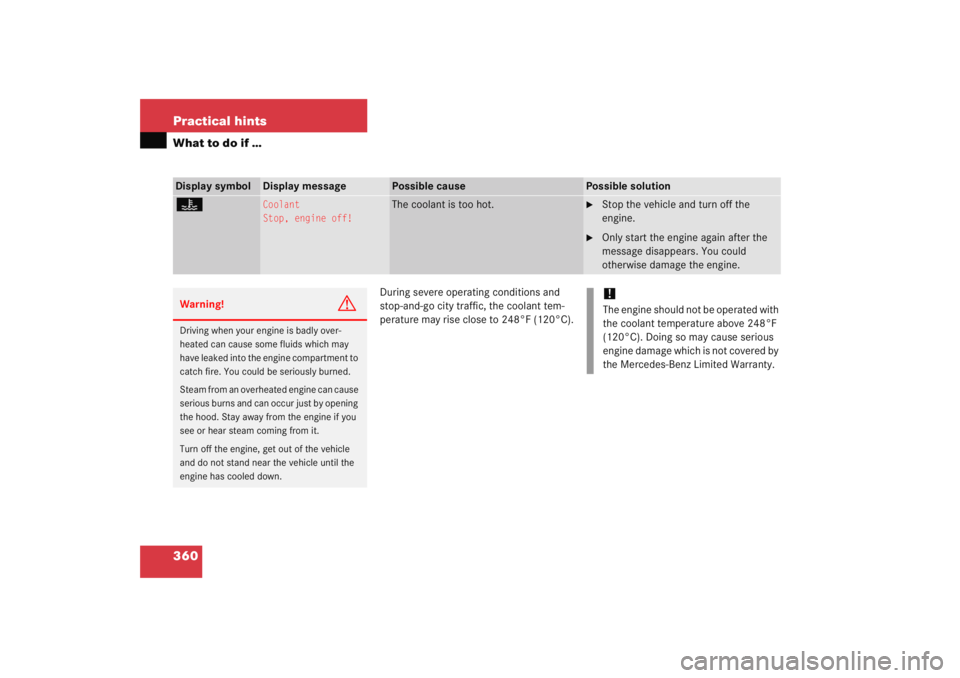

360 Practical hintsWhat to do if …
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to 248°F (120°C).
Display symbol
Display message
Possible cause
Possible solution
•
Coolant
Stop, engine off!
The coolant is too hot.

Stop the vehicle and turn off the
engine.

Only start the engine again after the
message disappears. You could
otherwise damage the engine.
Warning!
G
Driving when your engine is badly over-
heated can cause some fluids which may
have leaked into the engine compartment to
catch fire. You could be seriously burned.
Steam from an overheated engine can cause
serious burns and can occur just by opening
the hood. Stay away from the engine if you
see or hear steam coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until the
engine has cooled down.
!The engine should not be operated with
the coolant temperature above 248°F
(120°C). Doing so may cause serious
engine damage which is not covered by
the Mercedes-Benz Limited Warranty.

377
Practical hints
Unlocking/locking in an emergency
 Unlocking/locking in an emergency
Unlocking the vehicle
If you are unable to unlock the vehicle with
the SmartKey, open the driver’s door using
the mechanical key and the trunk lid using
the emergency release lever.
Removing the mechanical key
1 Mechanical key locking tab
2 Mechanical key
Move locking tab 1 in direction of ar-
row.

Slide the mechanical key 2 out of the
housing. Unlocking the driver’s door
1 Unlocking

Insert the mechanical key into the driv-
er’s door lock until it stops.

Turn the mechanical key counterclock-
wise to position 1.
The driver’s door is unlocked.
iUnlocking the driver’s door with the
mechanical key will trigger the
anti-theft alarm system.
To cancel the alarm, do one of the fol-
lowing:

Press button Œ or ‹ on the
SmartKey.


Insert the SmartKey in the starter
switch.

463
Index
Sidewall 325
Simultaneous wiping and washing
Windshield wipers 54
Single wipe 54
SmartKey 90 Locking and unlocking 90
Opening and closing the panorama roof with power tilt/sliding panel* 244
Opening and closing windows 239
Replacing batteries 382, 383
Unlocking with 32
Snow chains 329
Soft keys Audio system 198
Sound system* 200
Spare tire Inflating 398
Spare wheel 375 Bolts 376
Mounting 394
Removing 375
Speed Setting current 248
Speed settings Cruise control 249 Speedometer 25
Settings units 137
Speedometer display mode Selecting 137
Split rear bench seat 250
SRS 441 Indicator lamp 344
Message in display 356
Standing lamps 110 Replacing bulbs 385, 388, 390
Standing water Driving instructions 284
Starter switch 23, 33 Positions 33
Starting difficulties 49
Starting position 33
Starting the engine 48
Station (satellite radio) Selecting 210
Steering column Height adjustment 41, 42
Length adjustment 41, 42
Steering gear oil Message in display 371 Steering wheel
Adjusting 40
Buttons 26
Cleaning 337
Electrical adjustment* 41
Height adjustment 42
Manual adjustment 41
Stolen vehicle Tracking services 269
Stopping Panorama roof with power tilt/sliding panel* 244
Windows 239
Storage compartments 254 Cup holders 256
Glove box 254
Parcel net in front passenger footwell 257
Storing Station (Satellite radio) 212
Storing (Memory function*) Positions into memory 108
