2005 MERCEDES-BENZ C CLASS COUPE run flat

Contents
Uniform Tire Quality Grading
Standards (U.S. vehicles) ............. 320
Tire ply material ........................... 322
Tire and loading terminology ........ 323
Rotating tires ............................... 326
Winter driving .................................... 328 Winter tires .................................. 328
Block heater (Canada only) .......... 329
Snow chains................................. 329
Maintenance...................................... 330 Clearing the maintenance
service indicator........................... 331
Maintenance service term
exceeded ..................................... 331
Calling up the maintenance
service indicator........................... 331
Resetting the maintenance
service indicator........................... 332
Vehicle care ....................................... 333 Cleaning and care of the vehicle .. 333
Practical hints .................................. 339
What to do if … ................................... 340 Lamps in instrument cluster ......... 340
Lamp in center console................. 345
Vehicle status messages in the
multifunction display..................... 347
Where will I find ...? ............................ 373 First aid kit.................................... 373
Vehicle tool kit .............................. 373
Spare wheel .................................. 375
Unlocking/locking in an emergency... 377 Unlocking the vehicle.................... 377
Locking the vehicle ....................... 379
Fuel filler flap ................................ 379
Manually unlocking the gear
selector lever ................................ 380
Opening/closing in an emergency ..... 381 Panorama roof with power
tilt/sliding panel* ......................... 381
Replacing SmartKey batteries ............ 382 SmartKey ...................................... 383
Replacing bulbs .................................. 384 Bulbs ............................................. 384
Replacing bulbs for front lamps .... 386
Replacing bulbs for rear lamps ..... 390 Replacing wiper blades ...................... 393
Removing ...................................... 393
Installing ....................................... 393
Flat tire............................................... 394 Preparing the vehicle .................... 394
Mounting the spare wheel ............ 394
Battery ............................................... 401 Disconnecting the battery ............ 402
Removing the battery ................... 402
Charging and reinstalling battery .. 402
Reconnecting the battery ............. 403
Jump starting...................................... 404
Towing the vehicle.............................. 406 Installing towing eye bolt .............. 409
Fuses.................................................. 410 Aids for changing fuses ................ 410
Main fuse box in passenger
compartment ................................ 411
Fuse box in engine compartment . 411
Fuse box in trunk .......................... 412

95
Controls in detail
Locking and unlocking
Opening the trunk lid
A minimum height clearance of 7.1 ft.
(2.16 m) is required to open the trunk lid.
The handle is located above the rear li-
cense plate recess.
1 Handle The vehicle must be unlocked.

Pull on handle
1.
The trunk lid unlocks.

Lift the trunk lid.
The trunk can also be opened from its in-
side in an emergency, see “Trunk lid emer-
gency release” (
page 96).
Closing the trunk lid
1 Handle
Lower trunk lid by pulling firmly on
grip 1.

Close trunk lid with hands placed flat
on the trunk lid.
!Always make sure there is sufficient
overhead clearance.

376 Practical hintsWhere will I find ...?Storing the spare wheel
If you wish to store the spare wheel after
use, carry out the following steps. Other-
wise the spare wheel will not fit the wheel
well.
Unscrew the valve cap from the valve
of the spare wheel.

Carefully push the tip of the valve cap
into the spare wheel valve and allow
the air to escape.

Screw the valve cap back on the valve.

Place spare wheel1 in wheel well.

Turn retaining screw 3 clockwise to
its stop to secure the spare wheel.

Install the trunk floor. Spare wheel bolts
1 Wheel bolt for light alloy rims
2 Wheel bolt for light alloy spare wheel
rim size 4
1/2B x15 H2 For more information on model and spare
wheel rim size, see “Technical data”
section (
page 422).
iIt may take a few minutes for the col-
lapsible tire to deflate completely.
!Wheel bolts
2 must be used when
mounting spare wheel rim
size 4
1/2Bx15 H2 (
page 422).
The use of any wheel bolts other than
wheel bolts 2 for spare wheel rim
size 4
1/2B x15 H2 can cause physical
damage to the vehicle.
Warning!
G
Make sure to use the original length wheel
bolts when remounting the original wheel af-
ter it has been repaired.

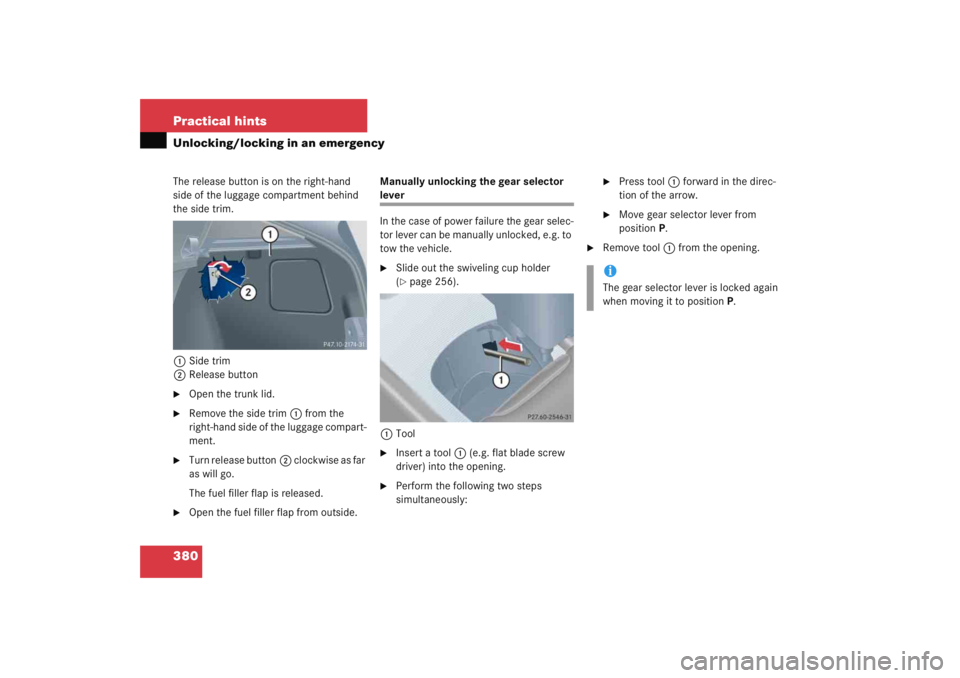

380 Practical hintsUnlocking/locking in an emergencyThe release button is on the right-hand
side of the luggage compartment behind
the side trim.1 Side trim
2 Release button
Open the trunk lid.

Remove the side trim 1 from the
right-hand side of the luggage compart-
ment.

Turn release button 2 clockwise as far
as will go.
The fuel filler flap is released.

Open the fuel filler flap from outside. Manually unlocking the gear selector
lever
In the case of power failure the gear selec-
tor lever can be manually unlocked, e.g. to
tow the vehicle.
Slide out the swiveling cup holder
(page 256).
1 Tool

Insert a tool 1 (e.g. flat blade screw
driver) into the opening.

Perform the following two steps
simultaneously:

Press tool 1 forward in the direc-
tion of the arrow.

Move gear selector lever from
position P.

Remove tool 1 from the opening.iThe gear selector lever is locked again
when moving it to position P.

394 Practical hintsFlat tire
Preparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Turn the steering wheel so that the
front wheels are in a straight ahead
position.

Move the gear selector lever toP
(manual transmission to first or reverse
gear).

Turn off the engine (
page 58).

Remove the SmartKey from the starter
switch.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the spare wheel
Preparing the vehicle
Prepare the vehicle as described
(page 394).

Take the wheel wrench and the jack
out of wheel well below the trunk floor
(page 373).

Take the spare wheel out of the trunk
(page 375).
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a spare wheel
mounted. Adapt your driving style accord-
ingly.
The spare wheel is for temporary use only.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km/h).
Drive to the nearest Mercedes-Benz Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.

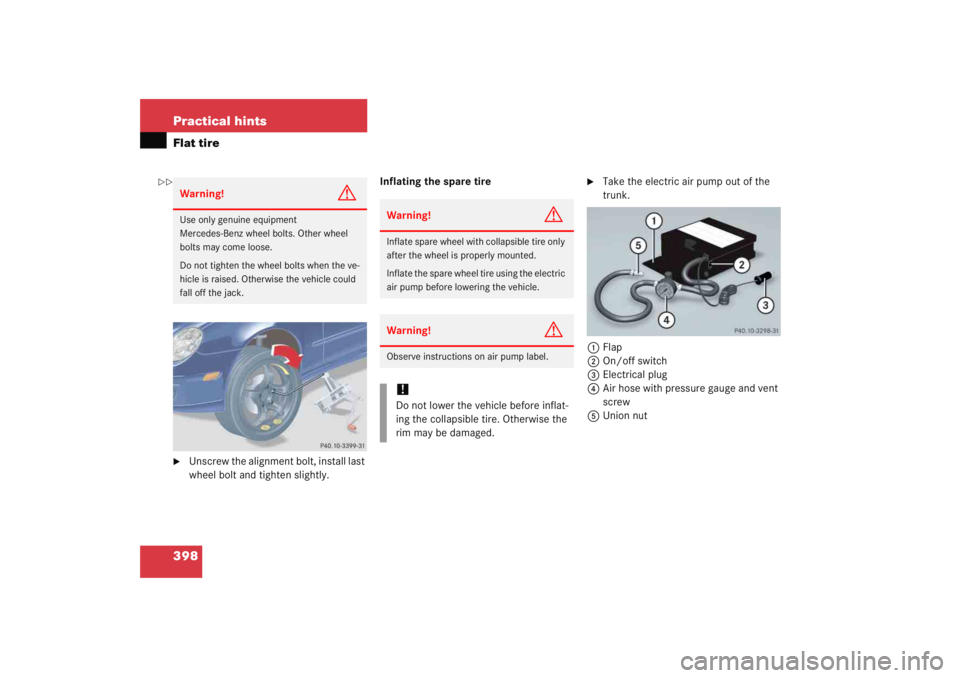

398 Practical hintsFlat tire
Unscrew the alignment bolt, install last
wheel bolt and tighten slightly.Inflating the spare tire

Take the electric air pump out of the
trunk.
1 Flap
2 On/off switch
3 Electrical plug
4 Air hose with pressure gauge and vent
screw
5 Union nut
Warning!
G
Use only genuine equipment
Mercedes-Benz wheel bolts. Other wheel
bolts may come loose.
Do not tighten the wheel bolts when the ve-
hicle is raised. Otherwise the vehicle could
fall off the jack.
Warning!
G
Inflate spare wheel with collapsible tire only
after the wheel is properly mounted.
Inflate the spare wheel tire using the electric
air pump before lowering the vehicle.Warning!
G
Observe instructions on air pump label.!Do not lower the vehicle before inflat-
ing the collapsible tire. Otherwise the
rim may be damaged.


399
Practical hints
Flat tire

Open flap
1 on electric air pump.

Pull out electrical plug 3 and air hose
with pressure gauge 4.

Remove the valve cap from valve.

Screw air hose 4 onto the tire valve.

Insert electrical plug 3 into vehicle
cigarette lighter socket.

Turn the SmartKey in the starter switch
to position 1.

Press I on electric air pump switch 2.
The electric air pump should now
switch on and inflate the spare tire.

Inflate the spare tire to approximately
36 psi (2.5 bar).
This takes about five minutes for the
spare tire. Air hose 4 and union
nut 5 can become hot during infla-
tion. Exercise proper caution to avoid
burning yourself when using the equip-
ment.

Press 0on electric air pump switch 2.

Turn the SmartKey in the starter switch
to position 0.

If the tire pressure is above 36 psi
(2.5 bar), release excess tire pressure
using the vent screw.

Detach the electric air pump.

Store the electrical plug and the air
hose behind the flap and place the air
pump back in the trunk.
!Do not operate the electric air pump
longer than six minutes without
interruption. Otherwise it may over-
heat.
You may operate the electric air pump
again after it has cooled off.
Warning!
G
Follow recommended inflation pressures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.

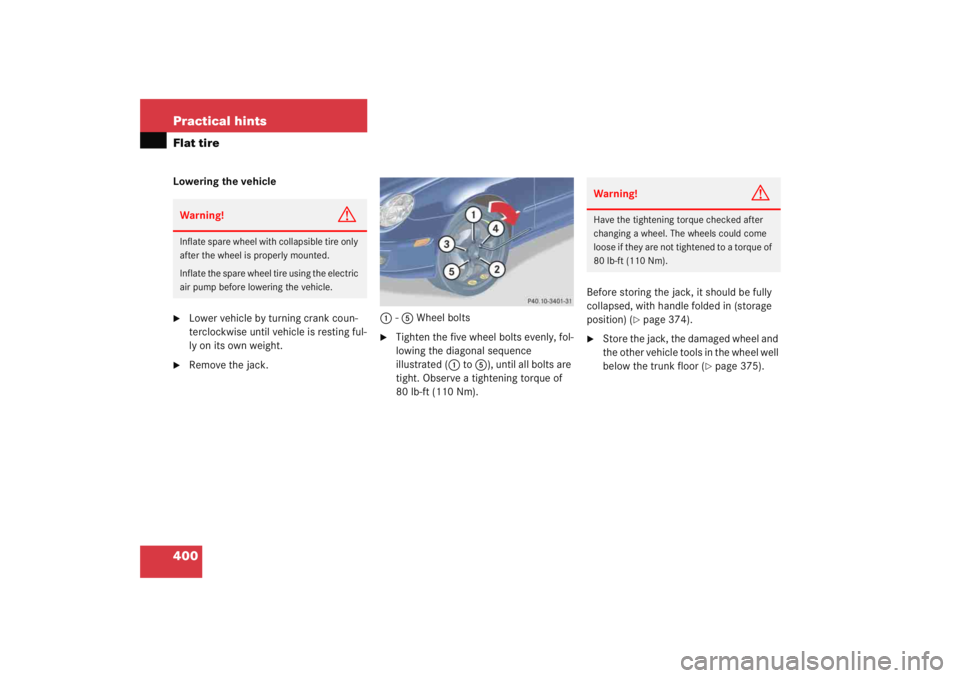

400 Practical hintsFlat tireLowering the vehicle
Lower vehicle by turning crank coun-
terclockwise until vehicle is resting ful-
ly on its own weight.

Remove the jack.1
-5 Wheel bolts

Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence
illustrated ( 1 to 5 ), until all bolts are
tight. Observe a tightening torque of
80 lb-ft (110 Nm). Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 374).

Store the jack, the damaged wheel and
the other vehicle tools in the wheel well
below the trunk floor (
page 375).
Warning!
G
Inflate spare wheel with collapsible tire only
after the wheel is properly mounted.
Inflate the spare wheel tire using the electric
air pump before lowering the vehicle.
Warning!
G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
80 lb-ft (110 Nm).
