2005 MAZDA MODEL MX-5 ECO mode

Black plate (186,1)
qOperating the Compact Disc (CD) Playerí
Display CD slot
Disc-in indicatorCD play button
Random button
Repeat buttonFast-forward button
CD eject
button
Scan button
Reverse
button Track up
button
Track down
button
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate and
the track number will be displayed.
Playing
Press the CD play button (
) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to
skip forward to the beginning of the next
track.
Press the track down button (
) once to
skip back to the beginning of the current
track.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
6-60
Interior Comfort
íSome models.
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page186
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (188,1)
qOperating the In-Dash CD Changerí
Disc-in indicator
Load button
Random button Repeat button
Disc up buttonReverse button
Channel preset buttons
DisplayCD slot
CD play button
CD eject
button
Scan button
Fast-forward
button Track up
button
Track down
button
Disc down
button
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.
NOTE
A CD cannot be inserted while the
display reads“WAIT”. A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume dial and the load button
(
) for about 2 seconds will turn
this beeping sound ON or OFF.Normal insertion
1. Press the load button (
).
2. When“In”is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button (
)
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 3 seconds
after the beep is heard.
3. When“In”is displayed, insert the CD.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
6-62
Interior Comfort
íSome models.
Audio System
MX-5 Miata_8T72-EA-04G_Edition1 Page188
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (266,1)
Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle
in top condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
qSTEP 1: Contact Your Mazda Dealer
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2: Contact Mazda North American Operations
If for any reason you feel the need for further assistance after contacting your dealership
management, you can reach Mazda North American Operations by one of three ways.
By email at: www.mazdaUSA.com (Click the TALK TO US link at the top of the
home page).
Answers to many of your Frequently Asked Questions (FAQs), including how to
locate or contact a local Mazda Dealership in the U.S., can be found here.
By phone at: 1 (800) 222-5500
By letter at:
Attn: Customer Assistance
Mazda North American Operations
7755 Irvine Center Drive
Irvine, CA 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
9-2
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5 Miata_8T72-EA-04G_Edition1 Page266
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (268,1)
Customer Assistance (Canada)
qSatisfaction Review Process
Your complete and permanent satisfaction is of primary concern to Mazda. All Authorized
Mazda Dealers have both the knowledge and tools to keep your Mazda in top condition. In
our experience, any questions, problems, or complaints regarding the operation of your
Mazda or any other general service transactions are most effectively resolved by your
dealer. If the cause of your dissatisfaction cannot adequately be addressed by normal
dealership procedures, we recommend that you take the following steps:
qSTEP 1: Contact the Mazda Dealer
Discuss the matter with a member of dealership management. If the Service Manager has
already reviewed your concerns, contact the owner of the dealership or its General
Manager.
qSTEP 2: Contact the Mazda Regional Office
If you feel that you still require assistance, ask the dealer Service Manager to arrange for
you to meet the local Mazda Service Representative. If more expedient, contact Mazda
Canada Inc.Regional Office nearest you for such arrangements. Regional Office address
and phone numbers are shown (page 9-6).
qSTEP 3: Contact the Mazda Customer Relations Department
If still not substantially satisfied, contact the Customer Relations Department, Mazda
Canada Inc., 305 Milner Avenue, Suite 400 Scarborough, Ontario M1B 3V4 Canada
TEL:1 (800) 263-4680.
Provide the Department with the following information:
1. Your name, address and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (VIN). Refer to the“Vehicle Identification Labels”page
of section 10 of this manual for the location of the VIN.
4. Purchase date
5. Present odometer reading
6. Your dealer's name and location
7. The nature of your problem and/or cause of dissatisfaction
The Department, in cooperation with the local Mazda Service Representative, will review
the case to determine if everything possible has been done to ensure your satisfaction.
9-4
Customer Information and Reporting Safety Defects
Customer Assistance
MX-5 Miata_8T72-EA-04G_Edition1 Page268
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (271,1)

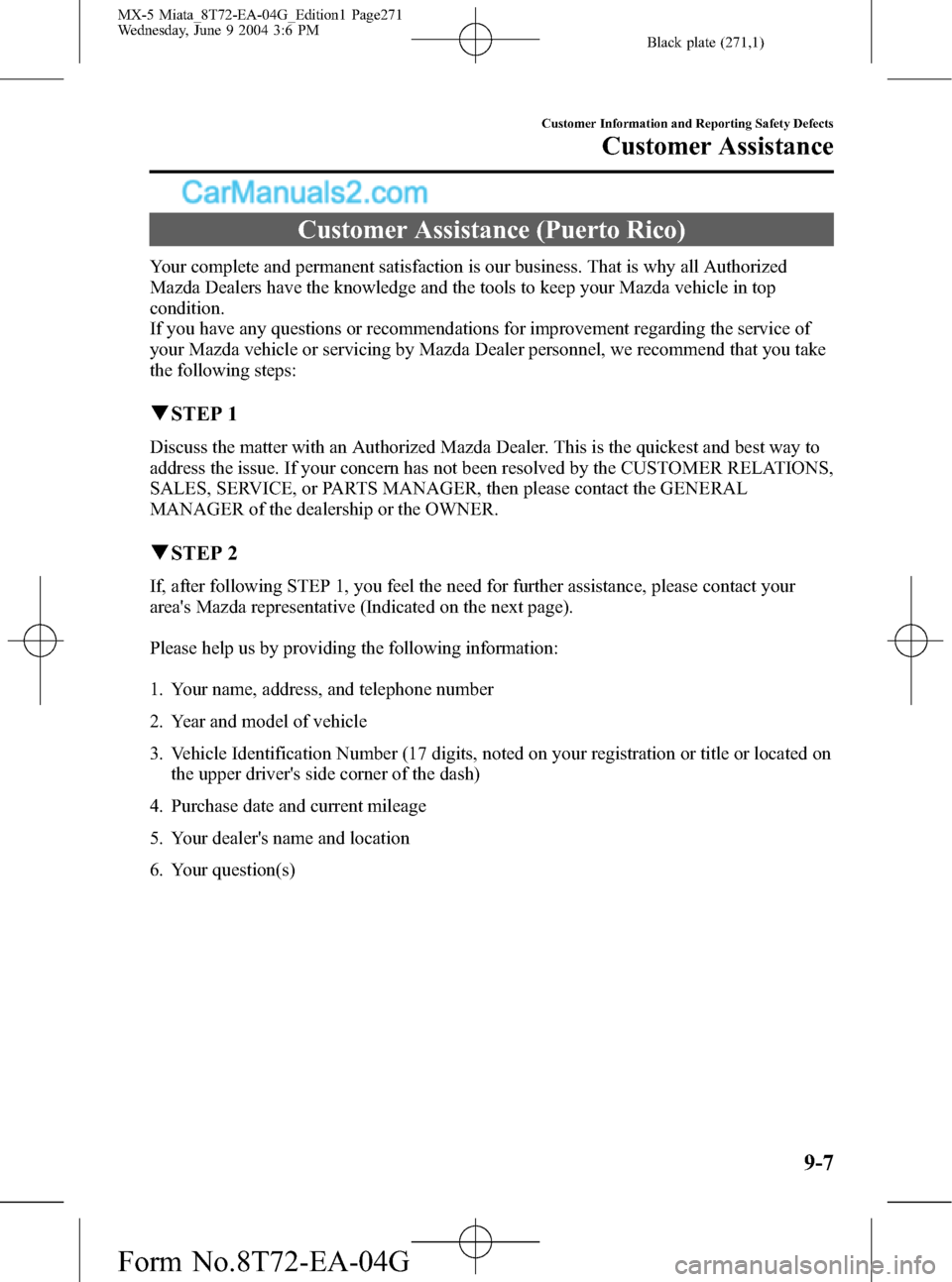

Customer Assistance (Puerto Rico)
Your complete and permanent satisfaction is our business. That is why all Authorized
Mazda Dealers have the knowledge and the tools to keep your Mazda vehicle in top
condition.
If you have any questions or recommendations for improvement regarding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we recommend that you take
the following steps:
qSTEP 1
Discuss the matter with an Authorized Mazda Dealer. This is the quickest and best way to
address the issue. If your concern has not been resolved by the CUSTOMER RELATIONS,
SALES, SERVICE, or PARTS MANAGER, then please contact the GENERAL
MANAGER of the dealership or the OWNER.
qSTEP 2
If, after following STEP 1, you feel the need for further assistance, please contact your
area's Mazda representative (Indicated on the next page).
Please help us by providing the following information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your registration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)
Customer Information and Reporting Safety Defects
Customer Assistance
9-7
MX-5 Miata_8T72-EA-04G_Edition1 Page271
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (288,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R SAE
HeadlightsHigh beam 60 HB3―
Low beam 51 HB4―
Front turn signal lights/Parking lights 27/8―#1157NA
Fog lights
í55 H11―
Side-marker lights 3.8―#194
Rear turn signal lights 21 WY21W―
Brake lights/Taillights 21/5 W21/5W #7443
High-mount brake light 21 P21W―
Reverse lights 21 W21W #7440
License plate lights/Trunk lights 5 W5W―
Interior light
Light bulb Wattage
Overhead light 8
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-30.
Standard tire
Tire sizeInflation pressure
Front Rear
195/50 R15 82V
180 kPa (1.8 kgf/cm
2, 26 psi) 180 kPa (1.8 kgf/cm2, 26 psi)
205/45 R16 83W
205/40 R17 80W 200 kPa (2.0 kgf/cm
2, 29 psi) 220 kPa (2.2 kgf/cm2, 32 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70 D14 88M
420 kPa (4.2 kgf/cm
2, 60 psi)
T105/70 D15 85M
10-6íSome models.
Specifications
MX-5 Miata_8T72-EA-04G_Edition1 Page288
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
