2005 MAZDA MODEL MPV Owners Manual (in English)

Black plate (49,1)

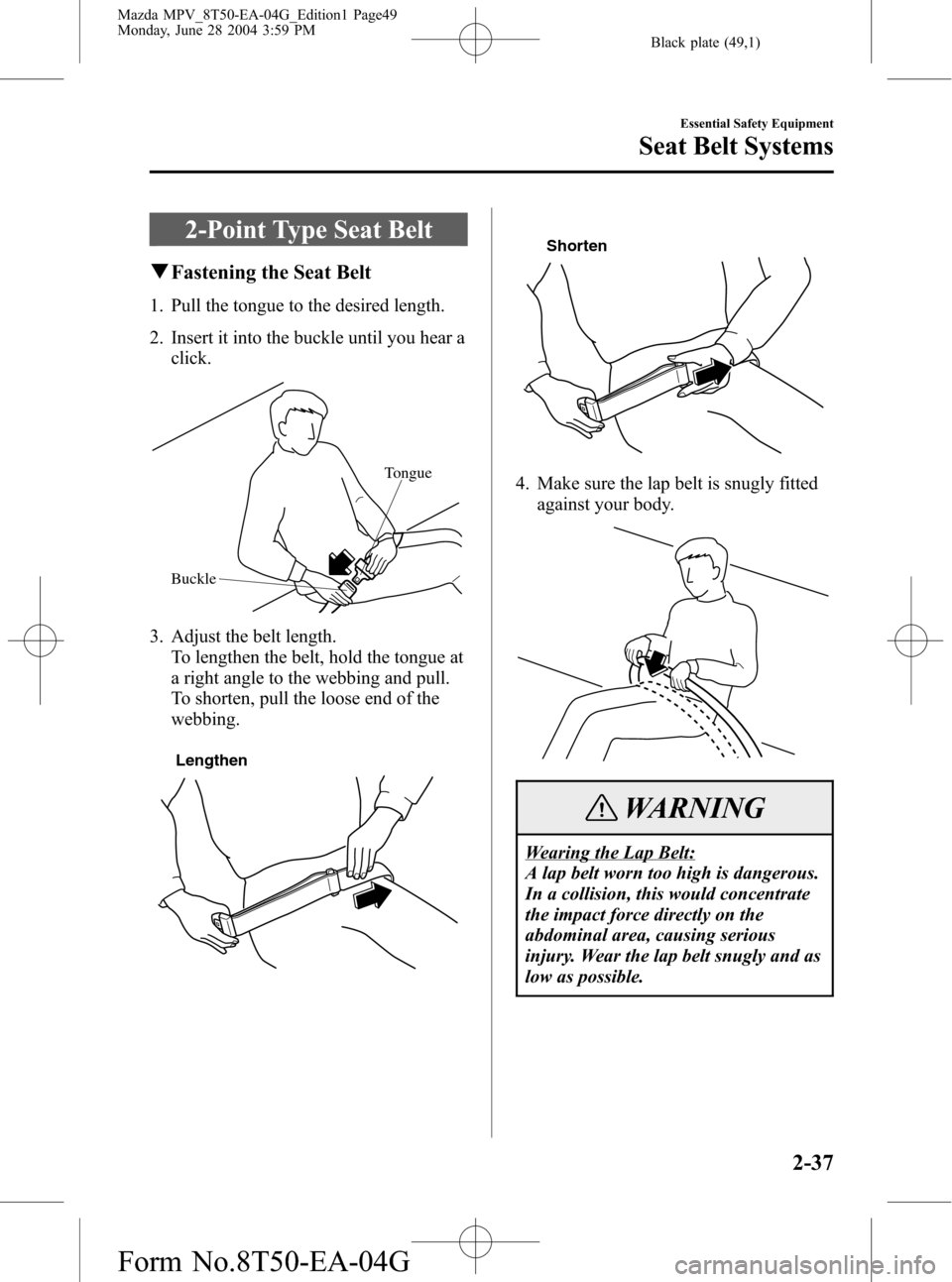

2-Point Type Seat Belt
qFastening the Seat Belt
1. Pull the tongue to the desired length.
2. Insert it into the buckle until you hear a
click.
Tongue
Buckle
3. Adjust the belt length.
To lengthen the belt, hold the tongue at
a right angle to the webbing and pull.
To shorten, pull the loose end of the
webbing.
Lengthen
Shorten
4. Make sure the lap belt is snugly fitted
against your body.
WARNING
Wearing the Lap Belt:
A lap belt worn too high is dangerous.
In a collision, this would concentrate
the impact force directly on the
abdominal area, causing serious
injury. Wear the lap belt snugly and as
low as possible.
Essential Safety Equipment
Seat Belt Systems
2-37
Mazda MPV_8T50-EA-04G_Edition1 Page49
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (50,1)
qUnfastening the Seat Belt
Depress the button on the buckle.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WARNING
Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly. In
an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the particular
vehicle and seat. NEVER use the
extender in a different vehicle or seat.
2-38
Essential Safety Equipment
Seat Belt Systems
Mazda MPV_8T50-EA-04G_Edition1 Page50
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (51,1)
WARNING
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don't use the extender or choose one
shorter in length if the distance
between the extender's buckle and the
center of the user's body is less than
15cm (6 in).
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If
the seat belt extender is left connected,
the seat belt warning light will not
illuminate and function properly.
Seat Belt Warning Light
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
Essential Safety Equipment
Seat Belt Systems
2-39
Mazda MPV_8T50-EA-04G_Edition1 Page51
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (52,1)
Seat Belt Warning Beep
If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.
2-40
Essential Safety Equipment
Seat Belt Systems
Mazda MPV_8T50-EA-04G_Edition1 Page52
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (53,1)
Child Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.
You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.
Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.
A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle.
Statistics confirm that the rear seats are the best place for all children up to 12 years of age,
and more so with a supplemental restraint system (air bags).
A rear-facing child-restraint system shouldNEVERbe used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger seat weight sensors work as a part of the supplemental restraint system.
This system deactivates the front passenger front and side air bags and also the front
passenger seat belt pretensioner system when the total seated weight on the front passenger
seat is less than approximately 30 kg (66 lb).
When an infant or small child sits on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner system, so make sure the front
passenger air bag deactivation indicator light illuminates.
Even if the front passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.
For more details, refer to“Front passenger seat weight sensors (page 2-63)”.
Essential Safety Equipment
Child Restraint
2-41
Mazda MPV_8T50-EA-04G_Edition1 Page53
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (54,1)
WARNING
Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the Manufacturer's Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer's instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors for LATCH
child-restraint systems.
Holding a Child While the Vehicle is Moving:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces
that could result in serious injury or death to the child, or the child may be slammed
into the adult, injuring the adult. Always secure a child in a proper child-restraint
system.
Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. Even though you may feel
assured that the front passenger air bag will not deploy based on the fact that the front
passenger air bag deactivation indicator light illuminates, NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy even in a
moderate collision.
2-42
Essential Safety Equipment
Child Restraint
Mazda MPV_8T50-EA-04G_Edition1 Page54
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (55,1)
WARNING
Seating Children in a Child-Restraint System on the Front Passenger Seat:
If your vehicle is equipped with front passenger seat weight sensors, a front passenger
air bag deactivation indicator light is also equipped (page 2-51). Even with the front
passenger seat weight sensors, if you must use the front passenger seat for children,
seating a child in a child-restraint system on the front passenger seat under the
following conditions increases the danger of the front passenger air bag deploying
and could result in serious injury or death to the child.
lThe total seated weight of the child with the child-restraint system on the front
passenger seat is approximately 30 kg (66 lb) or more.
lLuggage or other items are placed on the seat with the child in the child-restraint
system.
lA rear passenger or luggage push or pull down on the front passenger seatback.lA rear passenger steps on the front passenger seat rails with the feet.lLuggage or other items are placed on the seatback or hung on the assist grip, head
restraint or armrest.
lThe seat is washed.lLiquids are spilled on the seat.lThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
lThe front passenger seatback contacts the second-row seat.lLuggage or other items are placed between the front passenger seat and driver seat.lAny accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
The designated positions with seat belts on the rear seats are the safest places for
children. Always use seat belts and child restraints.
Children and Seating Position with Side Air Bag:
Allowing anyone to lean over or against the front door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause serious
injury or death to the person. Children are more likely to sleep in the vehicle; when
they do, they are more at risk in the front passenger's seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. With the front air bag and the
additional side air bag that comes out of the front seat, the rear seat is always a better
location for children who are prone to sleeping. If a child can't be seated in the rear,
do not allow the child to lean over or against the front door, even if the child is seated
in a child-restraint system.
Essential Safety Equipment
Child Restraint
2-43
Mazda MPV_8T50-EA-04G_Edition1 Page55
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (56,1)
WARNING
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can't spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
CAUTION
A seat belt or child-restraint system can become very hot in a closed vehicle during
warm weather. To avoid burning yourself or a child, check them before you or your child
touches them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially
designed LATCH child-restraint systems in the rear seats. When using these anchors to
secure a child-restraint system, refer to“LATCH Child-Restraint Systems”(page 2-53).
2-44
Essential Safety Equipment
Child Restraint
Mazda MPV_8T50-EA-04G_Edition1 Page56
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G
