qError Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK MDMD is inserted upside downInsert the MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
MD is defectiveInsert another MD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
CHECK CDCD is inserted upside downInsert the CD properly. If the error indication does not disappear,
consult an Authorized Mazda Dealer.
CD is defectiveInsert another CD properly. If the error indication does not
disappear, consult an Authorized Mazda Dealer.
Interior Comfort
Audio System
6-31
Mazda3_8T97-EC-04J_Edition1 Page193
Saturday, September 25 2004 2:14 PM
Form No.8T97-EC-04J

Black plate (200,1)
Information Display
ClockAudio display
qInformation Display Functions
The information display has the following functions:
lClock
lAudio Display
6-38
Interior Comfort
Interior Equipment
Mazda3_8T97-EC-04J_Edition1 Page200
Saturday, September 25 2004 2:14 PM
Form No.8T97-EC-04J

Black plate (201,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLOCK button until a beep
sounds, and“12Hr”and“24Hr”will be
displayed.
2. Press the SET button to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK button again while
the preferred setting is flashing.
3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLOCK button.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the
CLOCK button.
Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET button is released, the
seconds are reset to“00”.
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-10).
Interior Comfort
Interior Equipment
6-39
Mazda3_8T97-EC-04J_Edition1 Page201
Saturday, September 25 2004 2:14 PM
Form No.8T97-EC-04J

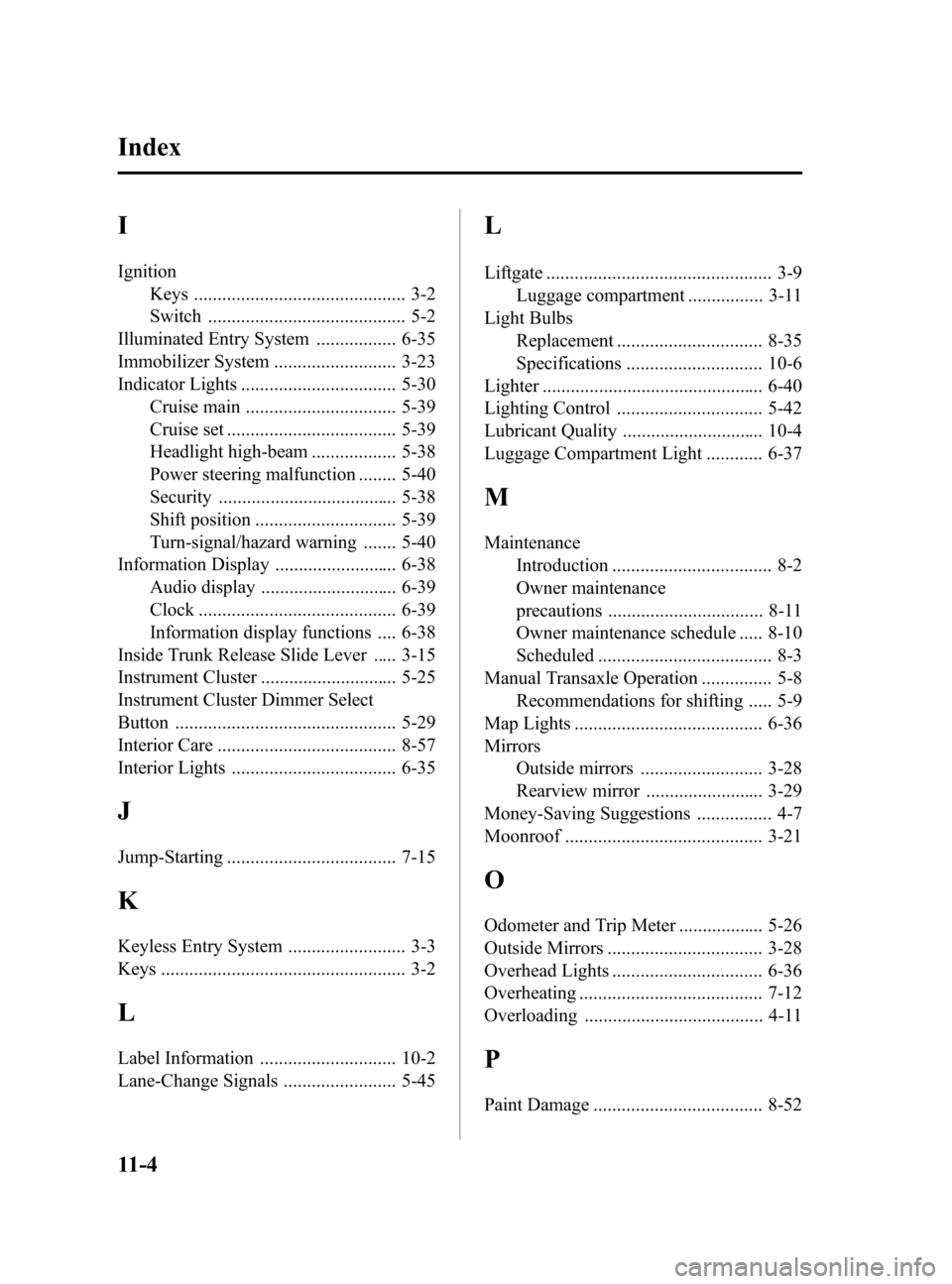

Black plate (320,1)
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-35
Immobilizer System .......................... 3-23
Indicator Lights ................................. 5-30
Cruise main ................................ 5-39
Cruise set .................................... 5-39
Headlight high-beam .................. 5-38
Power steering malfunction ........ 5-40
Security ...................................... 5-38
Shift position .............................. 5-39
Turn-signal/hazard warning ....... 5-40
Information Display .......................... 6-38
Audio display ............................. 6-39
Clock .......................................... 6-39
Information display functions .... 6-38
Inside Trunk Release Slide Lever ..... 3-15
Instrument Cluster ............................. 5-25
Instrument Cluster Dimmer Select
Button ............................................... 5-29
Interior Care ...................................... 8-57
Interior Lights ................................... 6-35
J
Jump-Starting .................................... 7-15
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-45
L
Liftgate ................................................ 3-9
Luggage compartment ................ 3-11
Light Bulbs
Replacement ............................... 8-35
Specifications ............................. 10-6
Lighter ............................................... 6-40
Lighting Control ............................... 5-42
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-37
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-11
Owner maintenance schedule ..... 8-10
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-8
Recommendations for shifting ..... 5-9
Map Lights ........................................ 6-36
Mirrors
Outside mirrors .......................... 3-28
Rearview mirror ......................... 3-29
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-21
O
Odometer and Trip Meter .................. 5-26
Outside Mirrors ................................. 3-28
Overhead Lights ................................ 6-36
Overheating ....................................... 7-12
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-52
