2005 MAZDA MODEL 3 HATCHBACK Owner's Manual (in English)

Black plate (225,1)
Connect cables in numerical order and disconnect in reverse order.
Jumper cables Discharged
battery
Booster battery
1. For vehicle equipped with the engine
cover, remove the engine cover.2. Remove the battery cover from its front
side.
Battery cover
3. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
4. If the booster battery is in another
vehicle, don't allow the vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
In Case of an Emergency
Emergency Starting
7-17
Mazda3_8T97-EC-04J_Edition1 Page225
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (226,1)
5. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to a solid,
stationary, exposed metallic point
(for example, the right hand side
engine mounting bolt) away from
the discharged battery (4).
6. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
7. When finished, carefully disconnect the
cables in the reverse order described in
the illustration.
NOTE
Verify that the engine cover is securely
installed.
Push-Starting
WARNING
Towing a Vehicle to Start It:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured. Never tow a vehicle to start it.
You can't start a vehicle with an automatic
transaxle by pushing it.
CAUTION
You shouldn't push-start a vehicle that
has a manual transaxle. It can damage
the emission control system.
7-18
In Case of an Emergency
Emergency Starting
Mazda3_8T97-EC-04J_Edition1 Page226
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (227,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
front wheels off the ground. If excessive
damage or other conditions prevent this,
use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Don't tow the vehicle pointed backward
with driving wheels on the ground. This
may cause internal damage to the
transaxle.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-19
Mazda3_8T97-EC-04J_Edition1 Page227
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (228,1)

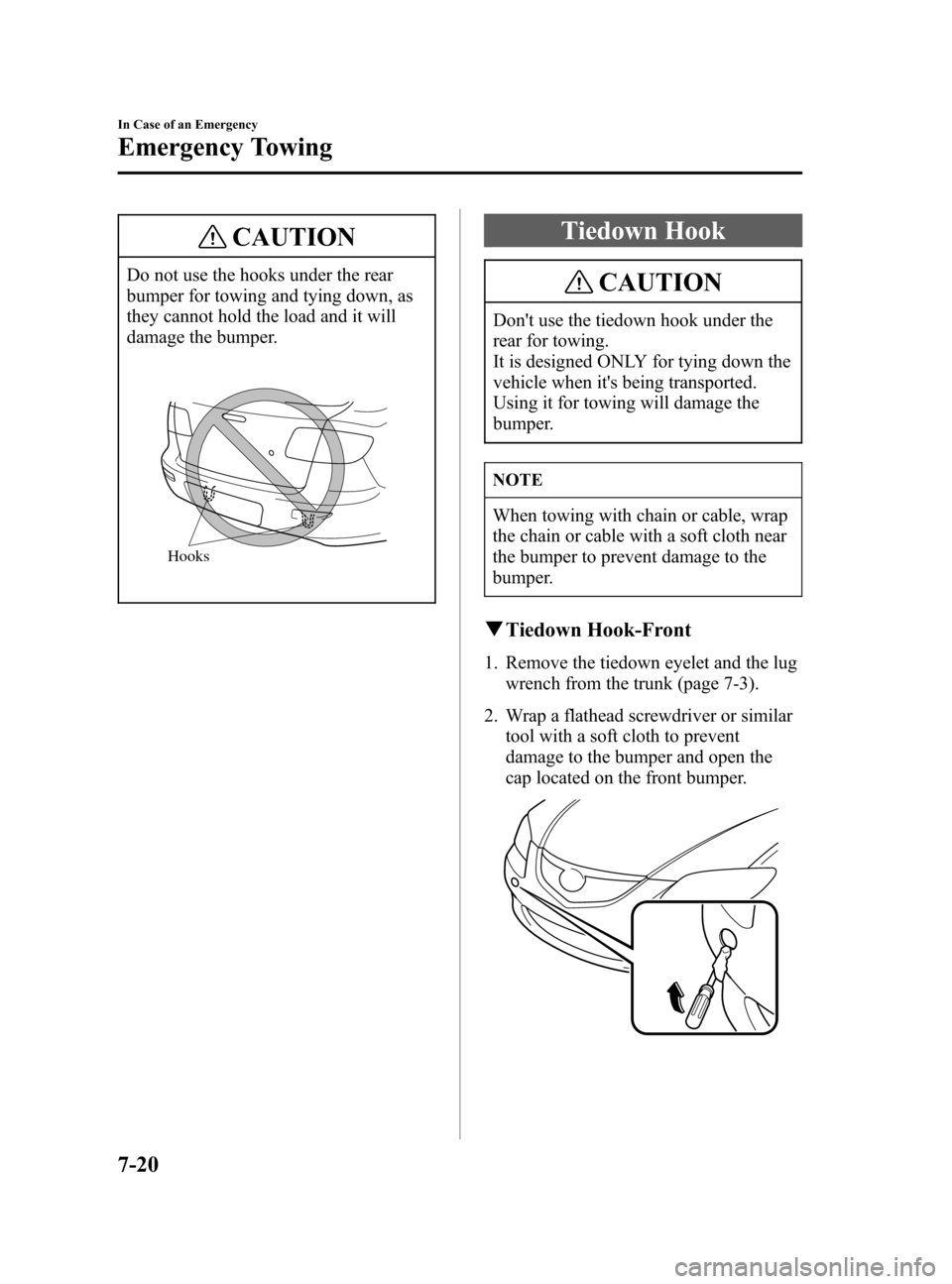

CAUTION
Do not use the hooks under the rear
bumper for towing and tying down, as
they cannot hold the load and it will
damage the bumper.
Hooks
Tiedown Hook
CAUTION
Don't use the tiedown hook under the
rear for towing.
It is designed ONLY for tying down the
vehicle when it's being transported.
Using it for towing will damage the
bumper.
NOTE
When towing with chain or cable, wrap
the chain or cable with a soft cloth near
the bumper to prevent damage to the
bumper.
qTiedown Hook-Front
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to the bumper and open the
cap located on the front bumper.
7-20
In Case of an Emergency
Emergency Towing
Mazda3_8T97-EC-04J_Edition1 Page228
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (229,1)
CAUTION
The cap cannot be completely removed.
Do not use excessive force as it may
damage the cap or scratch the painted
bumper surface.
3. Securely install the tiedown eyelet
using the lug wrench.
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down the
vehicle. Make sure that the tiedown
eyelet is securely tightened to the
bumper.
In Case of an Emergency
Emergency Towing
7-21
Mazda3_8T97-EC-04J_Edition1 Page229
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (230,1)
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-19) and
“Tiedown Hook”(page 7-20) and
carefully follow the instructions.
7-22
In Case of an Emergency
Emergency Towing
Mazda3_8T97-EC-04J_Edition1 Page230
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (231,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance (North America) ................................. 8-3
Scheduled Maintenance (Except North America) ..................... 8-7
Owner Maintenance ................................................................... 8-10
Owner Maintenance Schedule ................................................ 8-10
Owner Maintenance Precautions ............................................. 8-11
Engine Compartment Overview .............................................. 8-12
Engine Oil ............................................................................... 8-13
Engine Coolant ....................................................................... 8-16
Brake/Clutch Fluid .................................................................. 8-18
Power Steering Fluid ............................................................... 8-19
Automatic Transaxle Fluid (ATF) ........................................... 8-20
Washer Fluid ........................................................................... 8-21
Body Lubrication .................................................................... 8-22
Air Filter .................................................................................. 8-23
Wiper Blades ........................................................................... 8-24
Battery ..................................................................................... 8-28
Tires ........................................................................................ 8-30
Light Bulbs ............................................................................. 8-35
Fuses ....................................................................................... 8-45
Appearance Care ........................................................................ 8-52
How to Minimize Environmental Paint Damage .................... 8-52
Exterior Care ........................................................................... 8-54
Interior Care ............................................................................ 8-57
8-1
Mazda3_8T97-EC-04J_Edition1 Page231
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J

Black plate (232,1)
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you're unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance.But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
8-2
Maintenance and Care
Introduction
Mazda3_8T97-EC-04J_Edition1 Page232
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J
