Light Bulbs
Side turn signal lightsRear turn signal lightsLicense plate light
Overhead light/Map lights (Front)
Headlights (Low beam)
Fog lights Brake lights/Taillights
Reverse light
High-mount brake light
Trunk light
4 Door
5 Door Overhead light (Rear)
Overhead light/Map lights (Front)
Headlights (Low beam)
Side turn signal lights Fog lights
License plate light
High-mount brake light Overhead light (Rear)
Rear turn signal lights
Brake lights/Taillights
Reverse light
Some models.
Front turn signal lights/Side-
marker lightsHeadlights
(High beam)
Front turn signal
lights/Side-marker lights
Headlights
(High beam) Luggage
compartment light
Maintenance and Care
Owner Maintenance
8-37
Mazda3_8T96-EA-04J_Edition3 Page279
Wednesday, May 11 2005 3:39 PM
Form No.8T96-EA-04J
Black plate (282,1)
NOTE
lTo replace the bulb, contact an
Authorized Mazda Dealer.
lUse the protective cover and carton
for the replacement bulb to dispose
of the old bulb promptly and out of
the reach of children.
lWhen reinstalling the sealing cover,
make sure
faces up.
Replacing a fog light bulbí
1. Turn the screw counterclockwise andremove it and partially peel back the
mudguard.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the fog light bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket. 3. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Front turn signal lights/Side-marker
lights
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Side turn signal lights
1. Slide the unit as shown in the figure to
remove it.
8-40
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8T96-EA-04J_Edition3 Page282
Wednesday, May 11 2005 3:39 PM
Form No.8T96-EA-04J
Black plate (328,1)

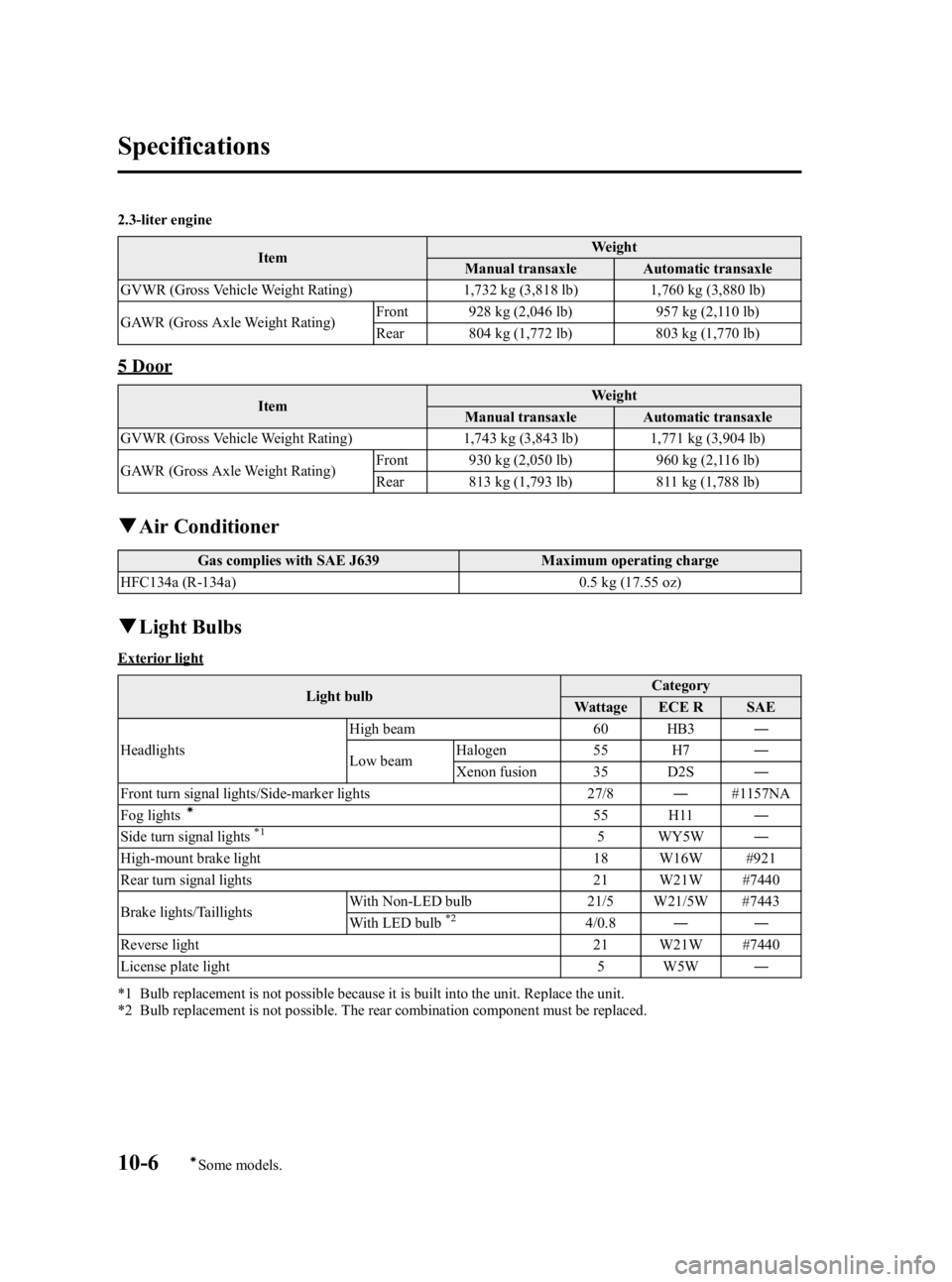

2.3-liter engineItem Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,732 kg (3,818 lb) 1,760 kg (3,880 lb)
GAWR (Gross Axle Weight Rating) Front 928 kg (2,046 lb) 957 kg (2,110 lb)
Rear 804 kg (1,772 lb) 803 kg (1,770 lb)
5 Door
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,743 kg (3,843 lb) 1,771 kg (3,904 lb)
GAWR (Gross Axle Weight Rating) Front 930 kg (2,050 lb) 960 kg (2,116 lb)
Rear 813 kg (1,793 lb) 811 kg (1,788 lb)
q
Air Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.55 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 60 HB3
―
Low beam Halogen 55 H7
―
Xenon fusion 35 D2S ―
Front turn signal lights/Side-marker lights 27/8 ―#1157NA
Fog lights
í55 H11 ―
Side turn signal lights*15 WY5W ―
High-mount brake light 18 W16W #921
Rear turn signal lights 21 W21W #7440
Brake lights/Taillights With Non-LED bulb 21/5 W21/5W #7443
With LED bulb
*24/0.8
――
Reverse light 21 W21W #7440
License plate light 5 W5W ―
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Bulb replacement is not possible. The rear combination component must be replaced.
10-6íSome models.
