2005 LOTUS ELISE fuses

Transmission Oil .....................................................103
Cooling System .......................................................
106
Anti-Freeze/Corrosion Inhibitor ...............................
107
Coolant Drain/Refill Procedure ................................
108
Washer Reservoir ...................................................
109
Wiper Blade .............................................................
109
Brake Fluid Reservoir ............................................... 110
Brake Pads ............................................................... 111
Brake Pipes and Hoses ............................................112
Air Cleaner Element ................................................. 113
Auxiliary Drive Belt ................................................... 114
Sparking Plugs ......................................................... 114
14. TIRES & WHEE
LS
Tires ................................................................ 115
Glossary of Terms .................................................... 115
T
ire Safety ................................................................ 115
Tire Care ................................................................ 117
Replacement Tires ................................................... 118
Tire Characteristics .................................................. 119
Winter T
ires .............................................................. 119
Tire Cha
ins ..............................................................120
Uniform T
ire Quality Grading ...................................120
Tire Placard
/Label ...................................................121
Steps
for Determining Correct Load Limit ...............122
Tire Ma
rkings ..........................................................123
T ire Inflator Aerosol .................................................
124
Wheels ...............................................................
126
Wheel Bolts .............................................................
126
Wheel Alignment & Tire Balance .............................
126
Wheel Replacement ................................................
127
15. ELECTRICAL
Battery ...............................................................129
Battery Access ........................................................
129
Disconnecting the Battery .......................................
129
Reconnecting the Battery ........................................
131
Battery Charging .....................................................
131
‘Jump’ Starting ........................................................
133
Electrical Accessories ...................................................
134
Inertia Switch ...............................................................
135
Fuses ...............................................................
135
Contents
4

oh_croft_InD.indd 420/05/2004 07:58:40ProCarManuals.com

Engine Compartment Fuses ...................................137
Footwell Sited Fuses ...............................................
138
Headlamp Alignment .....................................................
139
Bulb Replacement ........................................................
142
Headlamp Bulb ........................................................
142
Front Turn Indicator Lamp Bulb ...............................
143
Side Repeater Lamp Bulb .......................................
144
Rear Lamp Cluster Bulb ..........................................
144
High Mounted Stoplamp Bulb .................................
144
Licence Plate Lamp Bulb ........................................
144
Interior Lamp Bulb ...................................................
145
Side Marker Lamp Bulb ...........................................
145
16. LIFTING & TOWING
Towing Eye ...............................................................146
Towing a Trailer .............................................................147
Car Tie-Down ...............................................................
147
Lifting Your Car .............................................................148
Fuel Tank Undershi
eld ..................................................149
17. A
CCESSORIES
Accessories & Modifications .........................................150
Storing Your Elise .........................................................
152
18. RECOMMENDED LUBRICANTS
Engine ...............................................................
153
Transmission ...............................................................
154
Br
akes & Clutch ............................................................154
Engine Coolant Additive ................................................
154
19. TECHNICAL DATA .......................................................155
20. WARRANTY INDEX .....................................................161
21. ALPHABETICAL INDEX ..............................................188

Contents
5

oh_croft_InD.indd 520/05/2004 07:58:40ProCarManuals.com

WARNING:Inexper t modifications or additions to the electrical
system could jeopardise safety.
Inertia Switch The safety inertia switch is designed to operate on impact,
typified by car collision, to switch off the fuel pump, and thus
minimise any fire hazard. The central door locking will also be
triggered to unlock the doors. The inertia switch is mounted at the left hand bottom of the
engine bay, on the inboard face of the rear subframe, and is ac
-
cessible from between the coolant header tank and windscreen
washer reservoir. The switch is reset by pressing the rubber
diaphragm button on the top of the unit.
Fuses The main fusebox is located in the front services compartment,
on the passenger side, and is protected by a plastic cover. For
access, remove the passenger side front body access panel,
and unclip the fusebox lid. Twenty two slots are provided for ‘Littel’ type fuses which are
numbered, and coloured according to their amperage rating, and
may be pulled out from their slots using the fuse extractor tool provided on the fusebox lid.

ohs137
INERTIA SWITCH
Electrical
135

oh_croft_InD.indd 13520/05/2004 07:59:14ProCarManuals.com

Engine Compartment FusesFuses associated with the engine management system are
contained in two 4-position fuse holders located at the front of
the engine bay on the cabin bulkhead, adjacent to the engine ECM. To access the fuses, unclip rear edge of the cover.
Fuse Rating CircuitR1 20A Fuel pump
R2 3A Immobiliser
R3 5A Alternator sense
R4 5A ECU battery feed
R5 5A O2 heaters
R6 7.5A VSV's V VT, V VL, IAC
R7 10A Injectors, ignition coils
R8 5A Re-circ. pump
WARNING:
• To avoid injury, beware of rotating engine components and guard against entrapment of body parts, tools and
loose clothing.
• Stop engine before servicing fuses.
• Beware of hot surfaces in the engine bay. You could be seriously burned if you touch a hot engine part.
• Take great care not to drop flammable liquids or objects onto a hot engine and start a fire.
ohs136
ENGINE BAY FUSES
4
3
2
1
8
7
6
5
Electrical
137

oh_croft_InD.indd 13720/05/2004 07:59:15ProCarManuals.com

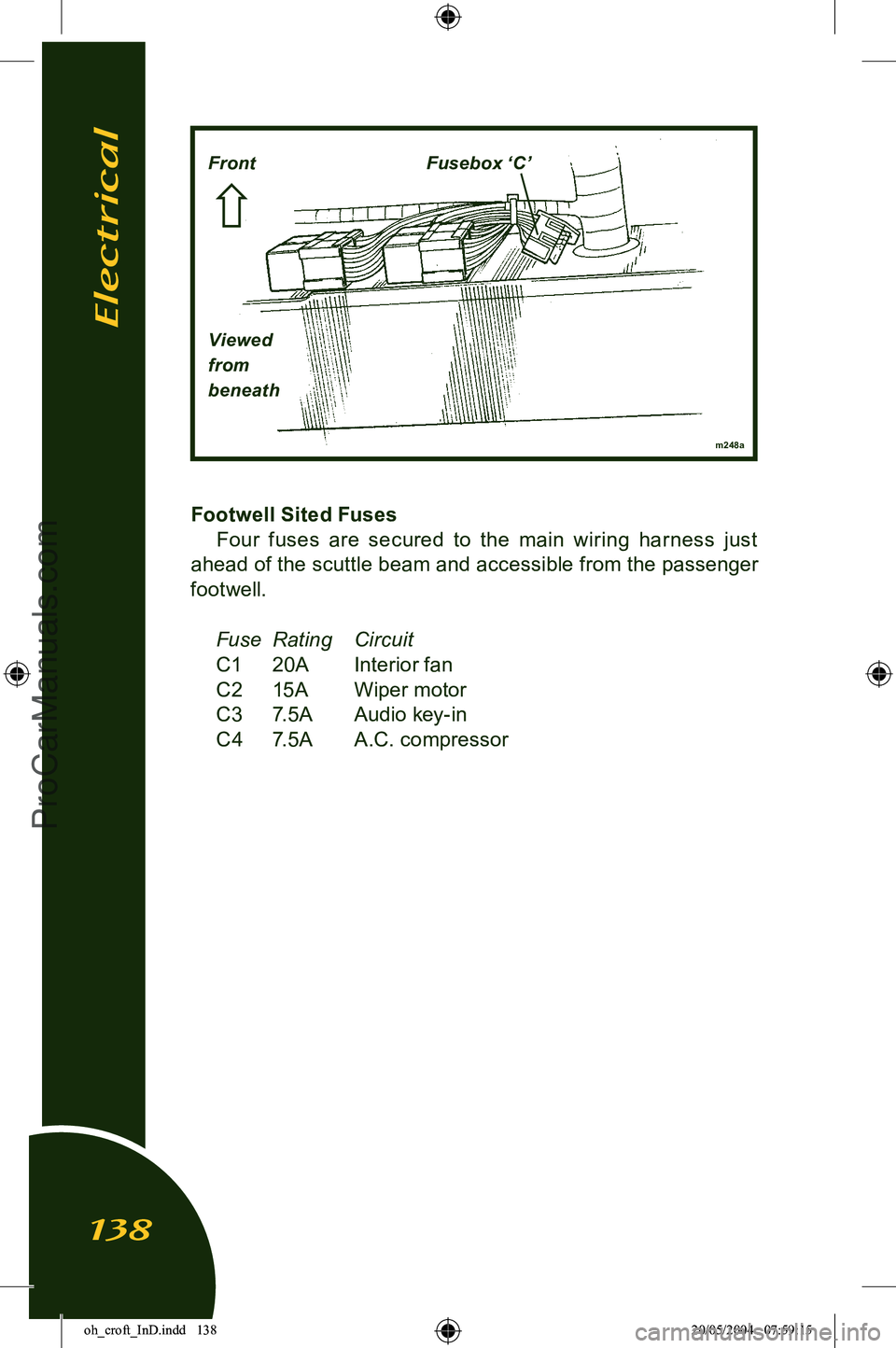

Footwell Sited Fuses Four fuses are secured to the main wiring harness just
ahead of the scuttle beam and accessible from the passenger
footwell.
Fuse Rating CircuitC1 20A Interior fan
C2 15A Wiper motor
C3 7.5A Audio key-in
C4 7.5A A.C. compressor
m248a
Front
Viewed
from
beneath Fusebox ‘C’Electrical
138

oh_croft_InD.indd 13820/05/2004 07:59:15ProCarManuals.com

INDEX
Access Panels, front service ................................................. 78
Accessories & Modifications, warnings .............................. 150
Air Cleaner Element ............................................................. 113
Air Conditioning ...................................................................... 61
Airbag Safety System ............................................................. 21
Alarm, car security ................................................................ 30
Alternator Belt ...................................................................... 114
Anti-freeze/Corrosion Inhibitor ............................................. 107
Anti-Lock Brake System (ABS) .............................................. 67
Audio Equipment ................................................................... 60
Auxiliary Power Socket .......................................................... 57
Battery ................................................................................. 129
Bodycare ............................................................................... 93
Brake Fluid Reservoir .......................................................... 110
Brake Pads ........................................................................... 111
Break-In, running-in .............................................................. 73
Bulb Replacement ............................................................... 142
Central Door Locking ............................................................. 37
Child Restraints ..................................................................... 26
Cleaning, bodycare ............................................................... 93
Coolant Temperature Display ................................................ 53
Cooling System ................................................................... 106
Dipswitch ............................................................................... 58
Doors, keys ............................................................................ 37
Engine Cover/Trunk Lid ........................................................ 79
Environment, care of ............................................................. 14
Fuel Level Display ................................................................. 52
Fuel Filling ............................................................................. 76
Fuel Requirement .................................................................. 75
Fuses ................................................................................... 135
Gear Lever ............................................................................. 71
Hazard Warning Lamps Switch ............................................ 55
Headlamp Alignment ........................................................... 139
Index
188

oh_croft_InD.indd 18820/05/2004 07:59:26ProCarManuals.com
