HOW TO USE THIS MANUAL
vii
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner's Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION Ð QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 Ð INSTRUMENTS AND CONTROLS
The vehicle's equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Occupant restraint systems
7. Steering wheel and mirrors
SECTION 2 Ð AIR CONDITIONING AND AUDIO
The features of the vehicle's air conditioning and audio are
explained in detail. Be sure to read this Section so that you can
make full use of them.
SECTION 3 Ð STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this Section, and remember Ð drive safely!

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xiii
Page
1Driving position memory switches225
. . . . . . . . . . .
2Power window switches 48
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 24
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 49
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 232 . . . . . .
6Side vents 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 33, 36, 37 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 37
. . . . . . . . . . . . . . . . . . . .
9Center vents 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 51
. . . . . . . . . . . . . . . . . . . . .
11Audio system 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi±information display 75
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 243
. . . . . . . . . .
14Rear window defogger switch 45
. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 65 . . . . . .
16ªAIRBAG ONº and ªAIRBAG OFFº
indicator lights 194 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
19Cigarette lighter 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 53
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four±wheel drive control lever
411
. . . . . . . . . . . . . . . .
22Automatic transmission selector lever 403 . . . . . . . .
23Parking brake lever 400
. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 411
. . . . . . . . . . . . . . . .
25Power outlet (12 VDC) 93
. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 436
. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 429 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 422 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30ª2nd STRTº (second start) switch 411
. . . . . . . . . . . . .
31Tire pressure warning system
selector switch 455 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 419
. . . . . . . . . . . . . . . . . . . . . . .
33Audio remote control switches 285
. . . . . . . . . . . . . . .
34Instrument panel light control dial 86
. . . . . . . . . . . . . .
35Hood lock release lever 112
. . . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 113
. . . . . . . . . . . . . . . . . . . . . . . .
37ªRSCA OFFº (roll sensing of curtain
shield airbags off) switch 199 . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 47 . . . . . . .
39Power outlet (115 VAC) main switch 95
. . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xv
Page
1Driving position memory switches225
. . . . . . . . . . .
2Power window switches 48
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 24
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 49
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 232 . . . . . .
6Side vents 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 33, 36, 37 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 37
. . . . . . . . . . . . . . . . . . . .
9Center vents 256
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 51
. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
including air conditioning controls and audio
system(For the navigation system, see the separate ªNavigation System Owner's Manualº.) 415 . . . . . . .
12Multi±information display 75
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls
See the separate
. . . . . . . . .
ªNavigation System Owner's Manualº.
14Rear window defogger switch 45
. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 65 . . . . . .
16ªAIRBAG ONº and ªAIRBAG OFFº
indicator lights 194 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Audio system 264
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Ashtray 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
20Cigarette lighter 92
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Seat heater switches
53
. . . . . . . . . . . . . . . . . . . . . . . . . .
22Four±wheel drive control lever 411
. . . . . . . . . . . . . . . .
23Automatic transmission selector lever 403 . . . . . . . .
24Parking brake lever 400
. . . . . . . . . . . . . . . . . . . . . . . . .
25Center differential lock switch 411
. . . . . . . . . . . . . . . .
26Power outlet (12 VDC) 93
. . . . . . . . . . . . . . . . . . . . . . . . .
27Downhill assist control switch 436
. . . . . . . . . . . . . . .
28Electronic modulated suspension
control switch 429 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Rear height control air suspension
switches 422 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Ignition switch 398
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31ª2nd STRTº (second start) switch 411
. . . . . . . . . . . . .
32Tire pressure warning system
selector switch 455 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33Cruise control switch 419
. . . . . . . . . . . . . . . . . . . . . . .
34Speech command switch
See the separate
. . . . . . . . .
ªNavigation System Owner's Manualº.
35Audio remote control switches 285
. . . . . . . . . . . . . . .
36Instrument panel light control dial 86
. . . . . . . . . . . . . .
37Hood lock release lever 112
. . . . . . . . . . . . . . . . . . . . . .
38Fuel filler door opener 113
. . . . . . . . . . . . . . . . . . . . . . . .
39ªRSCA OFFº (roll sensing of curtain
shield airbags off) switch 199 . . . . . . . . . . . . . . . . . . . .
40Outside rear view mirror defogger switch 47 . . . . . . .
41Power outlet (115 VAC) main switch 95
. . . . . . . . . . . .

PPY021
PICTORIAL INDEX
xxi

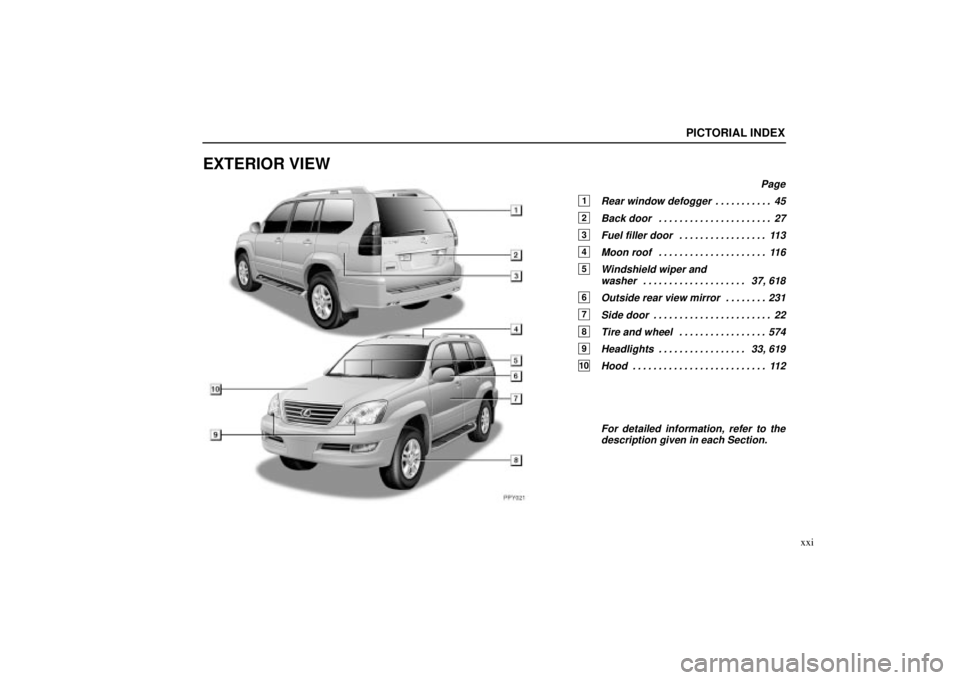

EXTERIOR VIEW
Page
1Rear window defogger45
. . . . . . . . . . .
2Back door 27
. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 113
. . . . . . . . . . . . . . . . .
4Moon roof 116
. . . . . . . . . . . . . . . . . . . . .
5Windshield wiper and
washer 37, 618 . . . . . . . . . . . . . . . . . . . .
6Outside rear view mirror 231 . . . . . . . .
7Side door 22
. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 574
. . . . . . . . . . . . . . . . .
9Headlights 33, 619
. . . . . . . . . . . . . . . . .
10Hood 112
. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each Section.

SECTION 1 ± 2
32
INSTRUMENTS AND CONTROLS
Switches
Headlight switch33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Fog light switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Rear window wiper and washer switch 43
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Rear window defogger switch 45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Outside rear view mirror defogger switch 47
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Power window switches 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 51
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 53
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .

SWITCHES
47
OUTSIDE REAR VIEW MIRRORDEFOGGER SWITCH
To turn the electric outside rear view mirror defogger on,
push the switch.
The ignition key must be in the ªONº position.
The thin heater wires on the heater panels in the outside rear
view mirrors will quickly clear the surface. Keep your hands off
the mirror faces when the switch is on. An indicator light will
illuminate to indicate the defogger is operating.
The system will automatically shut off when the defogger has
operated about 5 minutes.
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop±and±go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de±icer before operating the switch.
NOTICE
To prevent the battery from being discharged, turn the
switch off when the engine is not running.

OCCUPANT RESTRAINT SYSTEMS
225
When using the left side lower anchorages for the
child restraint system, do not sit in the center seat.
The performance of the center seat belt cannot be
brought out sufficiently because the belt may be
high±positioned or the seat belt may be loose±fitting,
posing the risk of serious injury in the case of
collision.
DRIVING POSITION MEMORY
SYSTEM
A microcomputer will memorize the position of the driver's
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two dif ferent driving position profiles
can be entered into the computer's memory.
Recording the driving position in the computer's memory can
only be done when the ignition key is in the ªONº position and
the selector lever is in the ªPº position.
Setting the driving position
1. Adjust the driver's seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the ªSETº button, push button ª1º or ª2º
until the signal beeps.

SECTION 1 ± 7
229
INSTRUMENTS AND CONTROLS
Steering wheel and mirrors
Tilt and telescopic steering wheell230
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Outside rear view mirrors 231
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror 234
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 240
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
