2005 Lexus ES330 Occupant Restraint System / LEXUS 2005 ES330 OWNER'S MANUAL (OM33691U)

PICTORIAL INDEX
xvii

BASIC OPERATION
1
QUICK REFERENCE
Quick reference
Driver’s seat2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Tilt steering column 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Power adjustable pedals 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Headlight and turn signal switch 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 6
. . . . . . . . . . . . . . . . . . . . . . . . . .

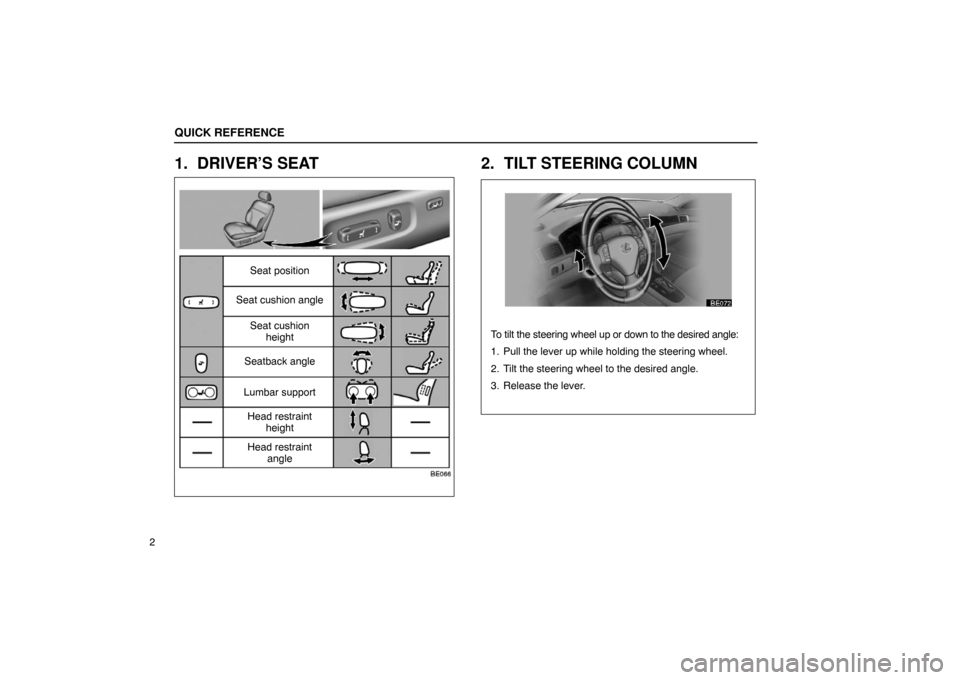

Seat position
Head restraint angle
Head restraint
height
Lumbar support
Seatback angle Seat cushion
height
Seat cushion angle
To tilt the steering wheel up or
down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever. BE072 (center/4)
QUICK REFERENCE
2
1. DRIVER’S SEAT
2. TILT STEERING COLUMN

To adjust the position of the accelerator and brake pedals:
1. Set the parking brake firmly.
2. Turn the ignition key to the “ON” position with theautomatic transmission selector lever in the “P” position.
3. Push the “” side of the switch to move the pedals to the
front most position.
4. Push the “ ” side of the switch to move the pedals
toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get used to the feel. BE070 (center/4)
QUICK REFERENCE
3
3. POWER ADJUSTABLE PEDALS

BE056
BE057
NOTE: When the cruise control is being used, even if you downshift from “D”\
to “4”, engine braking will not be enabled because
the cruise control is not cancelled. For the operation to decrease the \
vehicle speed, see page 268.
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
4: Position for engine braking
(shifting into overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)
QUICK REFERENCE
4
4. AUTOMATIC TRANSMISSION

Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
Daytime running light
system off Headlights turn on at full
intensity. Parking, tail, license plate,
side marker and instrument
panel lights turn on.
BE004
BE004
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Automatic light control Headlights also turn on.
Automatic light control Headlights turn on at full
intensity.
QUICK REFERENCE
5
5. HEADLIGHT AND TURN SIGNAL SWITCH
HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
With the engine started and parking brake
released
 HEADLIGHT SWITCH (Canada)
With the ignition OFF
With the engine started and parking brake
released

High beam
Right or left turn
Lane change
(right or left) Headlight flasher
Variable intermittent
operation
Washer on High speed operation Low speed operation
QUICK REFERENCE
6
HEADLIGHT DIMMER SWITCH
 TURN SIGNAL SWITCH6. WINDSHIELD WIPER AND
WASHER SWITCH
Variable intermittent windshield wipers

Automatic operation
Washer on High speed operation Low speed operation
Rainsensing windshield wipers
QUICK REFERENCE
7
