2005 INFINITI QX4 sensor

CAN SYSTEM (TYPE 4)
LAN-161
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
ICC Sensor Circuit CheckUKS001PU
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC sensor for damage, bend and loose connection (sensor side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC sensor connector.
2. Check resistance between ICC sensor harness connector E42
terminals 2 (L) and 3 (P).
OK or NG
OK >> Replace ICC sensor.
NG >> Repair harness between ICC sensor and harness con-
nector E34.
ICC Unit Circuit CheckUKS001PV
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ICC unit for damage, bend and loose connection (control unit side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ICC unit connector.
2. Check resistance between ICC unit harness connector B13 ter-
minals 14 (L) and 5 (P).
OK or NG
OK >> Replace ICC unit.
NG >> Repair harness between ICC unit and harness connec-
tor B69. 2 (L) - 3 (P) : Approx. 54 - 66 Ω
PKIA8172E
14 (L) - 5 (P) : Approx. 54 - 66 Ω
SKIA6886E

LAN-164
[CAN]
CAN SYSTEM (TYPE 4)
Revision: October 20052005 QX56
Data Link Connector Circuit CheckUKS001O3
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of data link connector for damage, bend and loose connection (connector
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M22 terminals 6 (L)
and 14 (P).
OK or NG
OK >> Diagnose again. Refer to LAN-131, "Work Flow" .
NG >> Repair harness between data link connector and combi-
nation meter.
Steering Angle Sensor Circuit CheckUKS001O4
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M47 terminals 3 (L) and 4 (P).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector. 6 (L) - 14 (P) : Approx. 54 - 66 Ω
PKIA2077E
3 (L) - 4 (P) : Approx. 54 - 66 Ω
PKIA6838E

CAN SYSTEM (TYPE 4)
LAN-167
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: October 20052005 QX56
CAN Communication Circuit CheckUKS001O9
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect the following module and control unit connectors and check terminals for deformation, discon-
nection, looseness or damage.
–ECM
–A/T assembly
–ICC sensor
–ICC unit
–Driver seat control unit
–Combination meter
–Display control unit
–BCM
–Steering angle sensor
–Front air control
–Transfer control unit
–ABS actuator and electric unit (control unit)
–IPDM E/R
OK or NG
OK >> GO TO 2.
NG >> Repair or replace as necessary.
2. CHECK HARNESS FOR SHORT CIRCUIT
With all module and control unit connectors disconnected, check
continuity between data link connector M22 terminals 6 (L) and 14
(P).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M22 terminals 6 (L),
14 (P) and ground.
OK or NG
OK >> Check ECM and IPDM E/R. Refer to LAN-168, "ECM/
IPDM E/R INTERNAL CIRCUIT INSPECTION" .
NG >> Repair harness.
IPDM E/R Ignition Relay Circuit CheckUKS001OA
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-26, "IPDM E/R Power/Ground Circuit Inspection" . 6 (L) - 14 (P) : Continuity should not exist.
PKIA2077E
6 (L) - Ground : Continuity should not exist.
14 (P) - Ground : Continuity should not exist.
PKIA2079E

LT-2Revision: October 20052005 QX56 COMBINATION SWITCH READING FUNCTION ... 48
EXTERIOR LAMP BATTERY SAVER CONTROL ... 48
DELAY TIMER FUNCTION ................................. 48
CAN Communication System Description .............. 48
Major Components and Functions .......................... 48
Schematic ............................................................... 49
Wiring Diagram — AUTO/L — ................................ 50
Terminals and Reference Values for BCM .............. 53
Terminals and Reference Values for IPDM E/R ...... 54
How to Proceed With Trouble Diagnosis ................ 55
Preliminary Check .................................................. 55
SETTING CHANGE FUNCTIONS ....................... 55
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 55
CONSULT-II Function (BCM) .................................. 57
CONSULT-II OPERATION ................................... 57
WORK SUPPORT ............................................... 58
DATA MONITOR .................................................. 58
ACTIVE TEST ..................................................... 59
SELF-DIAGNOSTIC RESULTS ........................... 59
CONSULT-II Function (IPDM E/R) .......................... 60
CONSULT-II OPERATION ................................... 60
DATA MONITOR .................................................. 61
ACTIVE TEST ..................................................... 61
Trouble Diagnosis Chart by Symptom .................... 62
Lighting Switch Inspection ...................................... 62
Optical Sensor System Inspection .......................... 63
Removal and Installation of Optical Sensor ............ 64
REMOVAL ........................................................... 64
INSTALLATION .................................................... 64
HEADLAMP AIMING CONTROL .............................. 65
System Description ................................................. 65
Wiring Diagram — H/AIM — ................................... 66
Removal and Installation of Headlamp Aiming
Switch ..................................................................... 68
REMOVAL ........................................................... 68
INSTALLATION ................................................... 68
Switch Circuit Inspection ........................................ 68
FRONT FOG LAMP .................................................. 69
Component Parts and Harness Connector Location ... 69
System Description ................................................. 69
OUTLINE ............................................................. 69
COMBINATION SWITCH READING FUNCTION ... 70
EXTERIOR LAMP BATTERY SAVER CONTROL ... 70
CAN Communication System Description .............. 70
Wiring Diagram — F/FOG — .................................. 71
Terminals and Reference Values for BCM .............. 73
Terminals and Reference Values for IPDM E/R ...... 74
How to Proceed With Trouble Diagnosis ................ 74
Preliminary Check .................................................. 75
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .................................................................... 75
CONSULT-II Functions ........................................... 76
Front Fog Lamps Do Not Illuminate (Both Sides) ... 76
Front Fog Lamp Does Not Illuminate (One Side) ... 77
Aiming Adjustment .................................................. 78
Bulb Replacement .................................................. 79
Removal and Installation ........................................ 79
TURN SIGNAL AND HAZARD WARNING LAMPS ... 80Component Parts and Harness Connector Location ...80
System Description .................................................80
OUTLINE .............................................................80
TURN SIGNAL OPERATION ...............................80
HAZARD LAMP OPERATION .............................81
REMOTE KEYLESS ENTRY SYSTEM OPERA-
TION ....................................................................82
COMBINATION SWITCH READING FUNCTION ...82
CAN Communication System Description ..............82
Wiring Diagram — TURN — ...................................83
Terminals and Reference Values for BCM ..............85
How to Proceed With Trouble Diagnosis ................86
Preliminary Check ...................................................87
CHECK POWER SUPPLY AND GROUND CIR-
CUIT .....................................................................87
CONSULT-II Function (BCM) ..................................88
CONSULT-II OPERATION ...................................88
DATA MONITOR ..................................................89
ACTIVE TEST ......................................................89
Turn Signal Lamp Does Not Operate ......................90
Rear Turn Signal Lamp Does Not Operate .............91
Hazard Warning Lamp Does Not Operate But Turn
Signal Lamps Operate ............................................92
Turn Signal Indicator Lamp Does Not Operate .......93
Bulb Replacement (Front Turn Signal Lamp) ..........94
Bulb Replacement (Rear Turn Signal Lamp) ..........94
Removal and Installation of Front Turn Signal Lamp ...94
Removal and Installation of Rear Turn Signal Lamp ...94
LIGHTING AND TURN SIGNAL SWITCH ................95
Removal and Installation .........................................95
REMOVAL ............................................................95
INSTALLATION ....................................................95
HAZARD SWITCH .....................................................96
Removal and Installation .........................................96
REMOVAL ............................................................96
INSTALLATION ....................................................96
COMBINATION SWITCH ..........................................97
Wiring Diagram — COMBSW — ............................97
Combination Switch Reading Function ...................98
CONSULT-II Function (BCM) ..................................98
CONSULT-II OPERATION ...................................98
DATA MONITOR ..................................................99
Combination Switch Inspection ............................. 100
Removal and Installation ....................................... 102
Switch Circuit Inspection ....................................... 102
STOP LAMP ............................................................ 103
System Description ............................................... 103
Wiring Diagram — STOP/L — .............................. 104
High-Mounted Stop Lamp ..................................... 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
Stop Lamp ............................................................. 105
BULB REPLACEMENT ...................................... 105
REMOVAL AND INSTALLATION ....................... 105
BACK-UP LAMP ..................................................... 106
Wiring Diagram — BACK/L — .............................. 106
Bulb Replacement ................................................. 107
Removal and Installation ....................................... 107
PARKING, LICENSE PLATE AND TAIL LAMPS .... 108

HEADLAMP (FOR USA)
LT-19
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56
ACTIVE TEST
Operation Procedure
1. Touch "HEAD LAMP" on "SELECT TEST ITEM" screen.
2. Touch "ACTIVE TEST" on "SELECT DIAG MODE" screen.
3. Touch item to be tested and check operation of the selected item.
4. During the operation check, touching "BACK" deactivates the operation.
Display Item List
SELF-DIAGNOSTIC RESULTS
Operation Procedure
1. Touch "BCM" on "SELECT TEST ITEM" screen.
2. Touch "SELF-DIAG RESULTS" on "SELECT DIAG MODE" screen.
3. Self-diagnostic results are displayed.
Display Item List
AUTO LIGHT SW "ON/OFF"Displays status of the lighting switch as judged from the lighting switch signal. (AUTO position:
ON/Other than AUTO position: OFF)
PASSING SW "ON/OFF"Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW "ON/OFF"Displays status (front fog lamp switch: ON/Others: OFF) of front fog lamp switch judged from
lighting switch signal.
DOOR SW-DR "ON/OFF"Displays status of the front door LH as judged from the front door switch LH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-AS "ON/OFF"Displays status of the front door RH as judged from the front door switch RH signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW-RR "ON/OFF"Displays status of the rear door as judged from the rear door switch (RH) signal. (Door is open:
ON/Door is closed: OFF)
DOOR SW-RL "ON/OFF"Displays status of the rear door as judged from the rear door switch (LH) signal. (Door is open:
ON/Door is closed: OFF)
BACK DOOR SW "ON/OFF"Displays status of the back door as judged from the back door switch signal. (Door is open:
ON/Door is closed: OFF)
TURN SIGNAL R "ON/OFF" Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L "ON/OFF" Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
CARGO LAMP SW "ON/OFF" Displays status of cargo lamp switch.
OPTICAL SENSOR [0 - 5V] Displays "ambient light (close to 5V when dark/close to 0V when light)" judged from optical
sensor signal. Monitor item Contents
Te s t i t e m D e s c r i p t i o n
TAIL LAMP Allows tail lamp relay to operate by switching ON-OFF.
HEAD LAMP Allows headlamp relay (HI, LO) to operate by switching ON-OFF.
FR FOG LAMP Allows fog lamp relay to operate by switching ON-OFF.
CARGO LAMP Allows cargo lamp to operate by switching ON-OFF.
CORNERING LAMP Not used.
Monitored item CONSULT-ll display Description
CAN communication CAN communication [U1000] Malfunction is detected in CAN communication.
CAN communication system CAN communication system 1 to 6 [U1000] Malfunction is detected in CAN system.

LT-48
AUTO LIGHT SYSTEM
Revision: October 20052005 QX56
System DescriptionEKS00B8S
Automatically turns on/off the parking lamps and the headlamps in accordance with ambient light.
Timing for when the lamps turn on/off can be selected using four modes.
OUTLINE
The auto light control system uses an optical sensor that detects outside brightness.
When the lighting switch is in "AUTO" position, it automatically turns on/off the parking lamps and the head-
lamps in accordance with the ambient light. Sensitivity can be adjusted in four steps. For the details of the set-
ting, refer to LT-55, "
SETTING CHANGE FUNCTIONS" .
Optical sensor ground is supplied

to optical sensor terminal 3

through BCM (body control module) terminal 18 .
When ignition switch is turned to “ON” position and when outside brightness is darker than prescribed level,
input is supplied

to BCM terminal 58

through optical sensor terminal 4.
The headlamps will then illuminate. For a description of headlamp operation, refer to LT- 6 , "
System Descrip-
tion" .
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the AUTO position, and the ignition switch is turned from
ON or ACC to OFF, and one of the front doors is opened, the battery saver control feature is activated.
Under this condition, the headlamps remain illuminated for 5 minutes, then the headlamps are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
DELAY TIMER FUNCTION
When the ignition switch is ON and auto light switch is ON, the BCM turns on/off the headlamps. In delay timer
function, ignition is OFF, auto light sensor power source is OFF and the headlamps are not turned on/off by the
BCM. On condition that:

when the state of ignition switch ON or ACC is ON and output judgment by auto light function is headlamp
ON changes to ignition switch and ACC are OFF and any door switch is ON, output judgment by BCM
should be headlamp ON for 5 minutes by timer. After time out, output judgment by BCM should be head-
lamp OFF.

when the state of any door switch is turned to ON from OFF while 45 second or 5 minute timer is counting,
timer stops, and restarts counting for 5 minutes, then BCM judges output as headlamp ON. After time out,
BCM judges output as headlamp OFF.

when the state of front door switch LH, front door switch RH, rear door switch LH, rear door switch RH or
back door latch (door ajar switch) is ON turns to all door switches are OFF while 45 second or 5 minute
timer is counting, timer stops, and restarts counting for 45 seconds, then BCM judges output as headlamp
ON. After timer out, BCM judges output as headlamp OFF.

when the state is ignition switch ON or ACC is ON or auto light switch OFF while timer is counting, timer
stops counting and BCM turns on/off lamps according to headlamp function, front fog lamp function, auto
light function and headlamp battery save function.
Delay timer control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionEKS00B8T
Refer to LAN-5, "CAN COMMUNICATION" .
Major Components and FunctionsEKS00B8U
Components Functions
BCM

Turns on/off circuits of tail light and headlamp according to signals from light sensor, lighting switch
(AUTO), front door switch LH, front door switch RH, rear door switch, back door latch (door ajar
switch), and ignition switch (ON, OFF).
Optical sensor

Converts ambient light (lux) to voltage, and sends it to BCM. (Detects lightness of 50 to 1,300 lux)

AUTO LIGHT SYSTEM
LT-53
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: October 20052005 QX56

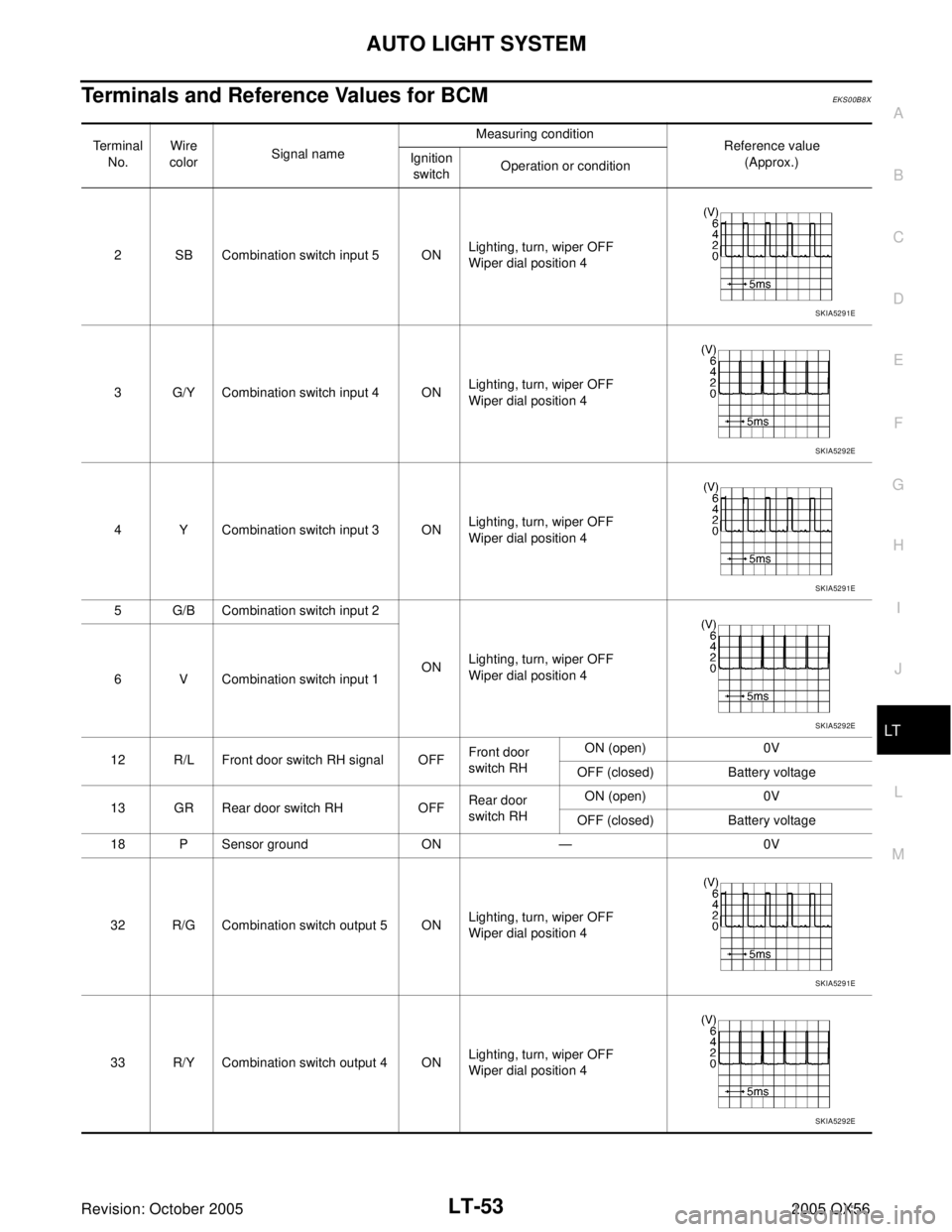

Terminals and Reference Values for BCMEKS00B8X
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
2 SB Combination switch input 5 ONLighting, turn, wiper OFF
Wiper dial position 4
3 G/Y Combination switch input 4 ONLighting, turn, wiper OFF
Wiper dial position 4
4 Y Combination switch input 3 ONLighting, turn, wiper OFF
Wiper dial position 4
5 G/B Combination switch input 2
ONLighting, turn, wiper OFF
Wiper dial position 4
6 V Combination switch input 1
12 R/L Front door switch RH signal OFFFront door
switch RH ON (open) 0V
OFF (closed) Battery voltage
13 GR Rear door switch RH OFFRear door
switch RHON (open) 0V
OFF (closed) Battery voltage
18 P Sensor ground ON — 0V
32 R/G Combination switch output 5 ONLighting, turn, wiper OFF
Wiper dial position 4
33 R/Y Combination switch output 4 ONLighting, turn, wiper OFF
Wiper dial position 4
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E
SKIA5291E
SKIA5292E

LT-54
AUTO LIGHT SYSTEM
Revision: October 20052005 QX56
NOTE:
Optical sensor must be completely subjected to work lamp light. If the optical sensor is insufficiently illumi-
nated, the measured value may not satisfy standard.
Terminals and Reference Values for IPDM E/REKS00B8Y
34 L Combination switch output 3 ONLighting, turn, wiper OFF
Wiper dial position 4
35 O/B Combination switch output 2
ONLighting, turn, wiper OFF
Wiper dial position 4
36 R/W Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN-H — — —
40 P CAN-L — — —
43 R/BBack door latch (door ajar
switch) signalOFFBack door
latch (door
ajar switch)ON (open) 0V
OFF (closed) Battery voltage
47 SB Front door switch LH signal OFFFront door
switch LH ON (open) 0V
OFF (closed) Battery voltage
48 R/Y Rear door switch LH signal OFFRear door
switch LH ON (open) 0V
OFF (closed) Battery voltage
58 W/R Optical sensor signal ONWhen optical sensor is illumi-
nated3.1V or more
Note
When optical sensor is not illumi-
nated0.6V or less
67 B Ground ON — 0V
70 W/B Battery power supply OFF — Battery voltage Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
SKIA5291E
SKIA5292E
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
(Approx.) Ignition
switchOperation or condition
38 B Ground ON — 0V
39 L CAN-H — — —
40 P CAN-L — — —
52 L Headlamp low (LH) ONLighting switch
2ND positionOFF 0V
ON Battery voltage
54 R/Y Headlamp low (RH) ONLighting switch
2ND positionOFF 0V
ON Battery voltage
55 G Headlamp high (LH) ONLighting switch
HIGH or PASS
positionOFF 0V
ON Battery voltage
