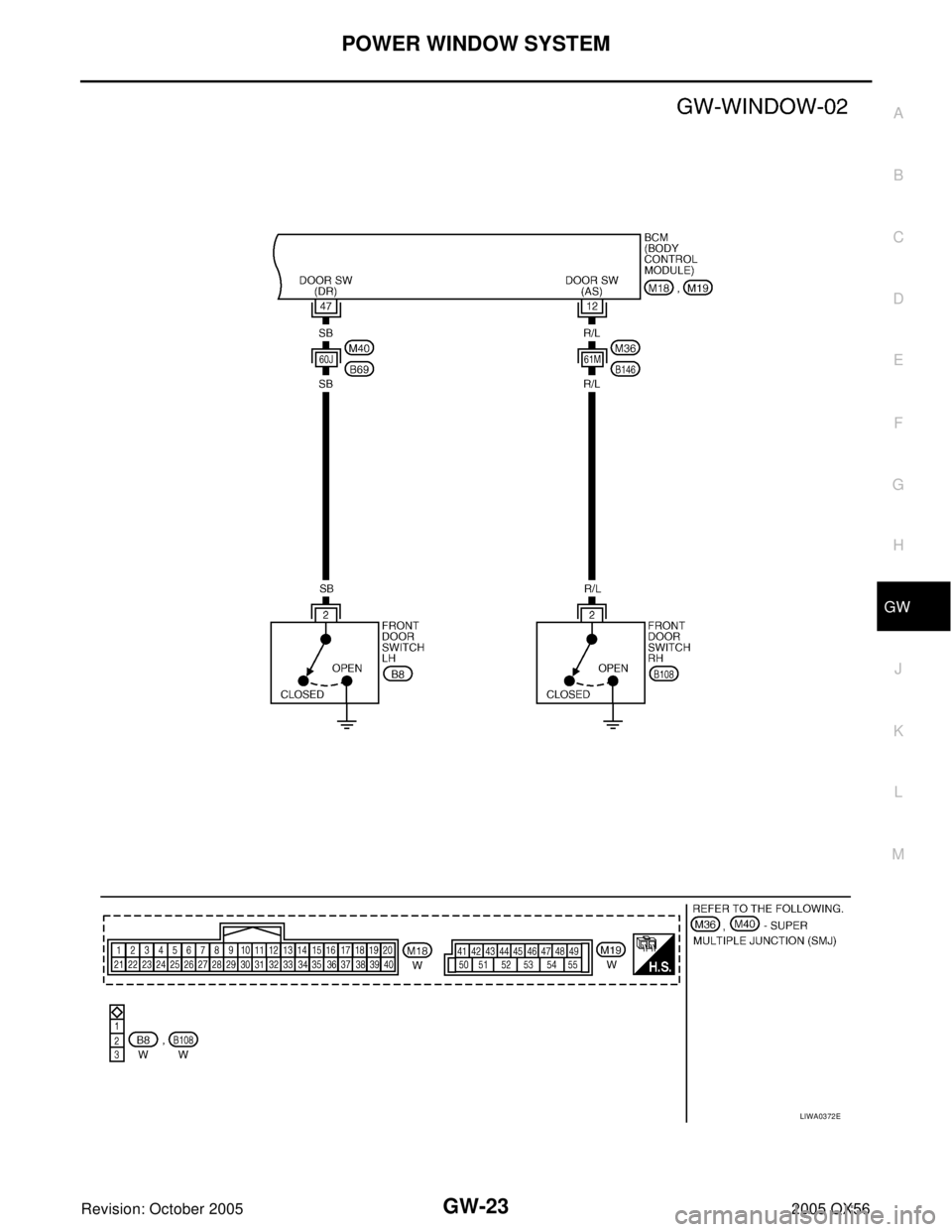

Page 2178 of 3419
POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
LIWA0372E

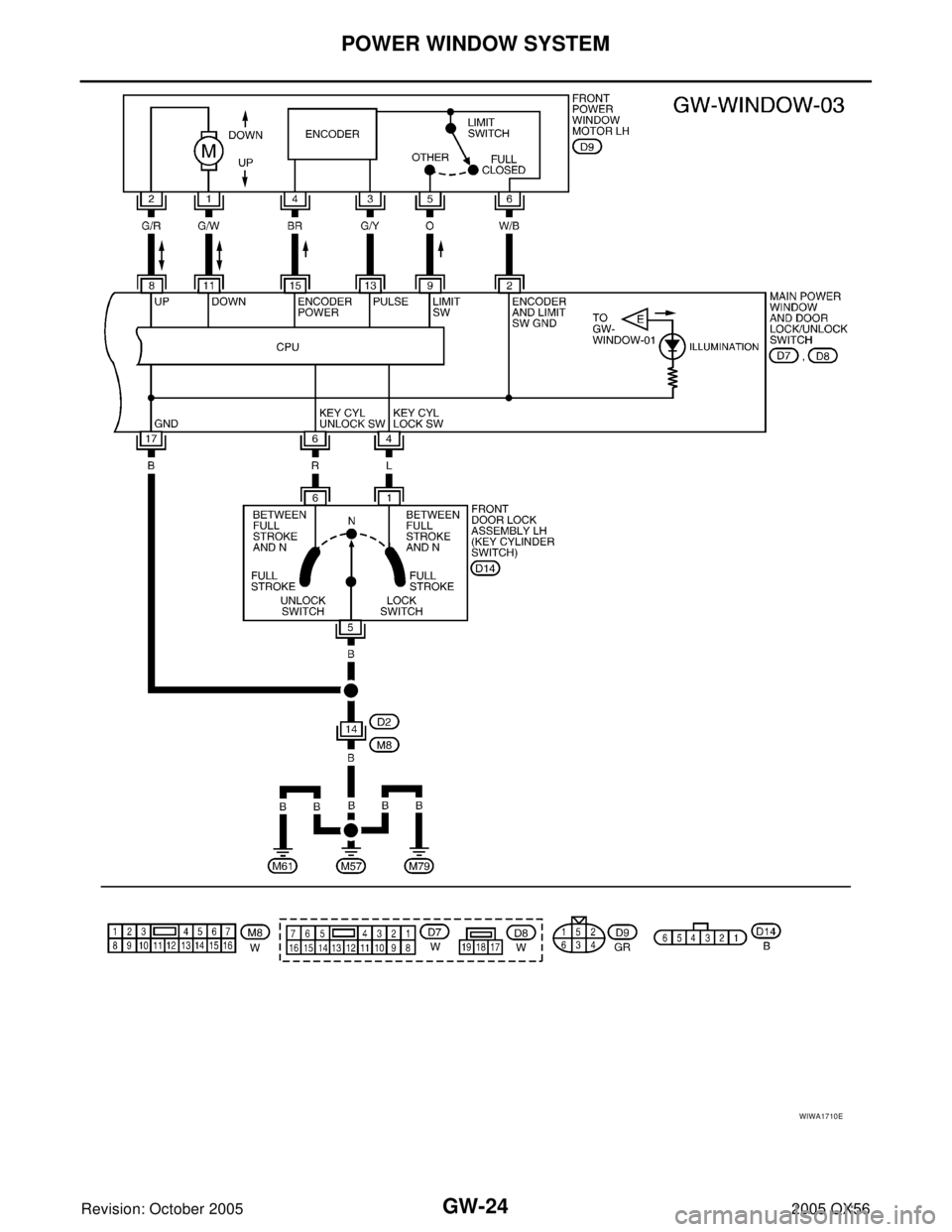

Page 2179 of 3419
GW-24
POWER WINDOW SYSTEM
Revision: October 20052005 QX56
WIWA1710E

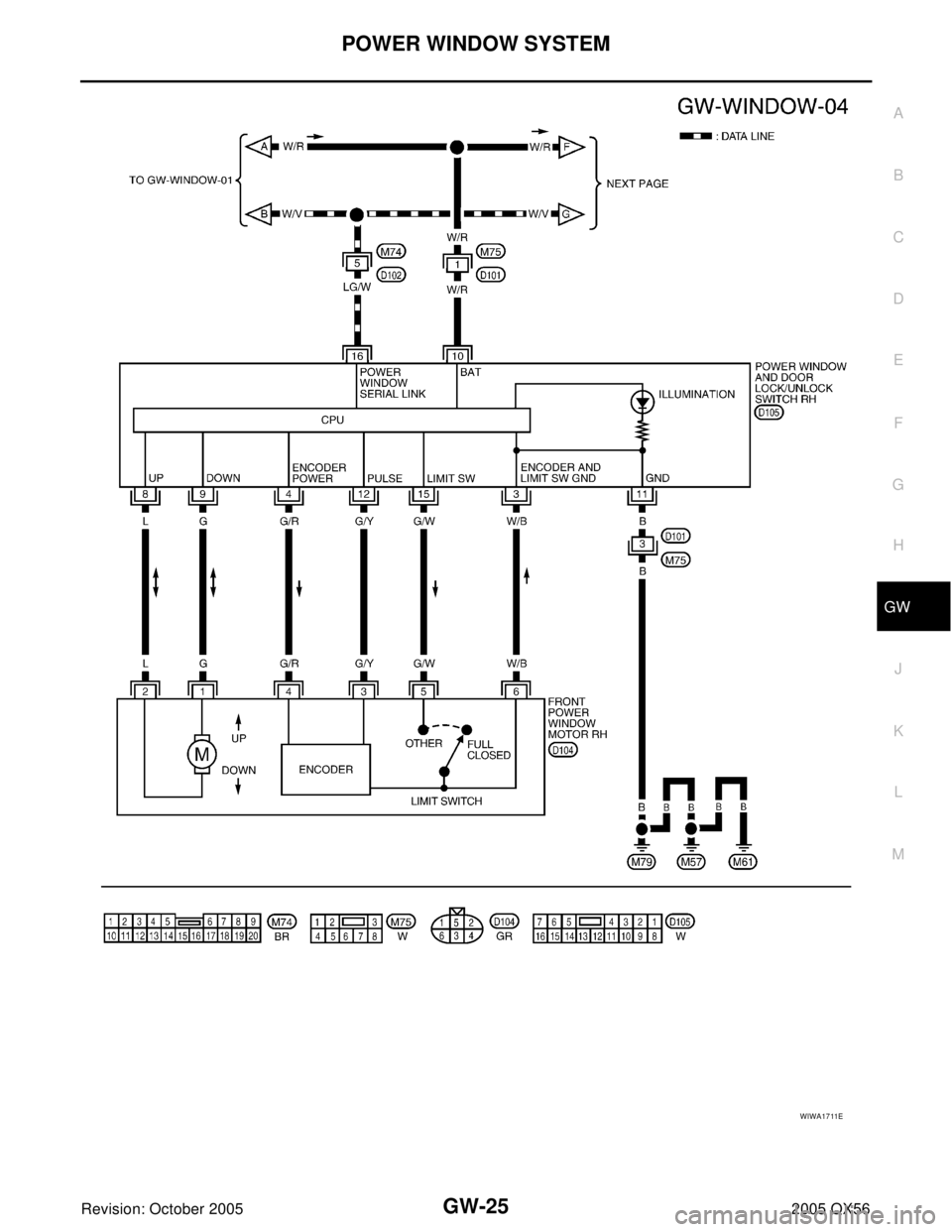

Page 2180 of 3419
POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
WIWA1711E

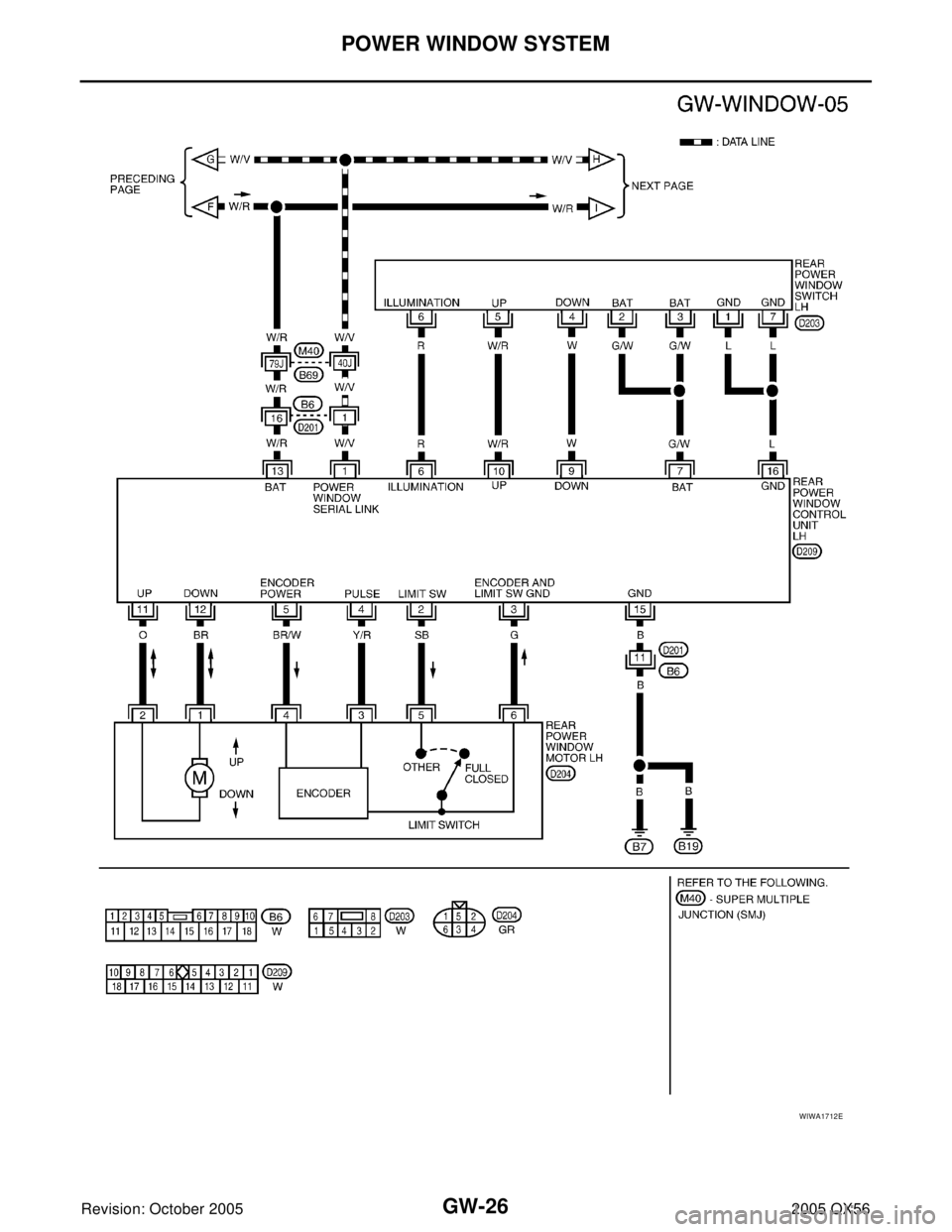

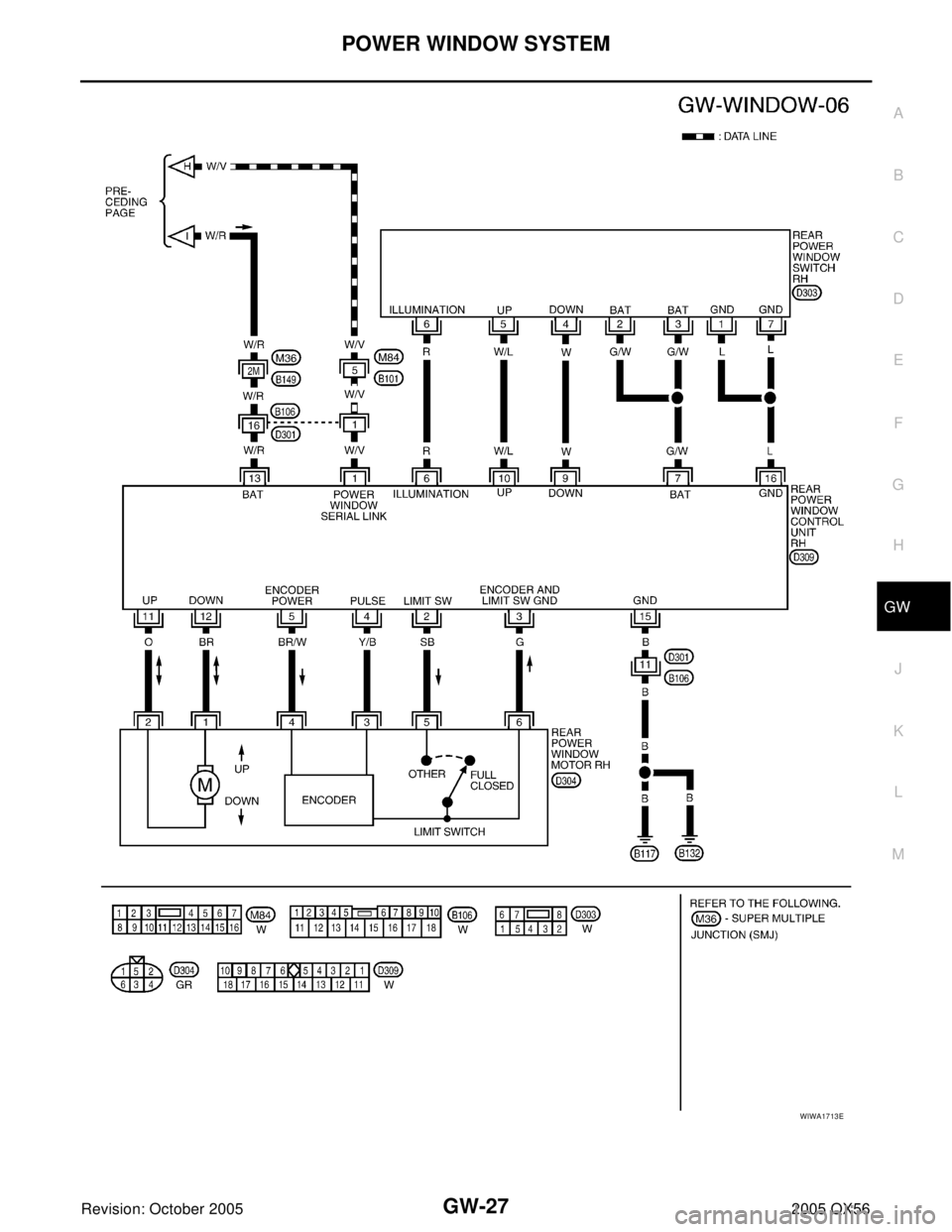

Page 2181 of 3419
GW-26
POWER WINDOW SYSTEM
Revision: October 20052005 QX56
WIWA1712E

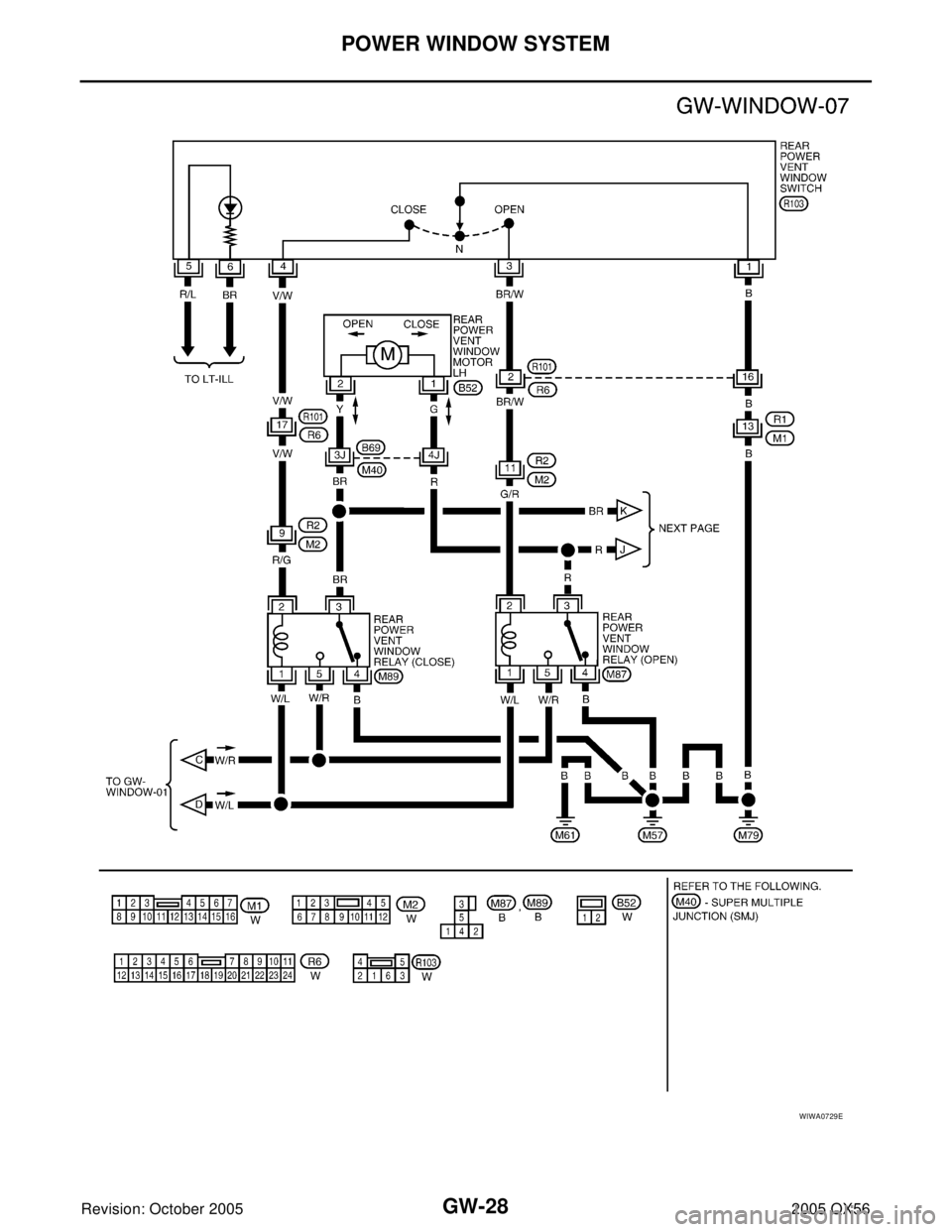

Page 2182 of 3419
POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
WIWA1713E

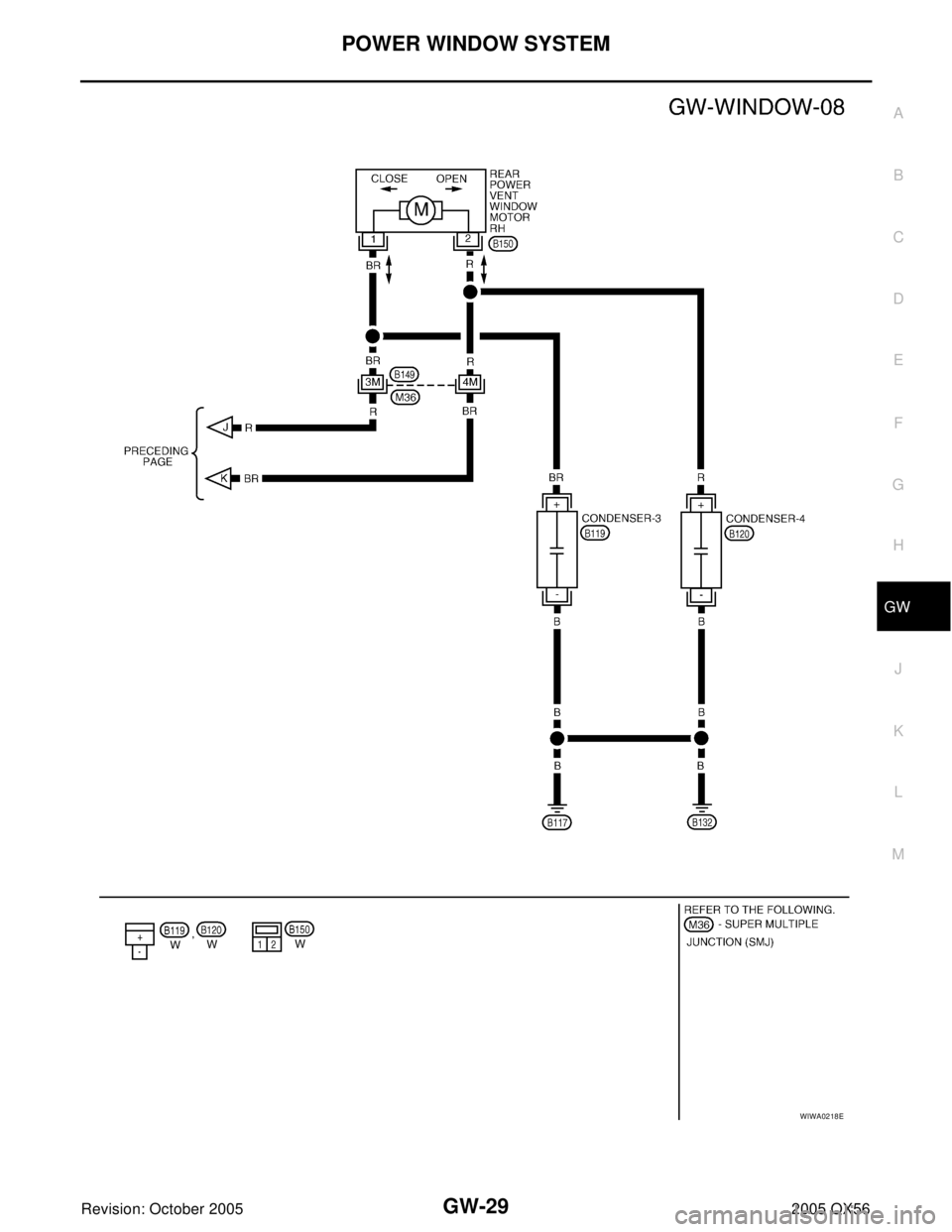

Page 2183 of 3419
GW-28
POWER WINDOW SYSTEM
Revision: October 20052005 QX56
WIWA0729E
Page 2184 of 3419
POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: October 20052005 QX56
WIWA0218E
Page 2185 of 3419
GW-30
POWER WINDOW SYSTEM
Revision: October 20052005 QX56
Terminal and Reference Value for Main Power Window and Door Lock/Unlock
Switch
EIS005XS
Terminal and Reference Value for Power Window and Door Lock/Unlock Switch
RH
EIS005XT
Terminal Wire Color Item ConditionVoltage (V)
(Approx.)
2 W/B Limit switch and encoder ground — 0
4LFront door key cylinder switch LH
lock signalKey position
(Neutral → Unlocked)5 → 0
6RFront door key cylinder LH switch
unlock signalKey position
(Neutral → Locked)5 → 0
8G/RFront power window motor LH UP
signalWhen power window motor is
operated UP Battery voltage
9 O Limit switch signalDriver side door window is
between fully-open and just
before fully-closed position (ON)0
Driver side door window is
between just before fully-closed
position and fully-closed position
(OFF)5
10 W/L RAP signalWhen ignition switch ON Battery voltage
Within 45 seconds after ignition
switch is turned to OFFBattery voltage
More than 45 seconds after igni-
tion switch is turned to OFF0
When front door LH or RH open
or power window timer operates0
11 G / WFront power window motor LH
DOWN signalWhen power window motor is
operated DOWN Battery voltage
13 G/Y Encoder pulse signalWhen power window motor oper-
ates
14 LG/W Power window serial linkWhen ignition switch ON or
power window timer operates
15 BR Encoder power supplyWhen ignition switch ON or
power window timer operates10
17 B Ground — 0
19 W/R Battery power supply — Battery voltage
OCC3383D
PIIA2344J
Terminal Wire Color Item ConditionVoltage (V)
(Approx.)
3 W/B Limit switch and encoder ground — 0
4 G/R Encoder power supplyWhen ignition switch ON or
power window timer operates10
