AIR CONDITIONING CUT CONTROL
Revision: 2005 July 2005 FX
AIR CONDITIONING CUT CONTROLPFP:23710
Input/Output Signal ChartABS00E41
*1: This signal is sent to the ECM through CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.
System DescriptionABS00E42
This system improves engine operation when the air conditioner is used.
Under the following conditions, the air conditioner is turned off.

When the accelerator pedal is fully depressed.

When cranking the engine.

At high engine speeds.

When the engine coolant temperature becomes excessively high.

When operating power steering during low engine speed or low vehicle speed.

When engine speed is excessively low.

When refrigerant pressure is excessively low or high.
Sensor Input Signal to ECM ECM function Actuator
Air conditioner switch*
1Air conditioner ON signal
Air conditioner
cut control Air conditioner relay
Accelerator pedal position sensor Accelerator pedal position
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
2
Engine coolant temperature sensor Engine coolant temperature
Battery Battery voltage*
2
Refrigerant pressure sensor Refrigerant pressure
Power steering pressure sensor Power steering operation
Wheel sensor*
1Vehicle speed

AUTOMATIC SPEED CONTROL DEVICE (ASCD) EC-727
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionABS00E43
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE lamp and SET lamp in combination meter. If any malfunc-
tion occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE lamp in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET lamp in combination meter illuminates.)
ACCEL OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.

CANCEL switch is pressed

More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)

Brake pedal is depressed

Selector lever is changed to N, P, R position

Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed

TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.

Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by pressing SET/COAST switch or RESUME/
ACCELERATE switch.

Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed control Electric throttle control
actuator
Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/Neutral position (PNP)
switch Gear position
Wheel sensor* Vehicle speed
TCM* Powertrain revolution

EC-730
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2005 July 2005 FX
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionABS007XT
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB1631E

EC-734
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2005 July 2005 FX
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vapor leakage in the EVAP system occurs, use a
leak detector to locate the leak.
Removal and InstallationABS007XV
EVAP CANISTER
Tighten EVAP canister as shown in the figure.
EVAP CANISTER VENT CONTROL VALVE
1. Turn EVAP canister vent control valve counterclockwise.
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
How to Detect Fuel Vapor LeakageABS007XW
CAUTION:

Do not use compressed air or a high pressure pump.

Do not exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in EVAP system.
NOTE:

Do not start engine.

Improper installation of EVAP service port adapter to the EVAP service port may cause a leak.
SEF462UA
PBIB1628E
PBIB1030E

ON BOARD REFUELING VAPOR RECOVERY (ORVR) EC-737
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ON BOARD REFUELING VAPOR RECOVERY (ORVR)PFP:00032
System DescriptionABS007XX
From the beginning of refueling, the air and vapor inside the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:

Put a “CAUTION: INFLAMMABLE” sign in workshop.

Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.

Be sure to furnish the workshop with a CO2 fire extinguisher.
CAUTION:

Before removing fuel line parts, carry out the following procedures:
–Put drained fuel in an explosion-proof container and put lid on securely.
–Release fuel pressure from fuel line. Refer to EC-789, "FUEL PRESSURE RELEASE" .
–Disconnect battery ground cable.

Always replace O-ring when the fuel gauge retainer is removed.

Do not kink or twist hose and tube when they are installed.

Do not tighten hose and clamps excessively to avoid damaging hoses.

After installation, run engine and check for fuel leaks at connection.

Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
PBIB1068E

EC-742
[VK45DE]
POSITIVE CRANKCASE VENTILATION
Revision: 2005 July 2005 FX
POSITIVE CRANKCASE VENTILATIONPFP:11810
DescriptionABS007Y0
SYSTEM DESCRIPTION

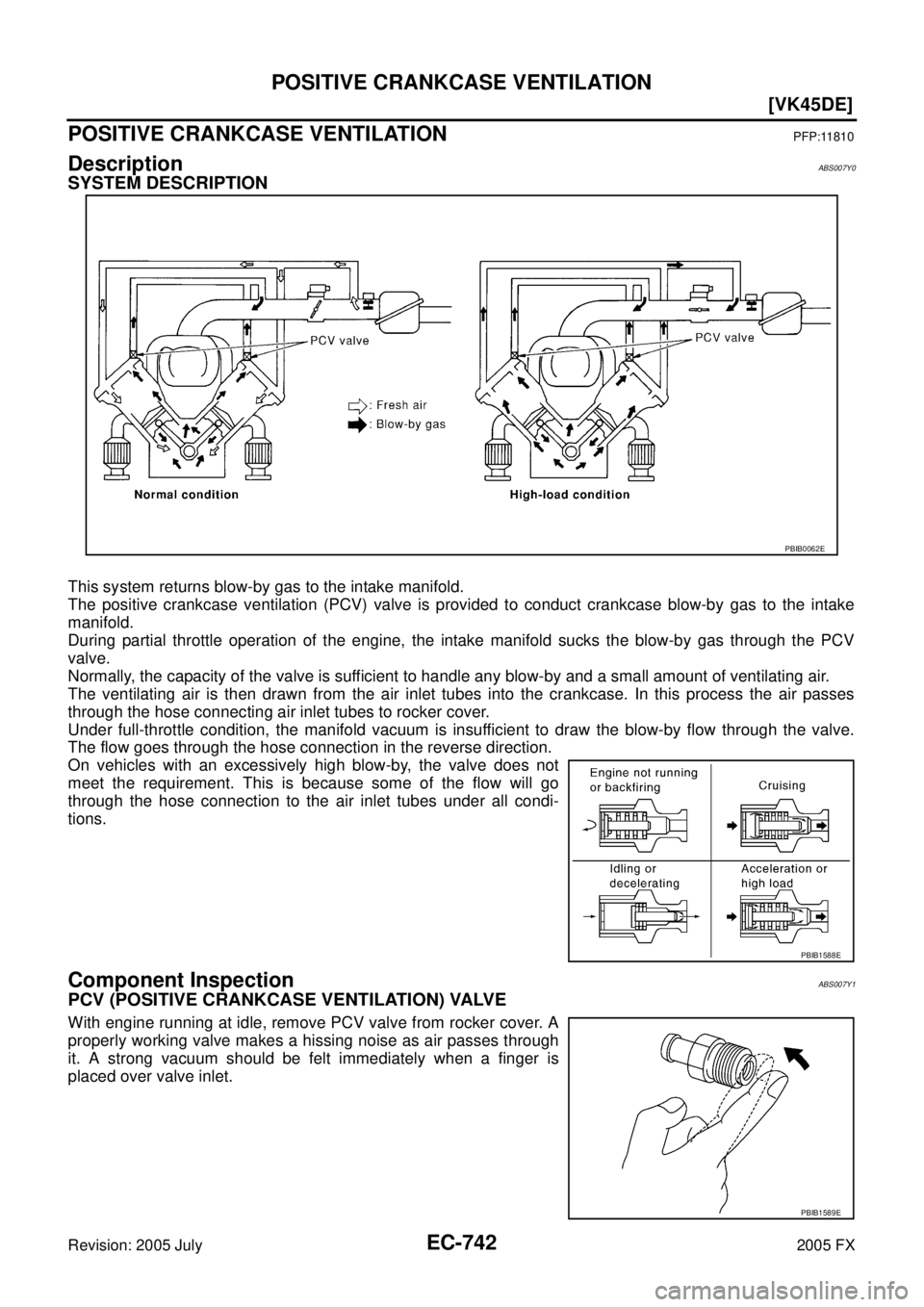

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold.
During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the PCV
valve.
Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of ventilating air.
The ventilating air is then drawn from the air inlet tubes into the crankcase. In this process the air passes
through the hose connecting air inlet tubes to rocker cover.
Under full-throttle condition, the manifold vacuum is insufficient to draw the blow-by flow through the valve.
The flow goes through the hose connection in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.
Component InspectionABS007Y1
PCV (POSITIVE CRANKCASE VENTILATION) VALVE
With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.
PBIB0062E
PBIB1588E
PBIB1589E

ON BOARD DIAGNOSTIC (OBD) SYSTEM EC-745
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ON BOARD DIAGNOSTIC (OBD) SYSTEMPFP:00028
IntroductionABS00E47
The ECM has an on board diagnostic system, which detects malfunctions related to engine sensors or actua-
tors. The ECM also records various emission-related diagnostic information including:
The above information can be checked using procedures listed in the table below.
× : Applicable —: Not applicable
*: When DTC and 1st trip DTC simultaneously appear on the display, they cannot be clearly distinguished from each other.
The malfunction indicator lamp (MIL) on the instrument panel lights up when the same malfunction is detected
in two consecutive trips (Two trip detection logic), or when the ECM enters fail-safe mode. (Refer to EC-799
.)
Two Trip Detection LogicABS00E48
When a malfunction is detected for the first time, 1st trip DTC and 1st trip Freeze Frame data are stored in the
ECM memory. The MIL will not light up at this stage. <1st trip>
If the same malfunction is detected again during the next drive, the DTC and Freeze Frame data are stored in
the ECM memory, and the MIL lights up. The MIL lights up at the same time when the DTC is stored. <2nd
trip> The “trip” in the “Two Trip Detection Logic” means a driving mode in which self-diagnosis is performed
during vehicle operation. Specific on board diagnostic items will cause the ECM to light up or blink the MIL,
and store DTC and Freeze Frame data, even in the 1st trip, as shown below.
× : Applicable —: Not applicable
When there is an open circuit on MIL circuit, the ECM cannot warn the driver by lighting up MIL when there is
malfunction on engine control system.
Therefore, when electrical controlled throttle and part of ECM related diagnoses are continuously detected as
NG for 5 trips, ECM warns the driver that engine control system malfunctions and MIL circuit is open by means
of operating fail-safe function.
Emission-related diagnostic information Diagnostic service
Diagnostic Trouble Code (DTC) Service $03 of SAE J1979
Freeze Frame data Service $02 of SAE J1979
System Readiness Test (SRT) code Service $01 of SAE J1979
1st Trip Diagnostic Trouble Code (1st Trip DTC) Service $07 of SAE J1979
1st Trip Freeze Frame data
Test values and Test limits Service $06 of SAE J1979
Calibration ID Service $09 of SAE J1979
DTC 1st trip DTC Freeze Frame
data 1st trip Freeze
Frame data SRT code SRT status Test value
CONSULT-II ×× × × ×× —
GST ×× × —×××
ECM ××*— — — ×—
Items MIL DTC 1st trip DTC
1st trip 2nd trip 1st trip
displaying 2nd trip
displaying 1st trip
displaying 2nd trip
display- ing
Blinking Lighting
up Blinking Lighting
up
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0308 is being detected ×
———— — ×—
Misfire (Possible three way cata-
lyst damage) — DTC: P0300 -
P0308 is being detected ——
×—— ×——
One trip detection diagnoses
(Refer to EC-746
.) —
×—— ×———
Except above — — — ×— ×× —

EC-746
[VK45DE]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Revision: 2005 July 2005 FX
The fail-safe function also operates when above diagnoses except MIL circuit are detected and demands the
driver to repair the malfunction.
Emission-Related Diagnostic InformationABS00E49
EMISSION-RELATED DIAGNOSTIC INFORMATION ITEMS
× : Applicable —: Not applicable
Engine operating condition in fail-safe mode Engine speed will not rise more than 2,500 rpm due to the fuel cut
Items
(CONSULT-II screen terms) DTC*
1
SRT code
Test value/
Te s t l i m i t
(GST only) Trip MIL
Reference
page
CONSULT-II
GST*
2ECM*3
CAN COMM CIRCUIT U1000 1000*4—— 1 × or — EC-862
CAN COMM CIRCUIT U1001
1001*4—— 2 — EC-862
NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. P0000 0000
———
Flashing *7 *8—
INT/V TIM CONT-B1 P0011 0011 — — 2 ×EC-865
INT/V TIM CONT-B2 P0021 0021 — — 2 ×EC-865
HO2S1 HTR (B1) P0031 0031 ××2×EC-877
HO2S1 HTR (B1) P0032 0032 ××2×EC-877
HO2S2 HTR (B1) P0037 0037 ××2×EC-885
HO2S2 HTR (B1) P0038 0038 ××2×EC-885
HO2S1 HTR (B2) P0051 0051 ××2×EC-877
HO2S1 HTR (B2) P0052 0052 ××2×EC-877
HO2S2 HTR (B2) P0057 0057 ××2×EC-885
HO2S2 HTR (B2) P0058 0058 ××2×EC-885
MAF SEN/CIRCUIT P0101 0101 — — 2 ×EC-893
MAF SEN/CIRCUIT P0102 0102 — — 1 ×EC-902
MAF SEN/CIRCUIT P0103 0103 — — 1 ×EC-902
IAT SEN/CIRCUIT P0112 0112 — — 2 ×EC-909
IAT SEN/CIRCUIT P0113 0113 — — 2 ×EC-909
ECT SEN/CIRCUIT P0117 0117 — — 1 ×EC-914
ECT SEN/CIRCUIT P0118 0118 — — 1 ×EC-914
TP SEN 2/CIRC P0122 0122 — — 1 ×EC-920
TP SEN 2/CIRC P0123 0123 — — 1 ×EC-920
ECT SENSOR P0125 0125 — — 1 ×EC-927
IAT SENSOR P0127 0127 — — 2 ×EC-930
THERMSTAT FNCTN P0128 0128 — — 2 ×EC-933
HO2S1 (B1) P0132 0132 — ×2 ×EC-935
HO2S1 (B1) P0133 0133 ××2×EC-944
HO2S1 (B1) P0134 0134 — ×2 ×EC-956
HO2S2 (B1) P0138 0138 — ×2 ×EC-966
HO2S2 (B1) P0139 0139 ××2×EC-975
HO2S1 (B2) P0152 0152 — ×2 ×EC-935
HO2S1 (B2) P0153 0153 ××2×EC-944
HO2S1 (B2) P0154 0154 — ×2 ×EC-956
HO2S2 (B2) P0158 0158 — ×2 ×EC-966
HO2S2 (B2) P0159 0159 ××2×EC-975
