POWER OUTLET
CIGARETTE LIGHTERB420A01A-AATFor the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.
B420A02L
B500D07O-GAT(If Installed)
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.
HXG058-1
B500D01L
Without rear ventilator With rear ventilator
CAUTION:
Do not use the power outlet to connect
electric accessories or equipment other
than those designed to operate on 12 volts.
!
xgflhma-1.p656/16/04, 3:03 PM 55

1FEATURES OF YOUR HYUNDAI78
VENTILATION
HEATING AND COOLING CONTROLB710A01L-GAT1. Side Ventilator
2. Side Defrost Nozzle
3. Center Ventilator
4. Windshield Defrost Ventilator
B710B01A-AATCenter VentilatorThe center ventilators are located in the middle
of the dashboard.
To change the direction of the airflow, turn the
control knob on the middle of the ventilator as
desired.B710C01Y-AATSide VentilatorThe side vent knobs control the amount of
outside air entering the vehicle through the side
vents. These vents can also be closed,so no air
enters through the side vents. To change the
direction of the air flow, turn the control knobs
as desired.B710A01L-AATTo operate the ventilation system:
o Set the air intake control at the fresh air ( )
position.
o To direct all intake air to the dashboard
vents, set the airflow control to the face ( )
position.
o Adjust the fan speed control to the desired
speed.
B710A01L-1
xgflhma-1.p656/16/04, 3:04 PM 78

1
FEATURES OF YOUR HYUNDAI
79
1
HXG121 B680A02L-GAT
ROTARY AND PUSH BUTTON TYPE
(If Installed)There are four controls for the heating and
cooling system. They are:
1. Fan speed control
2. Air intake control
3. Air flow control
4. Temperature control
HXG119
2
3
4
B670C01Y-AATAir Intake ControlThis is used to select fresh outside air or
recirculating inside air.
Fresh
Recirculation
With the " " mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the " " mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac-
cording to the other functions selected.
B670C02L
B670B03Y-AATFan Speed Control (Blower Control)This is used to turn the blower fan on and off and
to select the fan speed.
The blower fan speed, and therefore the volume
of air delivered from the system, may be con-
trolled manually by setting the blower control
between the 1 and 4 position.
xgflhma-1.p656/16/04, 3:04 PM 79

1FEATURES OF YOUR HYUNDAI80
NOTE:o It should be noted that prolonged opera-
tion of the heating system in " " mode
will give rise to misting of the windshield
and side windows and the air within the
passenger compartment will become
stale. In addition prolonged use of the air
conditioning with the " " mode selected
may result in the air within the passenger
compartment becoming excessively dry.
o When the ignition switch is turned "ON",
the air intake control will change to " "
mode (regardless of switch position).
This is normal operation.
HEF030 B670D01L-AAT
Air Flow ControlThis is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.Face-Level
Selecting the "Face" mode will cause air to be
discharged through the face level vents.
B670D02L-1
xgflhma-1.p656/16/04, 3:04 PM 80

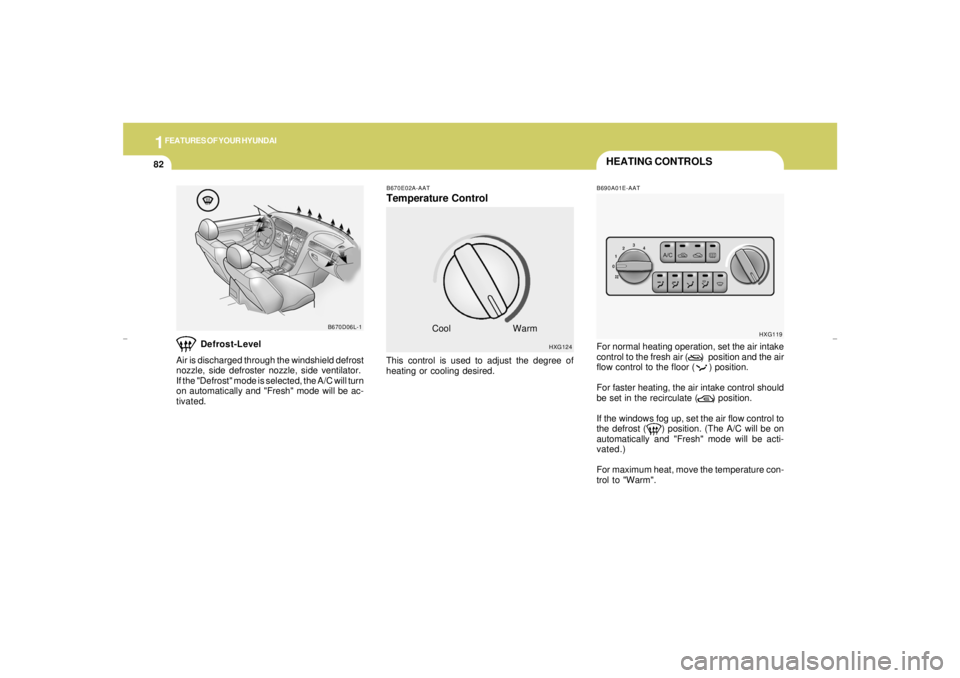

1FEATURES OF YOUR HYUNDAI82
HEATING CONTROLS
B670E02A-AATTemperature ControlThis control is used to adjust the degree of
heating or cooling desired.
HXG124
Cool
Warm
B690A01E-AATFor normal heating operation, set the air intake
control to the fresh air ( ) position and the air
flow control to the floor ( ) position.
For faster heating, the air intake control should
be set in the recirculate ( ) position.
If the windows fog up, set the air flow control to
the defrost ( ) position. (The A/C will be on
automatically and "Fresh" mode will be acti-
vated.)
For maximum heat, move the temperature con-
trol to "Warm".
HXG119
B670D06L-1
Defrost-Level
Air is discharged through the windshield defrost
nozzle, side defroster nozzle, side ventilator.
If the "Defrost" mode is selected, the A/C will turn
on automatically and "Fresh" mode will be ac-
tivated.
xgflhma-1.p656/16/04, 3:04 PM 82

1
FEATURES OF YOUR HYUNDAI
83
BI-LEVEL HEATINGB700A01A-AATYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control to the fresh air ( )
position.
o Set the air flow control at the bi-level ( )
position.
o Set the temperature control between "Cool"
and "Warm"
B700A01L
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
the position. Be sure to return the control
to the position when the irritation has
passed to keep fresh air in the vehicle. This
will help keep the driver alert and comfort-
able.
o Air for the heating/cooling system is drawn
in through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.B730A01L-AATOPERATION TIPS
B730A01L
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position, fan speed to the desired position,
turn on the air conditioning system, and
adjust temperature control to desired tem-
perature.
xgflhma-1.p656/16/04, 3:04 PM 83

1FEATURES OF YOUR HYUNDAI84
AIR CONDITIONING SYSTEM
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the recirculate ( ) position on the
air intake control.B740C01A-AATDe-Humidified Heating
For dehumidified heating:o Turn on the fan control switch.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on at
the same time.
o Set the air intake control to the fresh air ( )
position.
o Set the air flow control to the face ( ) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth.
B740B01L-GATAir Conditioning Operation (If Installed)
CoolingTo use the air conditioning to cool the interior:
o Set the side vent control to "OFF", to shut off
the outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control to the fresh air ( )
position.
o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
HXG119
B740A01S-AATAir Conditioning SwitchThe air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.
B670C03L
