FEATURES OF YOUR HYUNDAI
63
!!
CAUTION:
If the 4WD HIGH indicator light ( ) illuminates with the 4WD LOW indi- cator light ( ) while driving, this indicates that there is a malfunc-tion in the 4WD system. If this oc- curs, have your vehicle checked by an authorized Hyundai dealer assoon as possible. B265T01HP-GAT 4WD System Warning Light (Full-time 4WDonly)
When the key is turned to the "ON" position, the 4WD (Four wheel drive) system warning light will come on andthen go off in a few seconds.! CAUTION:
If the 4WD system warning light ( ) blinks while driving, this indicates that there is a malfunc-tion in the 4WD system. If this oc- curs, have your vehicle checked by an authorized Hyundai dealer assoon as possible. B265A01HP-GAT Fuel Filter Warning Light (Diesel Engine)
This light illuminates when the ignition switch is set to the "ON" position and goes off after the engine has started. Ifit lights up while the engine is running, it indicates that water has accumu- lated inside the fuel filter. If this hap-pens, remove the water from the fuel filter. (Refer to "Do-lt-Yourself Maintenance")CAUTION(2.9 CRDi only):
When the fuel filter warning light is illuminated, the engine power de-creases. If the fuel filter warning light comes on while driving, park your vehicle in at a safe place andremove the water as soon as pos- sible. If the light remains on after removing the water, have the sys-tem checked by an authorized Hyundai dealer.

1FEATURES OF YOUR HYUNDAI
64
should slow the vehicle and bring it to a complete stop in a safe location offthe roadway. After starting the engine, do not drive the vehicle until the vacuum level isabove 275 mmHg below atmosphere and warning light has turned off. If further trouble is experienced, the ve-hicle should not be driven at all but taken to a dealer by a professional towing service. B265C02HP-GAT
Diesel Preheat Indicator Light
The indicator light illuminates amber when the ignition switch is placed atthe "ON" position. The engine can be started after the preheat indicator light goes off. The illuminating time varieswith the water temperature. NOTE: If the engine were not started within 2 seconds after the preheating iscompleted, turn the ignition key once more to the "LOCK" position during 10 seconds, and then to the"ON" position, in order to preheat again.Water temperature
(°C)
Below -30 -20 -156080 Illuminating time
(2.5 TCI) (sec) 22.586
0.5 0
Water temperature (°C)
Below -30 -25 -20-15-10-50
20 Illuminating time
(2.9 CRDi) (sec) 26201510
5.53.5 21
!
B265B01HP-GAT Brake Vacuum Warning Light (Diesel Engine)
WARNING:
If you suspect brake trouble, have your brakes checked by a Hyundai dealer as soon as possible. Drivingyour car with a problem in either the brake electrical system or brake hydraulic system is dangerous, andcould result in serious injury or death. The brake vacuum warning light should come on when the vacuum level in brake booster descends to about 275 mmHg or below. The brake system isdesigned to stop the vehicle with re- serve assist if brake pedal is held down. This reserve is greatly reducedeach time you release the brake. With- out vacuum assist your vehicle can still be stopped by pushing much harderon brake pedal, however the stopping distance may be much longer. If the light comes on at any other time, you

1
FEATURES OF YOUR HYUNDAI
65

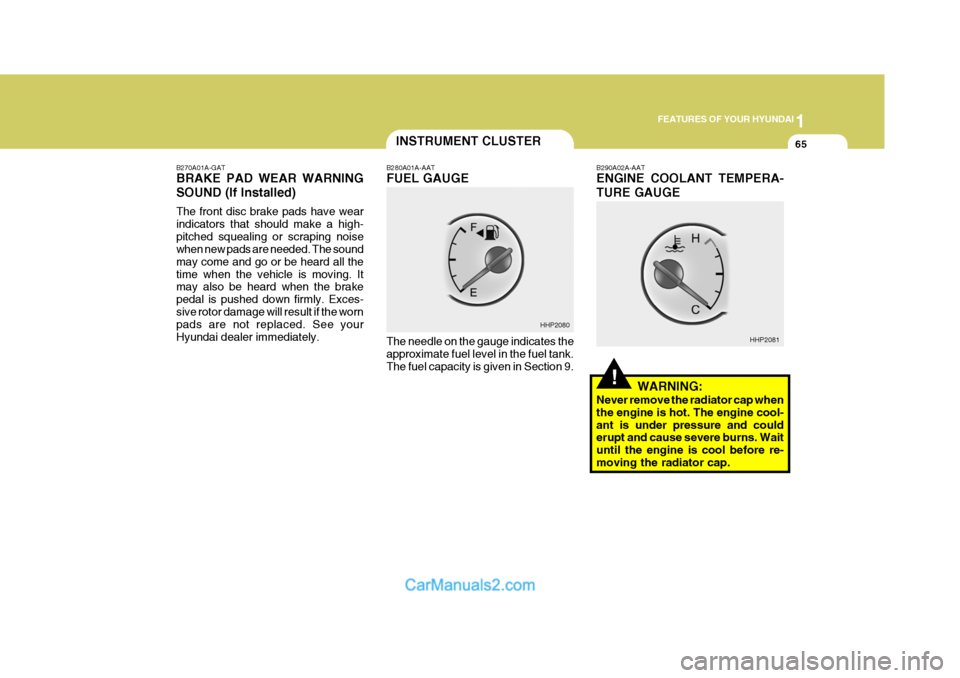

B270A01A-GAT BRAKE PAD WEAR WARNING SOUND (If Installed) The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all thetime when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Exces-sive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately.INSTRUMENT CLUSTER
!
B280A01A-AAT FUEL GAUGE The needle on the gauge indicates the approximate fuel level in the fuel tank. The fuel capacity is given in Section 9. B290A02A-AAT ENGINE COOLANT TEMPERA- TURE GAUGE
WARNING:
Never remove the radiator cap when the engine is hot. The engine cool-ant is under pressure and could erupt and cause severe burns. Wait until the engine is cool before re-moving the radiator cap.
HHP2080
HHP2081

1FEATURES OF YOUR HYUNDAI
66
!
B330A01L-AAT TACHOMETER The tachometer registers the speed of your engine in revolutions per minute(rpm). Gasoline Engine
CAUTION:
The engine should not be raced to such a speed that the needle enters the red zone on the tachometer face.This can cause severe engine dam- age and may void your warranty.
B330A01HP
HHP2078
Diesel Engine
The needle on the engine coolant tem- perature gauge should stay in the nor-mal range. If it moves across the dial to "H" (Hot), pull over and stop as soon as possible and turn off the engine. Thenopen the hood and, after the engine has cooled, check the coolant level and the water pump drive belt. If yoususpect cooling system trouble, have your cooling system checked by Hyundai dealer as soon as possible.

1
FEATURES OF YOUR HYUNDAI
67
B300A01Y-GAT SPEEDOMETER
Gasoline Engine
B300A01HP
B300A02HP
Diesel Engine (2.5 TCI)
Your Hyundai's speedometer is cali- brated in kilometers per hour or miles per hour. B310A02HP-GAT ODOMETER/TRIP ODOMETER Odometer
B300A03HP
Diesel Engine (2.9 CRDi)
The digital odometer records the total driving distance in kilometers or miles,and is useful for keeping a record for maintenance intervals. It is normal for a new vehicle to havethe odometer indicating less than 50km. NOTE: Any alteration of the odometer may void your warranty coverage.B310A01HP
Trip Odometer
Odometer

1
FEATURES OF YOUR HYUNDAI
81ASHTRAY
!
These supply 12V electric power to operate electric accessories or equip-ment only when the key is in the "ON" or "ACC" position.
CAUTION:
o Use when the engine is running and remove a plug from the power outlet after using the electric ap-pliance. Using when the engine stops or remaining the electric appliance with plugged in formany hours may cause the bat- tery to be discharged.
o Do not use the power outlet to connect electric accessories orequipment other than those de- signed to operate on 12 volts.
o Some electronic devices can cause electronic interferencewhen plugged into the poweroutlet. These devices may cause excessive audio noise and mal- functions in other electronic sys-tems or devices used in your vehicle. B430A01HP-GAT Front Ashtray The front ashtray may be opened by pushing and releasing the ashtray/ciga- rette lighter door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be removed from the ashtray door. Donot attempt to remove the entire ash- tray door assembly, or damage will result. Instead, lift the metal ash re-ceptacle upward and pull it out. To reinstall it, place it in the proper posi- tion and press it down and forward toreengage the ash receptacle rear lip in the ashtray door. The ashtray light will only illuminate when the exterior bodylights are switched on.
HHP2167
B440A01E-AAT Rear Ashtray The rear ashtray may be opened by pulling it out by its top edge. To remove the ashtray to empty or clean it, pressdown on the spring-loaded tab inside the ashtray and lift the ashtray upward and pull it all the way out.
HHP2168

1FEATURES OF YOUR HYUNDAI
96HOOD RELEASE
2. Push the secondary latch lever side-
ways and lift the hood.
3. Raise the hood by hand.
!WARNING:
Fuel vapors are dangerous. Before refueling, always stop the engineand never allow sparks or open flames near the filler area. If you need to replace the filler cap, use agenuine Hyundai replacement part. If you open the fuel filler cap during high ambient temperatures, a slight"pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler cap, turn it slowly. HHP2015-D
B570A01HP-AAT
1. Pull the release knob to unlatch the
hood. HHP2016
HHP2017
REMOTE FUEL-FILLER LID RELEASE
B560A01HP-GAT The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid release lever located be- low the right of the driver's side crash pad. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allowthe ice to melt. B560A01HP

1FEATURES OF YOUR HYUNDAI
102
!WARNING:
o Keep the main switch off when not using the cruise control.
o Use the cruise control system
only when traveling on open high- ways in good weather.
o Do not use the cruise control
when it may not be safe to keepthe car at a constant speed, for instance, driving in heavy or vary- ing traffic, or on slippery (rainy,icy or snow-covered) or winding roads or over 6% up-hill or down- hill roads.
o Pay particular attention to the
driving conditions whenever us-ing the cruise control system.
o During cruise-control driving
with a manual transmission ve-hicle, do not shift into neutral without depressing the clutch pedal or the engine will beoverrevved. If this happens, de- press the clutch pedal or release the main switch.
o During normal cruise control
operation, when the "SET" but- ton is activated or reactivated after applying the brakes, the cruise control will energize afterapproximately 3 seconds. This delay is normal.
B660F02L-GAT To Reset at a Slower Speed
1. Push the control switch "SET (COAST)" and hold it. While the control switch is pushed, the vehiclespeed will gradually decrease.
2. When the desired speed is obtained,
release the control button. B660B01HP
