2005 Hyundai Terracan engine

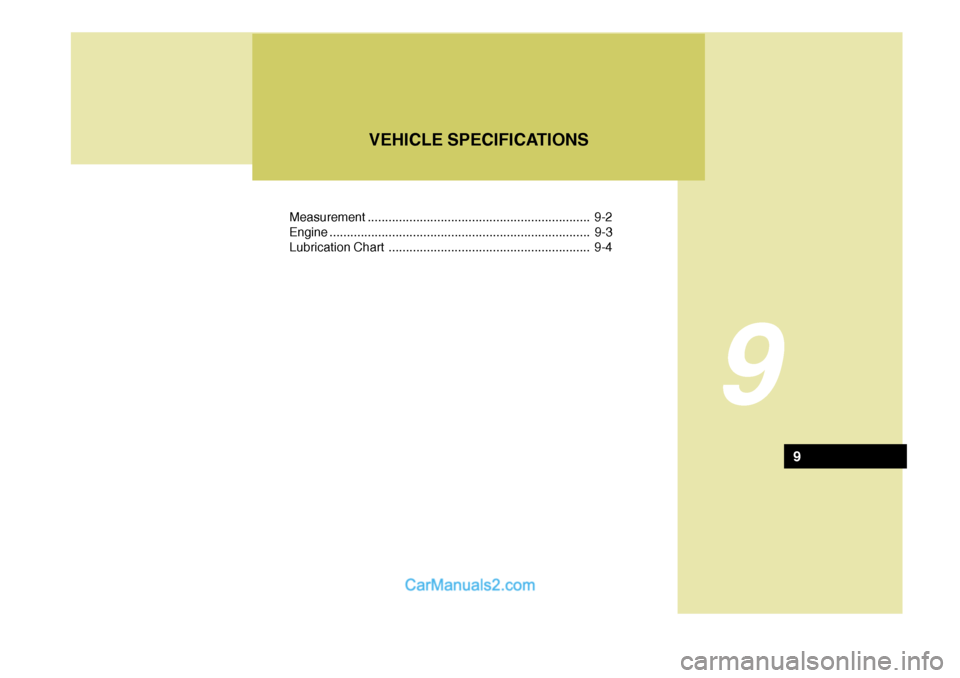

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9
VEHICLE SPECIFICATIONS
3
Petrol
3.5 V6
6-Cyl., V-type DOHC
3.67 x 3.38 in. (93.0 x 85.8 mm)
3497
10
1 - 2 - 3 - 4 - 5 - 6 Auto lash Auto lash
CHAMPION: RC10PYPB4 NGK: PFR5N-11
0.039 ~ 0.043 in. (1.0 ~ 1.1 mm)
800
BTDC 5° ± 2°
ITEMS
Engine Type Bore x Stroke Displacement (cc)Compression Ratio Firing Order
Valve Clearance Cold(Intake/Exhaust) (mm) Hot Spark Plug Spark Plug Gap Idle Speed (rpm) Ignition TimingENGINE
J070A03HP-EAT
Diesel
2.9 CRDi
4-Cyl., In-line DOHC
3.82 x 3.86 in. (97.1 x 98 mm)
2902
16.5
1 - 3 - 4 - 2
- -
800 ± 100
Automatically Adjusted

9 VEHICLE SPECIFICATIONS
4

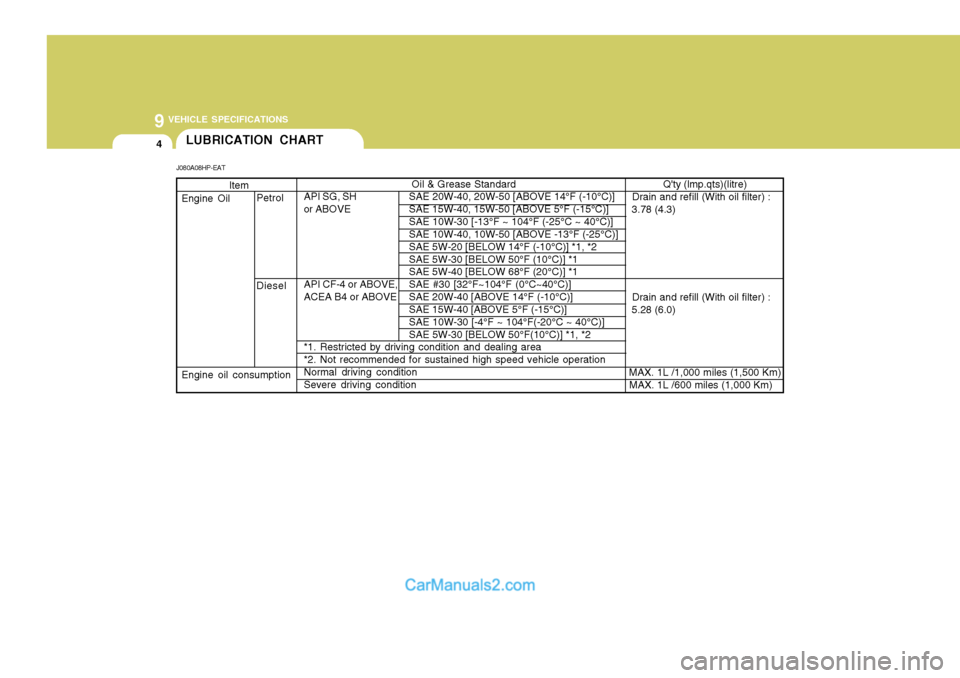

Q'ty (lmp.qts)(litre)
Drain and refill (With oil filter) : 3.78 (4.3) Drain and refill (With oil filter) : 5.28 (6.0)
MAX. 1L /1,000 miles (1,500 Km)
MAX. 1L /600 miles (1,000 Km)
Item
Engine Oil Engine oil consumption Oil & Grease Standard
API SG, SH SAE 20W-40, 20W-50 [ABOVE 14°F (-10°C)]
or ABOVE SAE 15W-40, 15W-50 [ABOVE 5°F (-15°C)]
SAE 10W-30 [-13°F ~ 104°F (-25°C ~ 40°C)] SAE 10W-40, 10W-50 [ABOVE -13°F (-25°C)] SAE 5W-20 [BELOW 14°F (-10°C)] *1, *2SAE 5W-30 [BELOW 50°F (10°C)] *1 SAE 5W-40 [BELOW 68°F (20°C)] *1
API CF-4 or ABOVE, SAE #30 [32°F~104°F (0°C~40°C)]
ACEA B4 or ABOVE SAE 20W-40 [ABOVE 14°F (-10°C)] SAE 15W-40 [ABOVE 5°F (-15°C)]SAE 10W-30 [-4°F ~ 104°F(-20°C ~ 40°C)]SAE 5W-30 [BELOW 50°F(10°C)] *1, *2
*1. Restricted by driving condition and dealing area*2. Not recommended for sustained high speed vehicle operationNormal driving condition Severe driving conditionLUBRICATION CHART
J080A08HP-EAT
Petrol Diesel

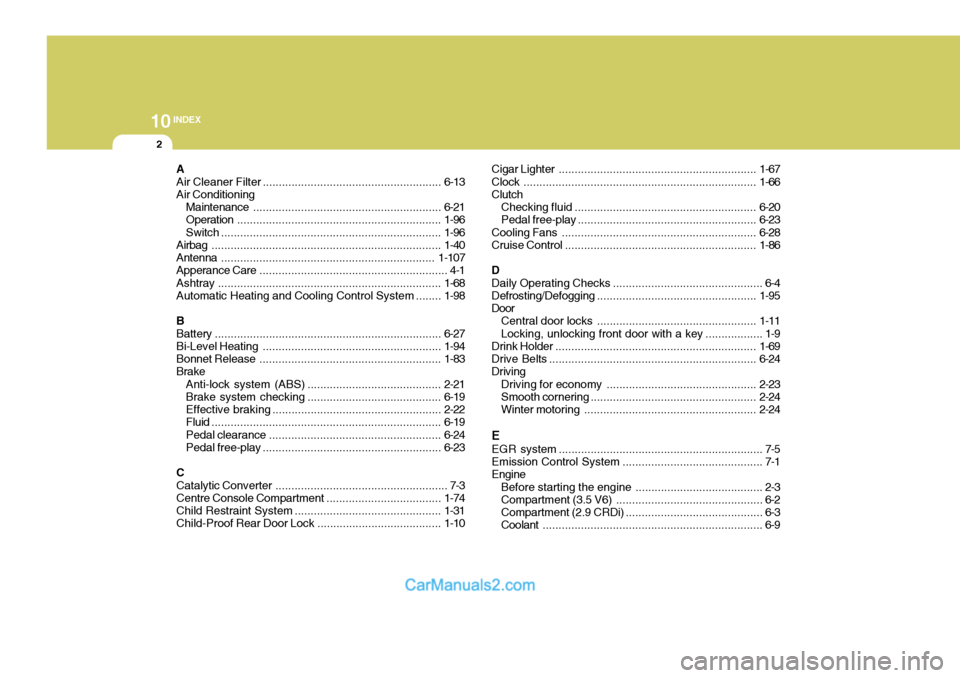

10INDEX
2
A Air Cleaner Filter ........................................................ 6-13
Air Conditioning
Maintenance ........................................................... 6-21
Operation ................................................................ 1-96
Switch ..................................................................... 1-96
Airbag ........................................................................ 1-40
Antenna ................................................................... 1-107
Apperance Care ........................................................... 4-1
Ashtray ...................................................................... 1-68
Automatic Heating and Cooling Control System ........ 1-98
BBattery ....................................................................... 6-27
Bi-Level Heating ........................................................ 1-94
Bonnet Release ......................................................... 1-83
Brake
Anti-lock system (ABS) .......................................... 2-21
Brake system checking .......................................... 6-19
Effective braking ..................................................... 2-22
Fluid ........................................................................ 6-19
Pedal clearance ...................................................... 6-24
Pedal free-play ........................................................ 6-23
CCatalytic Converter ...................................................... 7-3
Centre Console Compartment ....................................1-74
Child Restraint System .............................................. 1-31
Child-Proof Rear Door Lock ....................................... 1-10Cigar Lighter
.............................................................. 1-67
Clock ......................................................................... 1-66
Clutch
Checking fluid ......................................................... 6-20
Pedal free-play ........................................................ 6-23
Cooling Fans ............................................................. 6-28
Cruise Control ............................................................ 1-86
DDaily Operating Checks ............................................... 6-4
Defrosting/Defogging .................................................. 1-95
Door Central door locks .................................................. 1-11
Locking, unlocking front door with a key .................. 1-9
Drink Holder ............................................................... 1-69
Drive Belts ................................................................. 6-24
Driving
Driving for economy ............................................... 2-23
Smooth corneri ng .................................................... 2-24
Winter motoring ...................................................... 2-24
E EGR system ................................................................ 7-5Emission Contro l System ............................................ 7-1
Engine
Before starting the engine ........................................ 2-3 Compartment (3.5 V6) .............................................. 6-2
Compartment (2.9 CRDi) ........................................... 6-3
Coolant ..................................................................... 6-9

10
INDEX
3
Coolant temperature gauge .....................................1-57
If the engine overheats ............................................. 3-4
Number ..................................................................... 8-2
Oil ............................................................................. 6-4 Starting ..................................................................... 2-5
Engine Exhaust Can Be Dangerous! ........................... 2-2
F Fan Speed Control ................. .........................1-90, 1-101
Fog Light Switch Front ....................................................................... 1-62
Rear ........................................................................ 1-62
Four-Wheel Drive(4WD) ............................................. 2-14
Front Door Edge Warning Light ................................. 1-84
Front Seats
Adjustable head restraints ...................................... 1-17
Adjusting seatback angle ....................................... 1-17
Driver's seat lumbar support control .......................1-18
Seat adjust ment ..................................................... 1-16
Seat cushion height adjustment ............................. 1-19
Seat fore/aft adjustment ......................................... 1-16
Fuel Capacity ................................................................... 9-2
Gauge ..................................................................... 1-57
Recommendations .................................................... 1-2
Fuel-Filler Flap Remote release ........................................................ 1-2
Full-time 4WD Operation ............................................ 2-17
Fusible Links ............................................................. 6-25G
Glove Box ................................................................. 1-73
H Hatchback Door ......................................................... 1-78
Hazard Warning System ............................................ 1-65
Headlight Aiming Adjustment..................................... 6-33
Headlight Bulbs Replacement ....................................6-31
Headlight Leveling Device S ystem ............................1-85
Heated Front/Rear Window .. ......................................1-65
Heating and Cooling Control ......................................1-89
Heating and Ventilation
Air flow control ............................................. 1-91, 1-102
Air intake control ......................................... 1-91, 1-101
Defrosting/Defogging ............................................... 1-95
Fan speed control ........................................ 1-90, 1-101
Temperature control ................................................ 1-83
High-Mounted Rear Stop Light ...................................1-82
Horn ........................................................................... 1-84
I Ignition Switch ............................................................. 2-3
Illuminated ignition switch ......................................... 1-8
Immobiliser System ..................................................... 1-5
Indicator and Warning Lights ..................................... 1-50
Instrument Cluster and Indicator Lights ..................... 1-46
Interior Light ............................................................... 1-72
Interior Rearview Mirror .............................................. 1-77
Intermittent Wi pe Facility ........................................... 1-64
