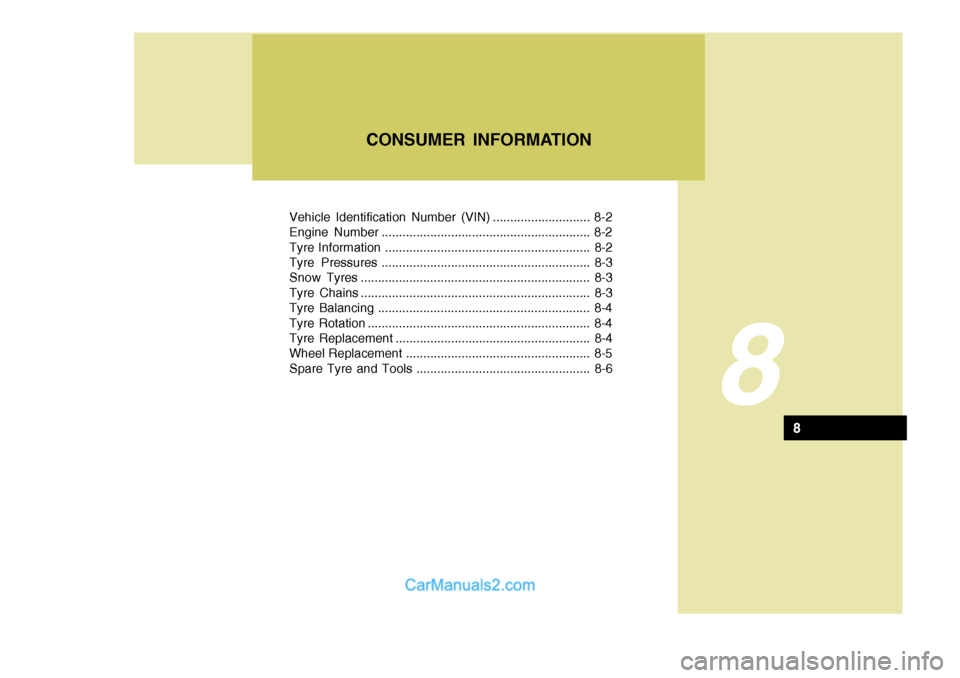

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Tyre Information ........................................................... 8-2
Tyre Pressures ............................................................ 8-3
Snow Tyres .................................................................. 8-3
Tyre Chains .................................................................. 8-3
Tyre Balancing ............................................................. 8-4
Tyre Rotation ................................................................ 8-4
Tyre Replacement ........................................................ 8-4
Wheel Replacement ..................................................... 8-5
Spare Tyre and Tools .................................................. 8-6
8
CONSUMER INFORMATION
8
8
CONSUMER INFORMATION
3

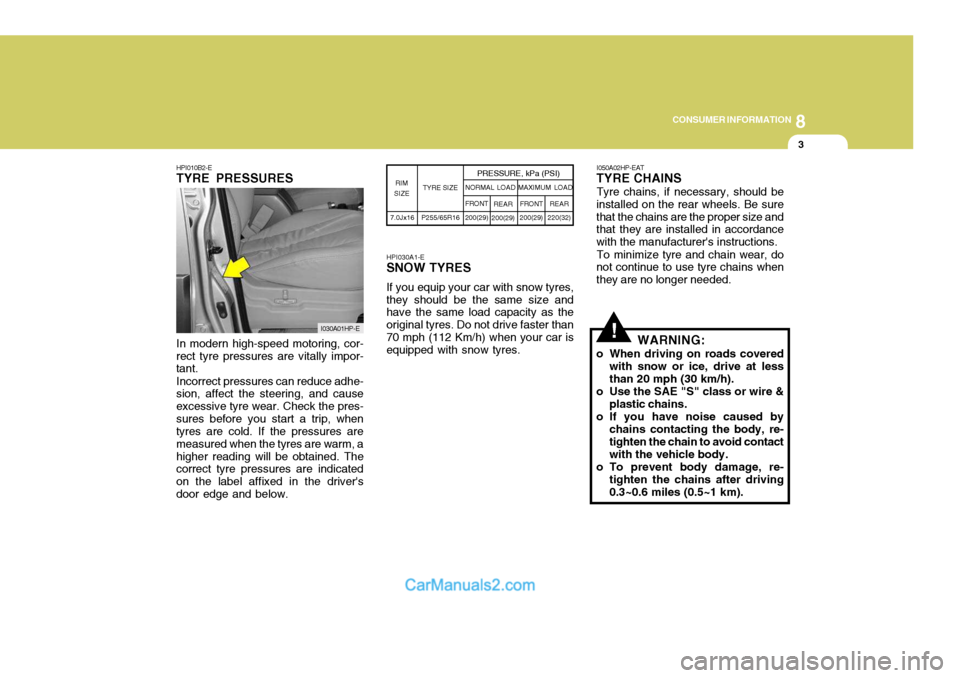

!In modern high-speed motoring, cor-
rect tyre pressures are vitally impor- tant.
Incorrect pressures can reduce adhe-
sion, affect the steering, and cause excessive tyre wear. Check the pres-sures before you start a trip, when tyres are cold. If the pressures are measured when the tyres are warm, ahigher reading will be obtained. The correct tyre pressures are indicated on the label affixed in the driver'sdoor edge and below. HPI030A1-E SNOW TYRES If you equip your car with snow tyres, they should be the same size and have the same load capacity as the original tyres. Do not drive faster than70 mph (112 Km/h) when your car is equipped with snow tyres.
I050A02HP-EAT
TYRE CHAINS
Tyre chains, if necessary, should be
installed on the rear wheels. Be sure that the chains are the proper size and that they are installed in accordance with the manufacturer's instructions.
To minimize tyre and chain wear, do
not continue to use tyre chains whenthey are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 20 mph (30 km/h).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid contact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.3~0.6 miles (0.5~1 km).
7.0Jx16
TYRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
P255/65R16 REAR
200(29) FRONT
200(29)
NORMAL LOAD MAXIMUM LOAD
REAR
220(32)
FRONT 200(29)
HPI010B2-E
TYRE PRESSURES
I030A01HP-E
10
INDEX
5
S Seat Belts 3-Point system ....................................................... 1-28
Adjusting your seat belt .......................................... 1-28
Care of seat belts ................................................... 1-26
Centre rear seat 3-point system with emergency
locking retractor .................................................... 1-29
Height adjustable front seat shoulder belt ..............1-27
Pre-tensioner Seat Belt .................. ........................1-38
Precautions ............................................................. 1-25
Seat Warmer ............................................................. 1-21
Sound
Brake Pad Wear Warning Sound ............................ 1-57
Spark Plugs ............................................................... 6-12
Speedometer ............................................................. 1-59
Starting Procedure ....................................................... 2-6
Steering Wheel
Free-play ................................................................. 6-23
Tilt lever ................................................................. 1-85
Stereo Sound System ............................................. 1-105
Sun visor ................................................................... 1-83
Sunroof ...................................................................... 1-70
T Tachometer ................................................................ 1-58
Theft-Alarm system ................................................... 1-11
Tyres
Balancing .................................................................. 8-4
Chains ...................................................................... 8-3 Changing a flat
tyre .................................................. 3-7
In the event of a puncture ........................................ 3-7 Information ................................................................ 8-2
Pressures ................................................................. 8-3
Replacement ............................................................. 8-4
Rotation .................................................................... 8-4
Snow tyres ............................................................... 8-3
Spare tyre ................................................................. 3-6Spare tyre and tools ................................................. 8-6
Towing A trailer (or vehicle) ................................................ 2-26
Emergency ............................................................. 3-16
If your car must be towed ........................................ 3-4 Important trailer weight information ......................... 2-29
Transmission
Automa tic ............................................................... 2-10
Automatic transmission lubricant ............................ 6-17
Manual ...................................................................... 2-8
Manual transmission lubricant ................................ 6-16
Trip Odometer ............................................................ 1-59
U Under Tray ................................................................. 1-21
VVehicle Identification Number (VIN) ............................. 8-2
Vehicle Specifica tions ................................................. 9-1
