CONTROLS AND EQUIPMENTSB070E1-E
Lumbar Support Adjustment (Not all models) (Driver's seat only)
Some models are fitted with adjustable driver
seat lumbar support which may be used to increase the amount of lumbar support of-fered by the seat back. Adjustment is per-formed by moving the handle at the side of thebackrest in a forward direction to increase thesupport.
SB070D3-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down whilst pressing the lock knob.For maximum effectiveness in the event of anaccident, the restraint must be adjusted sothat the restraint is approximately at the levelof the seat occupant's eyes. The restraintmust never be so adjusted that it is centredabout the level of the seat occupant's neck. WARNING:
o For maximum effectiveness in case of
an accident the head restraint should be adjusted so the middle of the headrestraint is at the same height as thetop of the occupant's eyes. For thisreason, the use of a cushion that holdsthe body away from the seatbackshould not be recommended.
SB070C1-E
Front Seat Recline Adjustment
The front seat back recline angle may beadjusted by leaning forward slightly and rais-ing the recline adjustment lever at the side ofthe seat. When the seatback is at the desiredangle, the lever should be released. Ensurethat the seatback is locked before driving thevehicle.
HFC2027-D
HFC2025-DHFC2028-D
Lock knob
o Do not operate vehicle with the head
restraints removed as injury to the oc- cupants may occur in the event of anaccident. Head restraints may provideprotection against neck injuries whenproperly adjusted.
o Do not adjust the head restraint height whilst the vehicle is in motion.

1- 11
CONTROLS AND EQUIPMENT
B090A01FC
Lock Knob
SB070D3-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down whilst pressing the lock knob.For maximum effectiveness in the event of anaccident, the restraint must be adjusted sothat the restraint is approximately at the levelof the seat occupant's eyes. The restraintmust never be so adjusted that it is centredabout the level of the seat occupant's neck. WARNING:
o For maximum effectiveness in case of
an accident the head restraint shouldbe adjusted so the middle of the headrestraint is at the same height as thetop of the occupant's eyes. For thisreason, the use of a cushion that holdsthe body away from the seatbackshould not be recommended.
B080I01FC-BAT
Adjusting Seatback Angle
HFC2061
To recline the seatback, push the seatback
folding lever toward the headrest, and release it after the desired seatback angle is achieved.
When you recline the seatback to desired
position, always be sure it has locked intoposition.
CAUTION:When reclining the seatback, you should
adjust the seatback folding lever whilststanding. B090B01FC-GAT Folding Rear Seatback and Seat Cushion
HFC2074
Seatback folding lever
For greater convenience, the entire seatback and seat cushion may be folded down and up.
1. Move the rear seat to the rearmost posi- tion.
2. Remove the headrests.
3. To fold down the seatback , push and hold the seatback folding lever toward the head- rest, then push down the seatback.
Seatback folding lever
o Do not operate vehicle with the head
restraints removed as injury to the oc- cupants may occur in the event of anaccident. Head restraints may provideprotection against neck injuries whenproperly adjusted.
o Do not adjust the head restraint height whilst the vehicle is in motion.

CONTROLS AND EQUIPMENT
1- 12 o Objects should not extend higher than
the top of the front seatbacks. This could allow cargo to slide forward andcause injury or damage during suddenstops.
o When you return the folded down seatback to its upright position, alwaysbe sure to install the headrests in theirproper positions. Headrests are impor-tant to the safety of occupants in a rearcollision. If the headrests are not in-stalled in their proper position, seriousinjury or death could result if a rear endcollision occurs.
B100A01FC-EAT
SEAT WARMER (Not all models)
The seat warmer is provided to warm the front
seats during cold weather. When the engine is running, push either of the switches to warmthe driver's seat or the passenger's seat.
B100A01FC
5. To secure the seat, hook the securing strap under the seat cushion to the head- rest stay of front driver and passengerseat.
6. Insert the removed headrests between the seatback and seat cushion, so that theywill not be thrown forward in the case of asudden stop or an accident.
7. To return the seatback and seat cushion to its normal position, reverse the above pro-cedure.
o When you return the seatback to its upright position, always be sure it is locked intoposition by pulling and pushing on the topof seatback.
WARNING:
o When you return the folded down seat back to its upright position, make sure the seat belts are in position to beaccessible and to function properly.
o The purpose of the fold down rear seat back and the fold forward rear seatcushion is to increase cargo space. Donot allow passengers to sit in the cargoarea whilst the car is moving. This isnot a proper seating position and noseat belts are available for use whenthe seat back is folded down. Passen-gers who are not properly seated andwearing seat belts could sustain seri-ous injuries or death in case of anaccident or a sudden stop.
CAUTION: To prevent damage, ensure that the rear drinkholder, located in the rear console, isclosed before folding the rear seatbackand seat cushion.
4. Pull the seat cushion release lever up-
ward, then fold up the seat cushion.
HFC2075
HFC2076
Seat cushion release lever
Securing strap

CONTROLS AND EQUIPMENT
1- 20
B230E01FC
Back panel
Front of Vehicle
Tether straphook

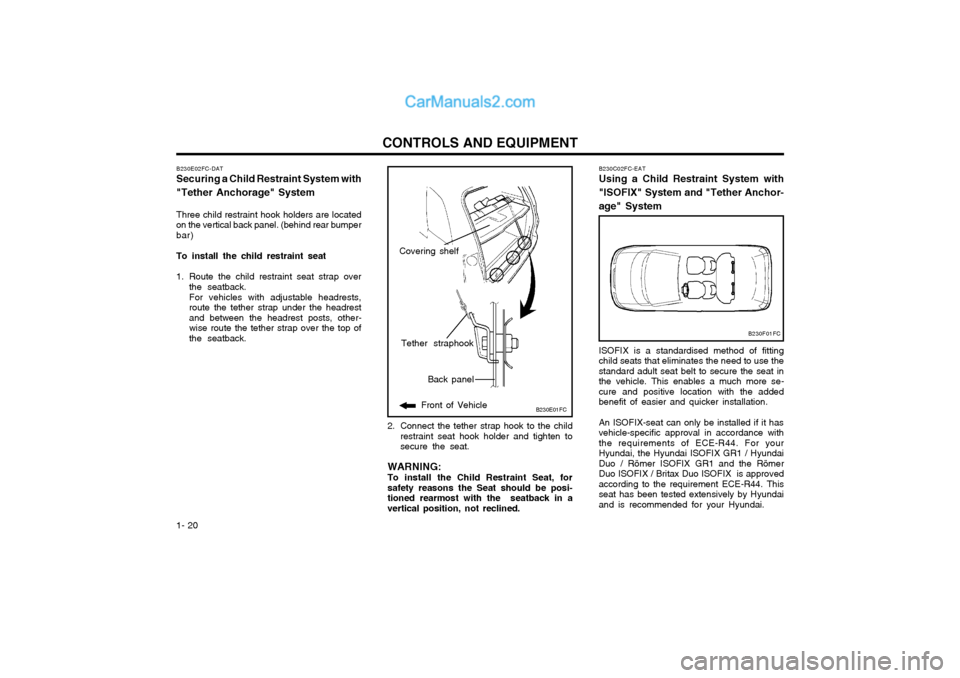

B230E02FC-DAT Securing a Child Restraint System with "Tether Anchorage" System Three child restraint hook holders are located on the vertical back panel. (behind rear bumperbar) To install the child restraint seat
1. Route the child restraint seat strap over the seatback. For vehicles with adjustable headrests, route the tether strap under the headrestand between the headrest posts, other-wise route the tether strap over the top ofthe seatback.
2. Connect the tether strap hook to the childrestraint seat hook holder and tighten tosecure the seat.
WARNING:
To install the Child Restraint Seat, for safety reasons the Seat should be posi-tioned rearmost with the seatback in avertical position, not reclined.
Covering shelf
B230F01FC
B230C02FC-EAT Using a Child Restraint System with "ISOFIX" System and "Tether Anchor-age" System ISOFIX is a standardised method of fitting child seats that eliminates the need to use thestandard adult seat belt to secure the seat inthe vehicle. This enables a much more se-cure and positive location with the addedbenefit of easier and quicker installation. An ISOFIX-seat can only be installed if it has vehicle-specific approval in accordance withthe requirements of ECE-R44. For yourHyundai, the Hyundai ISOFIX GR1 / HyundaiDuo / Römer ISOFIX GR1 and the RömerDuo ISOFIX / Britax Duo ISOFIX is approvedaccording to the requirement ECE-R44. Thisseat has been tested extensively by Hyundaiand is recommended for your Hyundai.

DRIVING YOUR HYUNDAI
2- 2
C020A01O-EAT BEFORE STARTING THE ENGINEBefore you start the engine, you should al- ways:
1. Look around the vehicle to be sure there
are no flat tyres, puddles of oil or water or other indications of possible trouble.
2. After entering the car, check to be sure the parking brake is engaged.
3. Check that all windows, and lights are clean.
4. Check that the interior and exterior mirrors are clean and in position.
5. Check your seat, seatback and headrestraint to be sure they are in their proper positions.
6. Close all doors.
7. Fasten your seat belt and be sure that all other occupants have fastened theirs.
8. Turn off all lights and accessories that are not needed.
9. When you turn the ignition switch to "ON" check that all appropriate warning lights areoperating and that you have sufficient fuel.
10.Check the operation of warning lights and all bulbs when key is in the "ON" position.
WARNING: (DIESEL ENGINE)To ensure that sufficient vacuum exists within the brake system during cold weath- er start-up conditions, it is necessary to run the engine at idle for several seconds after starting the engine. SC040A1-F COMBINATION IGNITION SWITCH AND STEERING LOCK To Start the Engine
o If your Hyundai is equipped with a manual
transaxle, place the shift lever in neutral and depress the clutch pedal fully.
o If your Hyundai has an automatic transaxle, place the shift lever in "P" (park).
o To start the engine, insert the ignition key and turn it to the "START" position. Re- lease it as soon as the engine starts. Do not hold the key in the "START" position for more that 15 seconds.
NOTE:For safety, the engine will not start if the shift lever is not in "P" or "N" Position (automatic transaxle). SC050A2-E KEY POSITIONS WARNING: The engine must never be turned off and the key removed from the ignition key cylinder whilst the vehicle is in motion since the steering lock will operate and control of the vehicle will be lost. "START" The engine is started in this position. It will crank until you release the key. NOTE: Do not hold the key in the "START" posi- tion for more than 15 seconds. "ON" When the key is at the "ON" position, the ignition and all accessories are available for use.
C040A01E
LOCK
ACC
ON
START

1
FEATURES OF YOUR HYUNDAI
15
!
!WARNING:
To minimize risk of severe injury in the event of a collision or a sudden stop, both the driver and passen-ger seatbacks should always be in an upright position while the ve- hicle is in motion. The protectionprovided by the seat belts and airbags in a frontal collision may be reduced significantly when the seatbacks are reclined. There is greater risk that the driver and pas-senger will slide under the seat belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occu- pant if the seat back is reclined.
To recline the seatback, lean forwardto take your weight off it, then pull up on the recliner control lever at the outside edge of the seat. Now leanback until the desired seatback angle HFC2025
B080C01A-AAT Adjusting Seatback Angle
WARNING:
To ensure the seat is locked se- curely, attempt to move the seat forward or rearward without using the lock release lever. is achieved. To lock the seatback intoposition, release the recliner controllever.
Lock KnobHFC2028
B080D03A-AAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob.

1FEATURES OF YOUR HYUNDAI
16
!
B080E01O-AAT Lumbar Support Control (Driver's seat only) (If Installed) To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount oflumbar support, pull the lever forward. To decrease it, push the lever toward the rear.
1. Maximum support
2. Minimum support HFC2027
WARNING:
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only) (If Installed)
To raise or lower the front part of the seat cushion, turn the front knob for- ward or rearward. To raise or lower the rear part of the seat cushion, turn therear knob forward or rearward. HFC2026
1
2
B080D01JM
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the sameheight as the top of the occupant's eyes. For this rea- son, the use of a cushion thatholds the body away from the seatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad- justed. o Do not adjust the headrest hejght
while the vehicle is in motion.

1FEATURES OF YOUR HYUNDAI
18
B090B01FC-GAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may befolded down and up.
1. Move the rear seat to the rearmost
position.
2. Remove the headrests.
3. To fold down the seatback , push and hold the seatback folding levertoward the headrest, then push downthe seatback.
B090A02FC-GAT Adjustable Headrests (If installed) Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. To lower it, push it down while pressingthe lock knob.
Lock Knob
B090A01FC
!WARNING:
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the same height as the top of theoccupant's eyes. For this rea- son, the use of a cushion that holds the body away from theseatback should not be recom- mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in the event of an accident. Headrestsmay provide protection against neck injuries when properly ad- justed.
o Do not adjust the headrest hejght while the vehicle is in motion. HFC2074
Seatback folding lever
