1FEATURES OF YOUR HYUNDAI
4KEYS
B030A01NF-GAT For greater convenience, your Hyundai has two master keys and a sub key.The master keys will open all locks on your vehicle. The sub key will only function in the ignition and the doorlocks. Leaving your sub key with a parking attendant will ensure that your vehicle's trunk, trunk lid release, glove box com- partment and rear trunk access maynot be unlocked in your absence. NOTE: Before leaving your sub key with a parking attendant, make sure that the lock knobs of the rear seat backlock and the trunk lid lock are switched to the "LOCK" position.
B030A01TG
Master key
Sub key
B031A01LZ-GAT Before leaving sub key with park- ing attendant When leaving sub key with parking attendant, the following procedures will ensure that your vehicle's trunk and glove box can not be unlocked in yourabsence. 1. Unlock the glove box with the master
key and open it.
2. Set the trunk lid control button in the
glove box to the "OFF" position (not depressed). In the "OFF" position, the trunk can not be unlocked with either the trunk release lever or trunkopen button of transmitter.
B541A01TG

1FEATURES OF YOUR HYUNDAI
6
!
2) Sub key
Similar to the master key, this key will only function in the ignition and the door locks, but it will not operate the trunk and the glove box. Oneside of the key has the Hyundai logo and the other side has an "S" sym- bol.Leaving your sub key with a parking attendant will ensure that your vehicle's trunk, trunk lid release,glove box compartment and rear trunk access may not be unlocked in your absence.
NOTE:
o Before leaving your sub key with a parking attendant, make sure that the lock knobs of the seatback lock and the trunk lid lock are switched to the "LOCK" posi- tion.
o If you make your own duplicate key, you will not be able to cancelthe system or start the engine. CAUTION:
When staring the engine, do not use the key with other immobilizer keys around. Otherwise the enginemay not start or may stop soon after it starts. Keep each key separately not tohave any malfunction after you re- ceive your new vehicle.
B031A01LZ-GAT Before leaving sub key with park- ing attendant When leaving sub key with parking attendant, the following procedures will ensure that your vehicle's trunk and glove box can not be unlocked in yourabsence. 1. Unlock the glove box with the master key and open it.
2. Set the trunk lid control button in the
glove box to the "OFF" position (not depressed). In the "OFF" position, the trunk can not be unlocked with either the trunk release lever or trunkopen button of transmitter.
B541A01TG

1
FEATURES OF YOUR HYUNDAI
15
B070F01NF-GAT Keyless Entry System (If Installed)Locking doors
1. Close all doors.
2. Push the " " button on the transmitter.
3. At the same time, all doors lock and the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. At the same time, all doors unlock
and the turn signal lights will blink twice to indicate that the system is disarmed.
Releasing the trunk lid Push the trunk lid release button ( ) on the transmitter for longer than 1 second.
B070E01NF-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:
1. Separate the case with a coin as shown in the illustration. B070E01TG HTG2006
Battery
2. Remove the old battery from the case and note the polarity. Make sure the polarity of the new battery is the same(+side facing up), theninsert it in the transmitter.

1FEATURES OF YOUR HYUNDAI
30
B140A01S-AAT REAR SEAT WARNING For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback. Inaddition, do not place objects on the rear shelf as they may move forward during braking or in an accident andstrike vehicle passengers. B140A01TGB120A01NF-GAT REAR SEATBACK SAFETY LOCK (If Installed) If the rear seatback lock knob (located on the backside of the rear seatback)is in the "LOCK" position when the rear seatbacks are closed, it will not be possible to fold the rear seatback byusing the seatback release lever. In this instance, move the lock knob to the "UNLOCK" position and fold therear seatback. The rear seatback lock knob is designed to provide protection from unauthorized entry into the trunk. B120A01TG
!WARNING:
B080D02TG-1
o For maximum effectiveness in case of an accident the headrest should be adjusted so the middle of the headrest is at the same height as the top of the occupant's eyes. Forthis reason, the use of a cushion that holds the body away from the seatback should not be recom-mended.
o Do not operate vehicle with the
headrests removed as injury tothe occupants may occur in the event of an accident. Headrests may provide protection againstneck injuries when properly ad- justed.

1
FEATURES OF YOUR HYUNDAI
37
!
!

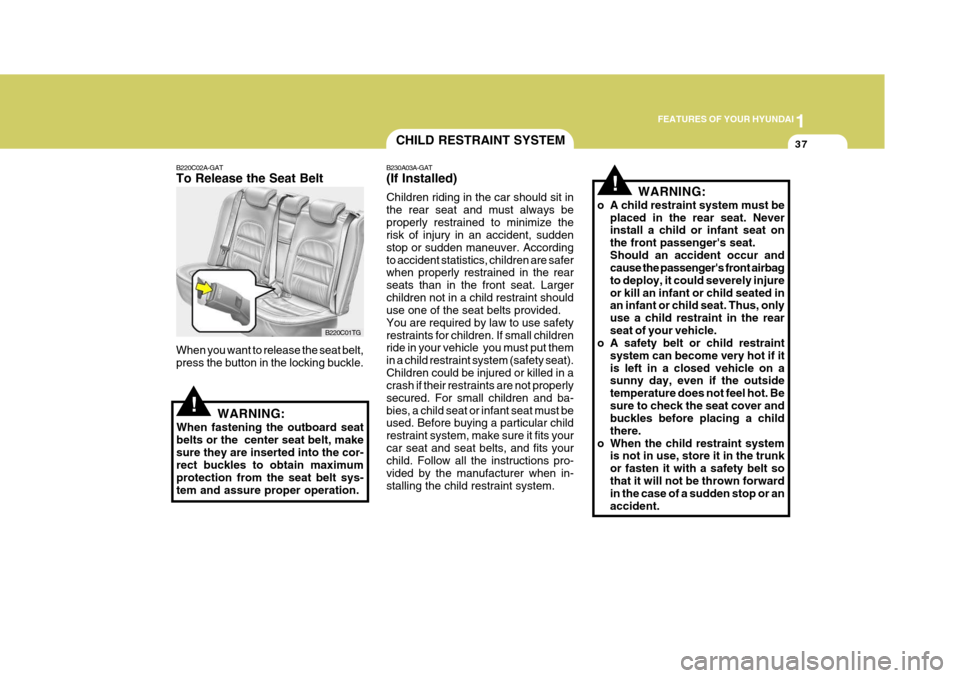

B220C02A-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
When fastening the outboard seatbelts or the center seat belt, makesure they are inserted into the cor- rect buckles to obtain maximum protection from the seat belt sys-tem and assure proper operation. B220C01TG
CHILD RESTRAINT SYSTEM
B230A03A-GAT (If Installed) Children riding in the car should sit in the rear seat and must always beproperly restrained to minimize the risk of injury in an accident, sudden stop or sudden maneuver. Accordingto accident statistics, children are safer when properly restrained in the rear seats than in the front seat. Largerchildren not in a child restraint should use one of the seat belts provided. You are required by law to use safetyrestraints for children. If small children ride in your vehicle you must put them in a child restraint system (safety seat).Children could be injured or killed in a crash if their restraints are not properly secured. For small children and ba-bies, a child seat or infant seat must be used. Before buying a particular child restraint system, make sure it fits yourcar seat and seat belts, and fits your child. Follow all the instructions pro- vided by the manufacturer when in-stalling the child restraint system. WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur and cause the passenger's front airbag to deploy, it could severely injureor kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in the rearseat of your vehicle.
o A safety belt or child restraint
system can become very hot if itis left in a closed vehicle on a sunny day, even if the outside temperature does not feel hot. Besure to check the seat cover and buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunkor fasten it with a safety belt sothat it will not be thrown forward in the case of a sudden stop or an accident.

1FEATURES OF YOUR HYUNDAI
92
3. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle's trunk or glove box.
4. Turn the wrench clockwise to open or counterclockwise to close thesunroof. HTG2030
!
B460E01TG-GAT Resetting the sunroof Whenever the vehicle battery is dis- connected or discharged, or you usethe emergency handle to operate the sunroof, you have to reset your sunroof system as follows:
1. Turn the ignition key to the "ON"
position.
2. Press the TILT UP button for more than 1 second to tilt up the sunroof completely when the sunroof is fullyclosed. Then, release the button.
3. Press and hold the TILT UP button
once again until the sunroof hasreturned to the original position of TILT UP after it is raised a little higher than the maximum TILT UPposition. Then, release the button.
4. Press and hold the TILT UP button
within 5 seconds until the sunroof isoperated as follows; TILT DOWN SLIDE OPEN
SLIDE CLOSEThen, release the button. CAUTION:
If the sunroof is not reset, it may not operate properly.

1
FEATURES OF YOUR HYUNDAI
95
B500A01TG-GAT ACCESSORY BOX
The accessory box may be opened by pushing at its top edge (Type A) or pushing the knob downward (Type B). It is used for storing small articles. B500A01TG
B500B01NF-GAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi- function switch is turned to the firstposition.
NOTE: Information about use of the trunk lid control button located in the glove box is beginning on the trunk lidsection.
B541A01TG
Type A
B500A02TG
Type B
!
STORAGE BOX
B500A01TG-AAT GLOVE BOX
WARNING:
To avoid the possibility of injury in case of an accident or a suddenstop, the glove box door should be kept closed when the car is in mo- tion.
o To open the glove box, pull on the glove box release lever.
o The glove box door can be locked
(and unlocked) with the key.
HTG2178

1FEATURES OF YOUR HYUNDAI
100
B520B02O-GAT Electric type (If Installed) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the button turns the
auto-dimming function OFF which is indicated by the green status indi- cator LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green status indi- cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. HTG2080B530A01TG-GAT
B530A01TG
PARKING BRAKE
Always engage the parking brake be- fore leaving the car. This also turns onthe parking brake indicator light when the key is in the "ON" or "START" position. Before driving away, be surethat the parking brake is fully released and the indicator light is off.
o To engage the parking brake, de- press the parking brake pedal.
o To release the parking brake, de- press the parking brake pedal a sec- ond time.
NOTE: The parking brake pedal should be checked periodically for proper stroke.
TRUNK LID
B540A01S-GAT Remote Trunk Lid Release To open the trunk lid without using the key, pull up the lid release lever. HTG2014
HTG2017
To close, lower the trunk lid, then press down on it until it locks.
