1. Headlight Leveling Device Switch (If Installed)
2. Rear Fog Light Switch (If Installed)
3. Electronic Stability Program (ESP) Switch(If Installed)
4. Panel Brightness Control Knob (Rheostat Switch)
5. Steering Wheel Tilt & Telescopic Lever
6. Hood Release Lever
7. Cigarette Lighter
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from theair freshener onto these areas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
!
NOTE: Switch arrangements from No. 1 to No. 4 can be changed according to options. 8. Front Ashtray
9. Front Seat Warmer (If Installed)
10. Rear Window Curtain Switch (If Installed)
11. Digital Clock
12. Passenger's Seat Belt Warning Light (If Installed)
13. Hazard Warning Switch
14. Power Outlet

1. Digital Clock
2. Passenger's Seat Belt Warning Light (If Installed)
3. Hazard Warning Switch
4. Electronic Stability Program (ESP) Switch(If Installed)
5. Steering Wheel Tilt & Telescopic Lever
6. Panel Brightness Control Knob (Rheostat Switch)
7. Rear Fog Light Switch (If Installed)
CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
!
NOTE: Switch arrangements from No. 6 to No. 8 can be changed according to options. 8. Headlight Leveling Device Switch (If Installed)
9. Hood Release Lever
10. Front Seat Warmer (If Installed)
11. Front Ashtray
12. Cigarette Lighter
13. Rear Window Curtain Switch (If Installed)
14. Power Outlet

1
FEATURES OF YOUR HYUNDAI
85CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position.To use the cigarette lighter, push it all the way into its socket. When the element has heated, the lighter willpop out to the "ready" position. Do not hold the cigarette lighter pressed in. This can damage the heating ele-ment and create a fire hazard. If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundaireplacement or its approved equiva- lent. B420A01TGINSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
B410A01A-AAT The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob. B410A01TG
B410A01TG-R
Left-Hand Drive type
Right-Hand Drive type
DIGITAL CLOCK
B400A01TG-GAT There are three control buttons for the digital clock. Their functions are: H - Push "H" to advance the hour indi-
cated. M - Push "M" to advance the minute
indicated. R - Push "R" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 11 : 01 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.Push the "R" button for 4 seconds to display a 12 or 24-hour clock. B400A01TG

1FEATURES OF YOUR HYUNDAI
92
3. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle's trunk or glove box.
4. Turn the wrench clockwise to open or counterclockwise to close thesunroof. HTG2030
!
B460E01TG-GAT Resetting the sunroof Whenever the vehicle battery is dis- connected or discharged, or you usethe emergency handle to operate the sunroof, you have to reset your sunroof system as follows:
1. Turn the ignition key to the "ON"
position.
2. Press the TILT UP button for more than 1 second to tilt up the sunroof completely when the sunroof is fullyclosed. Then, release the button.
3. Press and hold the TILT UP button
once again until the sunroof hasreturned to the original position of TILT UP after it is raised a little higher than the maximum TILT UPposition. Then, release the button.
4. Press and hold the TILT UP button
within 5 seconds until the sunroof isoperated as follows; TILT DOWN SLIDE OPEN
SLIDE CLOSEThen, release the button. CAUTION:
If the sunroof is not reset, it may not operate properly.

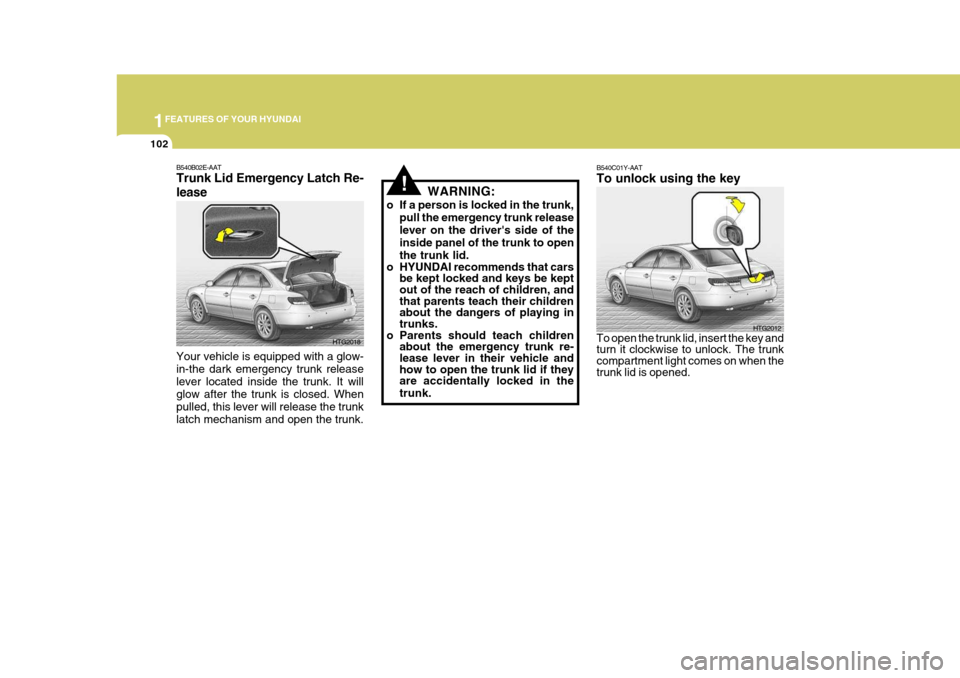

1FEATURES OF YOUR HYUNDAI
102
HTG2018
B540B02E-AAT Trunk Lid Emergency Latch Re- lease Your vehicle is equipped with a glow- in-the dark emergency trunk releaselever located inside the trunk. It will glow after the trunk is closed. When pulled, this lever will release the trunklatch mechanism and open the trunk.
!WARNING:
o If a person is locked in the trunk, pull the emergency trunk release lever on the driver's side of the inside panel of the trunk to openthe trunk lid.
o HYUNDAI recommends that cars be kept locked and keys be kept out of the reach of children, and that parents teach their children about the dangers of playing intrunks.
o Parents should teach children about the emergency trunk re-lease lever in their vehicle and how to open the trunk lid if they are accidentally locked in the trunk.
HTG2012
B540C01Y-AAT To unlock using the key To open the trunk lid, insert the key and turn it clockwise to unlock. The trunkcompartment light comes on when the trunk lid is opened.

1
FEATURES OF YOUR HYUNDAI
137
CLASSIC POPS ROCK JAZZ DEFEAT
M445B01TG-GAT
1. POWER ON-OFF Control Knob
o The radio unit may be operated when
the ignition key is in the "ACC" or "ON" position. Press the knob to switch the power on. The display shows the radio frequency in theradio mode or CD/MP3 track in either the CD/MP3 mode. To switch the power off, press the knob again.
o Push the FM/AM or CD/MP3 to turn on that function without pushingPower ON-OFF control knob.
VOLUME Control Rotate the knob clockwise to increase the volume and turn the knob counter- clockwise to reduce the volume.
2. BAND Selector Pressing the band selector FM/AM changes the AM (MW, LW), FM1 and FM2 bands.The mode selected is shown on the display. 3. TUNE (Manual) Select Knob Rotate the knob clockwise to increase the frequency and turn the knob coun-terclockwise to reduce the frequency.
4. SEEK Select Button (Automatic Channel Selection) Press the SEEK select button. When the (
) side is pressed, the unit will
automatically tune to the next higher frequency and when the (
) side is
pressed, it will automatically tune to the next lower frequency.
5. Best Station Memory (BSM)
Button
When the BSM button is pressed the six channels from the highest field in- tensity are selected next and stored in memory. The stations selected arestored in the sequence frequency from the first preset key. 6. EQ Button Press the EQ button to select the CLAS- SIC, POPS, ROCK, JAZZ and DE-FEAT MODE for the desired tone qual-
ity. Each press of the button changes the display as follows;
7. Adjustment Mode
Select (A.MODE) Button
Pressing the A.MODE button changes the BASS, MIDDLE, TREBLE, FADER
and BALANCE mode. The mode se-
lected is shown on the display. Afterselecting the each mode, rotate the VOLUME control knob clockwise or counterclockwise. BASS Control To increase the bass, rotate the knob clockwise, while to decrease the bass, rotate the knob counterclockwise.

1FEATURES OF YOUR HYUNDAI
138
!
MIDDLE Control To increase the MIDDLE, rotate the knob clockwise, while to decrease the MIDDLE, rotate the knob counterclock- wise. TREBLE Control To increase the TREBLE, rotate the knob clockwise, while to decrease theTREBLE, rotate the knob counterclock- wise. FADER Control Turn the control knob clockwise to emphasize rear speaker sound (front speaker sound will be attenuated).When the control knob is turned coun- terclockwise, front speaker sound will be emphasized (rear speaker sound willbe attenuated). BALANCE Control Rotate the knob clockwise to empha- size right speaker sound (Left speaker sound will be attenuated). When the control knob is turned counter clockwise, left speaker sound will beemphasized (Right speaker sound will be attenuated). 8. PRESET STATION Select But-
tons
Six (6) stations for AM (MW, LW), FM1 and FM2 respectively can be preset in the electronic memory circuit. HOW TO PRESET STATIONS Six AM and twelve FM stations may be programmed into the memory of theradio. Then, by simply pressing the
band select button and/or one of the six station select buttons, you may recallany of these stations instantly. To program the stations, follow these steps:
o Press band selector to set the band for AM (MW, LW), FM1 and FM2.
o Select the desired station to be stored
by seek or manual tuning.
o Determine the preset station select
button you wish to use to access thatstation. o Press the station select button for
more than two seconds. Beep soundwill be heard while depressing the button. You should then release the button, and proceed to program thenext desired station. A total of 24 stations can be programmed by se-
lecting one AM (MW, LW) and twoFM station per button.
o When completed, any preset station
may be recalled by selecting AM,FM1 or FM2 band and the appropri-ate station button.
CAUTION:
o Do not place beverages close to the audio system. The playback mechanism may be damaged if you spill them.
o Do not impact on the audio sys- tem, or the playback mechanism
could be damaged.

1
FEATURES OF YOUR HYUNDAI
141
6. BOOKMARK (MARK) Button When the CD player unit is operating, the desired track on the disc can bebookmarked by using the MARK but- ton.
o Press the MARK button to bookmark the desired track for more than one second. This will display the "
"
symbol on the LCD for five seconds with sequential number. To play the
bookmarked tracks, press the MARK button within a second.
o Press the MARK button to erase the
bookmarked tracks for more than
one second. This will erase the book- mark with beep sound.
7. SCROLL When the CD is playing, you can scroll the long file name more than 16 charac-
ters (including the space and the file extension) by pressing the SCROLL
button. Press the SCROLL button forone second or more, and each16 char-
acter of file name is displayed in English only on the LCD at intervals of3 seconds. 8. EQUALIZER (EQ) Button Press the EQ button to select the CLAS-
SIC, POPS, ROCK, JAZZ and DE-FEAT MODE for the desired tone qual- ity. Each press of the button changes the display as follows;
o To playback the first 10 seconds of
each track in the selected folder,press the button within one second. If it pressed for more than one sec- ond, it will playback the first secondsof each track in the all folder with beep sound. Press the button again within one second when reached thedesired track, the searching function is released and the track you desired will be played in the selected folder.(MP3 CD only)
11. FILE SEARCH Knob (TUNE Select Knob)
o You can skip the track by turning the FILE SEARCH knob to counterclock- wise or clockwise.
After selecting the desired track, press the FILE SEARCH knob to playback the track. If you do not press the FILE SEARCH knob within 5 seconds, thefile searching function will be released.
12. CHANGE DIRECTORY(DIR)
Button
o You can move through the folder by pushing the DIR button to up (
)
and down (
).
CLASSIC
POPS ROCK JAZZ DEFEAT
9. CD EJECT Button When the (
)button is pressed with a
CD loaded, the CD will eject. Forcing to eject : To force to eject a CD, press thisbutton for more than 3 seconds. (Do this only when a CD is jammed and you can not eject it in the normal way - e.g.)in case that you have inserted 2 CDs by mistake) 10. SCAN
o To playback the first 10 seconds of each track, press the button with the beep sound for more than one sec-ond. Press the button again when reached the desired track.
