2005 HONDA ODYSSEY heater

Your Vehicle at a Glance
4
AUDIO SYSTEM/
REAR ENTERTAINMENT
SYSTEM
PARKING BRAKE
PEDAL
FUEL FILL
DOOR RELEASE
HOOD RELEASE
HANDLE
POWER WINDOW
SWITCHES
POWER
DOOR LOCK
SWITCHES INSTRUMENT PANEL INDICATORS
GAUGES SHIFT LEVER
CLIMATE CONTROL SYSTEM
MIRROR
CONTROLS
ACCESSORY POWER
SOCKETS
(P.61,
62)
(P.71)
(P.137)
(P.182)(P.171)(P.180)
HEATING AND COOLING SYSTEM/
(P.188)
(P.279) (P.280) (P.199,
230)
(P.294)
CENTER TRAY
(P.168)
(P.163)
(P.169)SEAT HEATER
SWITCHES
(P.160)
Seat Memory
Switches
(P.161)
GLOVE BOXES

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60 ............................
Instrument Panel .61
..........
Instrument Panel Indicators . 63
.............................................
Gauges .71
.............
Multi-Inf ormation Display . 74
Controls Near the Steering .........................................
Wheel .120
Windshield Wipers and .....................................
Washers .121
Rear Window Wiper and .......................................
Washer .122
.........
Turn Signal and Headlights . 122
......
Instrument Panel Brightness . 125
...............
Hazard Warning Button . 126
...............
Rear Window Def ogger . 126
........
Steering Wheel Adjustment . 127
.............................
Keys and Locks .128
......................
Immobilizer System .129
..............................
Ignition Switch .130
.....................
Remote Transmitter .131
....................................
Door Locks .137
....................
Power Door Locks . 137
............
Childproof Door Locks . 138
......................................
Tailgate .138
..........................
Power Tailgate .139
.................................
Sliding Doors .142
...............................................
Seats .148 ..................................
Seat Heaters .160
Driver’s Seat Position Memory ........................................
System .161
............................
Power Windows .163
.......................................
Moonroof .166
...........................................
Mirrors .167
...............................
Parking Brake .169
.
Adjustable Driver’s Foot Pedals . 169
.........
Interior Convenience Items . 170
..........
Retractable Center Tray . 171
.....................
Beverage Holders .171
................
Integrated Sunshade . 173
....................
Sunglasses Holder .174
................
Conversation Mirror . 174
...................................
Sun Visor .175
............................
Vanity Mirror .175
...................
Rear Compartment . 175
Removable Second Row ..................................
Console .176
...............
In-Floor Storage Area . 177
......................
Lower Glove Box .180
......................
Upper Glove Box .180
...........................
Center Pocket .181
........
Accessory Power Sockets . 182
.......................
AC Power Outlet .182
...............................
Interior Lights .183
Instruments and Controls
Inst rument s and Cont rols
59

Control L ocations
60
AUDIO SYSTEM/
REAR ENTERTAINMENT
SYSTEM
PARKING BRAKE
PEDAL
FUEL FILL
DOOR RELEASE
HOOD RELEASE
HANDLE
POWER WINDOW
SWITCHES
POWER
DOOR LOCK
SWITCHES
INSTRUMENT PANEL INDICATORS
SHIFT LEVER
MIRROR
CONTROLS
ACCESSORY POWER
SOCKETS
(P.61,
62)
GAUGES (P.71)
(P.137)
(P.279) (P.280) (P.182)(P.171)(P.199,
230)
(P.180)
(P.188)
HEATING AND COOLING SYSTEM/
CLIMATE CONTROL SYSTEM
(P.294)
CENTER TRAY
(P.168)
(P.163)
(P.169)SEAT HEATER
SWITCHES
(P.160)
GLOVE BOXES

Follow these precautions when using
the seat heaters:Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of the side airbag system.
The ignition switch must be in the
ON (II) position to use them. The
seat heater switches are located on
the dashboard above the center
pocket. Push the top of the switch,
HI, to rapidly heat up the seat.
After the seat reaches a comfortable
temperature, select LO by pushing the bottom of the switch. This will
keep the seat warm.
In HI, the heater turns of f when the
seat gets warm, and turns back on
after the seat’s temperature drops.
In LO, the heater does not cycle with
temperature change.
On EX with Leather and Touring models
Seat Heaters
160

Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off. To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake indicator on the instrument
panel should go out when the
parking brake is f ully released with
the engine running (see page ).
3.
63On EX and Touring models
Mirrors
Parking Brake
168

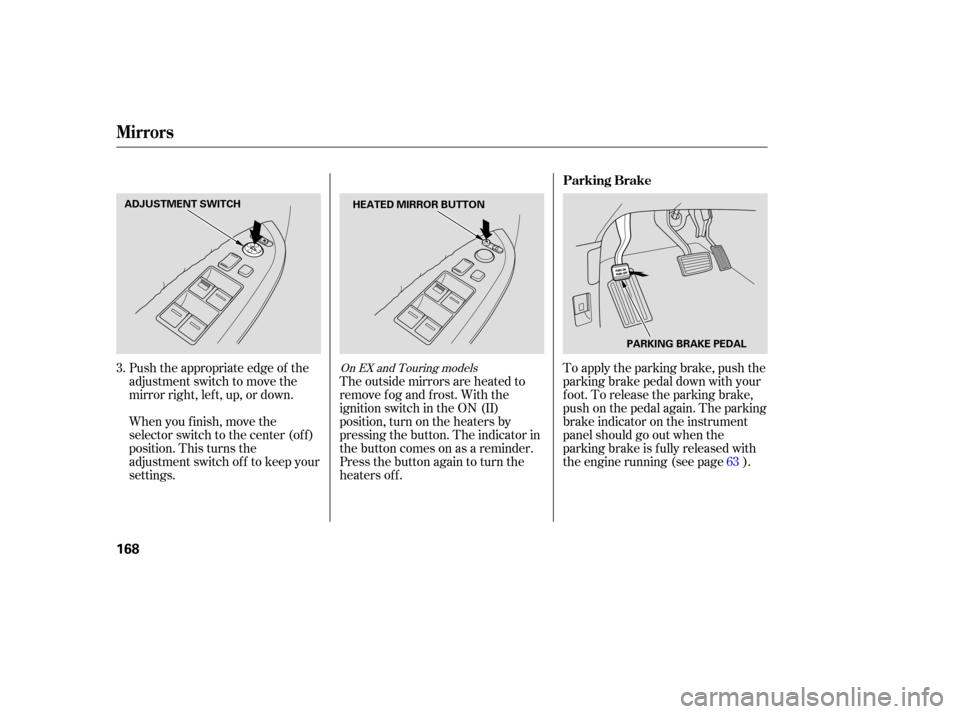

ADJUSTMENT SWITCHHEATED MIRROR BUTTON
PARKING BRAKE PEDAL

CONT INUED
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red mark,
turn of f the A/C until the gauge
reads normally.
Press the A/C button. The
indicator in the button comes on
(LX model) or ‘‘A/C ON’’ is shown
in the display (EX and Touring
models)whenafanspeedis
selected.
Make sure the temperature is set
to the lower limit.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Select and fresh air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial or
buttons. Set the temperature control dial or
button to the lower limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
Set the f an to the desired speed.
1.
2.
3.
4.
5.
1.
2.
3. 1.
2.
3.
4. 71
If the interior is very warm,
Vents, Heating, and A/C
Using the A /C
Ventilation
Using the Heater
Features
191

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.To remove f og f rom the inside of the
windows:
Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX model), or
the A/C ON indicator will not
come on (EX and Touring models).
Select .
Set the f an and temperature
controls to maximum level.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). Switch the f an on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence.
Set the f an to high.
Select . The system
automatically switches to the fresh
air mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX model), or
the A/C ON indicator will not
come on (EX and Touring models).
Adjust the temperature so the
airf low f eels warm.
Select to help clear the
rear window.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f . To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This will send more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1.
2.
3.
4.
1.
1.
2.
3.
4. 2.
3.
On U.S. vehicles
On U.S. vehicles
Vents, Heating, and A/C
Dehumidif y the Interior T o Def og and Def rostT o Remove Exterior Frost or Ice
From the Windows
192

Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working.
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page . Although this seems like a simple
procedure, you should take several
precautions.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
You cannot start your vehicle by
pushing or pulling it. Turn of f all the electrical acces-
sories: heater, A/C, climate
control, audio system, lights, etc.
Put the transmission in Neutral or
Park, and set the parking brake.
1.
2.
376
381 129
CONT INUED
Emergency
Towing Jump Starting
To Jump Start Your Vehicle:
If the Engine Won’t Start, Jump Starting
T aking Care of t he Unexpect ed
367
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
