2005 HONDA CIVIC Owners Manual

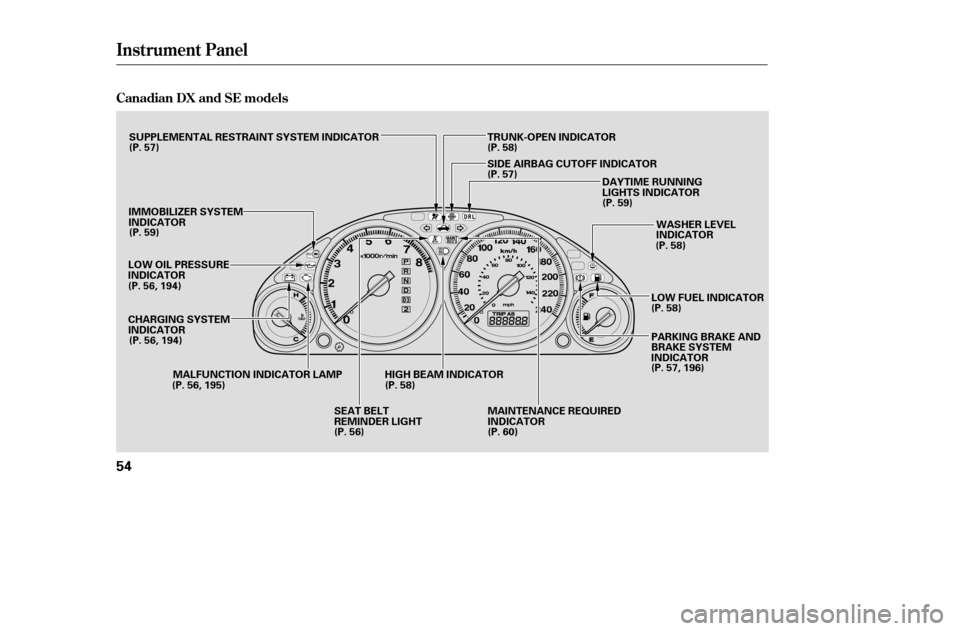

Instrument Panel
Canadian DX and SE models
54
LOW OIL PRESSURE
INDICATORDAYTIME RUNNING
LIGHTS INDICATOR
MALFUNCTION INDICATOR LAMP WASHER LEVEL
INDICATOR
TRUNK-OPEN INDICATOR
SIDE AIRBAG CUTOFF INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
CHARGING SYSTEM
INDICATOR SEAT BELT
REMINDER LIGHTMAINTENANCE REQUIRED
INDICATOR PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
LOW FUEL INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
(P. 57)
(P. 59)
HIGH BEAM INDICATOR(P. 58)
(P. 60) (P. 58)
(P. 58)
(P. 59)
(P. 57)
(P. 58)
(P. 56, 194) (P. 56, 194)
(P. 56) (P. 57, 196)
(P. 56, 195)
——y


y
(yy

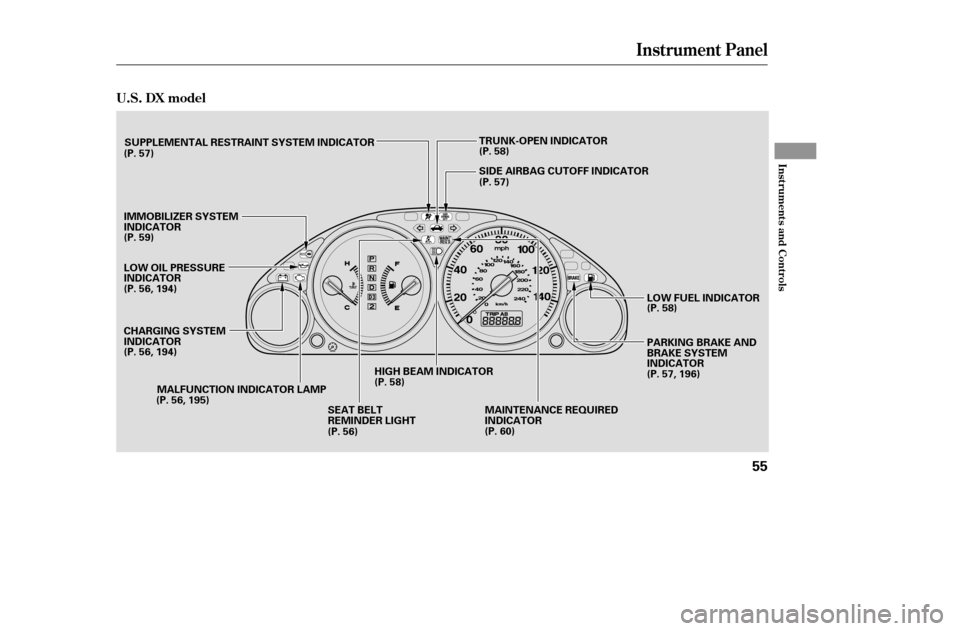

Instrument Panel
U.S. DX model
Inst rument s and Cont rols
55
SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR
LOW OIL PRESSURE
INDICATOR MALFUNCTION INDICATOR LAMP HIGH BEAM INDICATORSIDE AIRBAG CUTOFF INDICATOR
TRUNK-OPEN INDICATOR
CHARGING SYSTEM
INDICATOR SEAT BELT
REMINDER LIGHTMAINTENANCE REQUIRED
INDICATOR PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR
IMMOBILIZER SYSTEM
INDICATOR
LOW FUEL INDICATOR
(P. 57)
(P. 59)
(P. 57)
(P. 58)
(P. 58) (P. 60) (P. 58)
(P. 56, 194)
(P. 56, 194)
(P. 56, 195) (P. 56) (P. 57, 196)
——y

y
(yy

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more inf ormation, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
See page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
f asten your seat belts. A beeper also
sounds if you have not f astened your
seat belt.
If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remainson.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals. 194
194 195
Instrument Panel Indicators
Seat Belt Reminder
Indicator L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
56
——y

y
(yy

This indicator has two f unctions:Itcomesonwhenyouturnthe
ignition switch to ON (II). It is a
reminder to check the parking
brake. Driving with the parking
brake not f ully released can
damage the brakes and tires.
If it remains lit af ter you have f ully
released the parking brake while
the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates a potential problem with
your f ront airbags or automatic seat
belt tensioners. On models equipped
with side airbags, this indicator will
also alert you to a potential problem
with your side airbags or passenger’s
side airbag automatic cutoff system.
For more inf ormation, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page . This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this indicator on, your vehicle still
has normal braking ability but no
anti-lock f unction. For more
inf ormation, see page .
1. 2.
28 27
196 143
If equipped
If equipped
Parking Brake
and Brake
System
Indicator Anti-lock Brake System
(A BS) Indicator
Supplemental Restraint
System Indicator
Side A irbag Cutof f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
57
U.S. Canada
——y

y
(yy

This indicator comes on if the trunk
lid is not closed tightly.
This indicator comes on as a
reminder that you must ref uel soon.
This indicator comes on when the
washer f luid level is low. Add washer
fluidwhenyouseethisindicator
come on (see page ).
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicators do not blink
or blink rapidly, it usually means one
of the turn signal bulbs is burned out
(see page ). Replace the bulb as
soon as possible, since other drivers
cannot see that you are signaling.
WhenyouturnontheHazard
Warning button, both turn signal
indicators blink. All turn signals on
the outside of the vehicle should
flash. This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
On Canadian models, this indicator
comes on with reduced brightness
when the Daytime Running Lights
(DRL) are on (see page ).
This indicator comes on when you
set the cruise control. See page
f or inf ormation on operating the
cruise control. 65
65
165
158
117
Canadian models only
Only on models equipped with Cruise Control System
High Beam Indicator T runk-open Indicator
Low Fuel Indicator
Washer Level Indicator
Turn Signal and
Hazard Warning
Indicators
Cruise Control Indicator
Instrument Panel Indicators
58
——y
y
(y
y

Canadian models only
This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will then go of f
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
70
‘‘Daytime Running
Lights’’ Indicator
Immobilizer System
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
——y
y
(yy

This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance.
Ref er to the Maintenance Schedules
f or Normal and Severe Driving

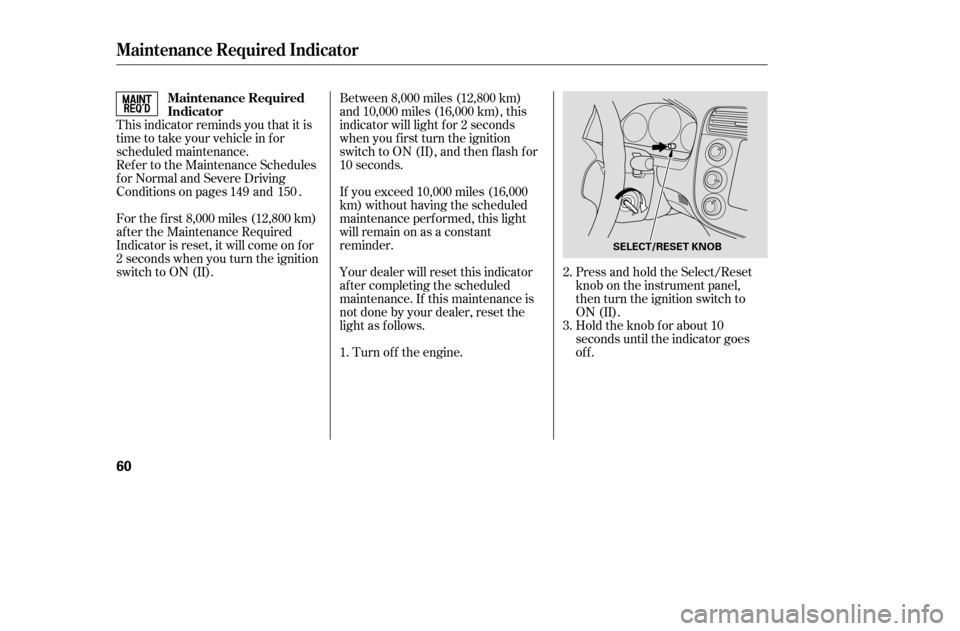

Conditions on pages and .Press and hold the Select/Reset
knob on the instrument panel,
then turn the ignition switch to
ON (II).
Hold the knob f or about 10
seconds until the indicator goes
of f .
For the f irst 8,000 miles (12,800 km)
af ter the Maintenance Required
Indicator is reset, it will come on f or
2 seconds when you turn the ignition
switch to ON (II). Between 8,000 miles (12,800 km)
and 10,000 miles (16,000 km), this
indicator will light f or 2 seconds
when you first turn the ignition
switch to ON (II), and then flash for
10 seconds.
If you exceed 10,000 miles (16,000
km) without having the scheduled
maintenance perf ormed, this light
will remain on as a constant
reminder.
Your dealer will reset this indicator
af ter completing the scheduled
maintenance. If this maintenance is
notdonebyyourdealer,resetthe
light as f ollows.
Turn of f the engine.
1. 2. 3.
149 150
Maintenance Required Indicator
Maintenance Required
Indicator
60
SELECT/RESET KNOB
——y
y
(yy

The odometer shows the total dis-
tance your vehicle has been driven.
It measures miles in U.S. models and
kilometers in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the Select/
Reset button repeatedly.Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the Select/Reset
button until the number resets to
‘‘0.0.’’ Both trip meters will reset if
the vehicle’s battery goes dead or is
disconnected.
This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
Gauges
Odometer T rip Meter
Fuel Gauge

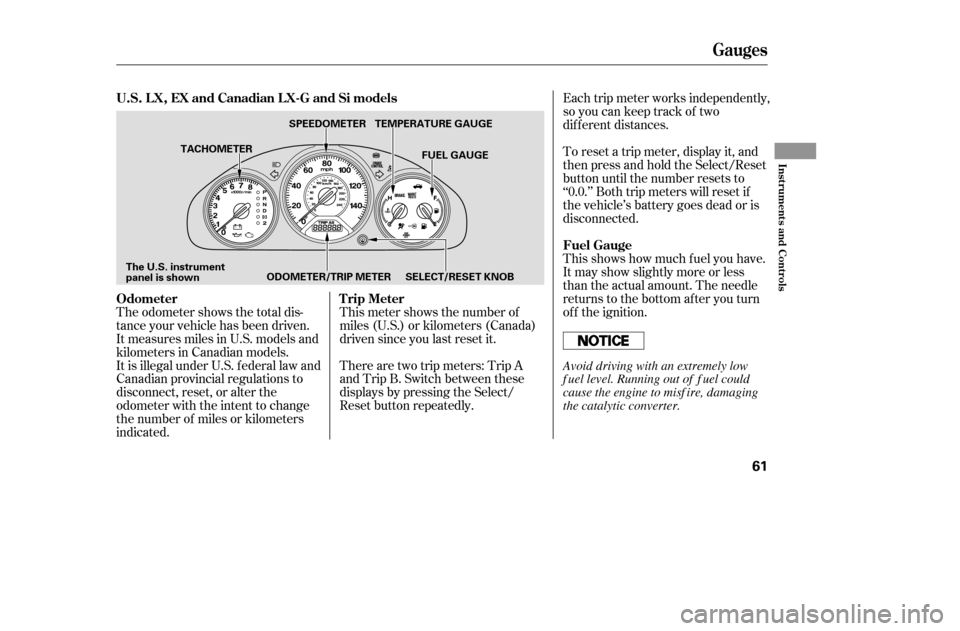

U.S. L X, EX and Canadian L X-G and Si models
Inst rument s and Cont rols
61
ODOMETER/TRIP METER SELECT/RESET KNOB
The U.S. instrument
panel is shown TACHOMETER
SPEEDOMETER TEMPERATURE GAUGE
FUEL GAUGE
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
