2005 HONDA CIVIC HYBRID Owners Manual

µµ
Avoid exceeding your vehicle’s
load limit. This puts excess stress
on the engine, brakes, and many
other vehicle parts. The load limit
is shown on the tire inf ormation
label on the driver’s doorjamb. Follow the
Maintenance Schedule f or Severe
Conditions if you drive your vehicle
MAINLY under one or more of the
f ollowing conditions.
Driving less than 5 miles (8 km)
per trip or, in f reezing
temperatures, driving less than 10
miles (16 km) per trip.
Driving in extremely hot [over
90°F (32°C)] conditions. Driving on muddy, dusty, or de-
iced roads.
Operate your vehicle on
reasonable roads within the legal
speed limit.
Always use unleaded gasoline with
theproperoctanerating(seepage ).
Drive your vehicle regularly over a
distance of several miles
(kilometers). Service your vehicle according to the
time and mileage periods on one of
the Maintenance Schedules on the
f ollowing pages.
Follow the
Maintenance Schedule f or Severe
Conditions. Driving with a roof rack, or driving
in mountainous conditions.
The maintenance schedule assumes
you will use your vehicle as normal
transportation for passengers and
their possessions. You should also
f ollow these recommendations:
Extensive idling or long periods of
stop-and-go driving, such as a taxi
or a commercial delivery vehicle. If you only OCCASIONALLY
drive under a ‘‘severe’’ condition, you
should f ollow the Maintenance
Schedule f or Normal Conditions.
112
Maintenance Schedule
Which Schedule to Follow
U.S. Owners Canadian Owners
Maint enance
143
NOTE:

̵
µ
µ
µ
µ µ
Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
skilled person to keep your
warranties in ef f ect. Keep all the
receipts as proof of completion, and
have the person who does the work
f ill out the Maintenance Record.
Check your warranty booklet f or
more inf ormation.
We recommend the use of Honda
parts and f luids whenever you have
maintenance done. U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed at the recommended time
or mileage period to ensure long-
term reliability.
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you f ill the f uel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page .
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page . Automatic transmission (CVT)
Check the f luid level monthly. See
page . 116
116
156 158
167
159
Maintenance Schedule
Servicing Your Vehicle Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.Owner’s Maintenance Checks
144

Ì
Î
Î
Ì
Ì
Î
Î
145
Service the items listed at the indicated distance (or time, if given). miles x 1,000
km x 1,000 10
1620
3230
4840
6450
8060
9670
112 80
128 90
144 100
160 130
208140
224150
240
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first Every 10,000 miles (16,000 km)
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisy
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page
171)
Replace engine oil filter
Check front and rear brakes
Check parking brake adjustment
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Inspect and adjust drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Inspect idle speed
Replace engine coolant
Replace brake fluid Every 3 years (independent of mileage)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 160,000 miles (256,000 km) 110
176
120
192
See information on maintenance and emissions warranty, middle column, page . Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 120,000 miles (192,000 km) or every 6 years, whichever comes first
:
1:
2: ULEV model
AT-PZEV model 144
1
2
Maintenance Schedule for Normal Conditions

ÌÌ
Î
Î
Î
Ì
Î
Î
Î
146
Service the items listed at the indicated distance (or time, if given). 10
1620
3230
4840
6450
80 70
112 80
128 100
160 130
208140
224
miles x 1,000
km x 1,000
Check oil and coolant at each fuel stop
Check inflation and condition once a month
Every 5,000 miles (8,000 km) or every 6 months, whichever comes first Every 10,000 miles (16,000 km)
Every 10,000 miles (16,000 km) or every 1 year, whichever comes first
Every 20,000 miles (32,000 km) or every 1 year, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Check engine oil and coolant
Check tires
Replace engine oil
Rotate tires (follow pattern on page
171)
Replace engine oil filter
Check front and rear brakes
Lubricate all hinges, locks and latches
Inspect the following items: Tie-rod ends, steering gearbox, and boots
Suspension components
Driveshaft boots
Check parking brake adjustment
Inspect the following items: Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
Lights and controls/vehicle underbody
Inspect and adjust drive belt
Replace dust and pollen filter
Replace air cleaner element
Replace spark plugs
Inspect valve clearance
Replace manual transmission fluid
Replace CVT fluid
Inspect idle speed
Inspect idle speed
Replace engine coolant
Replace brake fluid Every 15,000 miles (24,000 km) (Use normal schedule except in dusty conditions)
Inspect every 110,000 miles (176,000 km), otherwise adjust only if noisyEvery 60,000 miles (96,000 km) or every 3 years, whichever comes first
Every 30,000 miles (48,000 km) or every 2 years, whichever comes first
Every 160,000 miles (256,000 km)
At 120,000 miles (192,000 km) or 10 years, then every 60,000 miles (96,000 km) or 5 years Every 3 years (independent of mileage)60
96
90
144 110
176120
192 150
240
See information on maintenance and emissions warranty, middle column, page .
See dust and pollen filter on page for replacement information under special driving conditions.
ULEV model
AT-PZEV model
:
1:
2:
3: 144
165
1
2
3
Maintenance Schedule for Severe Conditions

(f or Normal and Severe Schedules)
CONT INUED
Maintenance Record
Maint enance
147
5,000 mi
10,000 mi
15,000 mi
20,000 mi
25,000 mi
30,000 mi
35,000 mi
40,000 mi45,000 mi
50,000 mi
55,000 mi
60,000 mi
65,000 mi
70,000 mi
75,000 mi
80,000 mi
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page ) or severe
conditions (page ). Keep the receipts for all work done on your vehicle.
8,000 km
16,000 km
24,000 km
32,000 km
40,000 km
48,000 km
56,000 km
64,000 km 72,000 km
80,000 km
88,000 km
96,000 km
104,000 km
112,000 km
120,000 km
128,000 km
146
145

(f or Normal and Severe Schedules)Maintenance Record
148
85,000 mi
90,000 mi
95,000 mi
100,000 mi
105,000 mi
110,000 mi
115,000 mi
120,000 mi125,000 mi
130,000 mi
135,000 mi
140,000 mi
145,000 mi
150,000 mi
155,000 mi
160,000 mi
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
136,000 km
144,000 km
152,000 km
160,000 km
168,000 km
176,000 km
184,000 km
192,000 km
200,000 km
208,000 km
216,000 km
224,000 km
232,000 km
240,000 km
248,000 km
256,000 km

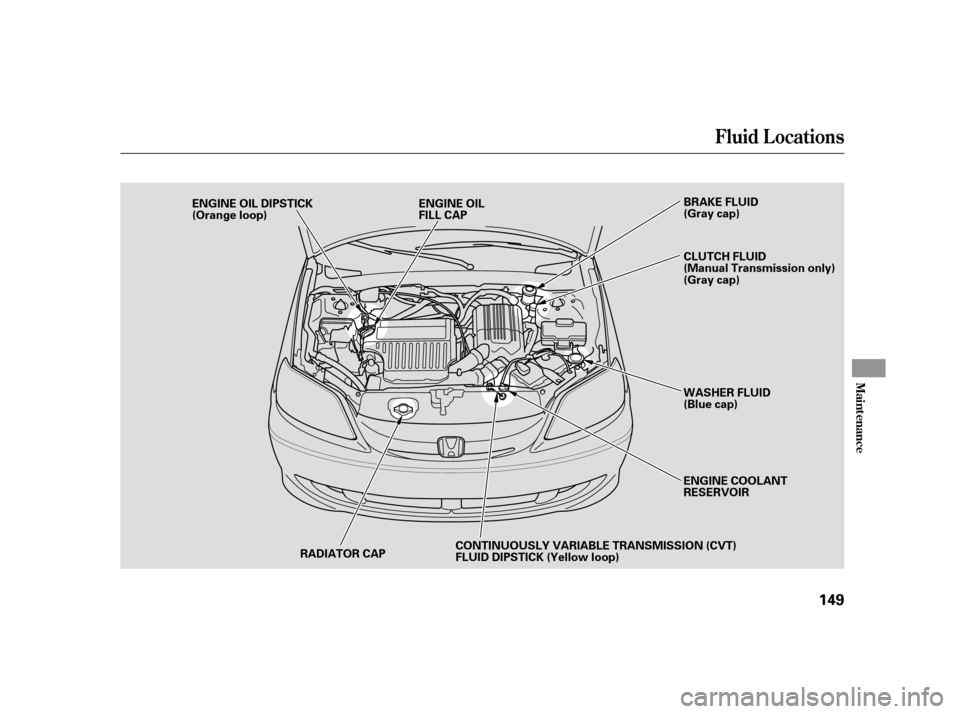

Fluid Locations
Maint enance
149
RADIATOR CAP
ENGINE OIL DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
CONTINUOUSLY VARIABLE TRANSMISSION (CVT)
FLUID DIPSTICK (Yellow loop) BRAKE FLUID
(Gray cap)
WASHER FLUID
(Blue cap)
ENGINE COOLANT
RESERVOIR CLUTCH FLUID
(Manual Transmission only)
(Gray cap)

The oil viscosity or weight is
provided on the container’s label.
Oil is a major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade 0W-20
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements.
Honda Motor Oil is the pref erred
0W-20 lubricant f or your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or optimum engine protection. Make
sure the API Certif ication Seal says
‘‘For Gasoline Engines’’.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Install the engine oil f ill cap, and
tighten it securely. Wait a f ew
minutes, and recheck the oil level.
Do not f ill above the upper mark; you
could damage the engine. A very low-viscosity, f uel-ef f icient
0W-20 oil is the pref erred engine
lubricant f or your Civic Hybrid. This
special oil is f ormulated to help your
engine use less fuel. It is available at
your dealer. A 5W-20 oil may be used
if 0W-20 is not available.
A dding Engine Oil
Recommended Engine Oil
150
API CERTIFICATION SEAL
ENGINE OIL
FILL CAP
Ambient Temperature
