2005 GMC Savana Owner ManualM

Vehicle Damage Warnings
Also, in this manual you will nd these notices:
Notice:These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly. But the
notice will tell what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle. They use
the same words, CAUTION or NOTICE.
Vehicle Symbols
The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
If you need help guring out a specic name of a
component, gage, or indicator, reference the
following topics:
Seats and Restraint Systems in Section 1
Features and Controls in Section 2
Instrument Panel Overview in Section 3
Climate Controls in Section 3
Warning Lights, Gages, and Indicators in Section 3
Audio System(s) in Section 3
Engine Compartment Overview in Section 5
iv

Front Seats......................................................1-3
Manual Seats................................................1-3
Power Seat...................................................1-4
Reclining Seatbacks........................................1-4
Rear Seats.......................................................1-6
Rear Seat Operation.......................................1-6
Safety Belts...................................................1-10
Safety Belts: They Are for Everyone................1-10
Questions and Answers About Safety Belts......1-14
How to Wear Safety Belts Properly.................1-15
Driver Position..............................................1-15
Shoulder Belt Height Adjustment.....................1-22
Safety Belt Use During Pregnancy..................1-23
Right Front Passenger Position.......................1-23
Center Passenger Position (2nd Row)..............1-23
Center Passenger Position
(3rd, 4th and 5th Row)...............................1-24
Rear Seat Passengers..................................1-25
Rear Safety Belt Comfort Guides for Children
and Small Adults.......................................1-28Safety Belt Pretensioners...............................1-30
Safety Belt Extender.....................................1-30
Child Restraints.............................................1-31
Older Children..............................................1-31
Infants and Young Children............................1-34
Child Restraint Systems.................................1-40
Where to Put the Restraint.............................1-43
Top Strap....................................................1-47
Top Strap Anchor Location.............................1-48
Lower Anchorages and Top Tethers for
Children (LATCH System)...........................1-50
Securing a Child Restraint Designed for the
LATCH System.........................................1-52
Securing a Child Restraint in a Rear Outside
Seat Position............................................1-52
Securing a Child Restraint in a Center Seat
Position (2nd Row)....................................1-54
Securing a Child Restraint in a Center Seat
Position (3rd, 4th and 5th Row)...................1-55
Securing a Child Restraint in the Right Front
Seat Position............................................1-56
Section 1 Seats and Restraint Systems
1-1

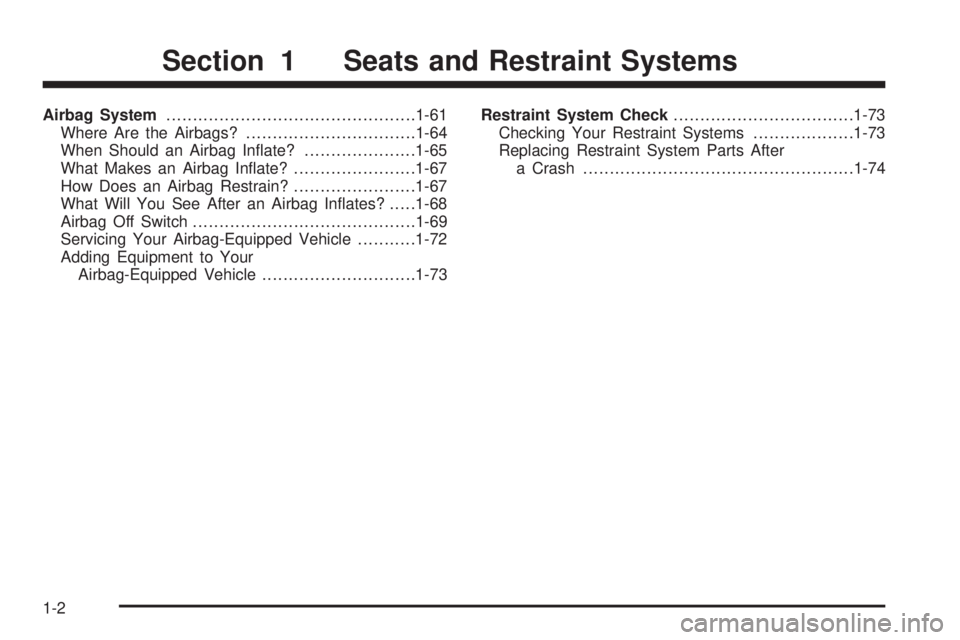

Airbag System...............................................1-61
Where Are the Airbags?................................1-64
When Should an Airbag Inate?.....................1-65
What Makes an Airbag Inate?.......................1-67
How Does an Airbag Restrain?.......................1-67
What Will You See After an Airbag Inates?.....1-68
Airbag Off Switch..........................................1-69
Servicing Your Airbag-Equipped Vehicle...........1-72
Adding Equipment to Your
Airbag-Equipped Vehicle.............................1-73Restraint System Check..................................1-73
Checking Your Restraint Systems...................1-73
Replacing Restraint System Parts After
a Crash...................................................1-74
Section 1 Seats and Restraint Systems
1-2

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
Lift the bar located under the front of the seat to unlock
it. Slide the seat to where you want it and release
the bar. Try to move the seat with your body to be sure
the seat is locked into place.
1-3

Rear Seats
Rear Seat Operation
Removing the Rear Seat
1. Disconnect the quick
release latch plates
for the lap shoulder
belts on the bench
seat to be removed.
To do this, press the
tip of a key into
the release hole of the
safety belt buckle
while pulling up on
the safety belt.2. Locate the pins. There are two pins located on the
inboard sides of the rear seats. If the vehicle has
oor mats, the pins will be located under a ap that
has been cut into the mat.
The driver’s side pin has a gray cap with a black
“L” marked on it:
1-6

The passenger’s side pin has a black cap with a
white “R” marked on it:
3. Pull the pin handle up to disengage the pin from
the retaining clip, then pull the pin out.
4. Repeat this procedure for the pin on the other
seat base.5. Pull the seat rearward about 2 inches (5 cm) and
then lift the seat from the oor rails.
6. Remove the seat from the vehicle.
7. For the rst row rear
seat, stow the safety
belt latch by attaching
the clip on the safety
belt latch to the trim just
inside the side door.
For the remaining rear
seats, stow the safety
belt latch plate on the
clip at the window trim.
1-7

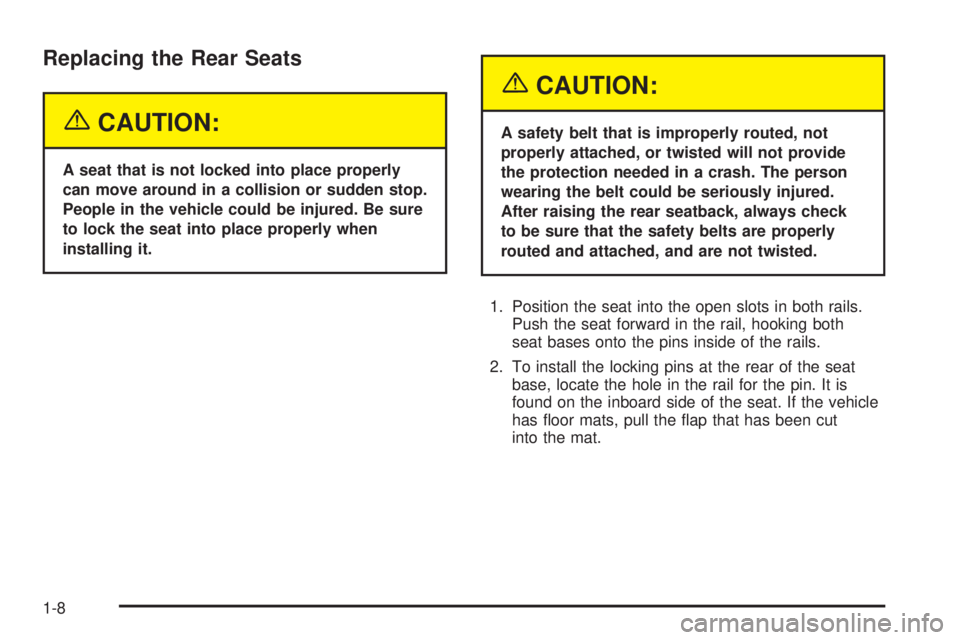

Replacing the Rear Seats
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1. Position the seat into the open slots in both rails.
Push the seat forward in the rail, hooking both
seat bases onto the pins inside of the rails.
2. To install the locking pins at the rear of the seat
base, locate the hole in the rail for the pin. It is
found on the inboard side of the seat. If the vehicle
has oor mats, pull the ap that has been cut
into the mat.
1-8
