2005 GMC ENVOY XUV Owner's Manual

Fuses Usage
55 Oxygen Sensor Bank A
56 Injector Bank B
57 Headlamp Driver Module
58 Truck Body Controller 1
59 Electric Adjustable Pedal
Relays Usage
37 Headlamp Washer
38 Rear Window Washer
39 Fog Lamps
40 Horn
41 Fuel Pump
42 Windshield Washer
Relays Usage
43 High-Beam Headlamp
44 Air Conditioning
45 Cooling Fan
46 Headlamp Driver Module
47 Starter
49 Electric Adjustable Pedal
60 Powertrain
Miscellaneous Usage
48 Instrument Panel Battery
5-105

Rear Underseat Fuse Block
5-106

Fuses Usage
01 Right Door Control Module
02 Left Door Control Module
03 Endgate Module 2
04 Truck Body Controller 3
05 Blank
06 Roof Regulator
07 Truck Body Controller 2
08 Power Seats
09 Endglass Regulator
10 Driver Door Module
11 Amplier
12 Passenger Door Module
13 Midgate Regulator
14 Left Rear Parking Lamps
15 Auxiliary Power 2Fuses Usage
16Vehicle Center High-Mounted
Stop Lamp
17 Right Rear Parking Lamps
18 Locks
19 Power Latch
20 Blank
21 Lock
22 Midgate
23Endgate Module/Driver Seat
Module
24 Unlock
25 Roof Module
26OnStar
®Overhead Battery,
OnStar®System
27 Midgate
5-107

Fuses Usage
28 Sunroof
29 Rainsense™ Wipers
30 Parking Lamps
31Truck Body Controller, Cruise
Control
32 Truck Body Controller 5
33 Front Wipers
34 Vehicle Stop
35 Transmission Control Module
36Heat Ventilation Air
Conditioning B
37 Front Parking Lamps
38 Left Turn Signal
39Heat Ventilation Air
Conditioning 1
40 Truck Body Controller 4
41 Radio
42 Trailer ParkFuses Usage
43 Right Turn Signal
44 Heat Ventilation Air Conditioning
45 Blank
46 Auxiliary Power 1
47 Ignition 0
48 Four-Wheel Drive
49 Blank
50 Truck Body Controller Ignition
51 Brakes
52 Truck Body Controller Run
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
FUSE PULLER Fuse Puller
5-108

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended Fluids and
Lubricants on page 6-13for more information.
ApplicationCapacities
English Metric
Air Conditioning Refrigerant R134a 1.9 lbs. 0.85 kg
Cooling System
4200 L6
5300 V810.8 quarts
12.2 quarts10.2 L
11.6 L
Differential Fluid – Front 1.7 pints 0.8 L
Differential Fluid – Rear
4200 L6
5300 V83.6 pints
4.3 pints1.7 L
2.0 L
Engine Oil with Filter
4200 L6
5300 V87.0 quarts
6.0 quarts6.6 L
5.7 L
Fuel Tank 25.0 gallons 95.8 L
Transmission (Drain and Rell) 5.0 quarts 4.7 L
Wheel Nut Torque 100 ft lb 140Y
All capacities are approximate. When adding, be sure to ll to the appropriate level, as recommended in this
manual. Recheck the uid level after lling.
5-109

Engine Specications
Engine VIN Code Transmission Spark Plug Gap
VORTEC™ 4200 L6 S Automatic 0.042 inches (1.07 mm)
VORTEC™ 5300 V8 M Automatic 0.040 inches (1.01 mm)
5-110

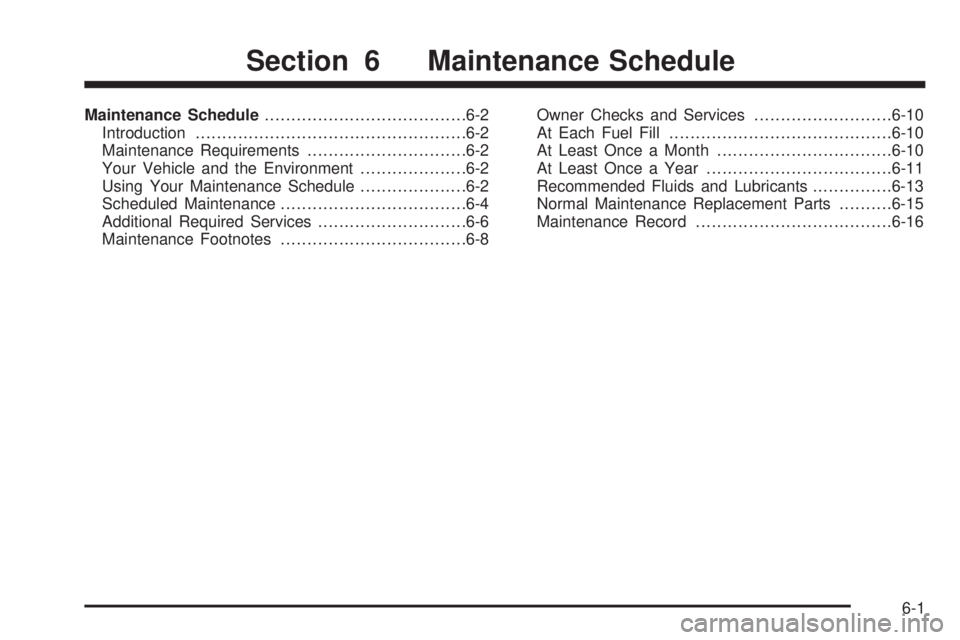

Maintenance Schedule......................................6-2
Introduction...................................................6-2
Maintenance Requirements..............................6-2
Your Vehicle and the Environment....................6-2
Using Your Maintenance Schedule....................6-2
Scheduled Maintenance...................................6-4
Additional Required Services............................6-6
Maintenance Footnotes...................................6-8Owner Checks and Services..........................6-10
At Each Fuel Fill..........................................6-10
At Least Once a Month.................................6-10
At Least Once a Year...................................6-11
Recommended Fluids and Lubricants...............6-13
Normal Maintenance Replacement Parts..........6-15
Maintenance Record.....................................6-16
Section 6 Maintenance Schedule
6-1

Maintenance Schedule
Introduction
Important: Keep engine oil at the proper level and
change as recommended.
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet or your dealer
for details.
Maintenance Requirements
Notice:Maintenance intervals, checks, inspections,
replacement parts and recommended uids and
lubricants as prescribed in this manual are necessary
to keep your vehicle in good working condition.
Any damage caused by failure to follow scheduled
maintenance may not be covered by warranty.
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance is
important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper uid
levels or the wrong tire ination can increase the
level of emissions from your vehicle. To help protect
our environment, and to keep your vehicle in good
condition, be sure to maintain your vehicle properly.
Using Your Maintenance Schedule
We at General Motors want to help you keep your vehicle
in good working condition. But we do not know exactly
how you will drive it. You may drive very short distances
only a few times a week. Or you may drive long distances
all the time in very hot, dusty weather. You may use your
vehicle in making deliveries. Or you may drive it to work,
to do errands or in many other ways.
