2005 GMC CANYON child seat

If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint.
Secure the child in the child restraint when and as the
instructions say.
1. Because your vehicle has a right front passenger’s
frontal airbag, always move the seat as far back as
it will go before securing a forward-facing child
restraint. SeeManual Seats on page 1-3orPower
Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-55

Securing a Child Restraint in the
Right Front Seat Position
(Models with an Airbag Off Switch)
Regular Cab Models and Extended
Cab Models without Rear Seats
Your vehicle has a right front passenger’s frontal airbag.
Regular cab models and extended cab models without
rear seats have a switch on the instrument panel
that you can use to turn off the right front passenger’s
frontal airbag. SeeAirbag Off Switch on page 1-71
for more on this, including important safety information.United States
Canada
1-57

Unless the right front passenger’s frontal airbag has
been turned off, never put a rear facing child restraint in
the right front passenger’s seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s frontal airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the inating
airbag. Do not use a rear-facing child restraint
in this vehicle unless the airbag has been
turned off.
Even though the airbag off switch is designed
to turn off the right front passenger’s frontal
airbag, no system is fail-safe, and no one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though it is
turned off. We recommend that rear-facing
child restraints be transported in vehicles with
a rear seat that will accommodate a rear-facing
child restraint, whenever possible.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbag, it means
that something may be wrong with the airbag
system. The right front passenger’s frontal
airbag could inate even though the switch is
off. If this ever happens, do not let anyone
whom the national government has identied
as a member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing child
restraint in your vehicle) until you have your
vehicle serviced. SeeAirbag Off Switch on
page 1-71.
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-46. SeeTop Strap
on page 1-42if the child restraint has one.
1-58

If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint.
Secure the child in the child restraint when and as the
instructions say.
1. Your vehicle has a right front passenger’s frontal
airbag. SeeAirbag Off Switch on page 1-71.If
your child restraint is forward-facing, always move
the seat as far back as it will go before securing
it in this seat. SeeManual Seats on page 1-3
orPower Seats on page 1-4.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
1-59

If you were using a rear-facing child restraint, turn on
the right front passenger’s frontal airbag when you
remove the rear-facing child restraint from the vehicle
unless the person who will be sitting there is a member
of a passenger airbag risk group. SeeAirbag Off
Switch on page 1-71.
{CAUTION:
If the right front passenger’s frontal airbag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an airbag. In a crash, the airbag would not
be able to inate and help protect the person
sitting there. Do not turn off the right front
passenger’s frontal airbag unless the person
sitting there is in a risk group. SeeAirbag Off
Switch on page 1-71for more on this,
including important safety information.
Airbag System
Your vehicle has airbags — a frontal airbag for the
driver and a frontal airbag for the right front passenger.
Your vehicle may also have a roof-mounted side
impact airbag for the driver and the passenger directly
behind the driver and a roof-mounted side impact airbag
for the right front passenger and the person seated
directly behind that passenger.
Airbags are designed to help reduce the risk of injury
from the force of an inating airbag. But these airbags
must inate very quickly to do their job and comply with
federal regulations.
1-61

Airbag Off Switch
Regular Cab Models and Extended Cab
Models without Rear Seats
If your vehicle is a regular cab model or an extended
cab model without rear seats, it has a switch on
the instrument panel that you can use to turn off the
right front passenger’s frontal airbag.
This switch should only be turned to the off position if
the person in the right front passenger’s position is
a member of a passenger risk group identied by the
national government as follows:
Infant. An infant (less than 1 year old)
must ride in the front seat because:

my vehicle has no rear seat;
my vehicle has a rear seat too small to
accommodate a rear-facing infant seat; or
the infant has a medical condition which, according
to the infant’s physician, makes it necessary for the
infant to ride in the front seat so that the driver
can constantly monitor the child’s condition. United States
Canada
1-71

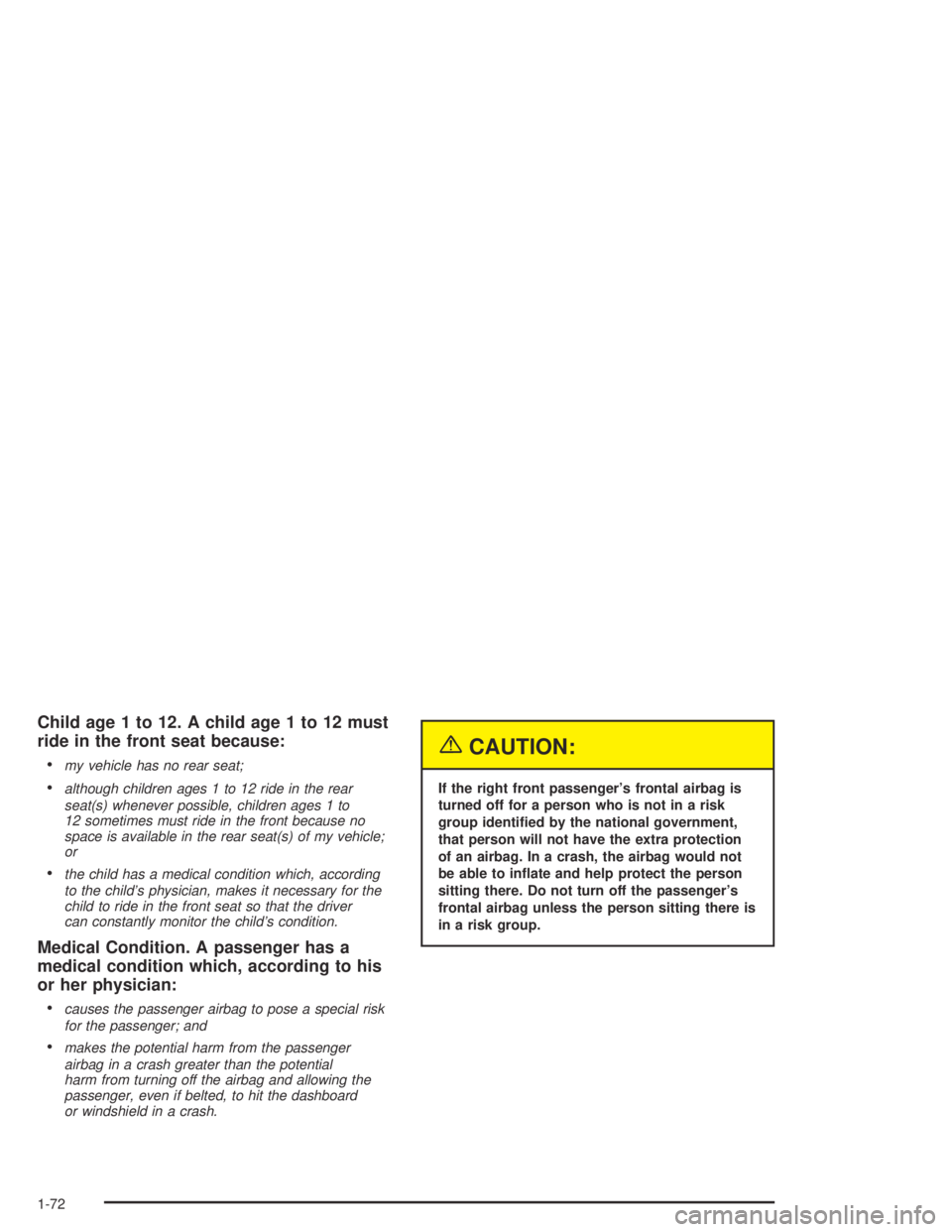

Child age 1 to 12. A child age 1 to 12 must
ride in the front seat because:

my vehicle has no rear seat;
although children ages 1 to 12 ride in the rear
seat(s) whenever possible, children ages 1 to
12 sometimes must ride in the front because no
space is available in the rear seat(s) of my vehicle;
or
the child has a medical condition which, according
to the child’s physician, makes it necessary for the
child to ride in the front seat so that the driver
can constantly monitor the child’s condition.
Medical Condition. A passenger has a
medical condition which, according to his
or her physician:

causes the passenger airbag to pose a special risk
for the passenger; and
makes the potential harm from the passenger
airbag in a crash greater than the potential
harm from turning off the airbag and allowing the
passenger, even if belted, to hit the dashboard
or windshield in a crash.
{CAUTION:
If the right front passenger’s frontal airbag is
turned off for a person who is not in a risk
group identied by the national government,
that person will not have the extra protection
of an airbag. In a crash, the airbag would not
be able to inate and help protect the person
sitting there. Do not turn off the passenger’s
frontal airbag unless the person sitting there is
in a risk group.
1-72

To turn off the right front passenger’s frontal airbag,
insert your ignition key into the switch, push in,
and move the switch to the off position.
The airbag off light will come on to let you know that the
right front passenger’s frontal airbag is off. The light
will stay on to remind you that the airbag is off. The right
front passenger’s frontal airbag will remain off until you
turn it back on.
{CAUTION:
If the airbag readiness light ever comes on
when you have turned off the airbag, it means
that something may be wrong with the airbag
system. The right front passenger’s frontal
airbag could inate even though the switch is
off. If this ever happens, do not let anyone
whom the national government has identied
as a member of a passenger airbag risk group
sit in the right front passenger’s position
(for example, do not secure a rear-facing child
restraint in the right front passenger’s seat)
until you have your vehicle serviced. United States
Canada
1-73
