2005 FORD MUSTANG turn signal

Warning display Status
Low oil pressure Warning returns after 10 minutes
Reduced engine power
Engine failsafe mode
Check engine temperature
Check charging system
Check traction control

Traction control
active
Check fuel cap
Low fuel level
Check brake system Warning returns after the ignition key
is turned from OFF to ON.
Low brake fluid level
Service ETC system
Trunk ajar
Park brake on
Security event occurred
Turn signal on reminder
DRIVER’S DOOR AJAR.Displayed when the driver’s door is not
completely closed.
PASSENGER DOOR AJAR.Displayed when the passenger side door is
not completely closed.
TRUNK AJAR.Displayed when the trunk is not completely closed.
CHECK ENGINE TEMPERATURE.Displayed when the engine
coolant is overheating. Stop the vehicle as soon as safely possible, turn
off the engine and let it cool. Check the coolant and coolant level. Refer
toEngine coolantin theMaintenance and Specificationschapter. If
the warning stays on or continues to come on, contact your dealer as
soon as possible.
REDUCED ENGINE POWER.Displayed when the engine is
overheating. Stop the vehicle as soon as safely possible, turn off the
engine. If the warning stays on or continues to come on, contact your
dealer as soon as possible.
LOW FUEL LEVEL.Displayed as an early reminder of a low fuel
condition.
CHECK CHARGING SYSTEM.Displayed when the electrical system is
not maintaining proper voltage. If you are operating electrical accessories
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driver Controls
57

SECURITY EVENT OCCURRED (if equipped).Displayed when the
active anti-theft system (if equipped) was activated since the prior
ignition cycle.
TURN SIGNAL ON REMINDER.Displayed when the turn signal is
activated and the vehicle is driven more that 1/2 mile (0.8 km).
DATA ERR.These messages indicate improper operation of the vehicle
network communication between electronic modules.
•Fuel computer
•Charging system
•Brake fluid
•Engine sensor
Contact your dealer as soon as possible if these messages occur on a
regular basis.
POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)
Position the floor mat so that the
eyelet is over the pointed end of the
retention post and rotate forward to
lock in. Make sure that the mat does
not interfere with the operation of
the accelerator or the brake pedal.
To remove the floor mat, reverse the
installation procedure.
CONVERTIBLE (IF EQUIPPED)
Do not store articles behind rear seat. Articles stored in the convertible
top stowage compartment may break the rear glass window when the top
is lowered.
Lowering the convertible top
The convertible top can be lowered with the side windows down. The
windows will automatically lower when lowering or raising the top.
The convertible topwill not operateunless the vehicle is traveling
under 1.8 mph (3 km/h). Do not lower the top when the top material is
wet.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Driver Controls
59

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
Your vehicle is equipped with a remote entry system which allows you to:
•unlock the vehicle doors without
a key.
•lock all the vehicle doors without
a key.
•open/close all windows (if
equipped with window open/close
feature).
•activate the personal alarm.
•release the decklid.
•arm and disarm the active anti-theft system (if equipped).
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitterswith you to the dealership in order to
aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate and the active anti-theft system (if equipped) will
disarm.
2. Press
and release again within three seconds to unlock the
passenger door.
Locking the doors
1. Pressand release to lock all the doors.Note:The interior lamps
will turn off (unless the dome lamp control is in the full-up position),
and the turn signal lamps will flash if all doors, trunk and hood (if
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
67

equipped with active anti-theft system) are closed and locked. If the
vehicle is not equipped with the active anti-theft system, the turn signal
lamps will flash if all doors and the trunk are closed and locked.
2. Press
and release again within three seconds to confirm that all the
doors are closed and locked.Note:The doors will lock again, the horn
will chirp once and the turn signal lamps will flash once more.
If any of the doors, trunk or hood (if equipped with active anti-theft
system) are not properly closed the horn will make two quick chirps and
the turn signal lamps will not flash. If the vehicle is not equipped with
the active anti-theft system, the horn will make two quick chirps and the
turn signal lamps will not flash if the doors and the trunk are not closed
and locked.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn signal
and interior lamps will flash for a maximum of approximately 3 minutes.
Press again or turn the ignition to the 2 (ACCESSORY) or 3 (ON)
position to deactivate, or wait for the alarm to timeout in 3 minutes.
Note:The panic alarm will only operate when the ignition is in the 1
(OFF/LOCK) position.
Opening the trunk
Press
once to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
The remote entry system allows you to open the trunk while the ignition
is in any position. However, if the ignition is in the 3 (ON) position and
the vehicle is in motion, the trunk will not open if the vehicle is moving 3
mph (5 km/h) or faster.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
68

If there is any potential active anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, the active anti-theft system is designed to notify you of an
unauthorized entry. When unauthorized entry or towing occurs, the
system will flash the turn signal lamps and interior lamps and sounds the
security horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the remote transmitter lock control one time to arm the system.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then becomes closed.
•Lock all doors with the key in the key lock cylinder (this willnot
however arm the interior motion or vehicle incline sensing systems).
If all the closures (doors, trunk, hood) are closed, the turn signal lamps
will flash once. If the vehicle is locked again within three seconds, the
vehicle will lock again, the turn signal lamps will flash again and the horn
will chirp.
If any closure is not properly closed, the turn signal lamps will not flash
and the horn will chirp twice.
The system will wait 20 seconds after locking before triggering an alarm.
After the 20–second pre-arm phase, the power door unlock control is
disabled to further protect your vehicle.
Disarming the system
You can disarm the active anti-theft system by any of the following
actions:
•Unlock the doors by using the remote entry transmitter.
•Unlock the doors with the key in the driver door lock cylinder.
•Turn the ignition to the 3 (ON) position with a programmed coded
ignition key.
Note:Unlocking the trunk inhibits the motion sensing system, but the
system continues to monitor the doors, hood and the vehicle incline.
Once the trunk becomes closed the motion sensing system will re-arm.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
75

If you use a rental trailer, follow the instructions that the rental agency
gives to you.
Do not attach safety chains to the bumper.
Trailer brakes
Electric brakes and manual, automatic or surge-type trailer brakes are
safe if installed properly and adjusted to the manufacturer’s
specifications. The trailer brakes must meet local and Federal
regulations.
Do not connect a trailer’s hydraulic brake system directly to your
vehicle’s brake system. Your vehicle may not have enough
braking power and your chances of having a collision greatly increase.
The braking system of the tow vehicle is rated for operation at the
GVWR not GCWR.
Trailer lamps
Trailer lamps are required on most towed vehicles. Make sure all running
lights, brake lights, turn signals and hazard lights are working.
Do not splice into the vehicle lamp wiring for trailer lamps. Your
vehicle uses an advanced electronic module to control and
monitor your vehicle lamps. Splicing into the wiring or attaching
wiring to the vehicle bulb. may DISABLE the rear vehicle lamps
or cause them not to function properly.
See your dealer for proper instructions and equipment for hooking up
trailer lamps.
Driving while you tow
When towing a trailer:
•Turn off the speed control. The speed control may shut off
automatically when you are towing on long, steep grades.
•Consult your local motor vehicle speed regulations for towing a trailer.
•Shift out of D (Overdrive) into D (Overdrive cancelled) or a lower
gear (3, 2, or 1) when towing up or down steep hills. This will
eliminate excessive downshifting and upshifting for optimum fuel
economy and transmission cooling.
•Anticipate stops and brake gradually.
Servicing after towing
If you tow a trailer for long distances, your vehicle will require more
frequent service intervals. Refer to yourScheduled Maintenance Guide
for more information.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Tires, Wheels and Loading
141

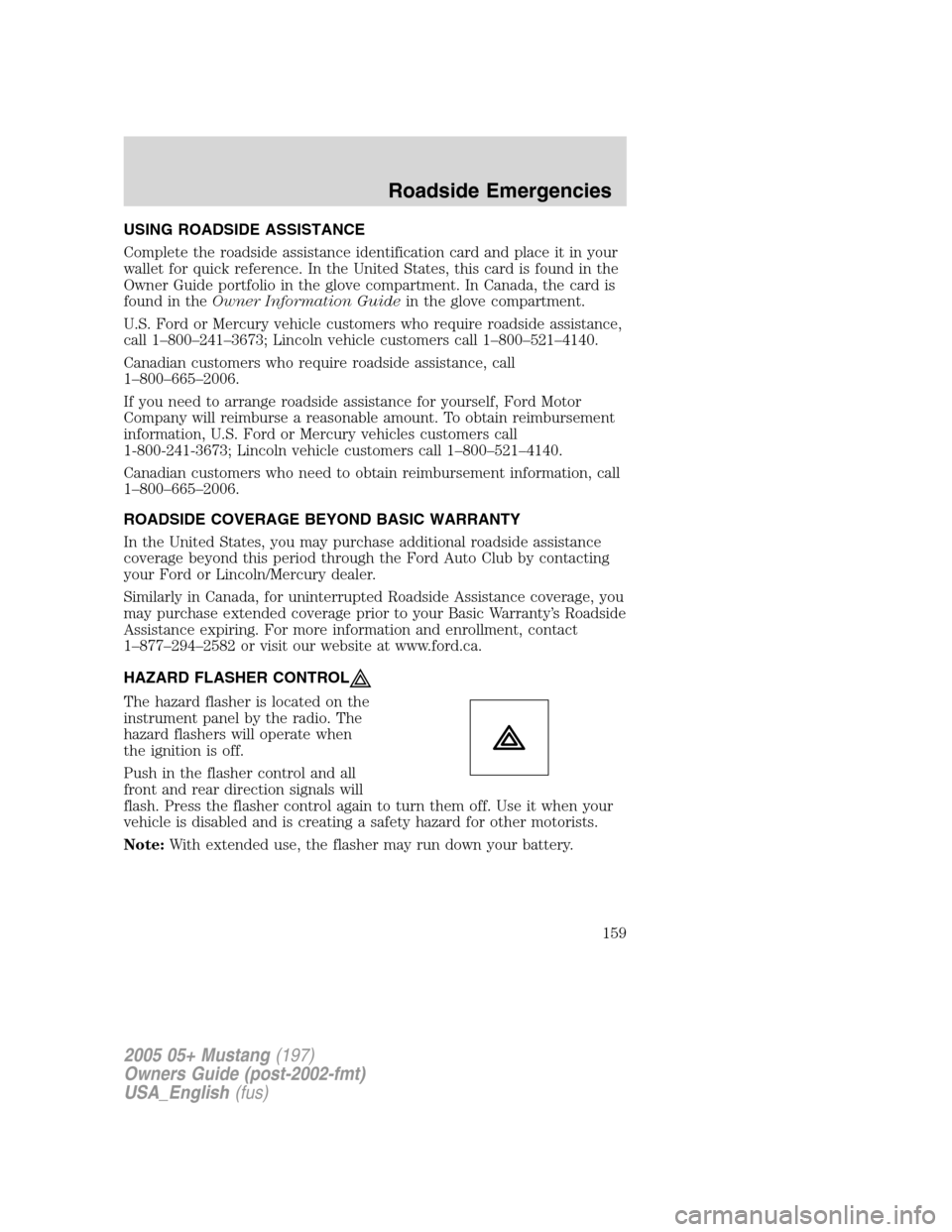

USING ROADSIDE ASSISTANCE
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theOwner Information Guidein the glove compartment.
U.S. Ford or Mercury vehicle customers who require roadside assistance,
call 1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140.
Canadian customers who require roadside assistance, call
1–800–665–2006.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount. To obtain reimbursement
information, U.S. Ford or Mercury vehicles customers call
1-800-241-3673; Lincoln vehicle customers call 1–800–521–4140.
Canadian customers who need to obtain reimbursement information, call
1–800–665–2006.
ROADSIDE COVERAGE BEYOND BASIC WARRANTY
In the United States, you may purchase additional roadside assistance
coverage beyond this period through the Ford Auto Club by contacting
your Ford or Lincoln/Mercury dealer.
Similarly in Canada, for uninterrupted Roadside Assistance coverage, you
may purchase extended coverage prior to your Basic Warranty’s Roadside
Assistance expiring. For more information and enrollment, contact
1–877–294–2582 or visit our website at www.ford.ca.
HAZARD FLASHER CONTROL
The hazard flasher is located on the
instrument panel by the radio. The
hazard flashers will operate when
the ignition is off.
Push in the flasher control and all
front and rear direction signals will
flash. Press the flasher control again to turn them off. Use it when your
vehicle is disabled and is creating a safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Roadside Emergencies
159

L
Lampsbulb replacement
specifications chart ..................36
daytime running light ...............32
fog lamps ...................................32
headlamps ...........................32, 36
headlamps, flash to pass ..........33
instrument panel, dimming .....33
interior lamps ...........................35
replacing bulbs ...................35 –41
Lane change indicator
(see Turn signal) ........................35
Lights, warning and indicator ....10 anti-lock brakes (ABS) ..........148
Limited slip axle
(see Traction Loc) ....................151
Load limits .................................135
Locks autolock .....................................63
Lubricant specifications ...222, 224
Lug nuts ....................................125
Lumbar support, seats ...............78
M
Manual transmission .................156 fluid capacities ........................220
lubricant specifications ..........224
reverse .....................................157
Message center .....................50 –51
english/metric button .........54 –55
system check button ................54
warning messages .....................56
Mirrors side view mirrors (power) .......47
Motorcraft parts ................210, 219 O
Octane rating ............................209
Oil (see Engine oil) ..................193
P
Parking brake ............................149
Parts (see Motorcraft parts) ....219
Passenger Occupant
Classification Sensor ...................82
Power distribution box
(see Fuses) ...............................163
Power door locks ........................63
Power mirrors .............................47
Power point .................................44
Power steering ..........................149
fluid, checking and adding ....216
fluid, refill capacity ................220
fluid, specifications .........222, 224
Power Windows ...........................44
R
Radio ......................................19, 22
Relays ........................................160
Remote entry system .................67 illuminated entry ......................70
opening the trunk .....................68
Roadside assistance ..................158
S
Safety Belt Maintenance ............94
Safety belts
(see Safety restraints) ...80, 84 –88
Safety defects, reporting ..........181
2005 05+ Mustang (197)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
234
