2005 FORD MUSTANG fuel filter

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire warning
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Introduction
9

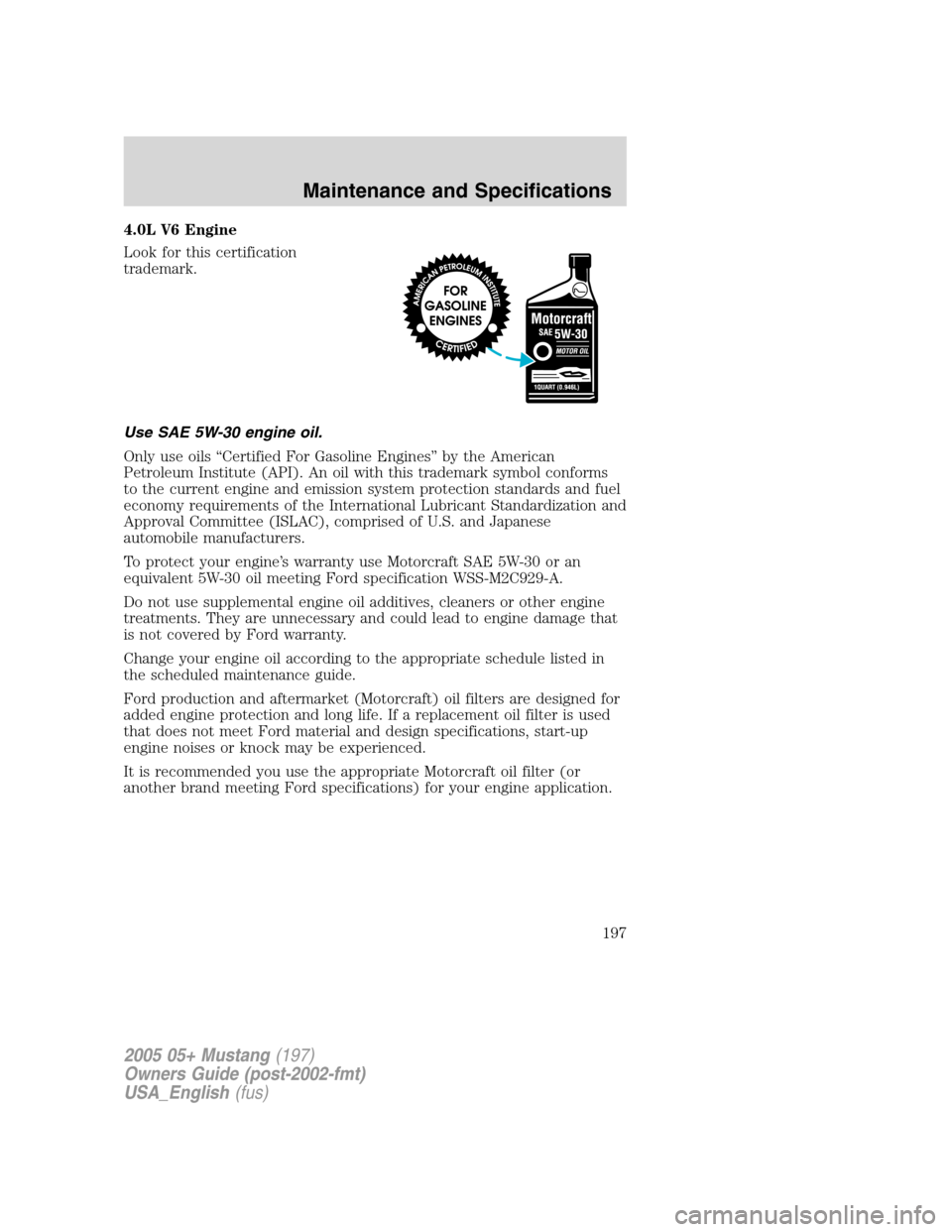

4.0L V6 Engine
Look for this certification
trademark.
Use SAE 5W-30 engine oil.
Only use oils“Certified For Gasoline Engines”by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ISLAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine’s warranty use Motorcraft SAE 5W-30 or an
equivalent 5W-30 oil meeting Ford specification WSS-M2C929-A.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil according to the appropriate schedule listed in
the scheduled maintenance guide.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft oil filter (or
another brand meeting Ford specifications) for your engine application.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
197

Running out of fuel
Avoid running out of fuel because this situation may have an adverse
affect on powertrain components.
If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling, to allow the fuel system to pump the fuel from the tank to
the engine.
•YourService engine soonindicator may come on. For more
information on theService engine soonindicator, refer to the
Instrument clusterchapter.
Fuel Filter
For fuel filter replacement, see your dealer or a qualified service
technician. Refer to the scheduled maintenance guide for the appropriate
intervals for changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles (1,600
km) of driving (engine break-in period). You will get a more accurate
measurement after 2,000 miles-3,000 miles (3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theRefill capacities
section of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
210

•Fill level for V6
•Fill level for V8
4. Add enough fluid through the filler opening to bring the fluid up to
the recommended levels.
5. Install and tighten the fill plug securely.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
MOTORCRAFT PART NUMBERS
Component 4.0L V6 engine 4.6L V8 engine
Air filter element FA-1773 FA-1773
Fuel filter FG-1083 FG-1083
Battery BXT-96R BXT-96R
Battery - (with High Electrical content) BXT-40R BXT-40R
Oil filter FL-820-S FL-820-S
PCV valve
1(non-serviceable)
Spark Plugs2
1The PCV valve is a critical emission component. It is one of the items
listed in theScheduled Maintenance Guideand is essential to the life
and performance of your vehicle and to its emissions system.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
219

F
Fail safe cooling ........................204
Floor mats ...................................59
Fluid capacities .........................220
Foglamps .....................................32
Fuel ............................................206calculating fuel
economy ............................52, 210
cap ...........................................208
capacity ...................................220
choosing the right fuel ...........208
comparisons with EPA fuel
economy estimates .................213
detergent in fuel .....................209
filling your vehicle with
fuel ...........................206, 208, 210
filter, specifications ........210, 219
improving fuel economy ........210
octane rating ...........209, 224 –225
quality ......................................209
running out of fuel .................210
safety information relating
to automotive fuels ................206
Fuses ..................................160 –161
G
Gas cap (see Fuel cap) ............208
Gas mileage
(see Fuel economy) .................210
Gauges .........................................15
H
Hazard flashers .........................159
Head restraints ...........................76
Headlamps ...................................32 aiming ..................................33 –34 bulb specifications ....................36
daytime running lights .............32
flash to pass ..............................33
high beam .................................33
replacing bulbs .........................36
turning on and off ....................32
Heating heating and air conditioning
system .......................................29
Hood ..........................................190
I
Ignition .......................143, 224 –225
Infant seats
(see Safety seats) .....................107
Inspection/maintenance (I/M)
testing ........................................215
Instrument panel cleaning ...................................185
cluster ........................................10
lighting up panel and
interior .......................................33
J
Jack ............................................121 positioning ...............................121
storage .....................................121
Jump-starting your vehicle ......167
K
Keyless entry system autolock .....................................63
Keys positions of the ignition .........143
2005 05+ Mustang (197)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
233
