Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MAX
and MIN on
reservoir
Engine
coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L engine 11.6 quarts
(11.0L)
Engine oil
(includes filter
change)
2
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)3.0L engine 6.0 quarts (5.7L)
Fuel tank
capacityN/A All 19.0 gallons
(71.9L)
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
268

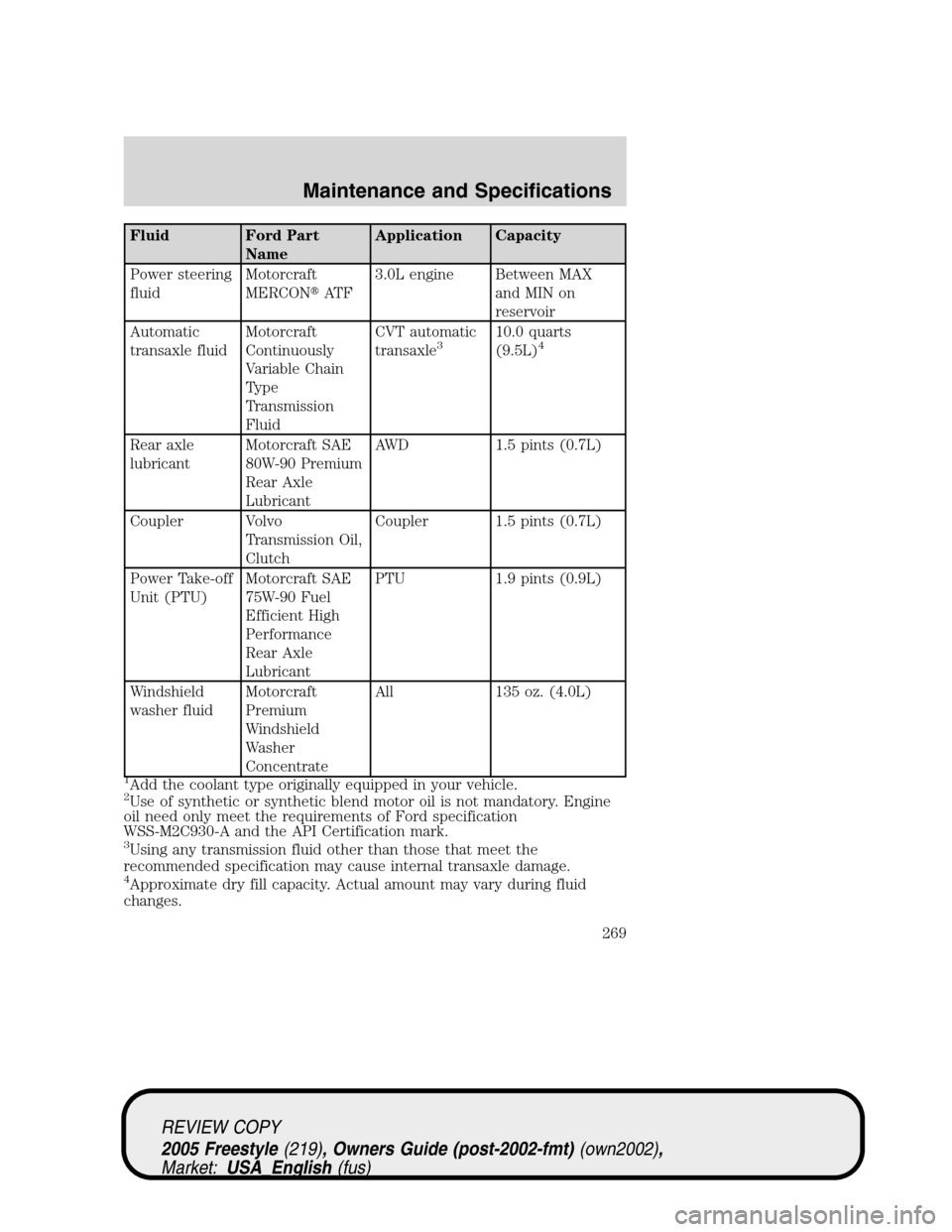

Fluid Ford Part
NameApplication Capacity
Power steering
fluidMotorcraft
MERCONAT F3.0L engine Between MAX
and MIN on
reservoir
Automatic
transaxle fluidMotorcraft
Continuously
Variable Chain
Type
Transmission
FluidCVT automatic
transaxle
310.0 quarts
(9.5L)4
Rear axle
lubricantMotorcraft SAE
80W-90 Premium
Rear Axle
LubricantAWD 1.5 pints (0.7L)
Coupler Volvo
Transmission Oil,
ClutchCoupler 1.5 pints (0.7L)
Power Take-off
Unit (PTU)Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Rear Axle
LubricantPTU 1.9 pints (0.9L)
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 135 oz. (4.0L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
3Using any transmission fluid other than those that meet the
recommended specification may cause internal transaxle damage.
4Approximate dry fill capacity. Actual amount may vary during fluid
changes.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
269
Keys
positions of the ignition .........190
L
Lamps
autolamp system .......................51
bulb replacement
specifications chart ..................56
daytime running light ...............52
fog lamps ...................................52
headlamps ...........................51, 57
headlamps, flash to pass ..........53
instrument panel, dimming .....53
interior lamps .....................55, 57
replacing bulbs ...................56–60
Lane change indicator
(see Turn signal) ........................55
Liftgate ........................................88
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........194
Load limits .................................180
Locks
autolock .....................................99
childproof ..................................92
doors ..........................................91
Lubricant specifications ...270, 272
Lug nuts ....................................170
Luggage rack ...............................90
Lumbar support, seats .....107–108
M
Message center ...........................76
english/metric button ...............81
system check button ................81
warning messages .....................82
Mirrors ...................................63, 67automatic dimming rearview
mirror ........................................67
fold away ...................................67
side view mirrors (power) .......67
Moon roof ....................................72
Motorcraft parts ................260, 267
O
Octane rating ............................259
Oil (see Engine oil) ..................243
P
Parking brake ............................195
Parts (see Motorcraft parts) ....267
Passenger Occupant
Classification Sensor .................119
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................214
Power door locks ........................91
Power mirrors .............................67
Power point .................................64
Power steering ..........................197
fluid, checking and adding ....265
fluid, refill capacity ................268
fluid, specifications .........270, 272
Power Windows ...........................65
R
Radio ......................................17, 20
Relays ........................................211
Remote entry system .................93
illuminated entry ......................97
Reverse sensing system ...........200
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
282
