2005 FORD FREESTYLE Fuse panel

Conversation mirror (if equipped)
The conversation mirror allows the driver to view the rear seating area.
This does not replace the rear view mirror.
Pull down on the housing to lock it
in place. Adjust the mirror, as
needed, in any direction.
The rear view mirror may have to be
adjusted to its lower arm position to
prevent interference when the
conversation mirror is extended down.
AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet for this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The auxiliary power points are located
on the instrument panel, in the center
console utility compartment and on
the left-hand trim panel.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of
12 VDC/180W.
To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.
Always keep the power point caps closed when not being used.
Cigar lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.
Improper use of the lighter can cause damage not covered by your
warranty.
PULL
DOWN
TO LOCK
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
64

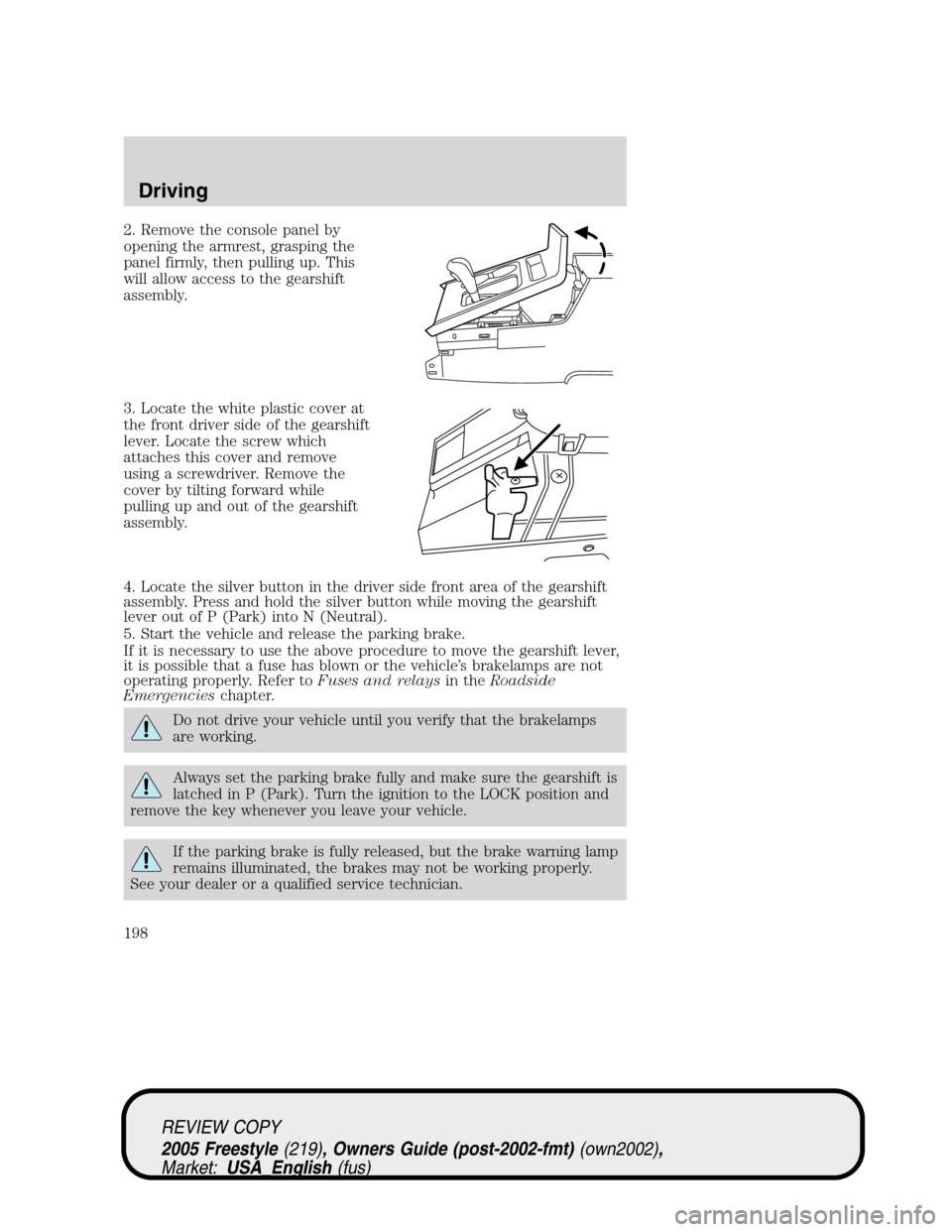

2. Remove the console panel by
opening the armrest, grasping the
panel firmly, then pulling up. This
will allow access to the gearshift
assembly.
3. Locate the white plastic cover at
the front driver side of the gearshift
lever. Locate the screw which
attaches this cover and remove
using a screwdriver. Remove the
cover by tilting forward while
pulling up and out of the gearshift
assembly.
4. Locate the silver button in the driver side front area of the gearshift
assembly. Press and hold the silver button while moving the gearshift
lever out of P (Park) into N (Neutral).
5. Start the vehicle and release the parking brake.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
Emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your dealer or a qualified service technician.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
198

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
5A Tan Tan———
7.5A Brown Brown———
10A Red Red———
15A Blue Blue———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural———
30A Green Green Green Pink Pink
40A——Orange Green Green
50A——Red Red Red
60A——Blue Yellow Yellow
80A——Natural Black Black
Passenger compartment fuse panel/Smart Junction Box (SJB)
The fuse panel is located under the instrument panel to the left of the
steering wheel.
The fuses are coded as follows.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
212

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F1 20A High beams
F2 15A Interior lamps (Courtesy and
demand lamps), Delayed
accessory (Power windows and
moonroof)
F3 25A Access/Security (Power door lock
actuators, Liftgate lock actuator,
Liftgate solenoid)
F4 15A Adjustable pedal switch
F5 20A Horns
F6 20A Audio (Subwoofer)
F7 7.5A Power/Keep Alive Memory
(KAM): Cluster and Powertrain
Control Module (PCM), Climate
control, Analog clock
F8 15A Park lamps, Side markers, Trailer
tow protect
F9 20A Cigar lighter, Data Link Connector
(DLC)
F10 7.5A Mirrors and memory module
F11 20A Audio, Family Entertainment
System (FES)
F12 10A Back-up lamps, Electrochromatic
mirror, Reverse Sensing System
(RSS), Trailer tow protect
F13 7.5A Audio
F14 7.5A Starter relay coil, PCM
F15 10A Delayed accessory (Driver window
motor logic, Auxiliary climate
control switch illumination,
Moonroof, Audio, Driver door lock
switch illumination)
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
213

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
F16 10A Rear defroster indicator, Heated
mirrors
F17 30A Rear defroster
F18 10A PCM relay coil, Shifter Brake-Shift
Interlock (BSI), Passive
Anti-Theft System (PATS)
module, Fuel relay coil, Brake
lamps, Center High-Mounted Stop
Lamp (CHMSL)
F19 10A Anti-lock Brake System
(ABS)/Traction control module,
All Wheel Drive (AWD) module,
RSS, Heated seat modules
F20 7.5A Cluster, Climate control
F21 7.5A Restraint Control Module (RCM)
F22 7.5A Auxiliary climate control relay
coils, Electrochromatic mirror,
Compass module
F23 7.5A Wiper relay coil, Blower relay coil,
Cluster logic
F24 7.5A Occupant Classification Sensor
(OCS), Passenger Air bag
Deactivation (PAD)
C1 30A Circuit
breakerDelayed accessory (Front
passenger window, Rear passenger
windows [via window switch],
Window switch illumination,
Backlighting
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
214

Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 80A* Interior fuse panel (SJB), SJB
fuses 1, 2, 3, 4, 5, 8 and 12
2—Not used
3—Not used
4 50A* Wiper RUN/ACC relay to PDB,
PDB fuses 37 and 38
5—Not used
6 20A* Moonroof
7—Not used
8 60A* Engine cooling fan
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
215

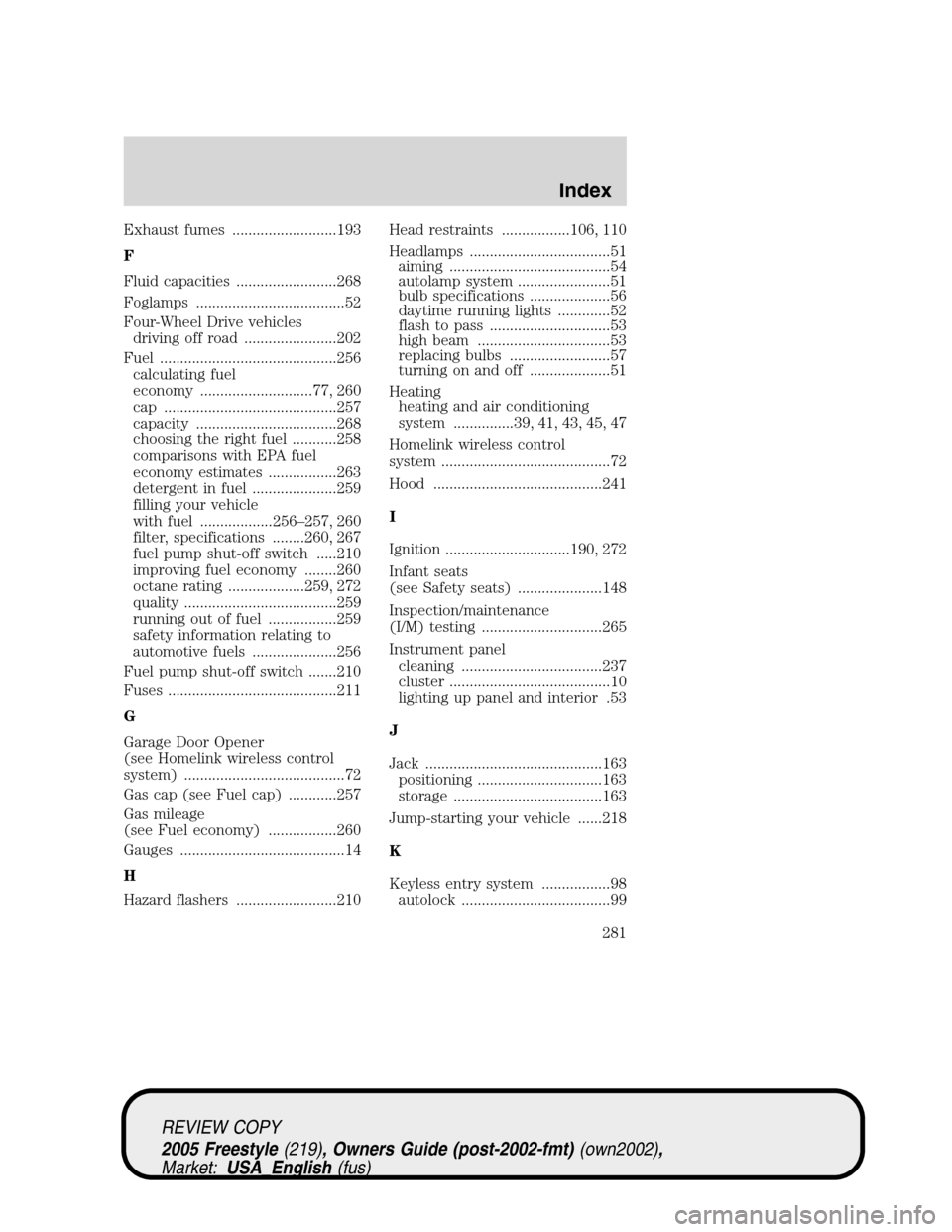

Exhaust fumes ..........................193
F
Fluid capacities .........................268
Foglamps .....................................52
Four-Wheel Drive vehicles
driving off road .......................202
Fuel ............................................256
calculating fuel
economy ............................77, 260
cap ...........................................257
capacity ...................................268
choosing the right fuel ...........258
comparisons with EPA fuel
economy estimates .................263
detergent in fuel .....................259
filling your vehicle
with fuel ..................256–257, 260
filter, specifications ........260, 267
fuel pump shut-off switch .....210
improving fuel economy ........260
octane rating ...................259, 272
quality ......................................259
running out of fuel .................259
safety information relating to
automotive fuels .....................256
Fuel pump shut-off switch .......210
Fuses ..........................................211
G
Garage Door Opener
(see Homelink wireless control
system) ........................................72
Gas cap (see Fuel cap) ............257
Gas mileage
(see Fuel economy) .................260
Gauges .........................................14
H
Hazard flashers .........................210Head restraints .................106, 110
Headlamps ...................................51
aiming ........................................54
autolamp system .......................51
bulb specifications ....................56
daytime running lights .............52
flash to pass ..............................53
high beam .................................53
replacing bulbs .........................57
turning on and off ....................51
Heating
heating and air conditioning
system ...............39, 41, 43, 45, 47
Homelink wireless control
system ..........................................72
Hood ..........................................241
I
Ignition ...............................190, 272
Infant seats
(see Safety seats) .....................148
Inspection/maintenance
(I/M) testing ..............................265
Instrument panel
cleaning ...................................237
cluster ........................................10
lighting up panel and interior .53
J
Jack ............................................163
positioning ...............................163
storage .....................................163
Jump-starting your vehicle ......218
K
Keyless entry system .................98
autolock .....................................99
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
281

Keys
positions of the ignition .........190
L
Lamps
autolamp system .......................51
bulb replacement
specifications chart ..................56
daytime running light ...............52
fog lamps ...................................52
headlamps ...........................51, 57
headlamps, flash to pass ..........53
instrument panel, dimming .....53
interior lamps .....................55, 57
replacing bulbs ...................56–60
Lane change indicator
(see Turn signal) ........................55
Liftgate ........................................88
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........194
Load limits .................................180
Locks
autolock .....................................99
childproof ..................................92
doors ..........................................91
Lubricant specifications ...270, 272
Lug nuts ....................................170
Luggage rack ...............................90
Lumbar support, seats .....107–108
M
Message center ...........................76
english/metric button ...............81
system check button ................81
warning messages .....................82
Mirrors ...................................63, 67automatic dimming rearview
mirror ........................................67
fold away ...................................67
side view mirrors (power) .......67
Moon roof ....................................72
Motorcraft parts ................260, 267
O
Octane rating ............................259
Oil (see Engine oil) ..................243
P
Parking brake ............................195
Parts (see Motorcraft parts) ....267
Passenger Occupant
Classification Sensor .................119
Power adjustable foot pedals .....68
Power distribution box
(see Fuses) ...............................214
Power door locks ........................91
Power mirrors .............................67
Power point .................................64
Power steering ..........................197
fluid, checking and adding ....265
fluid, refill capacity ................268
fluid, specifications .........270, 272
Power Windows ...........................65
R
Radio ......................................17, 20
Relays ........................................211
Remote entry system .................93
illuminated entry ......................97
Reverse sensing system ...........200
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
282
