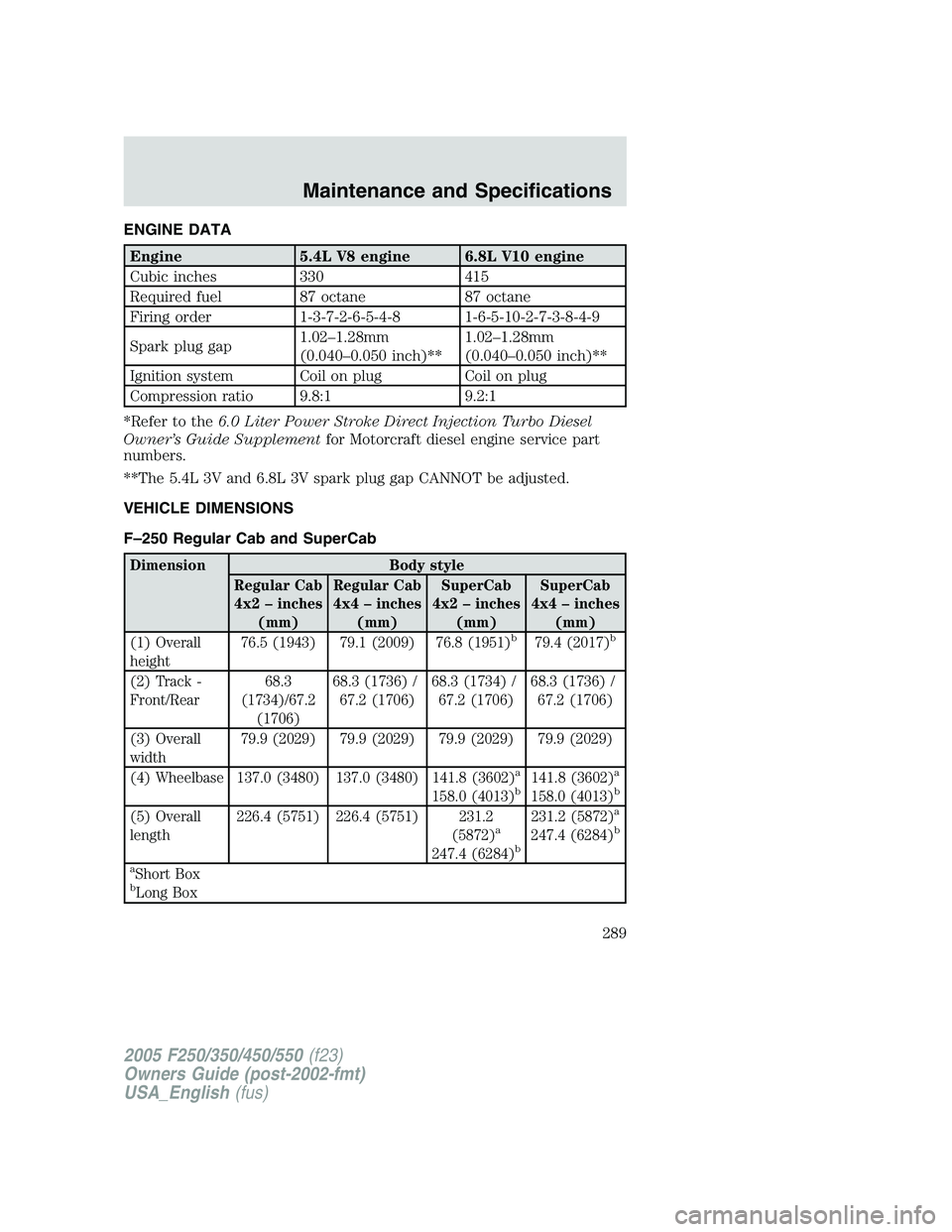

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.02–1.28mm
(0.040–0.050 inch)**1.02–1.28mm
(0.040–0.050 inch)**
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*Refer to the6.0 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
VEHICLE DIMENSIONS
F–250 Regular Cab and SuperCab
Dimension Body style
Regular Cab
4x2 – inches
(mm)Regular Cab
4x4 – inches
(mm)SuperCab
4x2 – inches
(mm)SuperCab
4x4 – inches
(mm)
(1) Overall
height76.5 (1943) 79.1 (2009) 76.8 (1951)
b79.4 (2017)b
(2) Track -
Front/Rear68.3
(1734)/67.2
(1706)68.3 (1736) /
67.2 (1706)68.3 (1734) /
67.2 (1706)68.3 (1736) /
67.2 (1706)
(3) Overall
width79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4) Wheelbase 137.0 (3480) 137.0 (3480) 141.8 (3602)
a
158.0 (4013)b141.8 (3602)a
158.0 (4013)b
(5) Overall
length226.4 (5751) 226.4 (5751) 231.2
(5872)a
247.4 (6284)b
231.2 (5872)a
247.4 (6284)b
a
Short BoxbLong Box
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
289

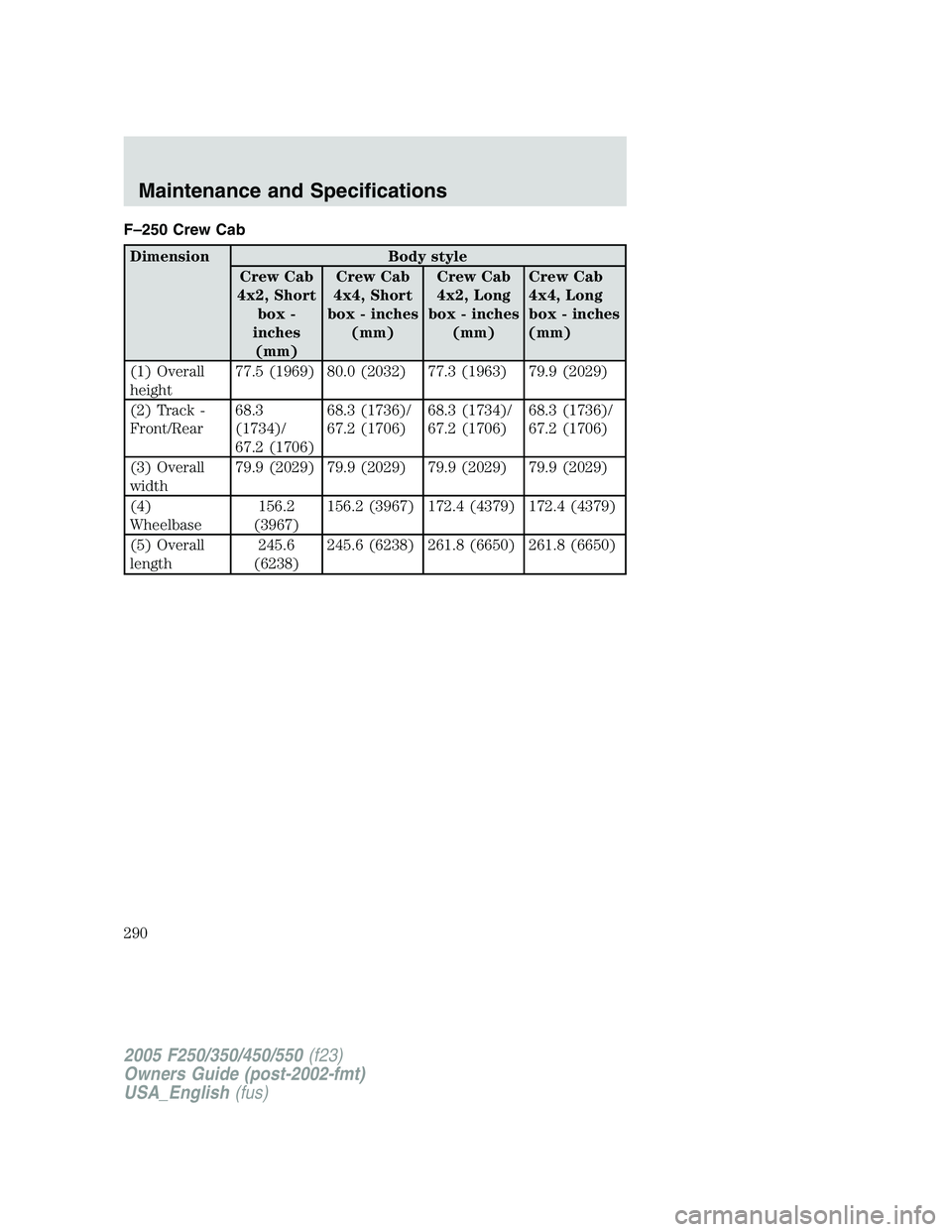

F–250 Crew Cab
Dimension Body style
Crew Cab
4x2, Short
box -
inches
(mm)Crew Cab
4x4, Short
box - inches
(mm)Crew Cab
4x2, Long
box - inches
(mm)Crew Cab
4x4, Long
box - inches
(mm)
(1) Overall
height77.5 (1969) 80.0 (2032) 77.3 (1963) 79.9 (2029)
(2) Track -
Front/Rear68.3
(1734)/
67.2 (1706)68.3 (1736)/
67.2 (1706)68.3 (1734)/
67.2 (1706)68.3 (1736)/
67.2 (1706)
(3) Overall
width79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4)
Wheelbase156.2
(3967)156.2 (3967) 172.4 (4379) 172.4 (4379)
(5) Overall
length245.6
(6238)245.6 (6238) 261.8 (6650) 261.8 (6650)
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
290

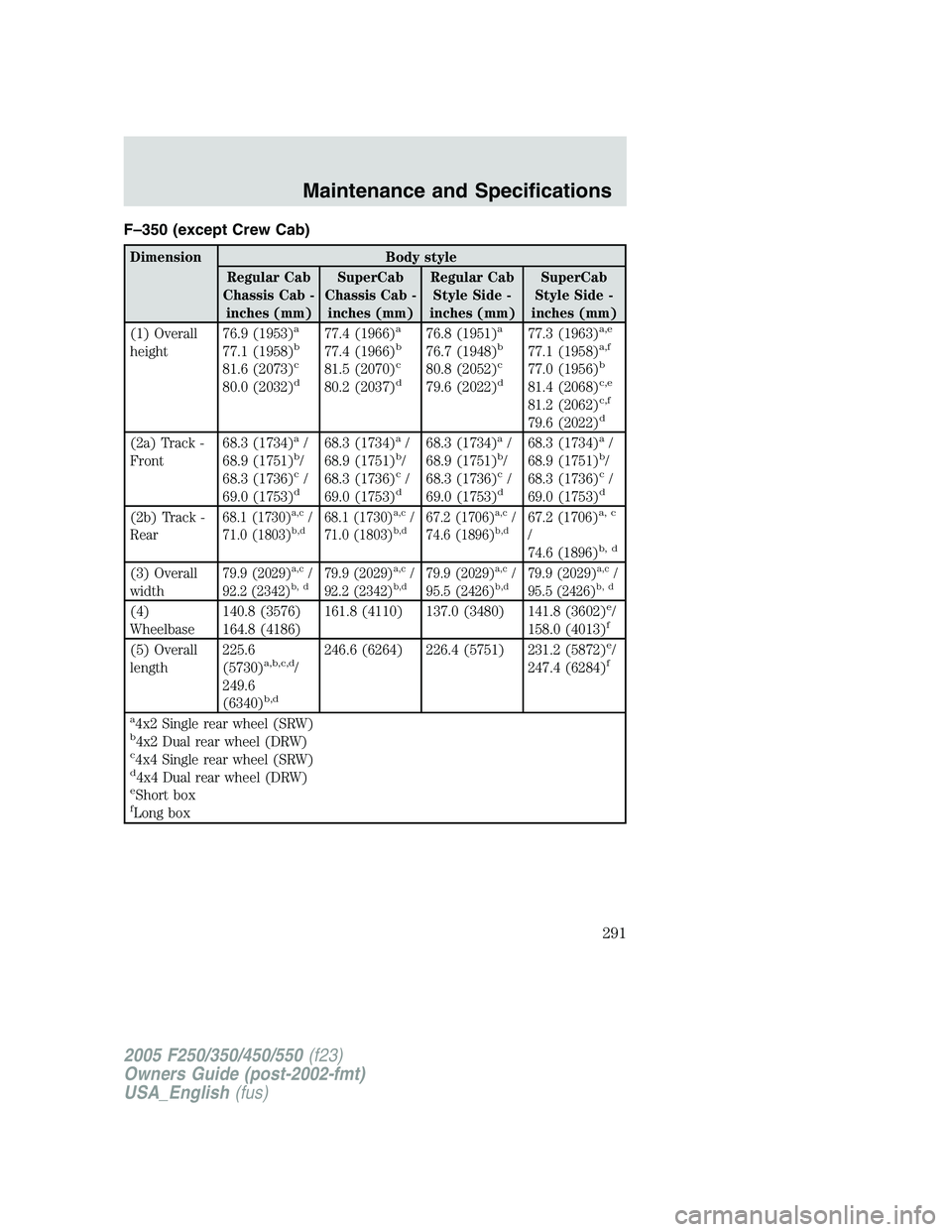

F–350 (except Crew Cab)
Dimension Body style
Regular Cab
Chassis Cab -
inches (mm)SuperCab
Chassis Cab -
inches (mm)Regular Cab
Style Side -
inches (mm)SuperCab
Style Side -
inches (mm)
(1) Overall
height76.9 (1953)
a
77.1 (1958)b
81.6 (2073)c
80.0 (2032)d
77.4 (1966)a
77.4 (1966)b
81.5 (2070)c
80.2 (2037)d
76.8 (1951)a
76.7 (1948)b
80.8 (2052)c
79.6 (2022)d
77.3 (1963)a,e
77.1 (1958)a,f
77.0 (1956)b
81.4 (2068)c,e
81.2 (2062)c,f
79.6 (2022)d
(2a) Track -
Front68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
(2b) Track -
Rear68.1 (1730)a,c/
71.0 (1803)b,d68.1 (1730)a,c/
71.0 (1803)b,d67.2 (1706)a,c/
74.6 (1896)b,d67.2 (1706)a, c
/
74.6 (1896)b, d
(3) Overall
width79.9 (2029)a,c/
92.2 (2342)b, d79.9 (2029)a,c/
92.2 (2342)b,d79.9 (2029)a,c/
95.5 (2426)b,d79.9 (2029)a,c/
95.5 (2426)b, d
(4)
Wheelbase140.8 (3576)
164.8 (4186)161.8 (4110) 137.0 (3480) 141.8 (3602)e/
158.0 (4013)f
(5) Overall
length225.6
(5730)a,b,c,d/
249.6
(6340)
b,d
246.6 (6264) 226.4 (5751) 231.2 (5872)e/
247.4 (6284)f
a
4x2 Single rear wheel (SRW)b4x2 Dual rear wheel (DRW)c4x4 Single rear wheel (SRW)d4x4 Dual rear wheel (DRW)eShort boxfLong box
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
291

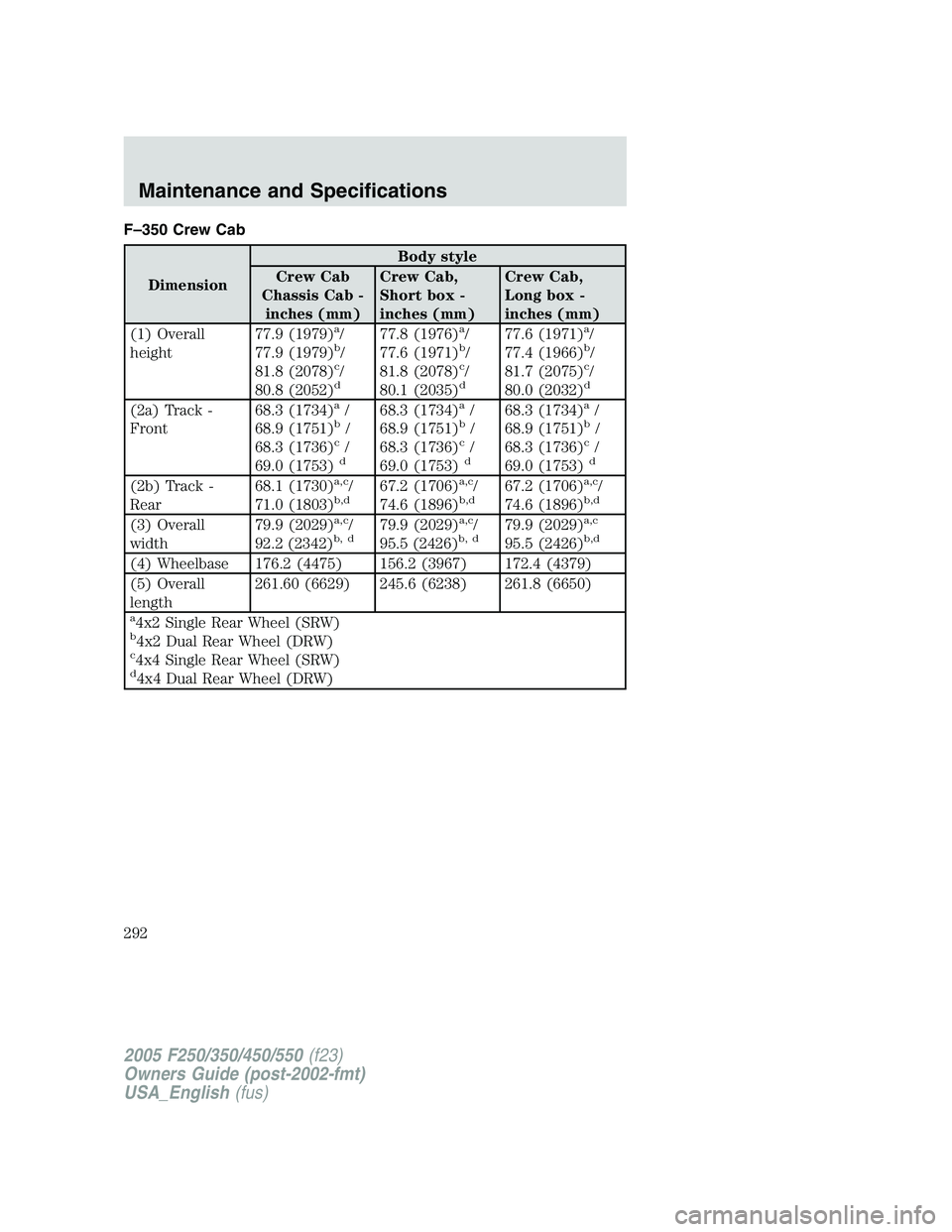

F–350 Crew Cab
DimensionBody style
Crew Cab
Chassis Cab -
inches (mm)Crew Cab,
Short box -
inches (mm)Crew Cab,
Long box -
inches (mm)
(1) Overall
height77.9 (1979)
a/
77.9 (1979)b/
81.8 (2078)c/
80.8 (2052)d
77.8 (1976)a/
77.6 (1971)b/
81.8 (2078)c/
80.1 (2035)d
77.6 (1971)a/
77.4 (1966)b/
81.7 (2075)c/
80.0 (2032)d
(2a) Track -
Front68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
68.3 (1734)a/
68.9 (1751)b/
68.3 (1736)c/
69.0 (1753)d
(2b) Track -
Rear68.1 (1730)a,c/
71.0 (1803)b,d67.2 (1706)a,c/
74.6 (1896)b,d67.2 (1706)a,c/
74.6 (1896)b,d
(3) Overall
width79.9 (2029)a,c/
92.2 (2342)b, d79.9 (2029)a,c/
95.5 (2426)b, d79.9 (2029)a,c
95.5 (2426)b,d
(4) Wheelbase 176.2 (4475) 156.2 (3967) 172.4 (4379)
(5) Overall
length261.60 (6629) 245.6 (6238) 261.8 (6650)
a4x2 Single Rear Wheel (SRW)b4x2 Dual Rear Wheel (DRW)c4x4 Single Rear Wheel (SRW)d4x4 Dual Rear Wheel (DRW)
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
292

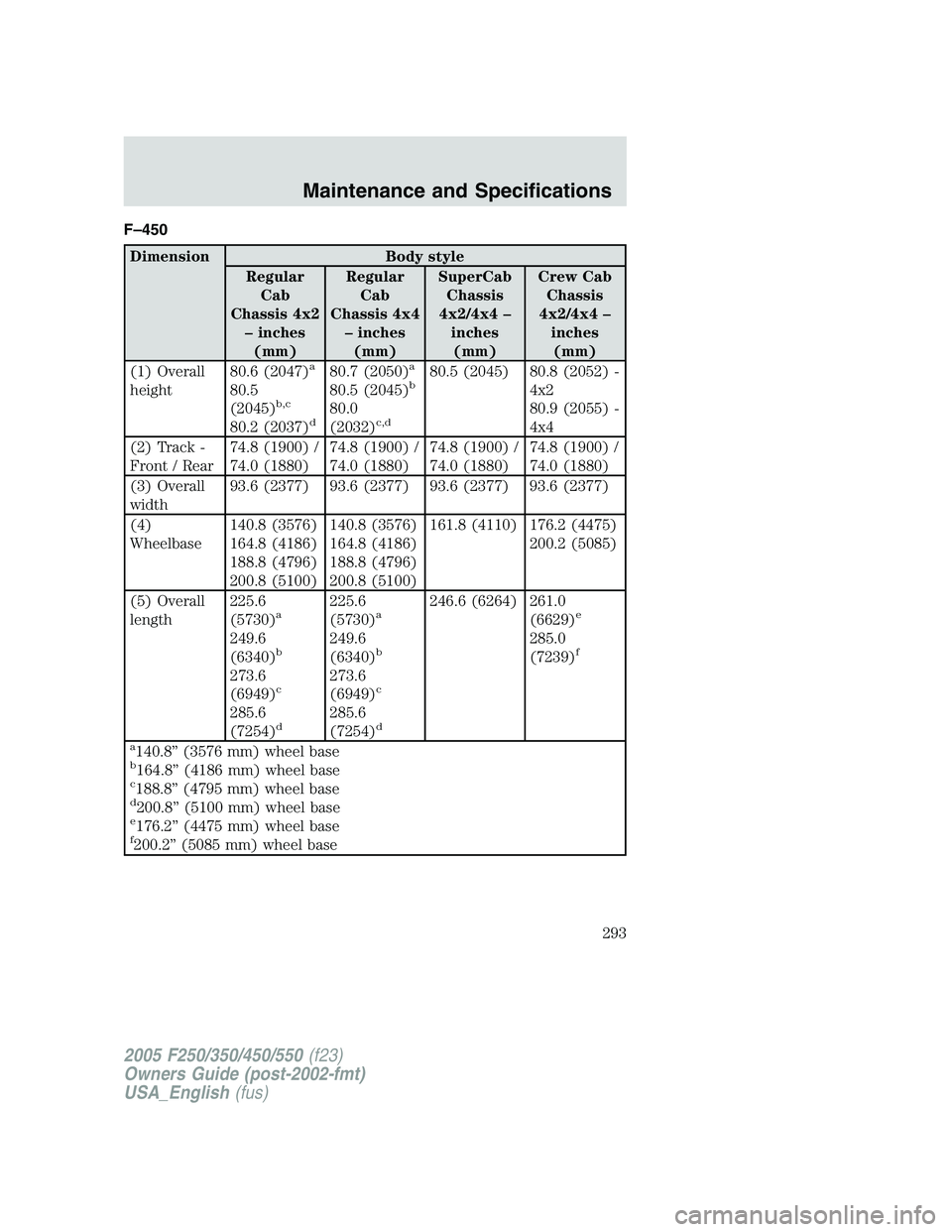

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm)Regular
Cab
Chassis 4x4
– inches
(mm)SuperCab
Chassis
4x2/4x4 –
inches
(mm)Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height80.6 (2047)
a
80.5
(2045)b,c
80.2 (2037)d
80.7 (2050)a
80.5 (2045)b
80.0
(2032)c,d
80.5 (2045) 80.8 (2052) -
4x2
80.9 (2055) -
4x4
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6 (6264) 261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
293

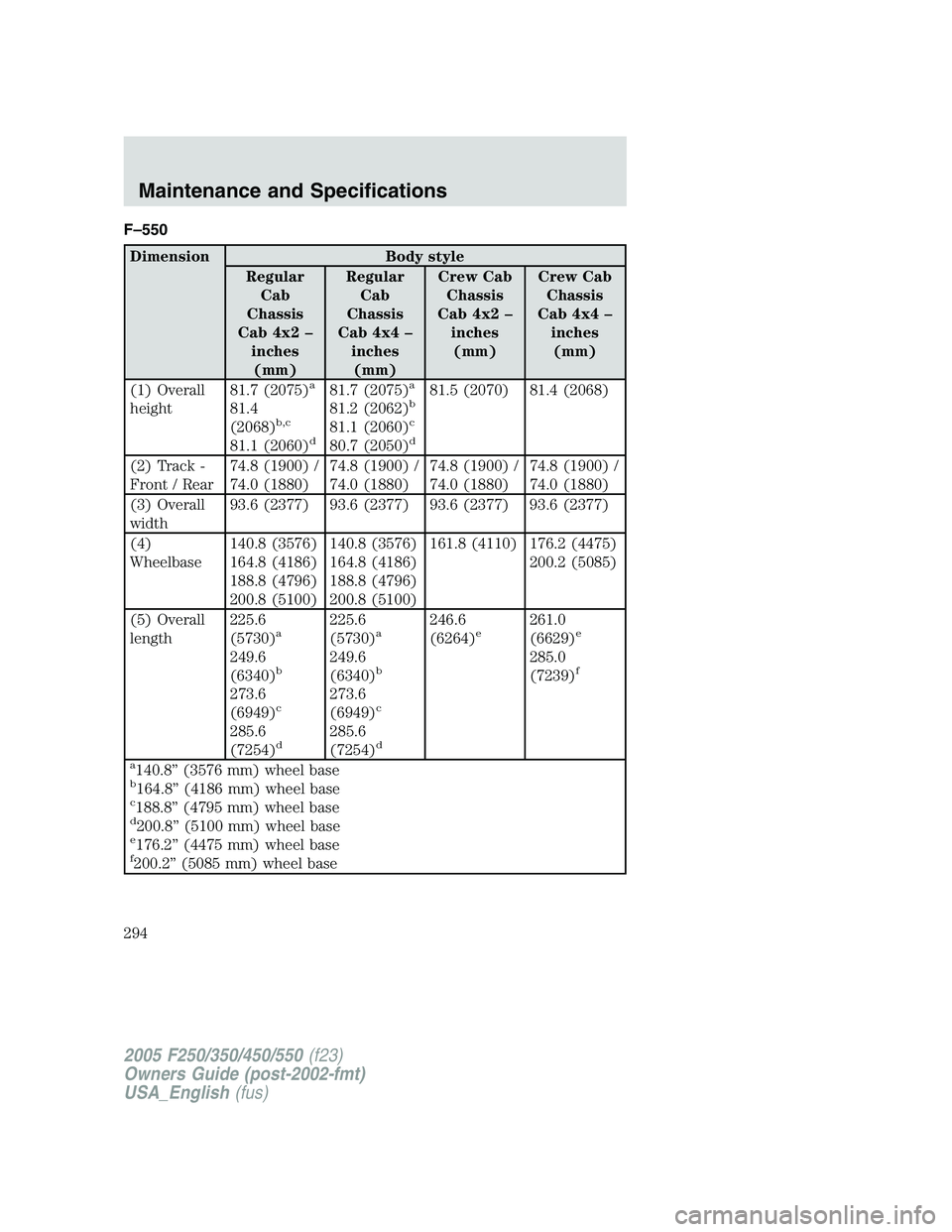

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm)Regular
Cab
Chassis
Cab 4x4 –
inches
(mm)Crew Cab
Chassis
Cab 4x2 –
inches
(mm)Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height81.7 (2075)
a
81.4
(2068)b,c
81.1 (2060)d
81.7 (2075)a
81.2 (2062)b
81.1 (2060)c
80.7 (2050)d
81.5 (2070) 81.4 (2068)
(2) Track -
Front / Rear74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)74.8 (1900) /
74.0 (1880)
(3) Overall
width93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100)161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length225.6
(5730)
a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
225.6
(5730)a
249.6
(6340)b
273.6
(6949)c
285.6
(7254)d
246.6
(6264)e261.0
(6629)e
285.0
(7239)f
a
140.8” (3576 mm) wheel baseb164.8” (4186 mm) wheel basec188.8” (4795 mm) wheel based200.8” (5100 mm) wheel basee176.2” (4475 mm) wheel basef200.2” (5085 mm) wheel base
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
294

2
3
1
5
4
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
295

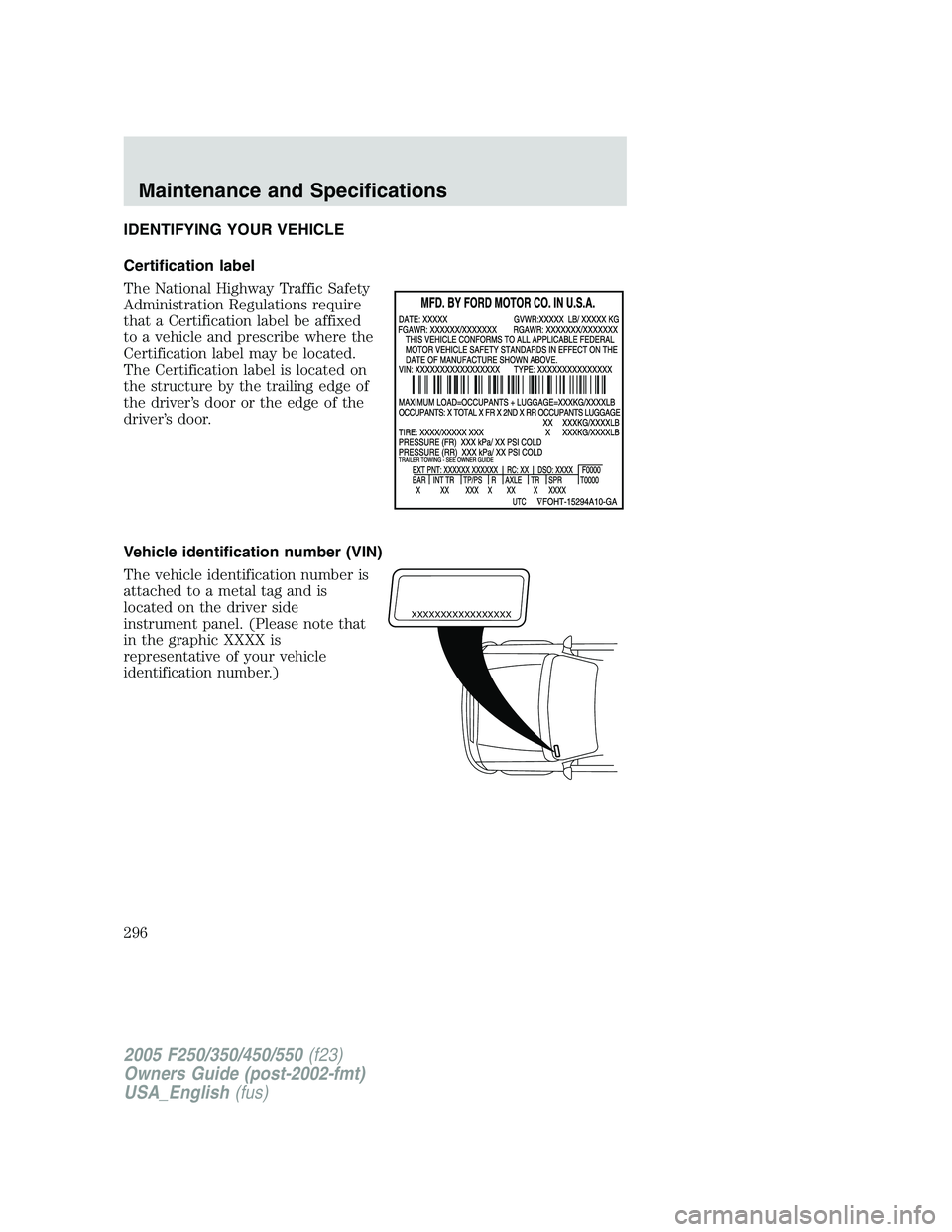

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
XXXXXXXXXXXXXXXXX
2005 F250/350/450/550(f23)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
296
