2005 DODGE STRATUS SEDAN Owners Manual

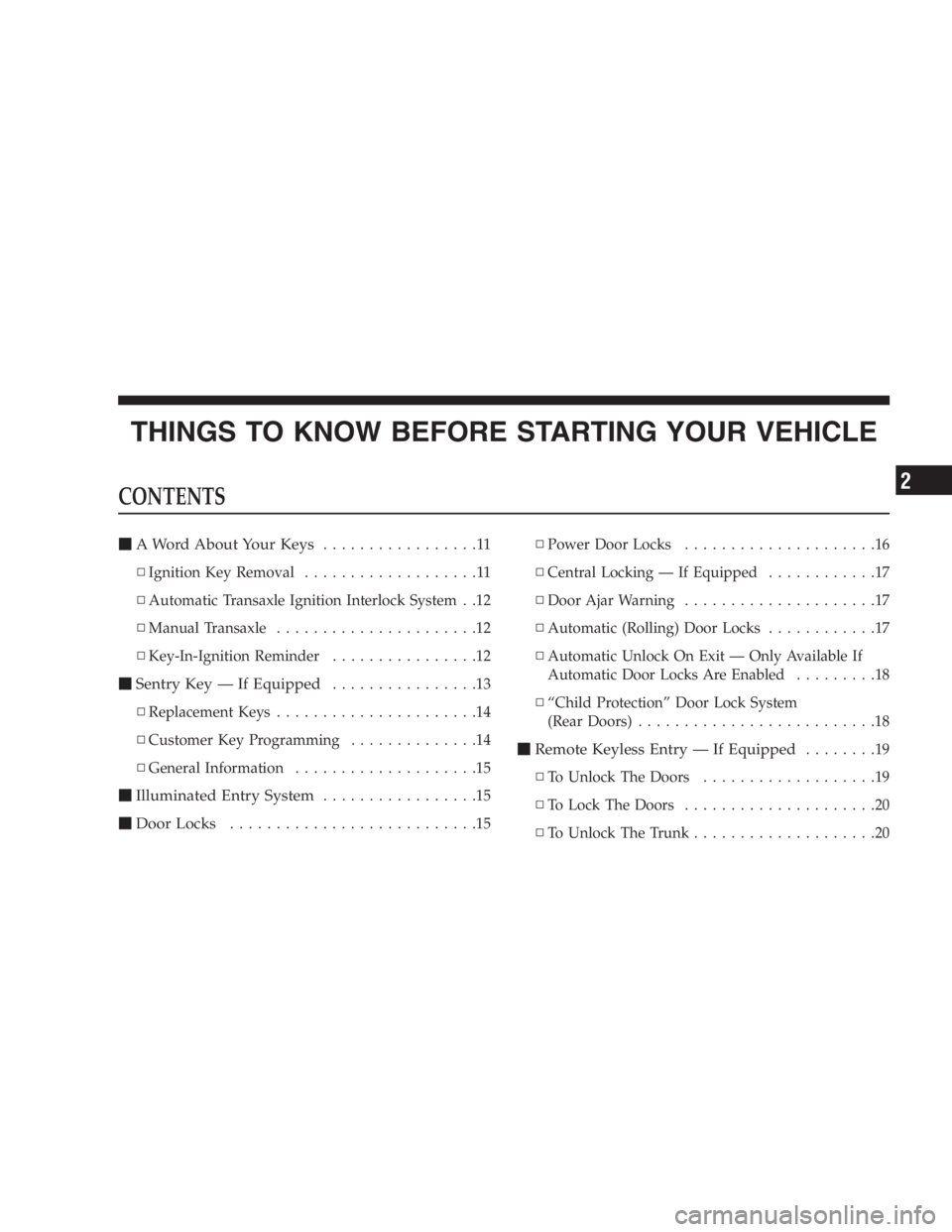

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS

A Word About Your Keys.................11
▫Ignition Key Removal...................11
▫Automatic Transaxle Ignition Interlock System . .12
▫Manual Transaxle......................12
▫Key-In-Ignition Reminder................12

Sentry Key—If Equipped................13
▫Replacement Keys......................14
▫Customer Key Programming..............14
▫General Information....................15

Illuminated Entry System.................15

Door Locks...........................15▫Power Door Locks.....................16
▫Central Locking—If Equipped............17
▫Door Ajar Warning.....................17
▫Automatic (Rolling) Door Locks............17
▫Automatic Unlock On Exit—Only Available If
Automatic Door Locks Are Enabled.........18
▫“Child Protection”Door Lock System
(Rear Doors)..........................18

Remote Keyless Entry—If Equipped........19
▫To Unlock The Doors...................19
▫To Lock The Doors.....................20
▫To Unlock The Trunk....................20
2

▫Panic Alarm..........................21
▫To Use The Panic Alarm.................21
▫To Program Additional Transmitters.........21
▫General Information....................21
▫Transmitter Battery Service...............22

Vehicle Theft Alarm.....................23
▫Tamper Alert.........................23
▫Security System Manual Override...........23

Trunk Lock And Release..................24

Trunk Safety Warning....................24
▫Trunk Internal Emergency Release..........25

Windows.............................25
▫Power Windows.......................25

Occupant Restraints.....................26▫Lap/Shoulder Belts.....................27
▫Seat Belt Pretensioners...................31
▫Enhanced Driver Seat Belt Reminder System
(BeltAlert)...........................32
▫Seat Belts And Pregnant Women............33
▫Seat Belt Extender......................33
▫Driver And Right Front Passenger Supplemental
Restraint System (SRS) - Airbag............34

Engine Break-In Recommendations..........48

Safety Tips............................49
▫Exhaust Gas..........................49
▫Safety Checks You Should Make Inside The
Vehicle..............................49
▫Periodic Safety Checks You Should Make Outside
The Vehicle..........................50
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

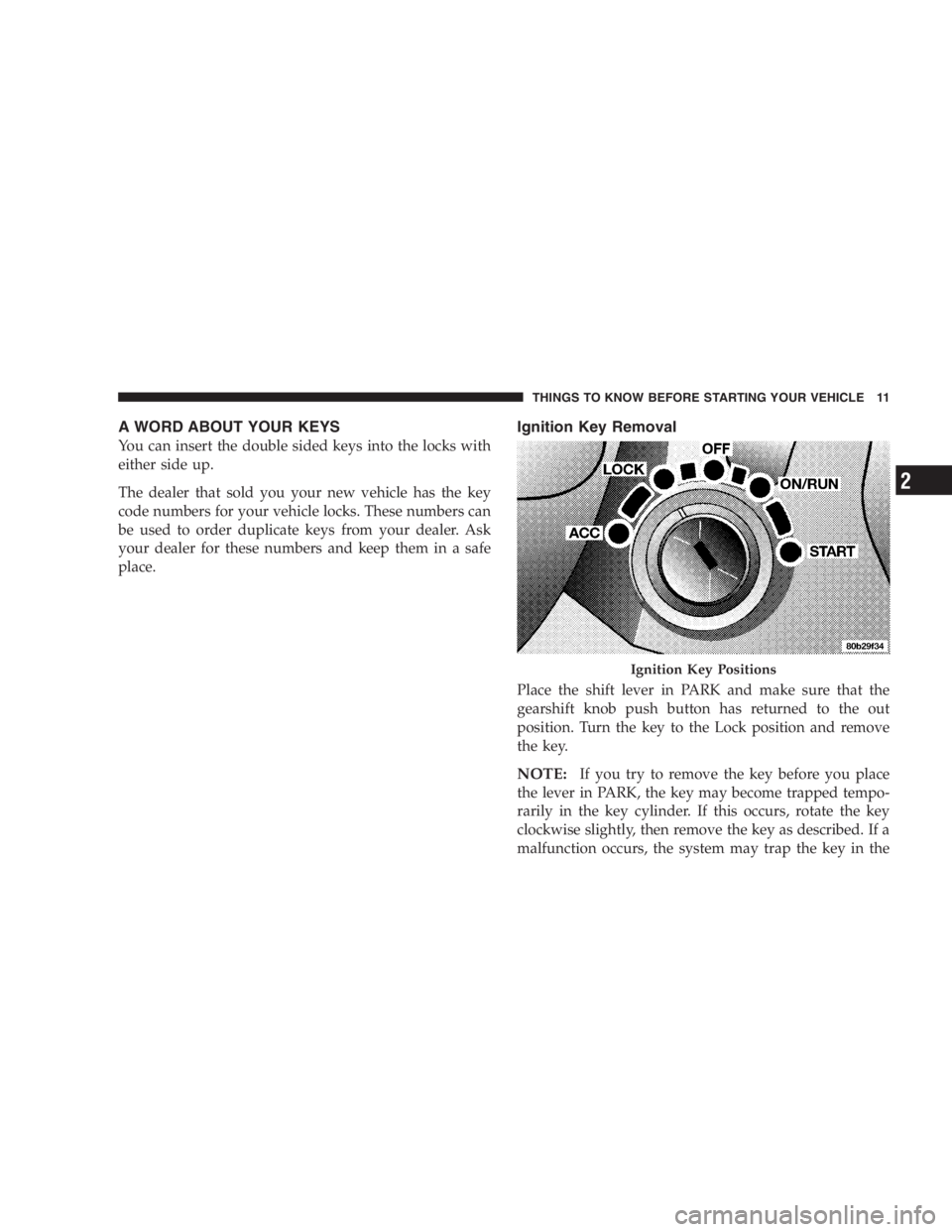

A WORD ABOUT YOUR KEYS
You can insert the double sided keys into the locks with
either side up.
The dealer that sold you your new vehicle has the key
code numbers for your vehicle locks. These numbers can
be used to order duplicate keys from your dealer. Ask
your dealer for these numbers and keep them in a safe
place.
Ignition Key Removal
Place the shift lever in PARK and make sure that the
gearshift knob push button has returned to the out
position. Turn the key to the Lock position and remove
the key.
NOTE:If you try to remove the key before you place
the lever in PARK, the key may become trapped tempo-
rarily in the key cylinder. If this occurs, rotate the key
clockwise slightly, then remove the key as described. If a
malfunction occurs, the system may trap the key in the
Ignition Key Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2

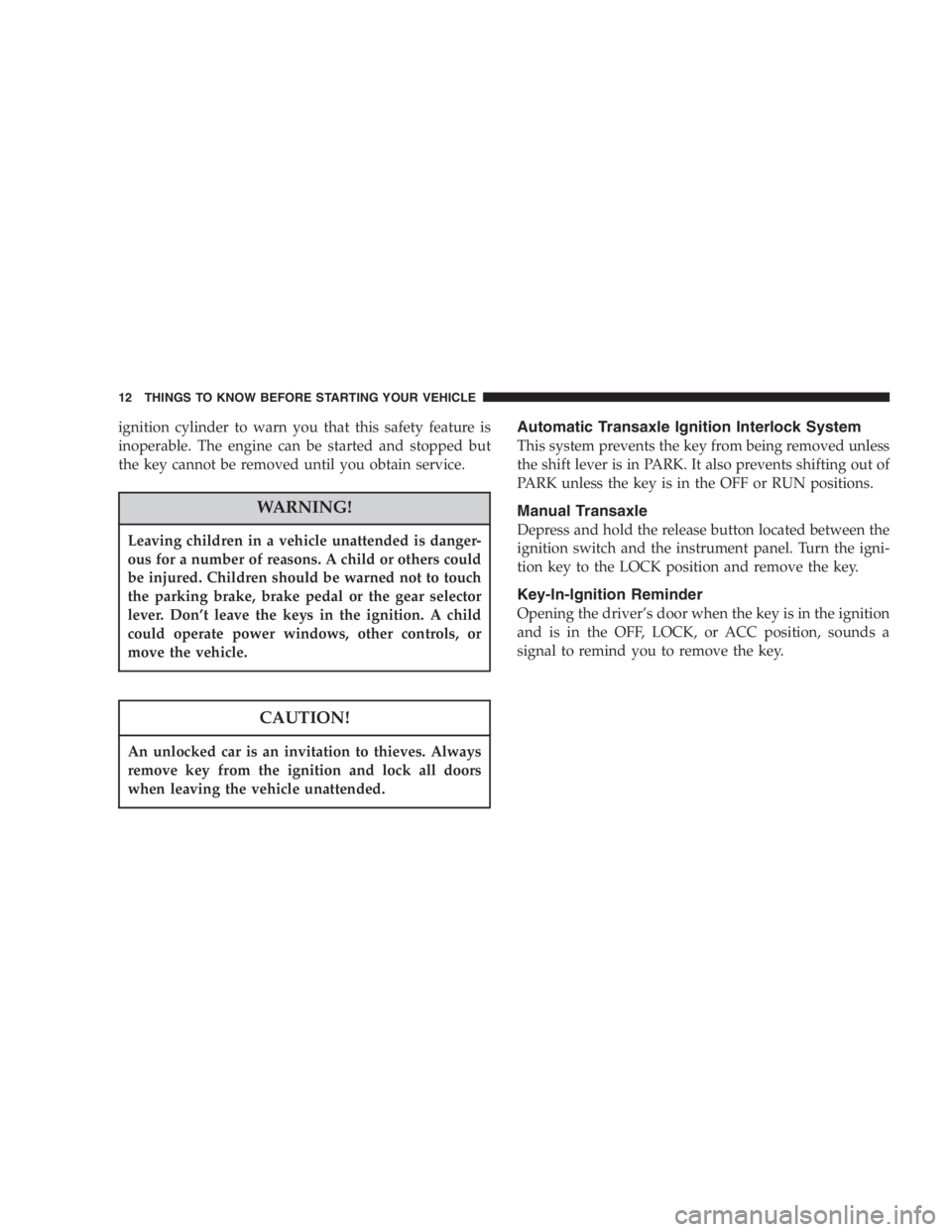

ignition cylinder to warn you that this safety feature is
inoperable. The engine can be started and stopped but
the key cannot be removed until you obtain service.
WARNING!
Leaving children in a vehicle unattended is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal or the gear selector
lever. Don’t leave the keys in the ignition. A child
could operate power windows, other controls, or
move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Automatic Transaxle Ignition Interlock System
This system prevents the key from being removed unless
the shift lever is in PARK. It also prevents shifting out of
PARK unless the key is in the OFF or RUN positions.
Manual Transaxle
Depress and hold the release button located between the
ignition switch and the instrument panel. Turn the igni-
tion key to the LOCK position and remove the key.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition
and is in the OFF, LOCK, or ACC position, sounds a
signal to remind you to remove the key.
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

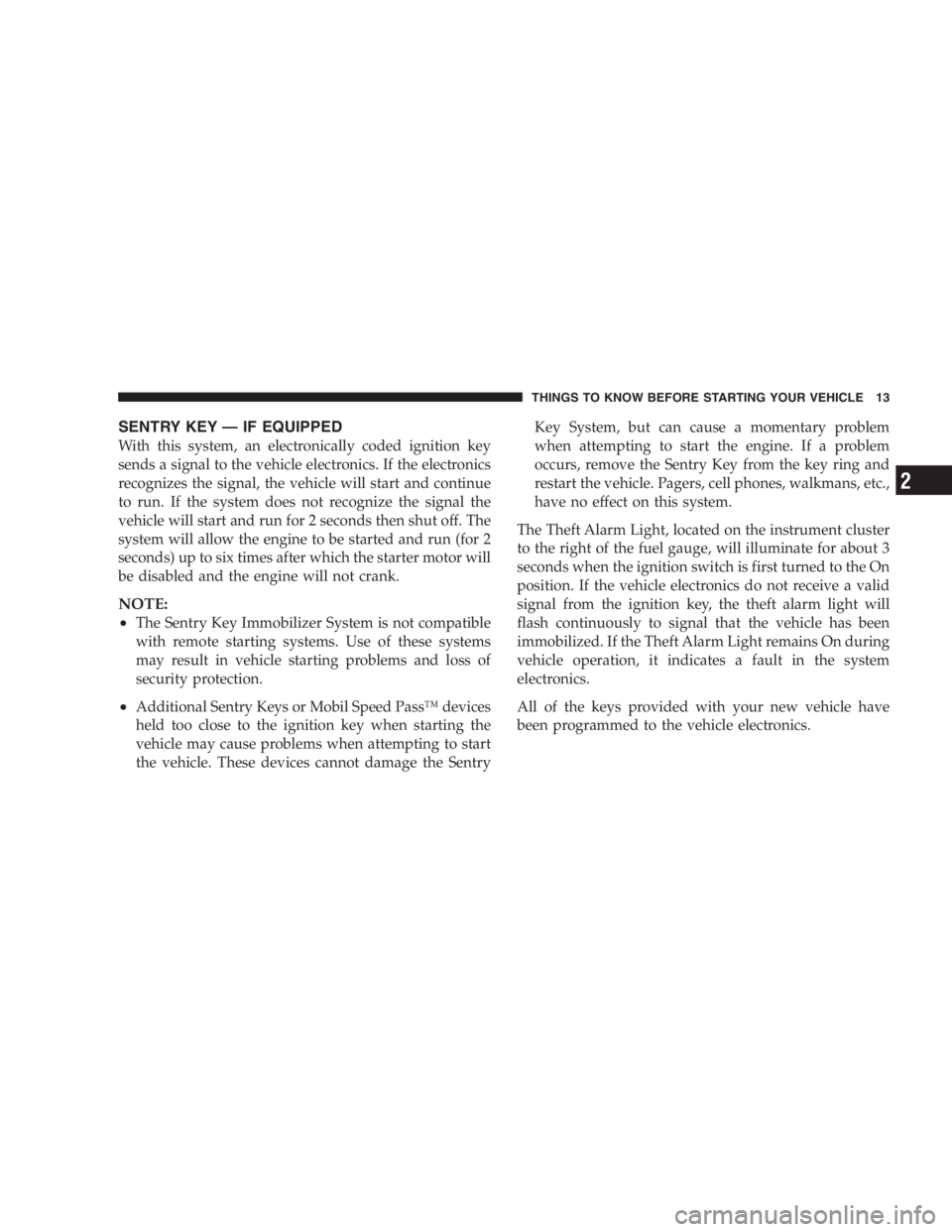

SENTRY KEY—IF EQUIPPED
With this system, an electronically coded ignition key
sends a signal to the vehicle electronics. If the electronics
recognizes the signal, the vehicle will start and continue
to run. If the system does not recognize the signal the
vehicle will start and run for 2 seconds then shut off. The
system will allow the engine to be started and run (for 2
seconds) up to six times after which the starter motor will
be disabled and the engine will not crank.
NOTE:
•
The Sentry Key Immobilizer System is not compatible
with remote starting systems. Use of these systems
may result in vehicle starting problems and loss of
security protection.
•Additional Sentry Keys or Mobil Speed Pass™devices
held too close to the ignition key when starting the
vehicle may cause problems when attempting to start
the vehicle. These devices cannot damage the SentryKey System, but can cause a momentary problem
when attempting to start the engine. If a problem
occurs, remove the Sentry Key from the key ring and
restart the vehicle. Pagers, cell phones, walkmans, etc.,
have no effect on this system.
The Theft Alarm Light, located on the instrument cluster
to the right of the fuel gauge, will illuminate for about 3
seconds when the ignition switch is first turned to the On
position. If the vehicle electronics do not receive a valid
signal from the ignition key, the theft alarm light will
flash continuously to signal that the vehicle has been
immobilized. If the Theft Alarm Light remains On during
vehicle operation, it indicates a fault in the system
electronics.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2

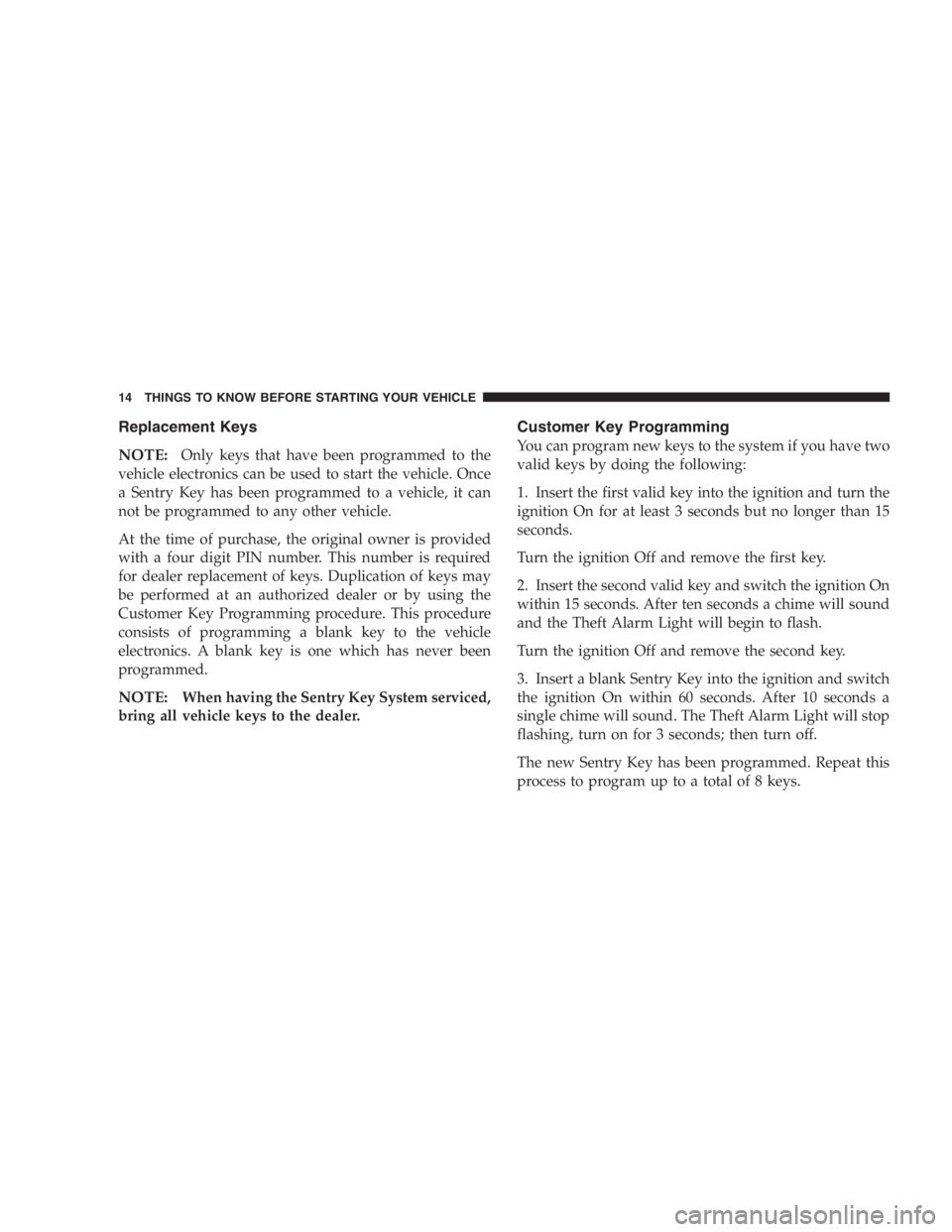

Replacement Keys
NOTE:
Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Key has been programmed to a vehicle, it can
not be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four digit PIN number. This number is required
for dealer replacement of keys. Duplication of keys may
be performed at an authorized dealer or by using the
Customer Key Programming procedure. This procedure
consists of programming a blank key to the vehicle
electronics. A blank key is one which has never been
programmed.
NOTE:When having the Sentry Key System serviced,
bring all vehicle keys to the dealer.
Customer Key Programming
You can program new keys to the system if you have two
valid keys by doing the following:
1. Insert the first valid key into the ignition and turn the
ignition On for at least 3 seconds but no longer than 15
seconds.
Turn the ignition Off and remove the first key.
2. Insert the second valid key and switch the ignition On
within 15 seconds. After ten seconds a chime will sound
and the Theft Alarm Light will begin to flash.
Turn the ignition Off and remove the second key.
3. Insert a blank Sentry Key into the ignition and switch
the ignition On within 60 seconds. After 10 seconds a
single chime will sound. The Theft Alarm Light will stop
flashing, turn on for 3 seconds; then turn off.
The new Sentry Key has been programmed. Repeat this
process to program up to a total of 8 keys.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

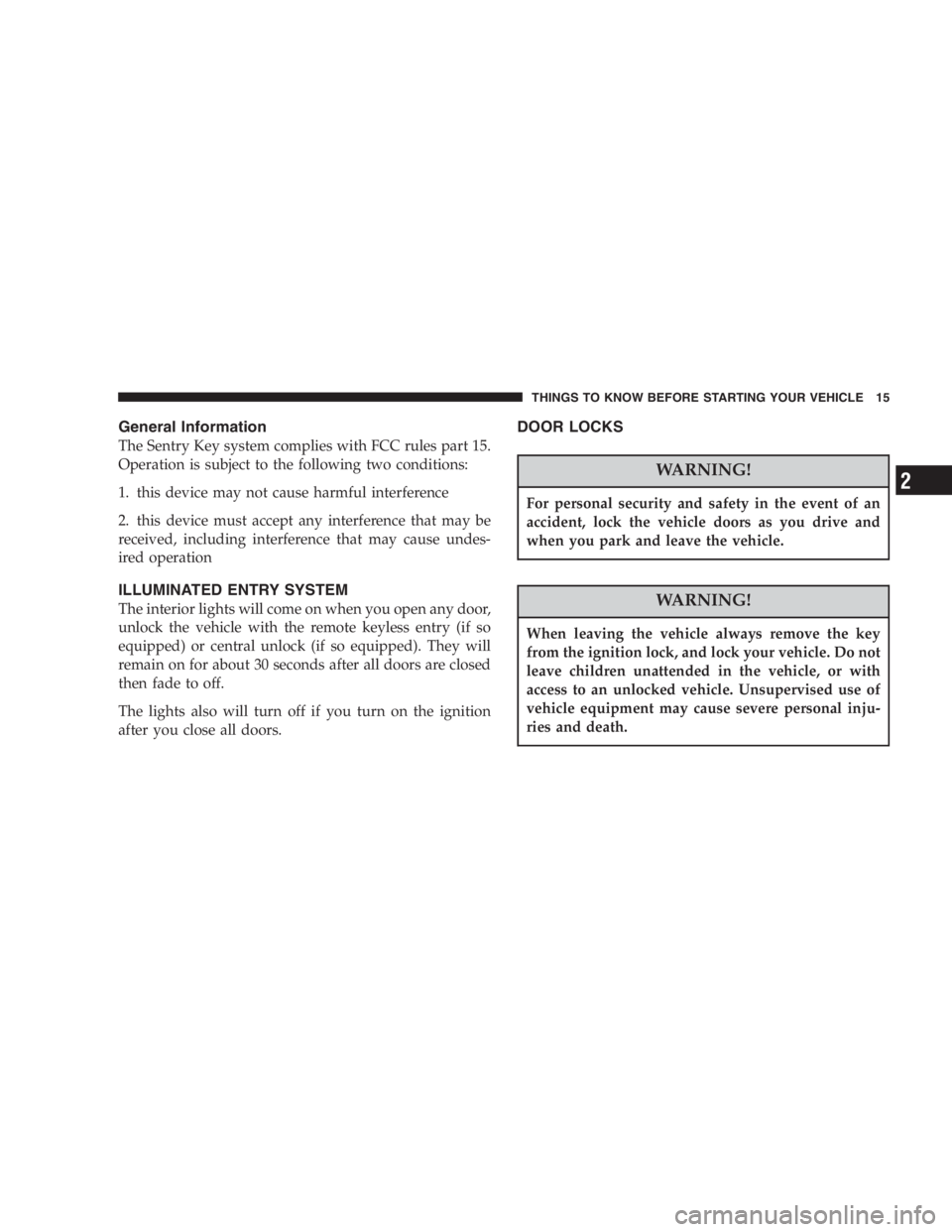

General Information
The Sentry Key system complies with FCC rules part 15.
Operation is subject to the following two conditions:
1. this device may not cause harmful interference
2. this device must accept any interference that may be
received, including interference that may cause undes-
ired operation
ILLUMINATED ENTRY SYSTEM
The interior lights will come on when you open any door,
unlock the vehicle with the remote keyless entry (if so
equipped) or central unlock (if so equipped). They will
remain on for about 30 seconds after all doors are closed
then fade to off.
The lights also will turn off if you turn on the ignition
after you close all doors.
DOOR LOCKS
WARNING!
For personal security and safety in the event of an
accident, lock the vehicle doors as you drive and
when you park and leave the vehicle.
WARNING!
When leaving the vehicle always remove the key
from the ignition lock, and lock your vehicle. Do not
leave children unattended in the vehicle, or with
access to an unlocked vehicle. Unsupervised use of
vehicle equipment may cause severe personal inju-
ries and death.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2

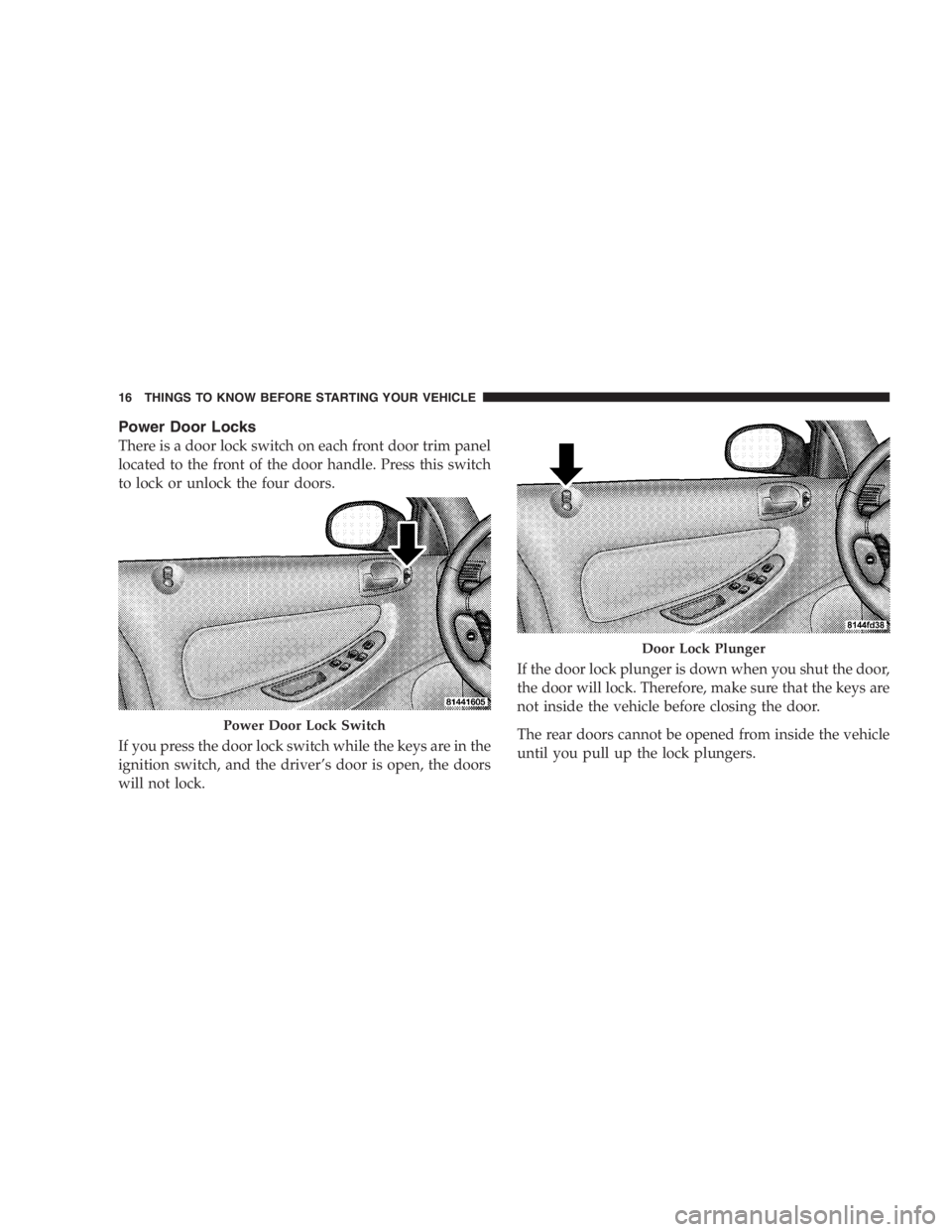

Power Door Locks
There is a door lock switch on each front door trim panel
located to the front of the door handle. Press this switch
to lock or unlock the four doors.
If you press the door lock switch while the keys are in the
ignition switch, and the driver’s door is open, the doors
will not lock.If the door lock plunger is down when you shut the door,
the door will lock. Therefore, make sure that the keys are
not inside the vehicle before closing the door.
The rear doors cannot be opened from inside the vehicle
until you pull up the lock plungers.
Power Door Lock Switch
Door Lock Plunger
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
