To keep your door operating properly, observe the fol-
lowing guidelines:
• Always open the door smoothly.
• Avoid high impacts against the door stop when open-
ing the door. This is very important when your vehicle
is parked on an incline as the door will slide faster in
the downhill direction.
• There is a hold-open latch that is activated when the
sliding door is fully opened. This latch will keep your
sliding door open on any incline. To close the sliding
door after the hold-open latch is activated, you must
push the button on the inside grab handle or pull out
on the outside sliding door handle.
• Use the grab handle on the inside of the sliding door to
assist you in closing and securing the door.
Always make sure that the sliding door is fully latched
any time the vehicle is in motion. NOTE: The driver ’ s side sliding door cannot be opened
while the fuel door is open. This feature operates only
when the sliding door is fully closed prior to opening the
fuel door.
Sliding Door Open Flash
When the sliding door(s) are opened, the left and right
exterior hazard lights will flash for 12 seconds to alert
other drivers in the area that passenger(s) could be
entering or exiting the vehicle.
The Sliding Door Open Flash can be enabled or disabled
by performing the following procedure:
1. Place the key in the ignition switch.
2. Cycle the ignition switch ON/OFF four times ending
in the OFF position. (do not start the engine)
3. Within 10 seconds of the final cycle, press the hazard
switch.30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

▫ Automatic Headlights — If Equipped .......136
▫ Daytime Running Lights (Canada/Fleet
Vehicles Only) .......................137
▫ Lights-On Reminder ...................137
▫ Battery Protection .....................137
▫ Headlamp Delay — If Equipped ..........138
▫ Front Fog Lights — If Equipped ...........138

Multifunction Lever .....................138
▫ Turn Signals .........................138
▫ Headlight Low/High Beam Selector Switch . . . 139
▫ Passing Light ........................139
▫ Windshield Wipers And Washers ..........140

Tilt Steering Column — If Equipped .........142
Traction Control Switch — If Equipped .......143

Rear Park Assist System — If Equipped .......144

Adjustable Pedals — If Equipped ...........146

Electronic Speed Control — If Equipped ......147
▫ To Activate ..........................148
▫ To Set At A Desired Speed ...............148
▫ To Deactivate ........................148
▫ To Resume Speed .....................148
▫ To Vary The Speed Setting ...............149
▫ To Accelerate For Passing ...............149

Overhead Console — If Equipped ...........150
▫ Courtesy/Reading Lights ................150UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

REAR PARK ASSIST SYSTEM — IF EQUIPPED
This system is used to help drivers determine if an
obstacle is in the way of the vehicle while it is backing up
in addition to the use of inside rearview and outside
mirrors.
When the driver selects Reverse the system scans for
objects behind the vehicle using four sensors located in
the rear bumper. Objects can be detected from up to 71
inches (180 cm). A warning display above the rear
window provides both visible and audible warnings
indicating the range of the object. Rear Park Assist Indicator144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!Drivers must be careful when backing up even when
using the Rear Park Assist System. Always check
carefully behind your vehicle, look behind you, and
be sure to check for pedestrians, other vehicles,
obstructions, and blind spots before backing up.
Failure to do so can result in serious personal injury
or death.
The display contains two sets of yellow and red LEDs
that the driver can see in the rear view mirror. Each side
of the vehicle has its own warning LEDs. The system
provides a visual warning by illuminating one or more
yellow LEDs as the vehicle gets closer to the object. As
the vehicle continues to approaches the object, one red
LED is illuminated and the system emits a series of short beeps. The tone will remain constant and both red LEDs
are illuminated once the vehicle is within 12 inches (30.5
cm) of the object.
The system can be turned on or off through the electronic
vehicle information center (EVIC) when the vehicle is in
PARK. If the rear park assist system is turned off, a single
chime will sound and the EVIC will display the following
message “ REAR PARK ASSIST OFF ” , when the vehicle is
in reverse.
NOTE:
• Ensure that the rear bumper is free of dirt and debris
to keep the system operating properly.
• Jackhammers, large trucks, and other vibrations could
affect the performance of the system.
If Service Park Assist System appears in the EVIC after
making sure the rear bumper is clean please see your
authorized dealer. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145
3

Electronic Vehicle Information Center (EVIC) — If
Equipped
The Electronic Vehicle Information Center, when the
appropriate conditions exist, displays the following
WARNING messages and symbols. Each message is
accompanied by a single chime:
• TURN SIGNALS ON (with graphic)
• PERFORM SERVICE
• DOOR AJAR (one or more, with graphic)
• LIFTGATE AJAR (with graphic)
• WASHER FLUID LOW (with graphic)
• 1,2,3 OR 4 LOW TIRE(S) PRESSURE (Refer to “ Starting
And Operating, Tire Section ” )
• 1,2,3 OR 4 TIRE(S) HIGH PRESSURE (Refer to “ Start-
ing And Operating, Tire Section ” ) • CHECK TPM SYSTEM (Refer to “ Starting And Oper-
ating, Tire Section ” )
• MEMORY SEAT DISABLED (Not in Park) — If
Equipped
• ADJUSTABLE PEDAL DISABLED/CRUISE EN-
GAGED
• ADJUSTABLE PEDAL DISABLED/VEHICLE IN RE-
VERSE
• REAR PARK ASSIST (Shown in Reverse only with a
single chime) — If Equipped
NOTE: Tire pressure menu items are available only on
vehicles equipped with the Tire Pressure Monitor Sys-
tem. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155
3

Customer Programmable Features — If Equipped
Press the “ MENU ” button until one of the display choices
following appears:
Language
When in this display you may select one of five lan-
guages for all display nomenclature, including the trip
computer functions. Press the “ STEP ” button while in
this display selects English, Francaise, Deutsch, Italiano,
or Espanol. As you continue the displayed information
will be shown in the selected language.
Rear Park Assist — If Equipped
When this feature is selected the system scans for objects
behind the vehicle using four sensors located in the rear
bumper. Objects can be detected from up to 71 inches
(180 cm). Pressing the “ STEP ” button while in this
display will disable/enable the Rear Park Assist System. US or Metric
Pressing the “ STEP ” button when in this display selects
US or Metric. The overhead console and climate control
displays will be in the selected units.
Service Interval
When this feature is selected a service interval between
2,000 miles (3 200 km) and 6,000 miles (9 600 km) in 500
mile (800 km) increments may be selected. Pressing the
“ STEP ” button when in this display will select distances
between 2,000 miles (3 200 km) and 6,000 miles (9 600
km) in 500 mile (800 km) increments.
Reset Service Distance (Displays Only if Service
Interval was Changed)
When this feature is selected the current accumulated
service distance can be reset to the newly selected service
interval. Pressing the “ STEP ” button when in this display
will select “ Ye s ” or “ No. ”156 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!A moving garage door can cause injury to people and
pets in the path of the door. People or pets could be
seriously or fatally injured. Only use this transceiver
with a garage door opener that has a “ stop and
reverse ” feature as required by federal safety stan-
dards. This includes most garage door opener mod-
els manufactured after 1982. Do not use a garage
door opener without these safety features it could
cause injury or death. Call toll-free 1 – 800 – 355 – 3515
or, on the Internet at www.homelink.com for safety
information or assistance. Programming HomeLink
NOTE: When programming a garage door opener, it is
advised to park outside the garage. Some vehicles may
require the ignition switch to be turned to the second (or
 accessories  ) position for programming and/or opera-
tion of HomeLink. It is also recommended that a new
battery be placed in the hand-held transmitter of the
device being programmed to HomeLink for quicker
training and accurate transmission of the radio-frequency
signal.
1. Press and hold the two outer HomeLink buttons, and
release only when the indicator light begins to flash (after
20 seconds). Do not hold the buttons for longer than 30
seconds and do not repeat step one to program a second
and/or third hand-held transmitter to the remaining two
HomeLink buttons.160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

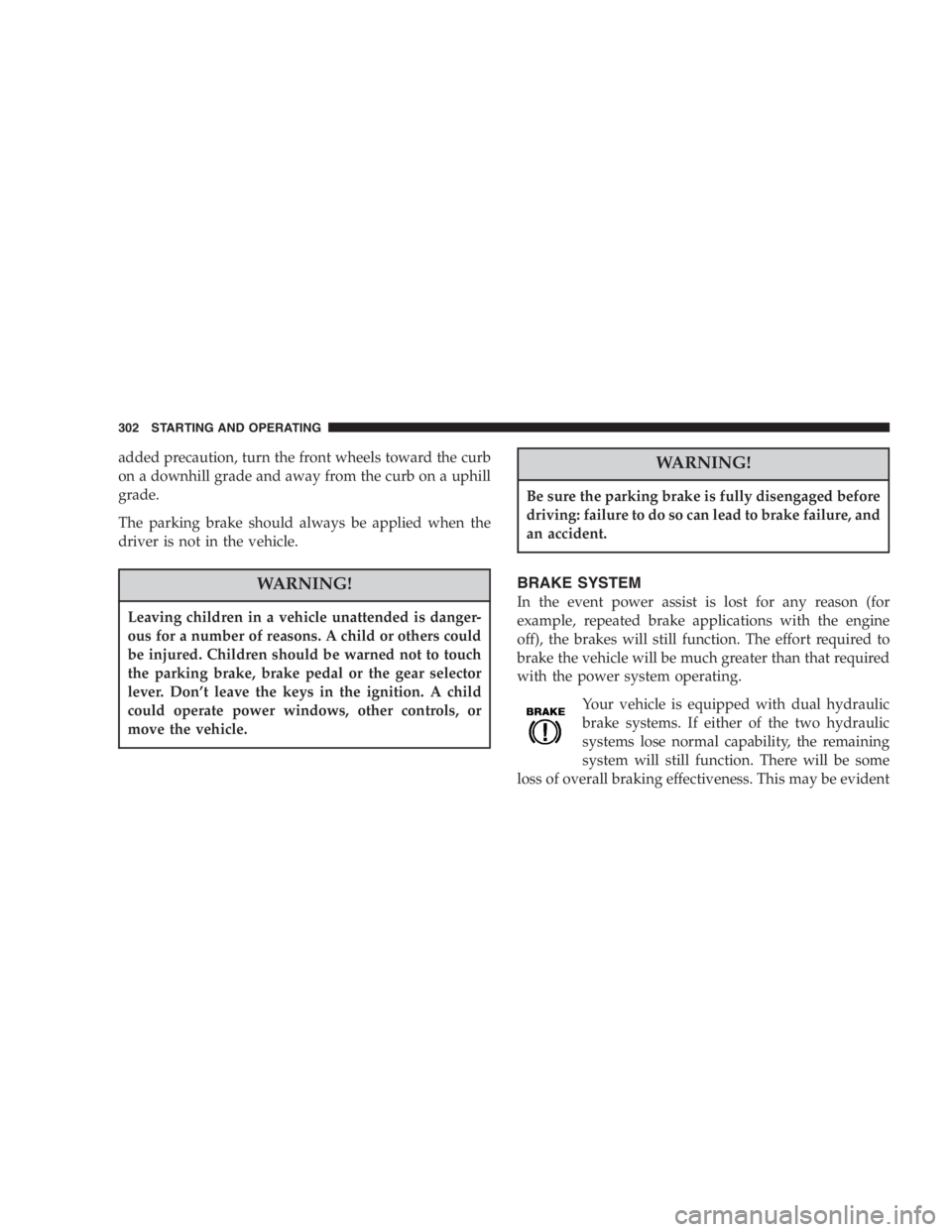

added precaution, turn the front wheels toward the curb
on a downhill grade and away from the curb on a uphill
grade.
The parking brake should always be applied when the
driver is not in the vehicle.
WARNING!Leaving children in a vehicle unattended is danger-
ous for a number of reasons. A child or others could
be injured. Children should be warned not to touch
the parking brake, brake pedal or the gear selector
lever. Don ’ t leave the keys in the ignition. A child
could operate power windows, other controls, or
move the vehicle. WARNING!Be sure the parking brake is fully disengaged before
driving: failure to do so can lead to brake failure, and
an accident.
BRAKE SYSTEM
In the event power assist is lost for any reason (for
example, repeated brake applications with the engine
off), the brakes will still function. The effort required to
brake the vehicle will be much greater than that required
with the power system operating.
Your vehicle is equipped with dual hydraulic
brake systems. If either of the two hydraulic
systems lose normal capability, the remaining
system will still function. There will be some
loss of overall braking effectiveness. This may be evident302 STARTING AND OPERATING
