ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Peg the crankshaft, using tool [2].
Suspend the engine, using a workshop hoist.
Remove the RH engine support, the upper timing cover.
Peg the camshaft pulleys, using tool [1].
NOTE:The pegs [1]should go in without forcing.
WARNING: If the pegs go in only with difficulty, repeat the operation for fitting and tensioning
the timing belt
(see corresponding operation).
Refitting.
Remove tools [1]and [2].
Complete the refitting.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the
battery
(see corresponding operation).
B1BP2V3D
B1BP38VC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 204

Downloaded from www.Manualslib.com manuals search engine 205
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Tools.
[1] Camshaft setting peg: (-).0194.B
[2] Crankshaft setting peg: (-).0189.R
[3]Timing belt retaining pin: (-) 0189.K
[4]Adaptor for angular tightening: 4069-T
[5]Hub immobilising tool: (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189.S2
Pliers for removing plastic pins: 7504-T
IMPERATIVE: Respect the safety and cleanliness requirements.
Checking and setting the timing.
Removing.
Disconnect the negative terminal of the battery
(see corresponding operation).
Raise and support the vehicle, front wheels hanging.
Remove the auxiliaries drive belt
(see corresponding operation).
Unclip and move aside the fuel supply hose from the timing cover.
Suspend the engine by means of a workshop hoist.
Remove the RH engine support and the timing cover (1).
Turn the engine by means of the screw (3)of the crankshaft pinion (2)to bring it to the pegging
position.
B1BP310C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 205

Downloaded from www.Manualslib.com manuals search engine 206
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Checking and setting the timing (continued).
A:Pegging on the manual gearbox.
B:Pegging on the automaticgearbox.
Peg the crankshaft, using tool [2].
Remove the fixing bracket screw (4).
Move aside the power steering pipes.
Peg the camshaft pulleys (6)and (7), using tool [1].
Remove the screw (3), the crankshaft pulley (2)and
the lower timing cover (5).
IMPERATIVE: Never remove the crankshaft
pulley (2), without pegging the crankshaft and
the camshafts.
Slacken the screw (10)of the tensioner roller (9).
Turn the tensioner roller (9)
(clockwise).
Remove the timing belt (8).
B1BP2V3D
B1EP1G1DB3EP15JC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 206

Downloaded from www.Manualslib.com manuals search engine 207
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ

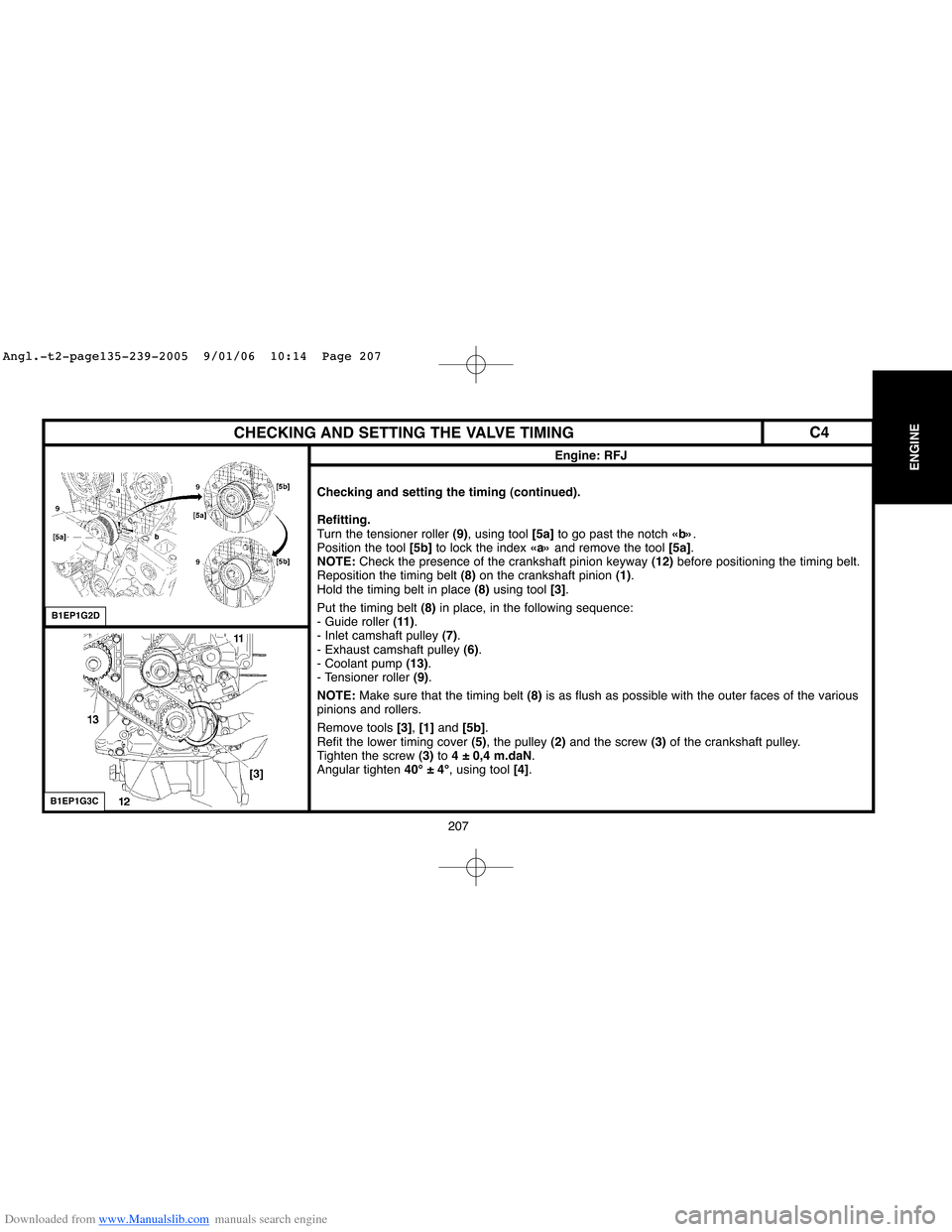

Checking and setting the timing (continued).
Refitting.
Turn the tensioner roller (9), using tool [5a]to go past the notch «b».
Position the tool [5b] to lock the index «a»and remove the tool [5a].
NOTE: Check the presence of the crankshaft pinion keyway (12)before positioning the timing belt.
Reposition the timing belt (8)on the crankshaft pinion (1).
Hold the timing belt in place (8)using tool [3].
Put the timing belt (8)in place, in the following sequence:
- Guide roller (11).
- Inlet camshaft pulley (7).
- Exhaust camshaft pulley (6).
- Coolant pump (13).
- Tensioner roller (9).
NOTE: Make sure that the timing belt (8)is as flush as possible with the outer faces of the various
pinions and rollers.
Remove tools[3], [1]and [5b].
Refit the lower timing cover (5), the pulley (2)and the screw (3)of the crankshaft pulley.
Tighten the screw (3)to 4 ± 0,4 m.daN.
Angular tighten 40°±4°, using tool [4].
B1EP1G2D
B1EP1G3C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 207

Downloaded from www.Manualslib.com manuals search engine 208
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Tensioning the timing belt.
Refitting (continued).
Turn the tensioner roller (9)anti-clockwise, using a hexagonal spanner at «c».
Place the index «a»in position «e».
IMPERATIVE: The index «a» should go past the slot «f» by an angular value of 10°.
If it does not, replace the tensioner roller or the tensioner roller and timing belt assembly.
Then bring the index «a»to its adjustment position «f», by turning the tensioner roller in the direction of
the arrow «d».
WARNING: The index «a» must not go past the slot «f».
If it does, restart the operation to tension the timing belt.
IMPERATIVE: The tensioner roller must not turn during the tightening of its fixing.
If it does turn, restart the operation to tension the timing belt.
Tighten the screw (10)of the tensioner roller (9)to 2,1 ± 0,2 m.daN.
IMPERATIVE: The hexagonal tensioner roller drive should be at approx. 15° below the level
of the cylinder head gasket «g».
Otherwise, replace the tensioner roller or the tensioner roller and timing belt assembly.
B1EP1G4C
B1EP1G5C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 208

Downloaded from www.Manualslib.com manuals search engine 209
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RFJ
Tensioning the timing belt.
Refitting (continued).
Remove the tools[1] and[2].
Rotate the crankshaftten times
(normal direction of rotation).
IMPERATIVE: No exterior pressure or action should be applied on the timing belt.
Peg the inlet camshaft pulley, using tool[1].
Checking.
Timing belt tension.
IMPERATIVE: Check the position of the index «a», it should be opposite the slot «f». If the position of the index «a» is not correct, repeat
the operations to tension the timing belt.
Complete the refitting.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the battery
(see corresponding operation).
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 209

Downloaded from www.Manualslib.com manuals search engine 211
ENGINE
211
CHECKING THE VALVE TIMING
Engine: RFN
Checking the timing (continued).
Suspend the engine, using a workshop hoist.
Remove the engine support (2)and the timing cover (1).
Peg the camshaft pulleys, using tool [1].
NOTE:The pegs [1]should go in without forcing.
WARNING: If the pegs go in only with difficulty, repeat the operation for fitting and tensioning
the timing belt
(see corresponding operation).
Complete the refitting.
B1EP1GTC
B1EP1GUC
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 211

Downloaded from www.Manualslib.com manuals search engine 212
ENGINECHECKING AND SETTING THE VALVE TIMING
Engine: RFN
Tools.
[1] Camshaft setting peg: (-).0189.A
[2] Crankshaft setting peg: (-).0189.R
[3]Timing belt retaining pin: (-) 0189.K
[4] Adaptor for angular tightening: 4069-T
[5]Hub immobilising tool: (-).0189.S
[5a] : (-).0189.S1
[5b] : (-).0189.S2
Pliers for removing plastic pins: 7504-T
IMPERATIVE: Respect the safety and cleanliness requirements.
Checking and setting the timing.
Removing.
Disconnect the negative terminal of the battery
(see corresponding operation).
Raise and support the vehicle, front wheels hanging.
Remove the auxiliaries drive belt
(see corresponding operation).Unclip and move aside the fuel supply hose from the timing cover.
Remove the timing cover (1).
Turn the engine by means of the screw (3)of the crankshaft pinion (2)to bring it to the pegging
position.
B1BP2V4C
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 212
