2005 Citroen BERLINGO timing

Downloaded from www.Manualslib.com manuals search engine GENERAL
C41 - 2
XSARA3 - 4
XSARA PICASSO5 - 6
BERLINGO7 - 8
Operations following a repair: C49
C411 - 12
XSARA13 - 14
XSARA PICASSO15
BERLINGO16
Lubricants17 - 39
ENGINE
Specifications40 - 41
Tightening torques: engines all types42 - 147
Cylinder head tightening: all types148 - 150
Auxiliary drive belt152 - 153
Checking and setting the valve timing181 - 182
C4279
XSARA280
XSARA PICASSO281
Valve clearances282Checking the turbo pressure:
Xsara picasso (DW10ATED)295
Checking the air supply circuit: Xsara (DV4TD)
296
Checking the air supply circuit: C4 (DV6ATED4)297
Checking the air supply circuit: C4 (DV6TED4)298
Checking the air supply circuit: C4 (DW10BTED4)299 - 300
Checking the air supply circuit:
Xsara picasso (DW10TD/ATED)301
Checking the exhaust gas recycling circuit:
Xsara (DV4TD)302
Checking the exhaust gas recycling circuit:
Xsara picasso (DV6TED4)303
Checking the exhaust gas recycling circuit:
Xsara picasso (DW10TD/ATED)304
IGNITION
Sparking plugs305
CLUTCH - GEARBOX - TRANSMISSION
C4307 - 308
Xsara309 - 310
Xsara picasso311
CONTENTS
Vehicle
identification
Capacities
INJECTION
Checking the low pressure fuel supply
circuit: Xsara (DV4TD)283
Checking the low pressure fuel supply
circuit: C4 (DV6TED4/ATED4)284
Checking the low pressure fuel supply
circuit: Xsara Picasso (DV6TED4)285
Checking the low pressure fuel supply
circuit: C4 (DW10BTED4)286
Checking the low pressure fuel supply
circuit: Xsara (DW10TD)287
Checking the low pressure fuel supply
circuit: Xsara Picasso (DW10TD/ATED)288 - 289
Checking the turbo pressure: Xsara (DV4TD)
290
Checking the turbo pressure:
C4 (DV6TED4/ATED4)291
Checking the turbo pressure:
Xsara Picasso (DV6TED4)292
Checking the turbo pressure:
C4 (DW10BTED4)293
Checking the turbo pressure:
Xsara picasso (DW10TD)294
Checking the oil
pressureClutch
specifications
Angl-t2-Index-2005 9/01/06 10:05 Page III

Downloaded from www.Manualslib.com manuals search engine 52
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Timing
34 Inlet camshaft dephaser plug (VVT) 3,2 ± 0,2
Inlet camshaft dephaser screw (VVT)
35Pre-tightening2 ± 0,2
Tightening6 ± 0,6
36 Guide roller screw 2,1 ± 0,2
37 Exhaust camshaft pulley screw 4,5 ± 0,4
38 Tensioner roller screw 2,1 ± 0,2
Engine: KFU
B1EP1GPD
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 52

Downloaded from www.Manualslib.com manuals search engine 56
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
18 Coolant pump screw 2 ± 0,1
19 Oil plug 2,5 ± 0,5
20 Con rod cap bolt 3,8 ± 0,2
21 Seal plate screw, flywheel end 1 ± 0,1
22 Flywheel screw (*) 7 ± 0,7
23 Seal plate screw, timing end 1 ± 0,1
24 Coolant inlet manifold screw 0,8 ± 0,1
25 Crankshaft pinion screw
Tightening4 ± 0,2
Angular tightening45°±3°
26 Crankshaft bearing cap screw
Tightening2 ± 0,1
Angular tightening49°±2°
27 Accessories drive belt pulley screw 2,5 ± 0,6
28 Knock sensor 2 ± 0,5
Engine: NFU
B1DP1KUP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 56

Downloaded from www.Manualslib.com manuals search engine 59
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Timing
39 Camshaft pulley screw 4,5 ± 0,5
40 Guide roller screw 2 ± 0,2
41 Tensioner roller screw 2,1 ± 0,4
Engine: NFU
B1BP1GMP
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 59

Downloaded from www.Manualslib.com manuals search engine 63
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder head
11 Camshaft bearing cap screws (*)
Pre-tightening0,5
Tightening1 ± 0,1
12 Exhaust manifold fixing stud 0,8 ± 0,2
13 Coolant outlet housing fixing stud 0,8 ± 0,2
14 Engine coolant temperature sensor 1,7 ± 0,1
15 Inner timing cover screw 0,8 ± 0,1
16 Electrovalve fixing screw (VVT) 0,9 ± 0,1
Engine: RFJ
B1BP35MP
(*) = IMPERATIVE: Respect the tightening sequence(see following page).
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 63

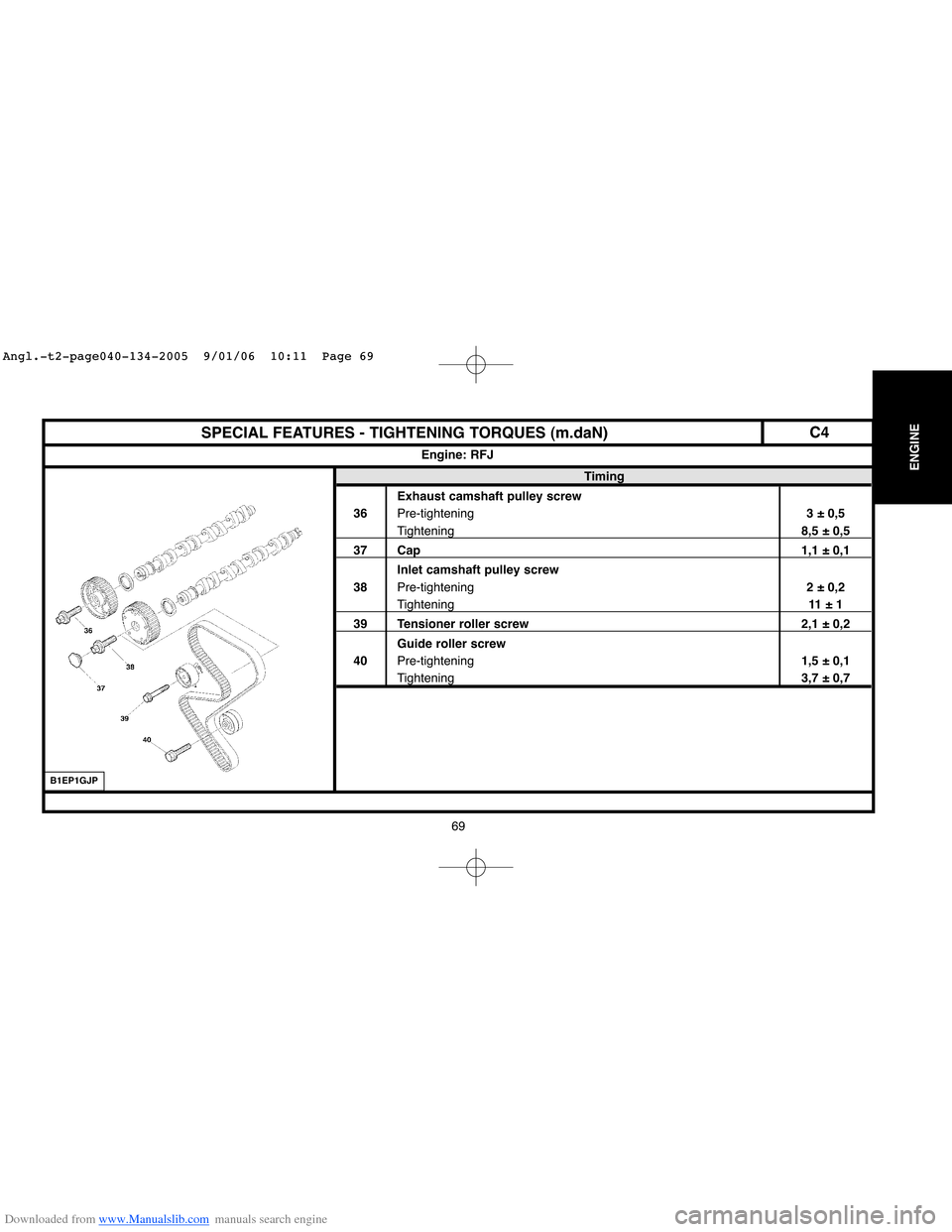

Downloaded from www.Manualslib.com manuals search engine 69
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Timing
Exhaust camshaft pulley screw
36Pre-tightening3 ± 0,5
Tightening8,5 ± 0,5
37 Cap 1,1 ± 0,1
Inlet camshaft pulley screw
38Pre-tightening2 ± 0,2
Tightening11 ± 1
39 Tensioner roller screw 2,1 ± 0,2
Guide roller screw
40Pre-tightening1,5 ± 0,1
Tightening3,7 ± 0,7
Engine: RFJ
B1EP1GJP
C4
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 69

Downloaded from www.Manualslib.com manuals search engine 72
ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Crankshaft
Bearing cap fixing screws
Pre-tightening2 ± 0,2
Angular tightening60°±5°
Bearing cap screws
Pre-tightening2,3 ± 0,2
Angular tightening46°±3°Accessories belt automatic tensioner roller2 ± 0,2
Accessories belt guide roller
Pre-tightening1,5 ± 0,1
Tightening3,7 ± 0,3
Accessories support block
Tightening
(2 studs)0,7 ± 0,2
Pre-tightening (4 screws)1 ± 0,1Tightening1,9 ± 0,2Cylinder block
Sump0,8 ± 0,2
Timing belt guide roller
Pre-tightening1,5 ± 0,1
Tightening3,7 ± 0,3Timing belt tensioner roller2,1 ± 0,2
RH engine support6 ± 0,6 Engine: RFN
XSARA - XSARA PICASSO
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 72

Downloaded from www.Manualslib.com manuals search engine 73
ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder head
Camshaft bearing cover 0,9 ± 0,1
Exhaust manifold 3,5 ± 0,3
Valve cover1,1 ± 0,1
Camshaft pulley
Pre-tightening3 ± 0,3
Tightening7,5 ± 0,7
Pulley on hub 2,1 ± 0,2
Timing pinion on crankshaft
Pre-tightening4 ± 0,4
Angular tightening53°±4°
Flywheel / clutch
Clutch mechanism 2 ± 0,2
Flywheel
Pre-tightening
(sequence 1,5,3,7,2,6,4,8)2 ± 0,2
Angular tightening(sequence 1,5,3,7,2,6,4,8)21°±3°
Engine: RFN
B1CP089C
XSARA - XSARA PICASSO
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 73
