CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
The gear selector control has 5 positions.
Position «P»: Park
(locking and immobilisation of the vehicle).
Position «R»: Reverse gear.
Position «N»: Neutral.
Position «D»: Drive
(use of the 4 gearsin their autoadaptive automatic function).
Position «M»: Manual (this position lets the driver select his own gears in sequential mode
by pulling the gear selector to «M-»or pushing it to «M+»).
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
In position «M», selection is by an electronic sensor located close to the gear lever.
The variation of flux necessary to the movement of the sensor cells is obtained by a
magnet located on the lever itself. This enables the change of status.
Engines: KFV - RFN
XSARA PICASSO
B2CP3MUD
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 352

Downloaded from www.Manualslib.com manuals search engine 354
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The selector control has 6 positions.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
Push the lever to the right to exit from position «P».
NOTE: The vehicle is equipped with the «shift lock»: you have to switch on the ignition
and press the brake pedal to unlock the selector lever from position «P».
P:Park
(system locked).
R:Reverse gear.
N:Neutral.
D:Automatic
(1st to 4th gear).
3:Automatic (1st to 3rd gear).
2:Automatic (1st to 2nd gear).
A switch located to the left of the gear control allows the driver to choose from these
programmes:
- Normal: Conventional use of the automatic gearbox.
- Sport:This programme favours performance.
- Snow:In position «D», starting is in 2ndgear for diesel and in 3rdgear for petrol.
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
Engines: NFU - RFN - RHZ
XSARA
B2CP3ADC
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 354

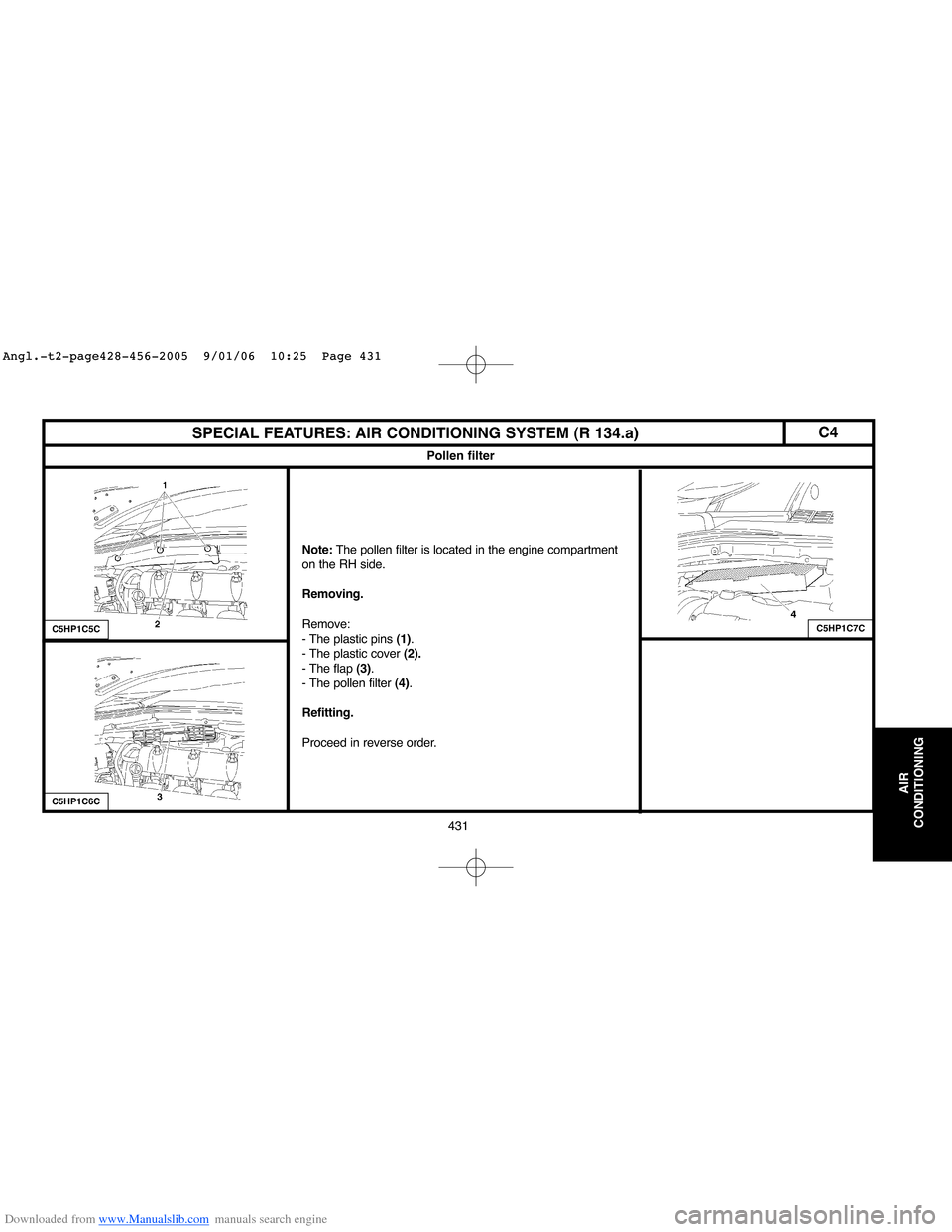

Downloaded from www.Manualslib.com manuals search engine 431
AIR
CONDITIONING C5HP1C6C
Pollen filter
Note:The pollen filter is located in the engine compartment
on the RH side.
Removing.
Remove:
- The plastic pins (1).
- The plastic cover (2).
- The flap (3).
- The pollen filter (4).
Refitting.
Proceed in reverse order.
SPECIAL FEATURES: AIR CONDITIONING SYSTEM (R 134.a)
C5HP1C5CC5HP1C7C
