2005 CHRYSLER CARAVAN location

Fig. 12 OXYGEN SENSORS
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-27
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

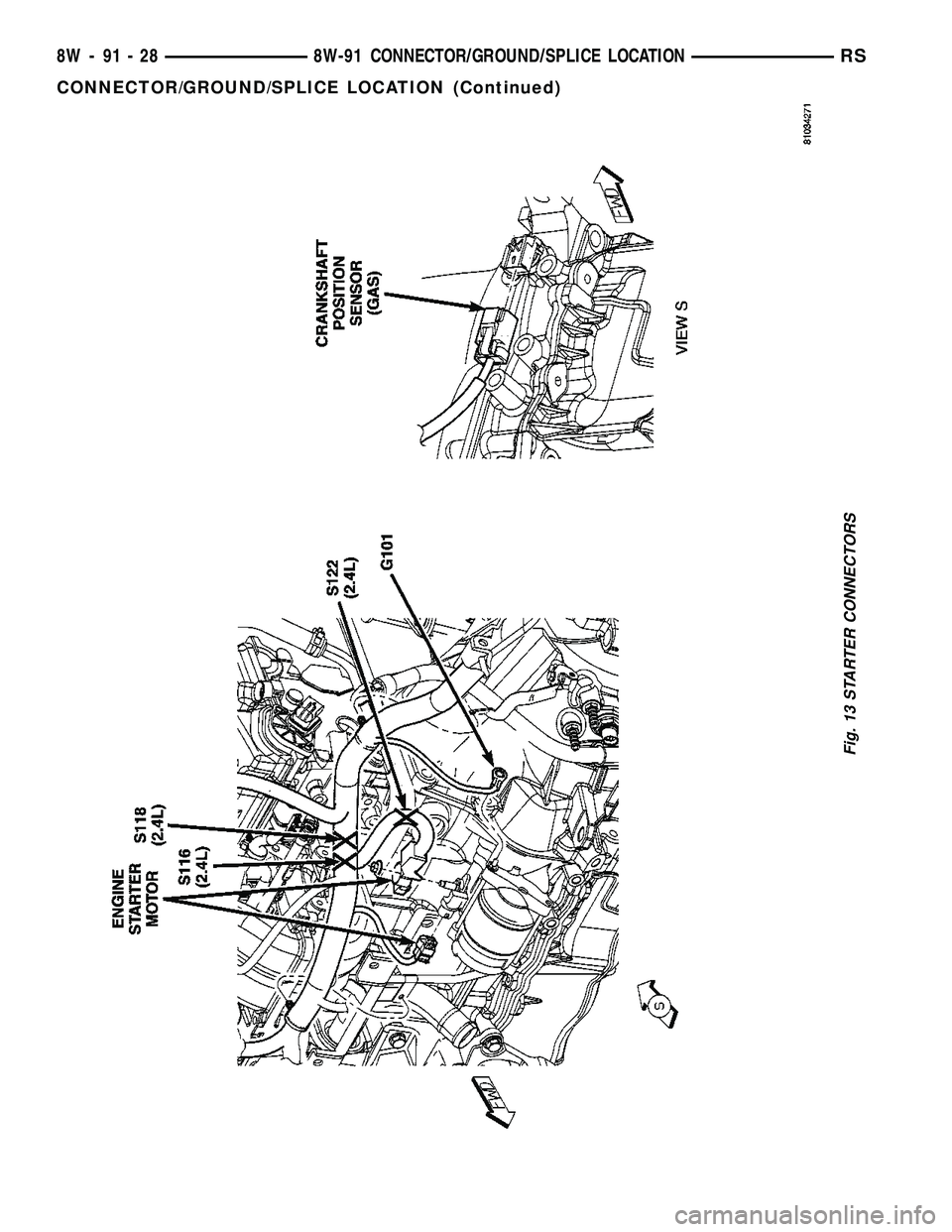

Fig. 13 STARTER CONNECTORS
8W - 91 - 28 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

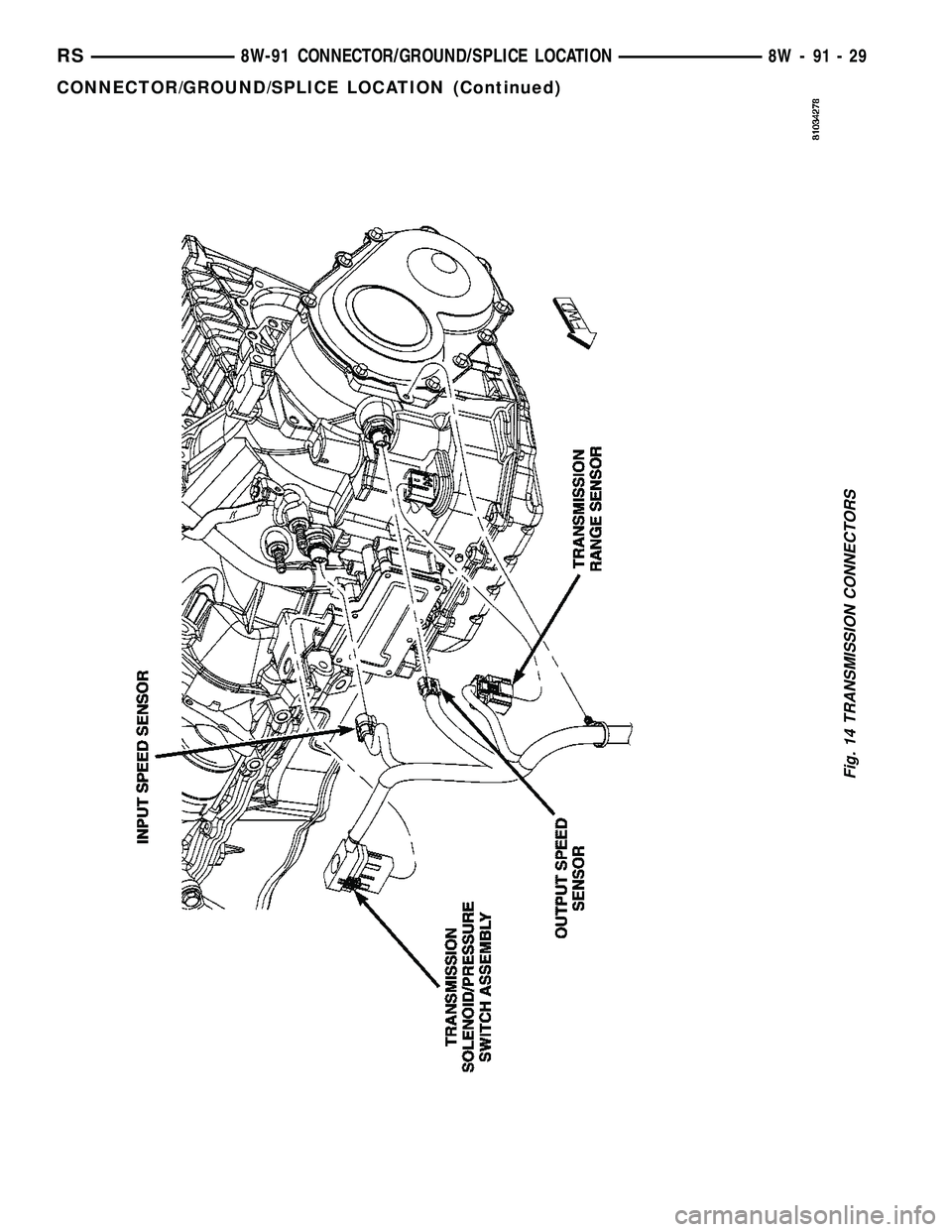

Fig. 14 TRANSMISSION CONNECTORS
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-29
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

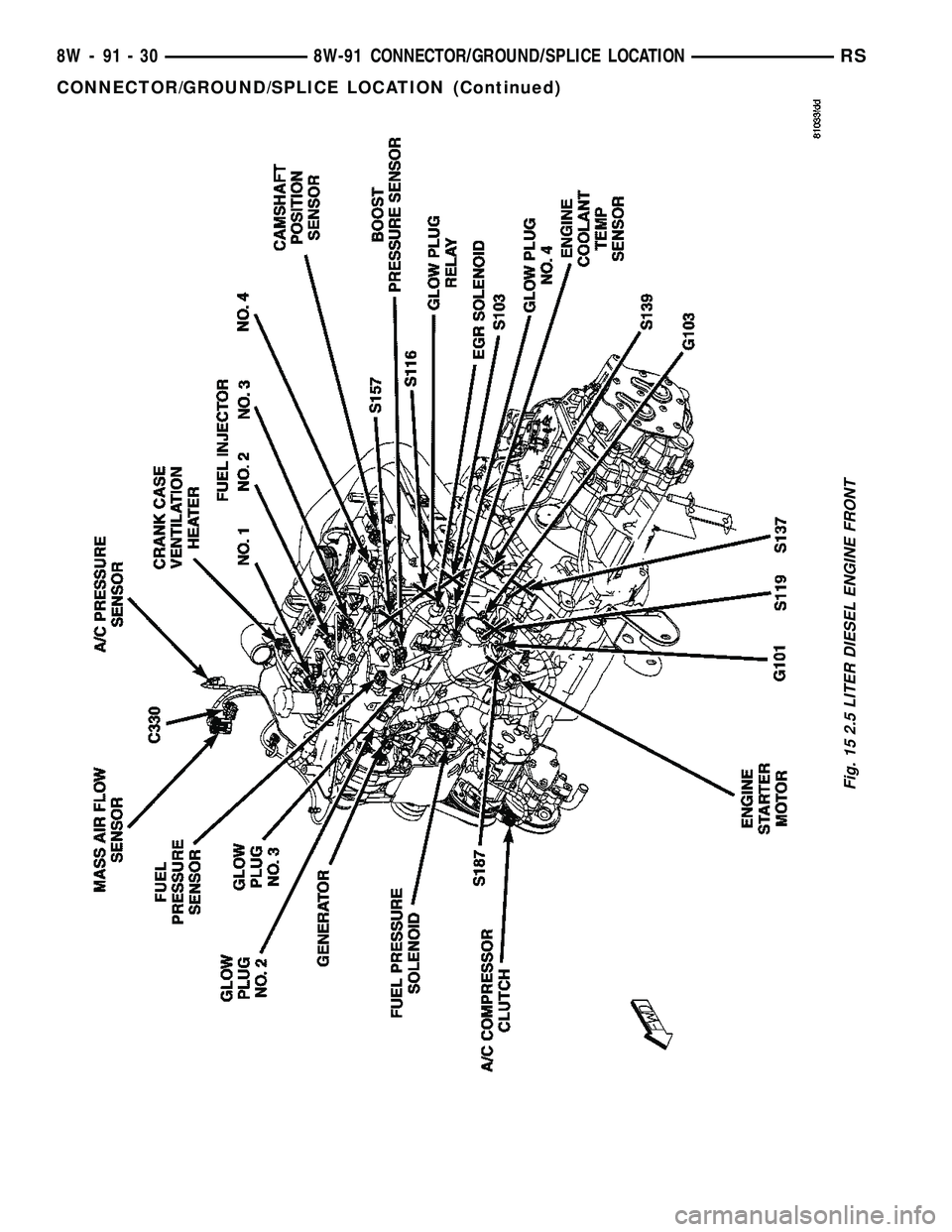

Fig. 15 2.5 LITER DIESEL ENGINE FRONT
8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 16 2.5 LITER DIESEL ENGINE REAR
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-31
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 17 3.3-3.8 LITER ENGINE REAR
8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 18 3.3-3.8 LITER ENGINE FRONT
RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

Fig. 19 AUTOMATIC TRANSMISSION
8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
