2005 CHEVROLET SUBURBAN Owners Manual

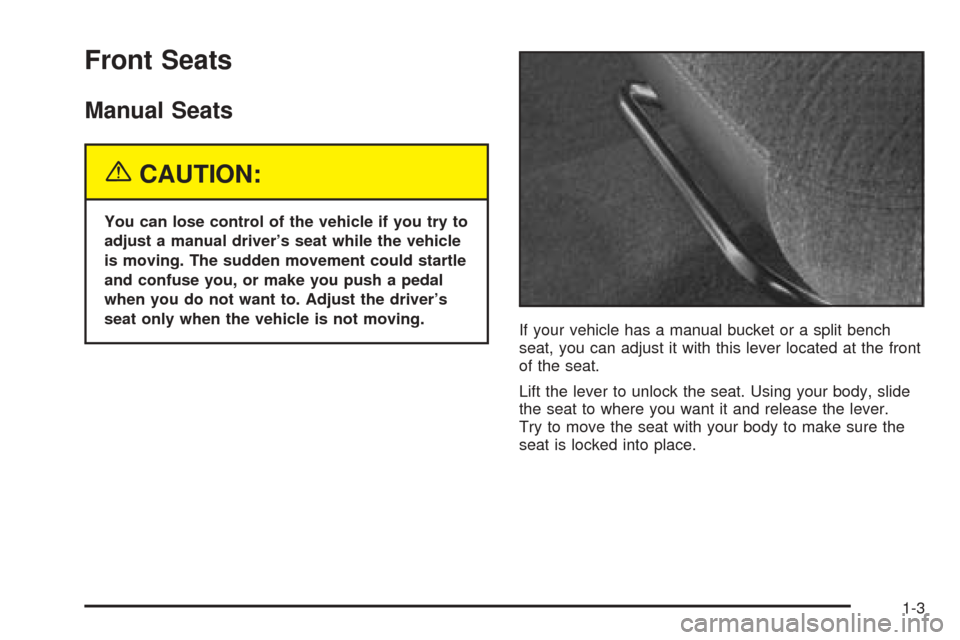

Front Seats
Manual Seats
{CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver’s seat while the vehicle
is moving. The sudden movement could startle
and confuse you, or make you push a pedal
when you do not want to. Adjust the driver’s
seat only when the vehicle is not moving.
If your vehicle has a manual bucket or a split bench
seat, you can adjust it with this lever located at the front
of the seat.
Lift the lever to unlock the seat. Using your body, slide
the seat to where you want it and release the lever.
Try to move the seat with your body to make sure the
seat is locked into place.
1-3

Power SeatsIf your vehicle has a power seat, you can adjust it
with these controls located on the outboard sides of
the seats.
Raise or lower the front of the seat cushion by
raising or lowering the forward edge of the
horizontal control.
Move the seat forward or rearward by moving the
whole horizontal control forward or rearward.
Raise or lower the rear of the seat cushion by
raising or lowering the rear edge of the horizontal
control.
Moving the whole horizontal control up or down
raises or lowers the entire seat cushion.
If your vehicle has power reclining seats, you can use
the vertical control to adjust the angle of the seatback.
Move the reclining front seatback rearward or forward
by moving the control toward the rear or the front of the
vehicle. SeeReclining Seatbacks on page 1-6.
1-4

Power Lumbar
Your vehicle’s seats may be equipped with power
lumbar.
You can increase or
decrease lumbar support
in an area of the lower
seatback with this control,
located on the outboard
sides of the front seat(s).To increase support, press and hold the front of the
control. To decrease support, press and hold the rear of
the control. Let go of the control when the lower
seatback reaches the desired level of support.
You can also reshape the side wing area of the lower
seatback for more lateral support.
To increase support, press and hold the top of the
control. To decrease support, press and hold the bottom
of the control. Let go of the control when the lower
seatback reaches the desired level of support.
Your vehicle may have a memory function which allows
seat settings to be saved and recalled. SeeMemory
Seat on page 2-61for more information.
1-5

Heated Seats
If your vehicle has this
feature, the button used to
control the driver’s
heated seat is located on
the driver’s door panel.
The button used to control
the passenger’s heated
seat is located on the
passenger’s door panel.
To heat the entire seat, press the horizontal button.
Press the button to cycle through the temperature
settings of high, medium, and low. The indicator light
will glow to indicate the level of heat selected.
To heat only the seatback, press the vertical button with
the heated seatback symbol. An indicator light on the
button will glow to designate that only the seatback
is being heated.
The engine must be running for them to operate.
The heated front seats will be canceled after the ignition
is turned off. If you still want to use the heated front
seat feature after you restart your vehicle, you will need
to press the heated seat button again.
Reclining Seatbacks
To adjust the front seatback, lift the manual lever
located on the outboard side of the seat. Release the
lever to lock the seatback where you want it. Lift
the lever again without pushing on the seatback and the
seatback will go to an upright position.
If your vehicle has power seats with a power recliner,
seePower Seats on page 1-4for further information on
how to operate the reclining seatback feature.
1-6

But don’t have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-7

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
To raise the head restraint pull up on the head restraint.
Your vehicle may have rear seat head restraints that
can be adjusted up and down.
Rear Seats
Rear Seat Operation
Entering or Exiting the Third Row Seats
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
Extended models:The passenger’s side of the
second row 60/40 or rear bucket seats has an easy
entry feature. This makes it easy to get in and out of the
third seat, if your vehicle has one.
To operate the easy entry seat turn the release lever,
located on the back of the seat upward.
Tilt the seatback toward the front of the vehicle by
pulling the top of the seat forward. When you do the seat
bottom will release. Pull the seat forward until it stops.
Be sure to return the seat to the passenger position
when nished. Push and pull on the seat to make sure
it is locked in place.
1-8

60/40 Split Bench Seat
Tahoe models:The rear seat may have a 60/40 split
seat which may be folded down to give you more
cargo space.
Extended models:The second row rear seat of
extended models may have a 60/40 split seat. Either
side of the rear seat my be folded down to provide
more cargo space.
Folding the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.Make sure that nothing is under or in front of the seat
and that the head restraints are completely lowered.
On Tahoe models the rear seatbacks may be equipped
with rearward folding head restraints. When the
seatback is being folded down, the head restraint will
automatically fold rearward to allow a at load oor
for cargo or entry to the third row seat (if equipped).
To fold, pull up on the
strap loop at the rear of
the seat cushion.
Then, pull the seat cushion
up and fold it forward.
1-9

After folding the seat cushion fully forward, pull the
seatback forward and fold the seatback down until it is
at. If the seatback cannot fold at because it
interferes with the cushion, try moving the seat forward
and/or bring the front seatback more upright. On the
passenger side of the extended models, the lever at the
base of the seat must be turned rearward to release
the seatback.
To create a load oor release the panels from the
seatback by pushing forward on the latch. Then fold the
panels back to cover the rear seat footwell area.To return the seat to the passenger position on a
extended model do the following:
1. Lift the oor load panels and latch them into the
seatback.
2. Lift the seatback up and push rearward all the way.
3. Lower the seat cushion until it latches into
position.
4. Pull forward on the seatback and up on the seat
cushion to make sure the seat is securely in
place.
Make sure that the buckles on the driver’s side seatback
are accessible to the outboard and center occupant
and are not under the seat cushions.
On regular models make sure the head restraints are
returned to the upright position.
1-10
