2005 CHEVROLET SSR engine coolant

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-13. Reset oil
life system. SeeEngine Oil Life System on page 5-16.An Emission
Control Service.••
Visually check for any leaks or damage.See footnote (g).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine
Air Cleaner/Filter on page 5-19.An Emission Control Service.
See footnotes † and (j).•
Check tire ination pressures and tire wear. SeeTires on page 5-52.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid
as needed.••
Perform any needed additional services. See “Additional Required Services”
in this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transmission uid level and add uid as needed.•
6-5

(d)Visually inspect wiper blades for wear or cracking.
Replace blade inserts that appear worn or damaged
or that streak or miss areas of the windshield.
(e)Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety belts
replaced. Also look for any opened or broken airbag
coverings, and have them repaired or replaced.
(The airbag system does not need regular maintenance.)
(f)Lubricate all key lock cylinders, all body door and
fuel door hinges, latches and locks, including glove box
and console doors, hood assembly, secondary latch,
pivots, spring anchor, release pawl and any moving seat
hardware. More frequent lubrication may be required
when exposed to a corrosive environment. Applying
silicone grease on weatherstrips with a clean cloth will
make them last longer, seal better and not stick or
squeak.
(g)A uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired
and the uid level checked. Add uid if needed.(h)Change automatic transmission uid and lter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
(i)Drain, ush and rell cooling system. This service
can be complex; you should have your dealer perform
this service. See Engine Coolant on page 5-26for
what to use. Inspect hoses. Clean radiator, condenser,
pressure cap and ller neck. Pressure test the cooling
system and pressure cap.
(j)If you drive regularly under dusty conditions, inspect
the lter at each engine oil change.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench
®dealer can assist
you with these checks and services.
6-8

Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-13for further
details.
Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary.
SeeEngine Coolant on page 5-26for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer tank and add the proper uid if necessary.
At Least Once a Month
Tire Inspection and Ination Check
Visually inspect your tires for wear and make sure
tires are inated to the correct pressures. SeeTires
on page 5-52for further details.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on page 2-23
if necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
6-9

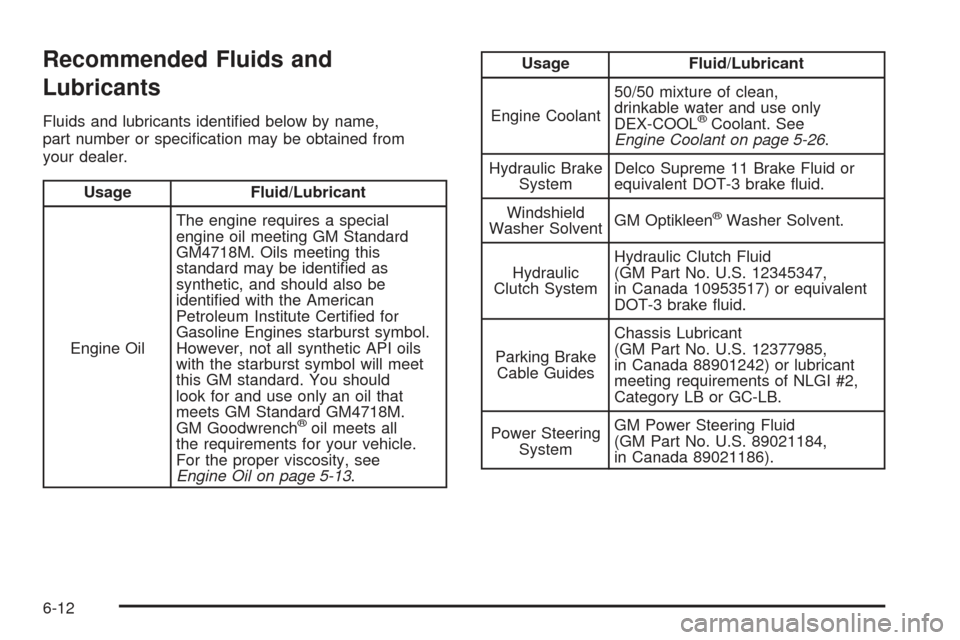

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name,
part number or specication may be obtained from
your dealer.
Usage Fluid/Lubricant
Engine OilThe engine requires a special
engine oil meeting GM Standard
GM4718M. Oils meeting this
standard may be identied as
synthetic, and should also be
identied with the American
Petroleum Institute Certied for
Gasoline Engines starburst symbol.
However, not all synthetic API oils
with the starburst symbol will meet
this GM standard. You should
look for and use only an oil that
meets GM Standard GM4718M.
GM Goodwrench
®oil meets all
the requirements for your vehicle.
For the proper viscosity, see
Engine Oil on page 5-13.
Usage Fluid/Lubricant
Engine Coolant50/50 mixture of clean,
drinkable water and use only
DEX-COOL
®Coolant. See
Engine Coolant on page 5-26.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Hydraulic
Clutch SystemHydraulic Clutch Fluid
(GM Part No. U.S. 12345347,
in Canada 10953517) or equivalent
DOT-3 brake uid.
Parking Brake
Cable GuidesChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
6-12

Child Restraints (cont.)
Older Children.............................................1-19
Securing a Child Restraint Designed for
the LATCH System...................................1-32
Securing a Child Restraint in the Passenger
Seat Position...........................................1-34
Top Strap...................................................1-28
Top Strap Anchor Location............................1-29
Cigarette Lighter.............................................3-19
Cleaning
Aluminum or Chrome-Plated Wheels..............5-79
Exterior Lamps/Lenses.................................5-78
Fabric/Carpet..............................................5-74
Finish Care.................................................5-78
Glass Surfaces............................................5-76
Instrument Panel.........................................5-76
Interior Plastic Components...........................5-76
Leather......................................................5-76
Tires..........................................................5-80
Underbody Maintenance...............................5-81
Vinyl..........................................................5-76
Washing Your Vehicle...................................5-77
Weatherstrips..............................................5-77
Windshield and Wiper Blades........................5-79
Climate Control System...................................3-20
Outlet Adjustment........................................3-22
Clutch, Hydraulic.............................................5-25Content Theft-Deterrent....................................2-13
Control of a Vehicle.......................................... 4-5
Convertible Top..............................................2-51
Lowering the Convertible Top........................2-53
Raising the Convertible Top..........................2-54
Coolant
Engine Temperature Gage............................3-32
Surge Tank Pressure Cap.............................5-28
Cooling System..............................................5-30
Cruise Control Lever......................................... 3-9
Cruise Control Light........................................3-37
Cupholder(s)..................................................2-35
Customer Assistance Information
Courtesy Transportation.................................. 7-8
Customer Assistance for Text
Telephone (TTY) Users............................... 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-6
Reporting Safety Defects to
General Motors........................................7-11
Reporting Safety Defects to the
Canadian Government..............................7-11
Reporting Safety Defects to the
United States Government.........................7-11
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-12
3

D
Daytime Running Lamps..................................3-14
Defensive Driving............................................. 4-2
Doing Your Own Service Work........................... 5-4
Door
Locks.......................................................... 2-9
Power Door Locks.......................................2-10
Programmable Automatic Door Locks.............2-10
Driver
Position, Safety Belt.....................................1-12
Driver Information Center (DIC).........................3-42
DIC Controls and Displays............................3-42
DIC Vehicle Personalization..........................3-52
DIC Warnings and Messages........................3-45
Driving
At Night.....................................................4-15
City...........................................................4-19
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-20
Hill and Mountain Roads..............................4-22
In Rain and on Wet Roads...........................4-16
Rocking Your Vehicle to Get it Out.................4-28
Winter........................................................4-24
E
Electrical System
Add-On Equipment......................................5-83
Engine Compartment Fuse Block...................5-88
Floor Console Fuse Block.............................5-85
Fuses and Circuit Breakers...........................5-84
Headlamps.................................................5-83
Power Windows and Other Power Options......5-84
Relay Center..............................................5-91
Windshield Wiper Fuses...............................5-84
Engine
Air Cleaner/Filter.........................................5-19
Battery.......................................................5-38
Change Engine Oil Light...............................3-37
Check and Service Engine Soon Light............3-32
Coolant......................................................5-26
Coolant Temperature Gage...........................3-32
Cover........................................................5-18
Engine Compartment Overview......................5-12
Exhaust.....................................................2-26
Oil .............................................................5-13
Overheating................................................5-28
Reduced Power Light...................................3-38
Speed Limiter.............................................3-26
Starting......................................................2-17
4

Event Data Recorders (EDR)............................7-10
Exit Lighting...................................................3-17
Extender, Safety Belt.......................................1-19
Exterior Lamps...............................................3-12
F
Filter
Engine Air Cleaner......................................5-19
Finish Damage...............................................5-80
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-66
Floor Tracks...................................................2-40
Fluid
Automatic Transmission................................5-21
Manual Transmission....................................5-24
Power Steering...........................................5-33
Windshield Washer......................................5-34
Fog Lamps....................................................3-15
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-39Fuel (cont.)
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Fuses
Engine Compartment Fuse Block...................5-88
Floor Console Fuse Block.............................5-85
Fuses and Circuit Breakers...........................5-84
Relay Center..............................................5-91
Windshield Wiper.........................................5-84
G
Gage
Auxiliary Package........................................3-40
Check Gages Warning Light..........................3-38
Engine Coolant Temperature.........................3-32
Fuel..........................................................3-39
Oil Pressure...............................................3-36
Speedometer..............................................3-25
Tachometer.................................................3-26
Garage Door Opener.......................................2-30
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-35
GM Mobility Reimbursement Program.................. 7-6
5
