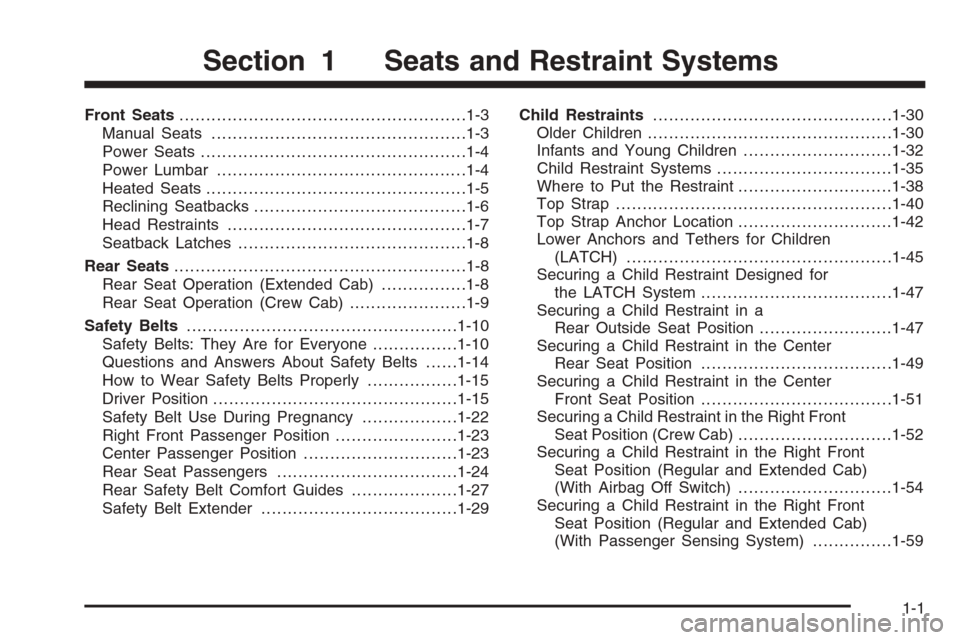

Front Seats......................................................1-3
Manual Seats................................................1-3
Power Seats..................................................1-4
Power Lumbar ...............................................1-4
Heated Seats.................................................1-5
Reclining Seatbacks........................................1-6
Head Restraints.............................................1-7
Seatback Latches...........................................1-8
Rear Seats.......................................................1-8
Rear Seat Operation (Extended Cab)................1-8
Rear Seat Operation (Crew Cab)......................1-9
Safety Belts...................................................1-10
Safety Belts: They Are for Everyone................1-10
Questions and Answers About Safety Belts......1-14
How to Wear Safety Belts Properly.................1-15
Driver Position..............................................1-15
Safety Belt Use During Pregnancy..................1-22
Right Front Passenger Position.......................1-23
Center Passenger Position.............................1-23
Rear Seat Passengers..................................1-24
Rear Safety Belt Comfort Guides....................1-27
Safety Belt Extender.....................................1-29Child Restraints.............................................1-30
Older Children..............................................1-30
Infants and Young Children............................1-32
Child Restraint Systems.................................1-35
Where to Put the Restraint.............................1-38
Top Strap....................................................1-40
Top Strap Anchor Location.............................1-42
Lower Anchors and Tethers for Children
(LATCH)..................................................1-45
Securing a Child Restraint Designed for
the LATCH System....................................1-47
Securing a Child Restraint in a
Rear Outside Seat Position.........................1-47
Securing a Child Restraint in the Center
Rear Seat Position....................................1-49
Securing a Child Restraint in the Center
Front Seat Position....................................1-51
Securing a Child Restraint in the Right Front
Seat Position (Crew Cab).............................1-52
Securing a Child Restraint in the Right Front
Seat Position (Regular and Extended Cab)
(With Airbag Off Switch).............................1-54
Securing a Child Restraint in the Right Front
Seat Position (Regular and Extended Cab)
(With Passenger Sensing System)...............1-59
Section 1 Seats and Restraint Systems
1-1

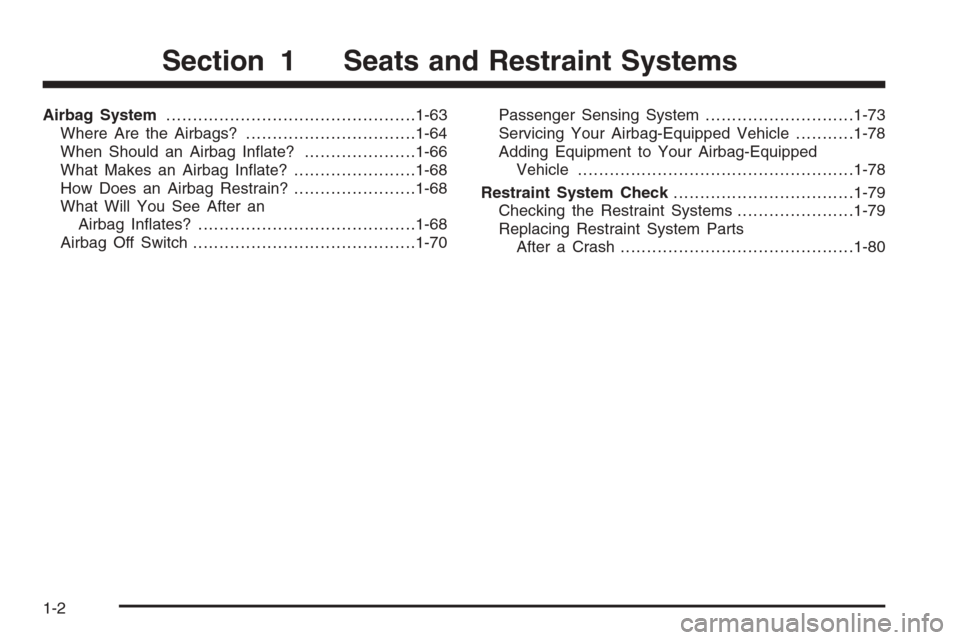

Airbag System...............................................1-63
Where Are the Airbags?................................1-64
When Should an Airbag Inate?.....................1-66
What Makes an Airbag Inate?.......................1-68
How Does an Airbag Restrain?.......................1-68
What Will You See After an
Airbag Inates?.........................................1-68
Airbag Off Switch..........................................1-70Passenger Sensing System............................1-73
Servicing Your Airbag-Equipped Vehicle...........1-78
Adding Equipment to Your Airbag-Equipped
Vehicle....................................................1-78
Restraint System Check..................................1-79
Checking the Restraint Systems......................1-79
Replacing Restraint System Parts
After a Crash............................................1-80
Section 1 Seats and Restraint Systems
1-2

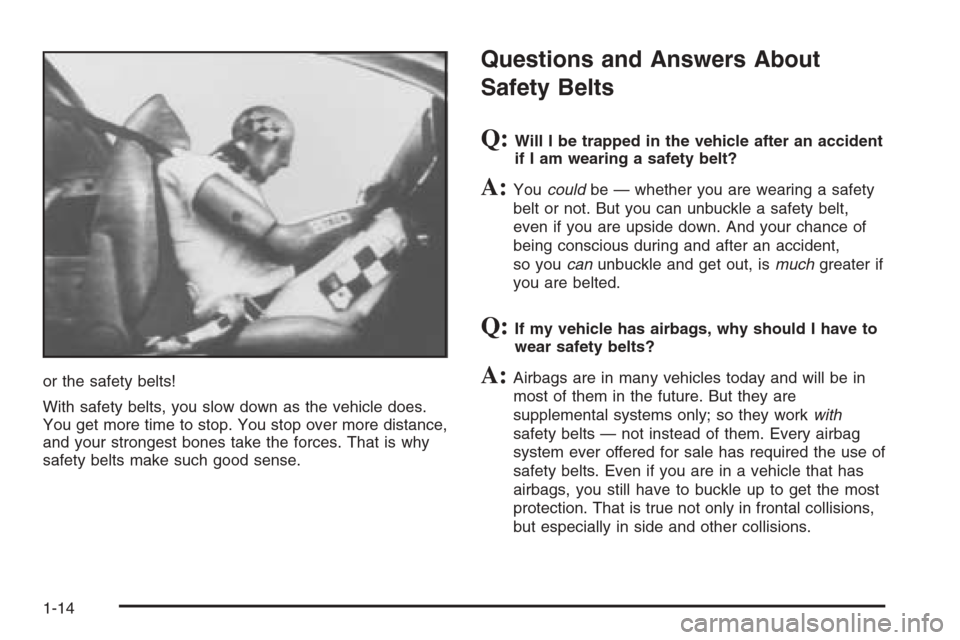

or the safety belts!
With safety belts, you slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That is why
safety belts make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an accident
if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you are upside down. And your chance of
being conscious during and after an accident,
so youcanunbuckle and get out, ismuchgreater if
you are belted.
Q:If my vehicle has airbags, why should I have to
wear safety belts?
A:Airbags are in many vehicles today and will be in
most of them in the future. But they are
supplemental systems only; so they workwith
safety belts — not instead of them. Every airbag
system ever offered for sale has required the use of
safety belts. Even if you are in a vehicle that has
airbags, you still have to buckle up to get the most
protection. That is true not only in frontal collisions,
but especially in side and other collisions.
1-14

Right Front Passenger Position
To learn how to wear the right front passenger’s safety
belt properly, seeDriver Position on page 1-15.
The right front passenger’s safety belt works the same
way as the driver’s safety belt — except for one thing.
If you ever pull the shoulder portion of the belt out all the
way, you will engage the child restraint locking feature
which may turn off the passenger’s frontal airbag.
If this happens unintentionally, just let the belt go back
all the way and start again.
Center Passenger Position
If your vehicle has front and rear bench seats, someone
can sit in the center positions.
When you sit in the center rear seat position of a crew
cab, you have a lap-shoulder belt which is similar to
the rear outside seat positions. To learn how to wear
this belt see “Lap-Shoulder Belt” underRear Seat
Passengers on page 1-24.
Lap Belt
When you sit in a center rear seat position of an
extended cab or in the center front seat position of a
crew cab, an extended cab, or a regular cab, you have
a lap belt.
Your lap safety belt has no retractor. To make the belt
longer, tilt the latch plate and pull it along the belt.
1-23

{CAUTION:
People should never hold a baby in their arms
while riding in a vehicle. A baby does not
weigh much — until a crash. During a crash a
baby will become so heavy it is not possible to
hold it. For example, in a crash at only 25 mph
(40 km/h), a 12 lb (5.5 kg) baby will suddenly
become a 240 lb (110 kg) force on a person’s
arms. A baby should be secured in an
appropriate restraint.
{CAUTION:
Children who are up against, or very close to,
any airbag when it inates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer protection for adults and older
children, but not for young children and
infants. Neither the vehicle’s safety belt system
nor its airbag system is designed for them.
Young children and infants need the protection
that a child restraint system can provide.
1-33

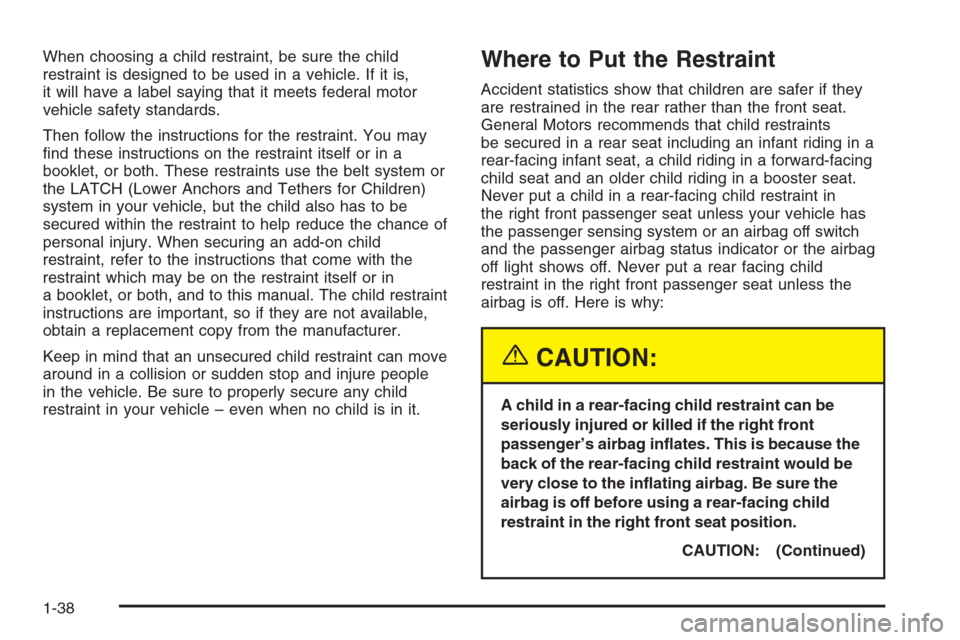

When choosing a child restraint, be sure the child
restraint is designed to be used in a vehicle. If it is,
it will have a label saying that it meets federal motor
vehicle safety standards.
Then follow the instructions for the restraint. You may
nd these instructions on the restraint itself or in a
booklet, or both. These restraints use the belt system or
the LATCH (Lower Anchors and Tethers for Children)
system in your vehicle, but the child also has to be
secured within the restraint to help reduce the chance of
personal injury. When securing an add-on child
restraint, refer to the instructions that come with the
restraint which may be on the restraint itself or in
a booklet, or both, and to this manual. The child restraint
instructions are important, so if they are not available,
obtain a replacement copy from the manufacturer.
Keep in mind that an unsecured child restraint can move
around in a collision or sudden stop and injure people
in the vehicle. Be sure to properly secure any child
restraint in your vehicle – even when no child is in it.Where to Put the Restraint
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat.
General Motors recommends that child restraints
be secured in a rear seat including an infant riding in a
rear-facing infant seat, a child riding in a forward-facing
child seat and an older child riding in a booster seat.
Never put a child in a rear-facing child restraint in
the right front passenger seat unless your vehicle has
the passenger sensing system or an airbag off switch
and the passenger airbag status indicator or the airbag
off light shows off. Never put a rear facing child
restraint in the right front passenger seat unless the
airbag is off. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because the
back of the rear-facing child restraint would be
very close to the inating airbag. Be sure the
airbag is off before using a rear-facing child
restraint in the right front seat position.
CAUTION: (Continued)
1-38

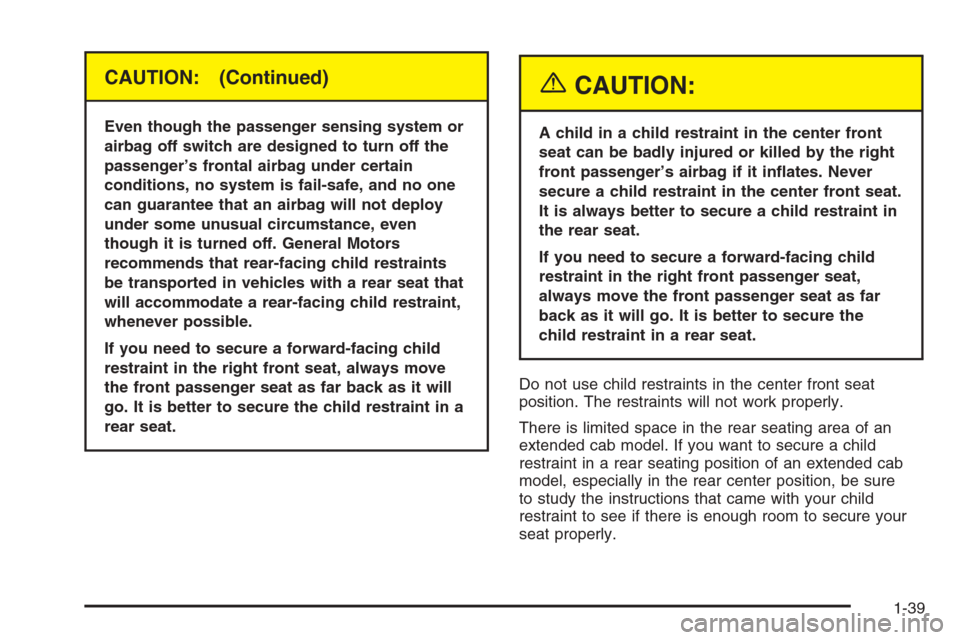

CAUTION: (Continued)
Even though the passenger sensing system or
airbag off switch are designed to turn off the
passenger’s frontal airbag under certain
conditions, no system is fail-safe, and no one
can guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. General Motors
recommends that rear-facing child restraints
be transported in vehicles with a rear seat that
will accommodate a rear-facing child restraint,
whenever possible.
If you need to secure a forward-facing child
restraint in the right front seat, always move
the front passenger seat as far back as it will
go. It is better to secure the child restraint in a
rear seat.
{CAUTION:
A child in a child restraint in the center front
seat can be badly injured or killed by the right
front passenger’s airbag if it inates. Never
secure a child restraint in the center front seat.
It is always better to secure a child restraint in
the rear seat.
If you need to secure a forward-facing child
restraint in the right front passenger seat,
always move the front passenger seat as far
back as it will go. It is better to secure the
child restraint in a rear seat.
Do not use child restraints in the center front seat
position. The restraints will not work properly.
There is limited space in the rear seating area of an
extended cab model. If you want to secure a child
restraint in a rear seating position of an extended cab
model, especially in the rear center position, be sure
to study the instructions that came with your child
restraint to see if there is enough room to secure your
seat properly.
1-39

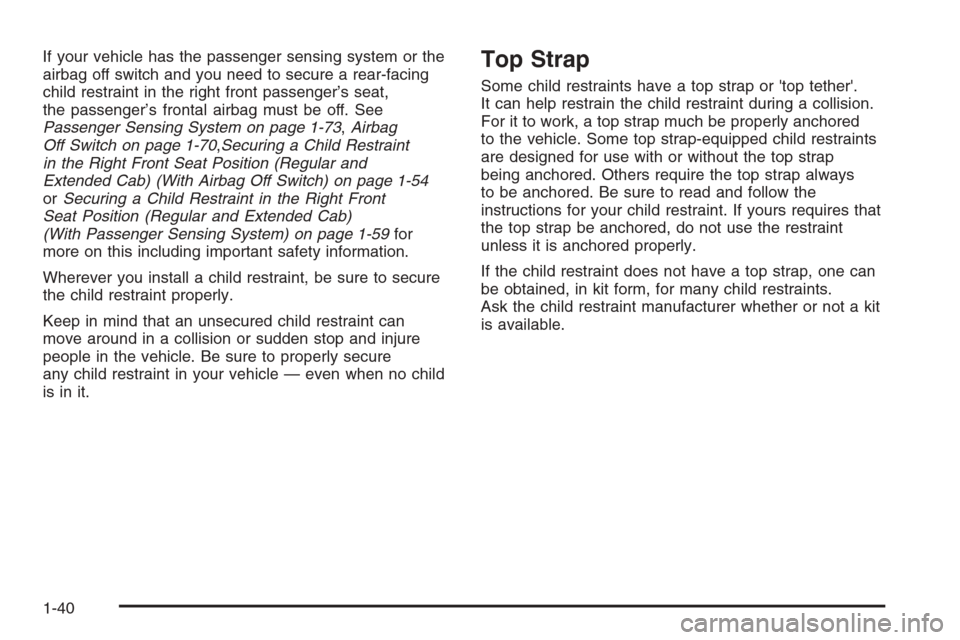

If your vehicle has the passenger sensing system or the
airbag off switch and you need to secure a rear-facing
child restraint in the right front passenger’s seat,
the passenger’s frontal airbag must be off. See
Passenger Sensing System on page 1-73,Airbag
Off Switch on page 1-70,Securing a Child Restraint
in the Right Front Seat Position (Regular and
Extended Cab) (With Airbag Off Switch) on page 1-54
orSecuring a Child Restraint in the Right Front
Seat Position (Regular and Extended Cab)
(With Passenger Sensing System) on page 1-59for
more on this including important safety information.
Wherever you install a child restraint, be sure to secure
the child restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and injure
people in the vehicle. Be sure to properly secure
any child restraint in your vehicle — even when no child
is in it.Top Strap
Some child restraints have a top strap or 'top tether'.
It can help restrain the child restraint during a collision.
For it to work, a top strap much be properly anchored
to the vehicle. Some top strap-equipped child restraints
are designed for use with or without the top strap
being anchored. Others require the top strap always
to be anchored. Be sure to read and follow the
instructions for your child restraint. If yours requires that
the top strap be anchored, do not use the restraint
unless it is anchored properly.
If the child restraint does not have a top strap, one can
be obtained, in kit form, for many child restraints.
Ask the child restraint manufacturer whether or not a kit
is available.
1-40
