2005 CHEVROLET EXPRESS PASSANGER turn signal

5. Remove the three nuts on the taillamp assembly.
6. Remove the taillamp assembly from the vehicle.
7. Remove the bulb socket by squeezing the tab on
the side of the socket while turning it
counterclockwise.
8. Turn the bulb counterclockwise to remove it.
9. Install a new bulb.
10. Reverse the steps to reinstall the taillamp assembly.Replacement Bulbs
Exterior Lamp Bulb Number
Back-up, Rear Parking,
Stoplamp, and Turn Signal Lamp3157
CHMSL 912
Front Parking and Turn
Signal Lamp3157KX
Front Sidemarker Lamp 194
Headlamps
Composite High-Beam 9005
Composite Low-Beam 9006GS
Sealed Beam Headlamp H6054
For replacement bulbs not listed here, contact your
dealer.
5-51

Fuse Usage
1 Spare
2 Outside Rear View Mirror
3 Courtesy Lamp/SEO
4 Left Rear Stop/Turn Signal
5 Cargo Locks
6 Right Rear Stop/Turn Signal
7 Driver Locks
8Stop/Center High Mounted
Stop Lamp
9 Climate Control 1
10 Climate Control
11 Brakes
12 Heated Mirror/Defogger
13 Right Rear Blower
14 Driver Turn Mirror
15 Door Locks
16 Uptter Park
17 Not Available
18 Left Rear Park Lamp
19 Pass Turn Mirror
20 Right Rear Park LampFuse Usage
21 Trailer Park Lamp
22 Front Park Lamp
32 Auxilary 1
33 Auxilary 2
Relays Usage
23 Window Residual Accessory Power
24 Auxiliary
25 Right Rear Defogger
26 Courtesy Lamp
27 Cargo Unlock
28 Driver Unlock
29 Park Lamp
30 Door Locks
31 Passenger Unlock
Circuit Breaker Usage
34 Power Window
5-97

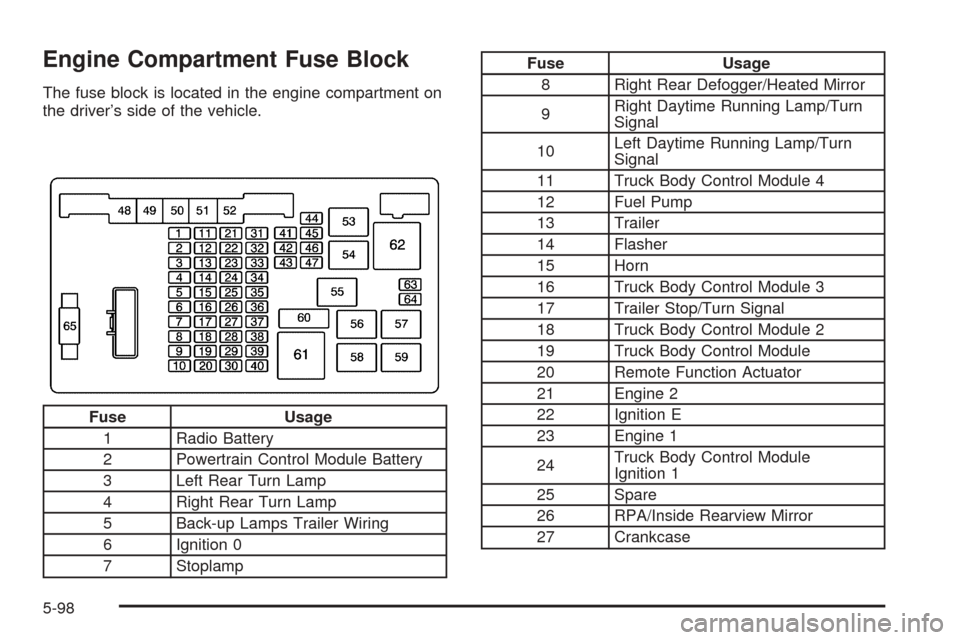

Engine Compartment Fuse Block
The fuse block is located in the engine compartment on
the driver’s side of the vehicle.
Fuse Usage
1 Radio Battery
2 Powertrain Control Module Battery
3 Left Rear Turn Lamp
4 Right Rear Turn Lamp
5 Back-up Lamps Trailer Wiring
6 Ignition 0
7 Stoplamp
Fuse Usage
8 Right Rear Defogger/Heated Mirror
9Right Daytime Running Lamp/Turn
Signal
10Left Daytime Running Lamp/Turn
Signal
11 Truck Body Control Module 4
12 Fuel Pump
13 Trailer
14 Flasher
15 Horn
16 Truck Body Control Module 3
17 Trailer Stop/Turn Signal
18 Truck Body Control Module 2
19 Truck Body Control Module
20 Remote Function Actuator
21 Engine 2
22 Ignition E
23 Engine 1
24Truck Body Control Module
Ignition 1
25 Spare
26 RPA/Inside Rearview Mirror
27 Crankcase
5-98

Audio System(s) (cont.)
Setting the Time for Radios without Radio
Data Systems (RDS)................................3-42
Theft-Deterrent Feature................................3-70
Understanding Radio Reception.....................3-71
Automatic Transmission
Fluid..........................................................5-19
Operation...................................................2-24
B
Battery..........................................................5-38
Run-Down Protection...................................3-16
Before Leaving on a Long Trip.........................4-22
Brake
Anti-Lock Brake System (ABS)........................ 4-6
Emergencies................................................ 4-8
Parking......................................................2-26
System Warning Light..................................3-31
Brakes..........................................................5-34
Braking........................................................... 4-5
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-20
Bulb Replacement...........................................5-47
Center High-Mounted Stoplamp (CHMSL)........5-50
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-49
Halogen Bulbs............................................5-47Bulb Replacement (cont.)
Headlamps.................................................5-47
Replacement Bulbs......................................5-51
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-50
Buying New Tires...........................................5-65
C
California Fuel.................................................. 5-5
Canadian Owners................................................ ii
Capacities and Specications..........................5-100
Carbon Monoxide...........................2-29, 4-26, 4-38
Care of
Safety Belts................................................5-89
Your Cassette Tape Player............................3-71
Your CD Player...........................................3-73
Your CDs ...................................................3-72
Cargo Door Relocking....................................... 2-9
Center High-Mounted Stoplamp (CHMSL)...........5-50
Center Passenger Position, Safety Belts.....1-23, 1-24
Chains, Tire...................................................5-69
Charging System Light....................................3-30
Check
Engine Light...............................................3-34
Gages Warning Light...................................3-40
Checking Things Under the Hood......................5-10
Chemical Paint Spotting...................................5-93
2

Headlamps (cont.)
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-49
Halogen Bulbs............................................5-47
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-14
Heater...........................................................3-18
Highbeam On Light.........................................3-39
Highway Hypnosis...........................................4-23
Hill and Mountain Roads..................................4-24
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-20
Infants and Young Children, Restraints...............1-33
Ination -- Tire Pressure..................................5-60
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-15
Cluster.......................................................3-25
J
Jump Starting.................................................5-39
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
L
Labelling, Tire Sidewall....................................5-53
Lamps
Battery Run-Down Protection.........................3-16
Dome........................................................3-15
Dome Lamp Override...................................3-15
Exterior......................................................3-13
Reading.....................................................3-16
LATCH System
Child Restraints...........................................1-50
Securing a Child Restraint Designed for the
LATCH System........................................1-52
Light
Airbag Off..................................................3-28
Airbag Readiness........................................3-27
Anti-Lock Brake System Warning...................3-32
Brake System Warning.................................3-31
6

S
Safety Belt
Pretensioners..............................................1-30
Reminder Light............................................3-27
Safety Belts
Care of......................................................5-89
Center Passenger Position....................1-23, 1-24
Driver Position............................................1-15
How to Wear Safety Belts Properly................1-15
Questions and Answers About Safety Belts.....1-14
Rear Safety Belt Comfort Guides for Children
and Small Adults......................................1-27
Rear Seat Passengers.................................1-25
Right Front Passenger Position......................1-23
Safety Belt Extender....................................1-30
Safety Belt Use During Pregnancy.................1-23
Safety Belts Are for Everyone.......................1-10
Shoulder Belt Height Adjuster........................1-22
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seats
Manual........................................................ 1-3
Power Seat.................................................. 1-4
Rear Seat Operation...................................... 1-6
Reclining Seatbacks...................................... 1-4
Secondary Latch System.................................5-80
Securing a Child Restraint
Center Seat Position....................................1-56
Designed for the LATCH System...................1-52Securing a Child Restraint (cont.)
Rear Outside Seat Position...........................1-53
Right Front Seat Position..............................1-57
Security Light.................................................3-38
Service........................................................... 5-3
Adding Equipment to the Outside of Your
Vehicle..................................................... 5-5
Doing Your Own Work................................... 5-4
Engine Soon Light.......................................3-34
Publications Ordering Information...................7-12
Servicing Your Airbag-Equipped Vehicle..............1-71
Setting the Time
Radios with Radio Data Systems (RDS).........3-42
Radios without Radio Data Systems (RDS).....3-42
Sheet Metal Damage.......................................5-92
Shifting Into Park (P).......................................2-27
Shifting Out of Park (P)...................................2-28
Shoulder Belt Height Adjuster...........................1-22
Signals, Turn and Lane-Change.......................... 3-7
Sliding Side Door............................................2-11
Spare Tire.....................................................5-86
Installing....................................................5-75
Removing...................................................5-72
Storing.......................................................5-84
Specications, Capacities...............................5-100
Speedometer..................................................3-26
StabiliTrak
®System.......................................... 4-8
StabiliTrak®Indicator Light................................3-33
StabiliTrak®Not Ready Light.............................3-33
Starting Your Engine.......................................2-21
10

Steering........................................................4-11
Steering Wheel, Tilt Wheel................................. 3-6
Storage Areas................................................2-35
Stuck in Sand, Mud, Ice or Snow......................4-30
Sun Visors.....................................................2-18
Swing-Out Side Door, 60/40.............................2-13
Swing-Out Windows........................................2-18
T
Taillamps
Turn Signal, Stoplamps and Back-up Lamps....5-50
Theft-Deterrent, Radio.....................................3-70
Theft-Deterrent Systems...................................2-19
Passlock
®...................................................2-19
Tilt Wheel........................................................ 3-6
Tires.............................................................5-53
Aluminum Wheels, Cleaning..........................5-92
Buying New Tires........................................5-65
Chains.......................................................5-69
Changing a Flat Tire....................................5-70
Cleaning....................................................5-92
Dual Tire Operation.....................................5-62
If a Tire Goes Flat.......................................5-70
Ination -- Tire Pressure...............................5-60
Inspection and Rotation................................5-62
Installing the Spare Tire................................5-75Tires (cont.)
Removing the Flat Tire.................................5-75
Removing the Spare Tire and Tools...............5-72
Secondary Latch System..............................5-80
Spare Tire..................................................5-86
Storing a Flat or Spare Tire and Tools............5-84
Tire Sidewall Labelling..................................5-53
Tire Terminology and Denitions....................5-58
Uniform Tire Quality Grading.........................5-66
Wheel Alignment and Tire Balance.................5-67
Wheel Replacement.....................................5-67
When It Is Time for New Tires......................5-64
Top Strap......................................................1-47
Top Strap Anchor Location...............................1-48
Tow/Haul Mode Light.......................................3-39
Towing
Recreational Vehicle.....................................4-36
Towing a Trailer..........................................4-38
Your Vehicle...............................................4-36
Traction
StabiliTrak
®System....................................... 4-8
Transmission
Fluid, Automatic...........................................5-19
Transmission Operation, Automatic....................2-24
Trip Odometer................................................3-26
Turn and Lane-Change Signals.......................... 3-7
Turn Signal/Multifunction Lever........................... 3-6
11
