2005 CHEVROLET EXPRESS CARGO VAN Owners Manual

A. Top Tether Hook
B. Lower AnchorageA. Lower Anchorage
B. Lower Anchorage
In order to use the LATCH system in your vehicle, you
need a child restraint designed for that system.
To assist you in locating the
lower anchors for this child
restraint system, each
seating position with the
LATCH system has a label
on the seatback at each
lower anchor position.
1-51

The LATCH system labels are located in the second
row outside seating positions.
{CAUTION:
If a LATCH-type child restraint is not attached
to its anchorage points, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured or
killed. Make sure that a LATCH-type child
restraint is properly installed using the
anchorage points, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint, and
also the instructions in this manual.
Securing a Child Restraint Designed
for the LATCH System
1. Find the LATCH anchorages for the seating
position you want to use, where the bottom of the
seatback meets the back of the seat cushion.
SeeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-50.
2. Put the child restraint on the seat.
3. Attach and tighten the LATCH attachments on the
child restraint to the LATCH anchorages in the
vehicle. The child restraint instructions will show
you how.
4. If the child restraint is forward-facing, attach and
tighten the top tether to the top tether anchorage.
The child restraint instructions will show you
how. Also seeTop Strap on page 1-47.
5. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, simply unhook the top
tether from the top tether anchorage and then
disconnect the LATCH attachments from the LATCH
anchorages.
1-52

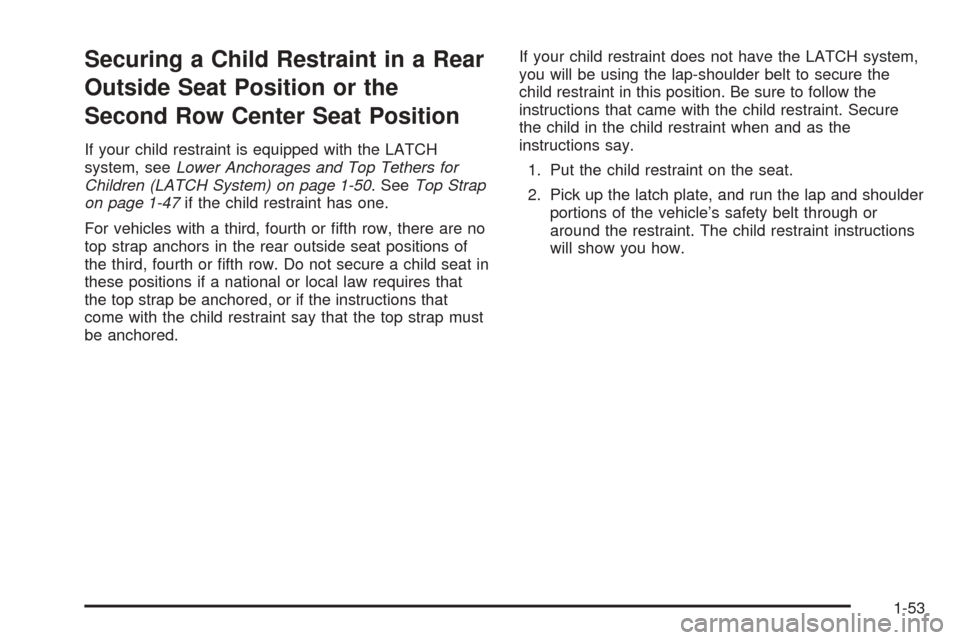

Securing a Child Restraint in a Rear
Outside Seat Position or the
Second Row Center Seat Position
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-50. SeeTop Strap
on page 1-47if the child restraint has one.
For vehicles with a third, fourth or fth row, there are no
top strap anchors in the rear outside seat positions of
the third, fourth or fth row. Do not secure a child seat in
these positions if a national or local law requires that
the top strap be anchored, or if the instructions that
come with the child restraint say that the top strap must
be anchored.If your child restraint does not have the LATCH system,
you will be using the lap-shoulder belt to secure the
child restraint in this position. Be sure to follow the
instructions that came with the child restraint. Secure
the child in the child restraint when and as the
instructions say.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
1-53

3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-54

5. To tighten the belt, pull the shoulder portion of the
belt to tighten the lap portion of the belt and feed
the shoulder belt back into the retractor. If you
are using a forward-facing child restraint, you may
nd it helpful to use your knee to push down on
the child restraint as you tighten the belt.6. If you are using the center seating position in the
second row, and your child restraint manufacturer
recommends using a top strap, attach and
tighten the top strap to one of the two top strap
anchors. The child restraint instructions will
show you how. Do not attach the top strap to the
same anchor used for one of the other seating
positions. Also seeTop Strap on page 1-47
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.
1-55

Securing a Child Restraint in a
Center Seat Position (3rd, 4th and
5th Row)
If your child restraint is equipped with the LATCH
system, seeLower Anchorages and Top Tethers for
Children (LATCH System) on page 1-50. SeeTop Strap
on page 1-47if the child restraint has one.
There are no top strap anchors in any four-passenger
bench seat positions (if equipped). Do not secure a child
seat in these positions if a national or local law
requires that the top strap must be anchored.
If your child restraint does not have the LATCH system,
you will be using the lap belt to secure the child
restraint in this position.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.
2. Put the child restraint on the seat.
3. Run the vehicle’s safety belt through or around the
restraint. The child restraint instructions will show
you how.
1-56

4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you push
down on the child restraint. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle’s
safety belt. It will be ready to work for an adult or larger
child passenger.
Securing a Child Restraint in the
Right Front Seat Position
If your child restraint has the LATCH system, seeLower
Anchorages and Top Tethers for Children (LATCH
System) on page 1-50.
If your vehicle is a passenger van, there is no top strap
anchor in the right front passenger’s position. Do not
secure a child seat in this position if a national or local
law requires that the top strap be anchored, or if the
instructions that come with the child restraint say that the
top strap must be anchored. SeeTop Strap on
page 1-47if the child restraint has one.
1-57

Unless your vehicle has an airbag off switch and you
have used it to turn the passenger’s airbag off, never put
a rear-facing child restraint in the right front passenger’s
seat. Here is why:
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is because the
back of the rear-facing child restraint would be
very close to the inating airbag. If your vehicle
is a passenger van, always secure a rear-facing
child restraint in a rear seat. If your vehicle is a
cargo van with a right front passenger airbag
and an airbag off switch, be sure to turn off the
airbag before using a rear-facing child restraint
in the right front seat position. If your vehicle is
a cargo van with a right front passenger airbag
but does not have an airbag off switch, do not
use a rear-facing child restraint in this vehicle.
CAUTION: (Continued)
CAUTION: (Continued)
Even though the airbag off switch is designed
to turn off the passenger’s frontal airbag, no
system is fail-safe and no one can guarantee
that an airbag will not deploy under some
unusual circumstance, even though it is turned
off. GM recommends that rear-facing child
restraints be transported in vehicles with a
rear seat that will accommodate a rear-facing
child restraint whenever possible.
If you need to secure a forward-facing child
restraint in the right front passenger position,
always move the passenger seat as far back as
it will go.
A rear seat is a safer place to secure a forward-facing
child restraint. SeeWhere to Put the Restraint on
page 1-43.
1-58
